Removal Procedure

  1. Release the retainer tab from the left side of the throttle actuator control (TAC) module.
  2. Slowly slide the TAC module out of the retaining bracket.
  3. Disconnect the TAC module harness connectors from the TAC module.

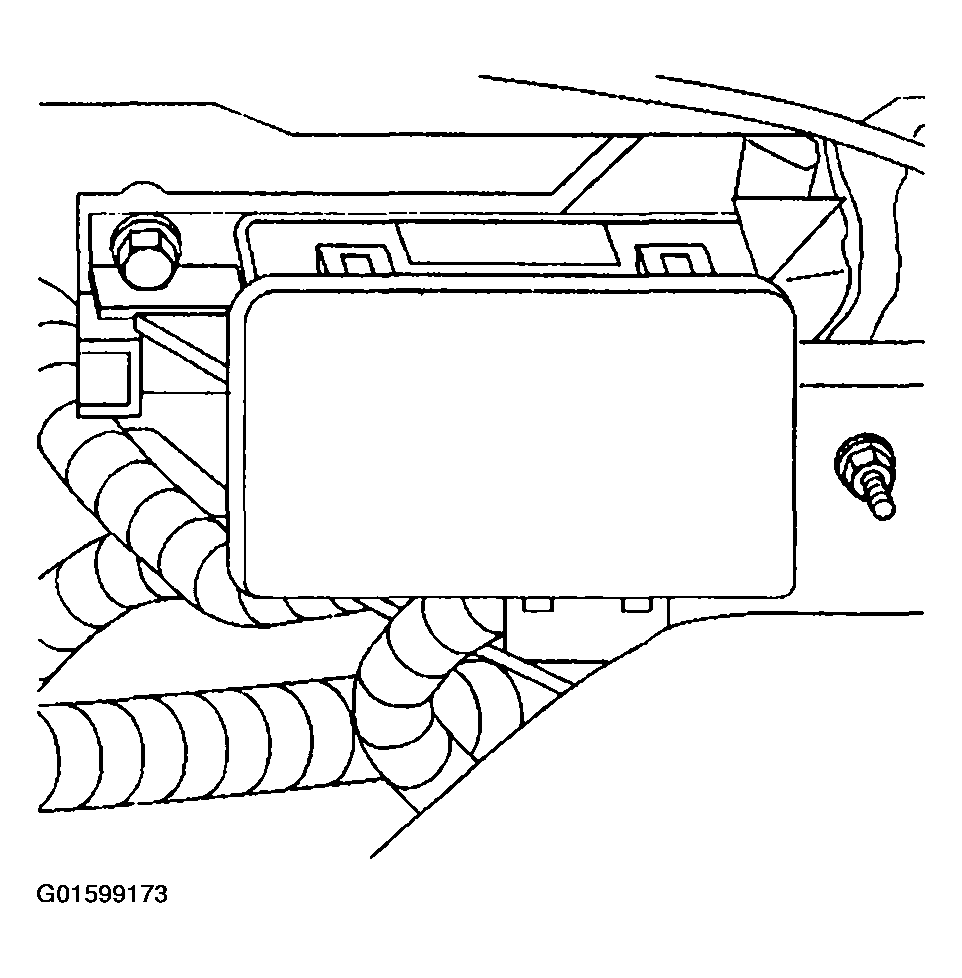

    Fig 1: TAC Module
    G01599173Courtesy of GENERAL MOTORS CORP.
