Special Tools and Equipment
Fig 1: Special Tools & Equipment (1 Of 5)
Courtesy of GENERAL MOTORS CORP.

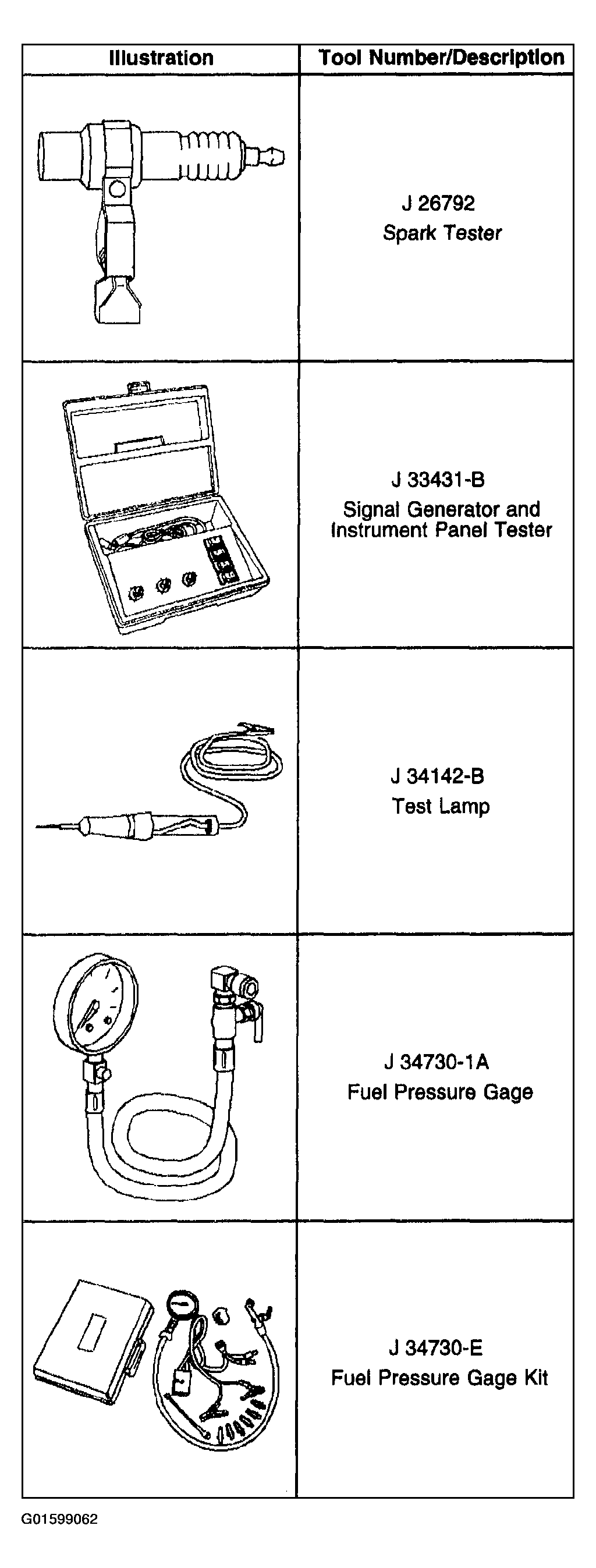

Fig 2: Special Tools & Equipment (2 Of 5)
Courtesy of GENERAL MOTORS CORP.

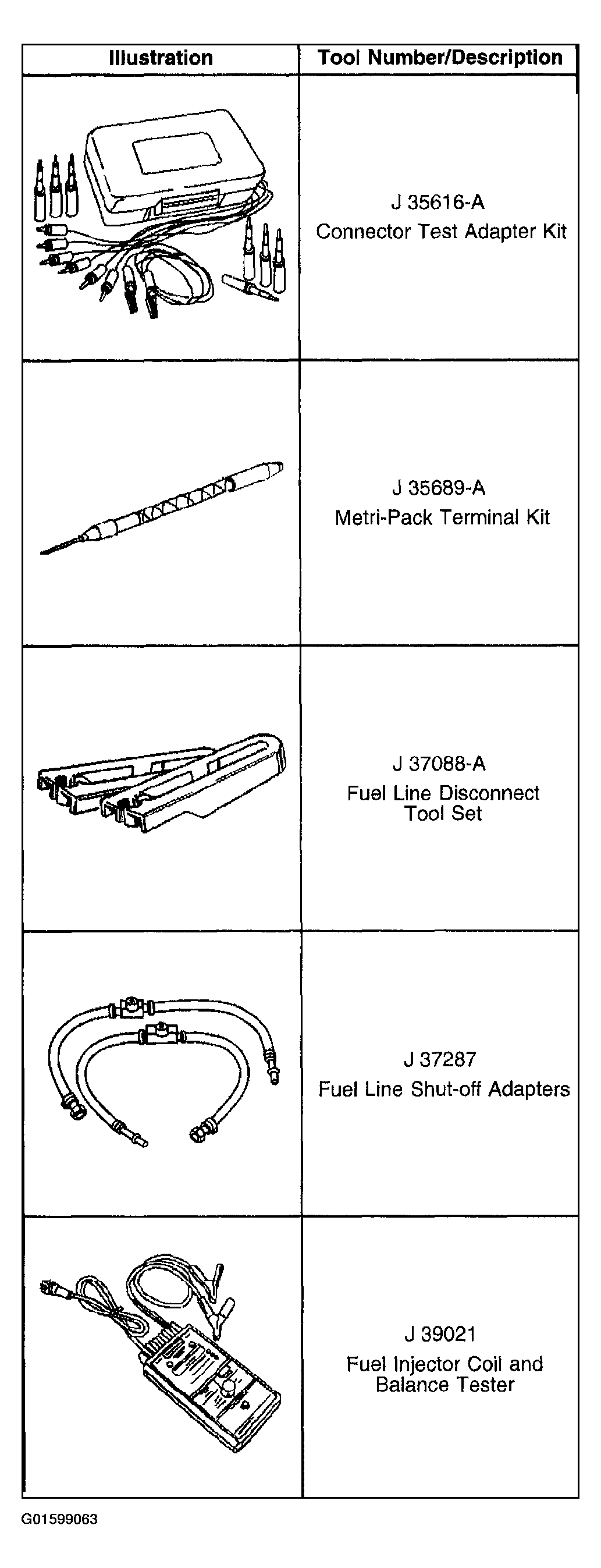

Fig 3: Special Tools & Equipment (3 Of 5)
Courtesy of GENERAL MOTORS CORP.

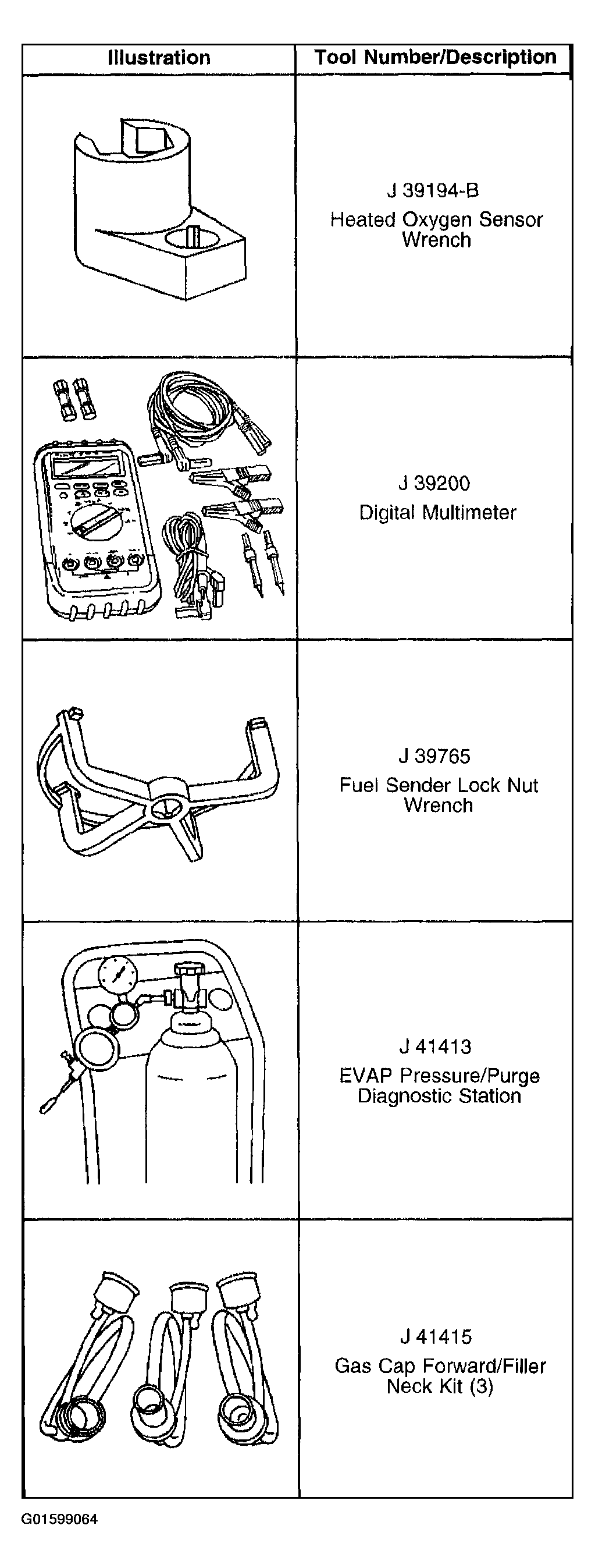

Fig 4: Special Tools & Equipment (4 Of 5)
Courtesy of GENERAL MOTORS CORP.

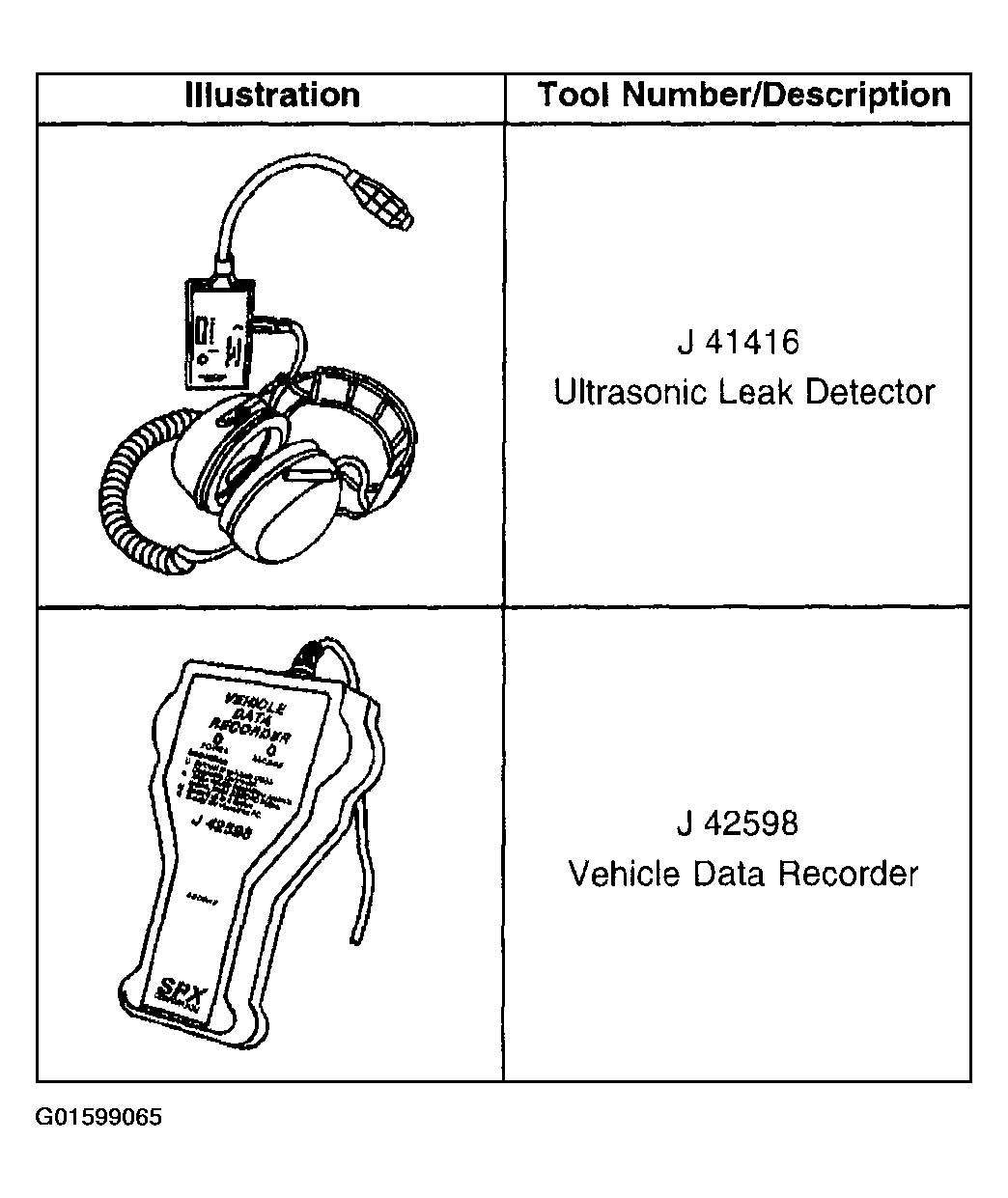

Fig 5: Special Tools & Equipment (5 Of 5)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
