Ignition System Specifications

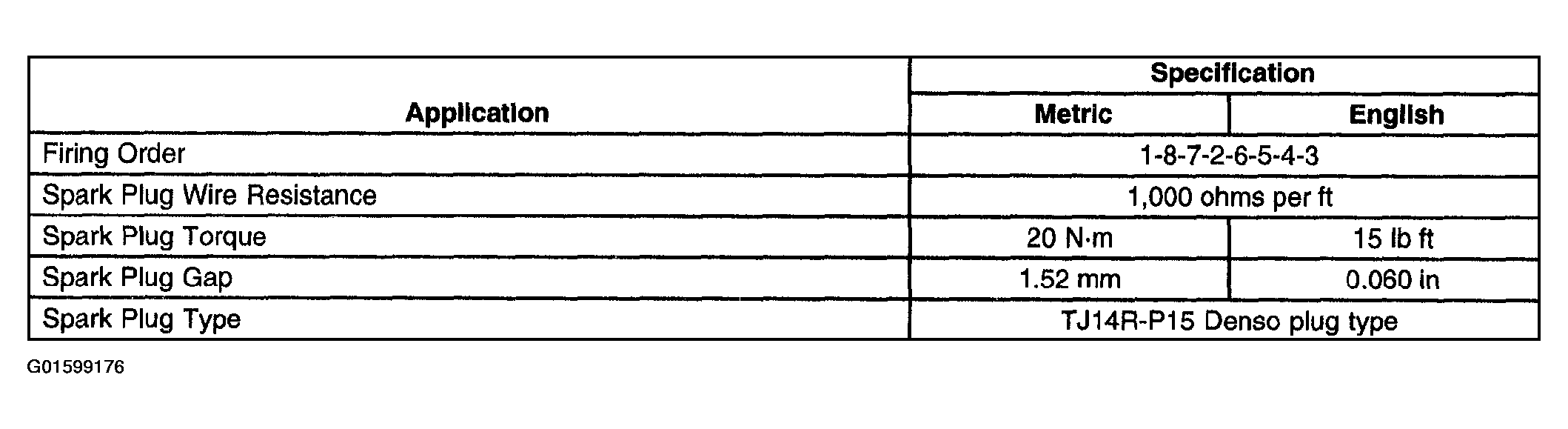

Fig 1: Ignition System Specifications
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
