Home
>>
GMC
>>
2002
>>
C3500 HD 8.1 G, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - 8.1L
>>
Specifications
>>
Temperature vs Resistance
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Temperature vs Resistance

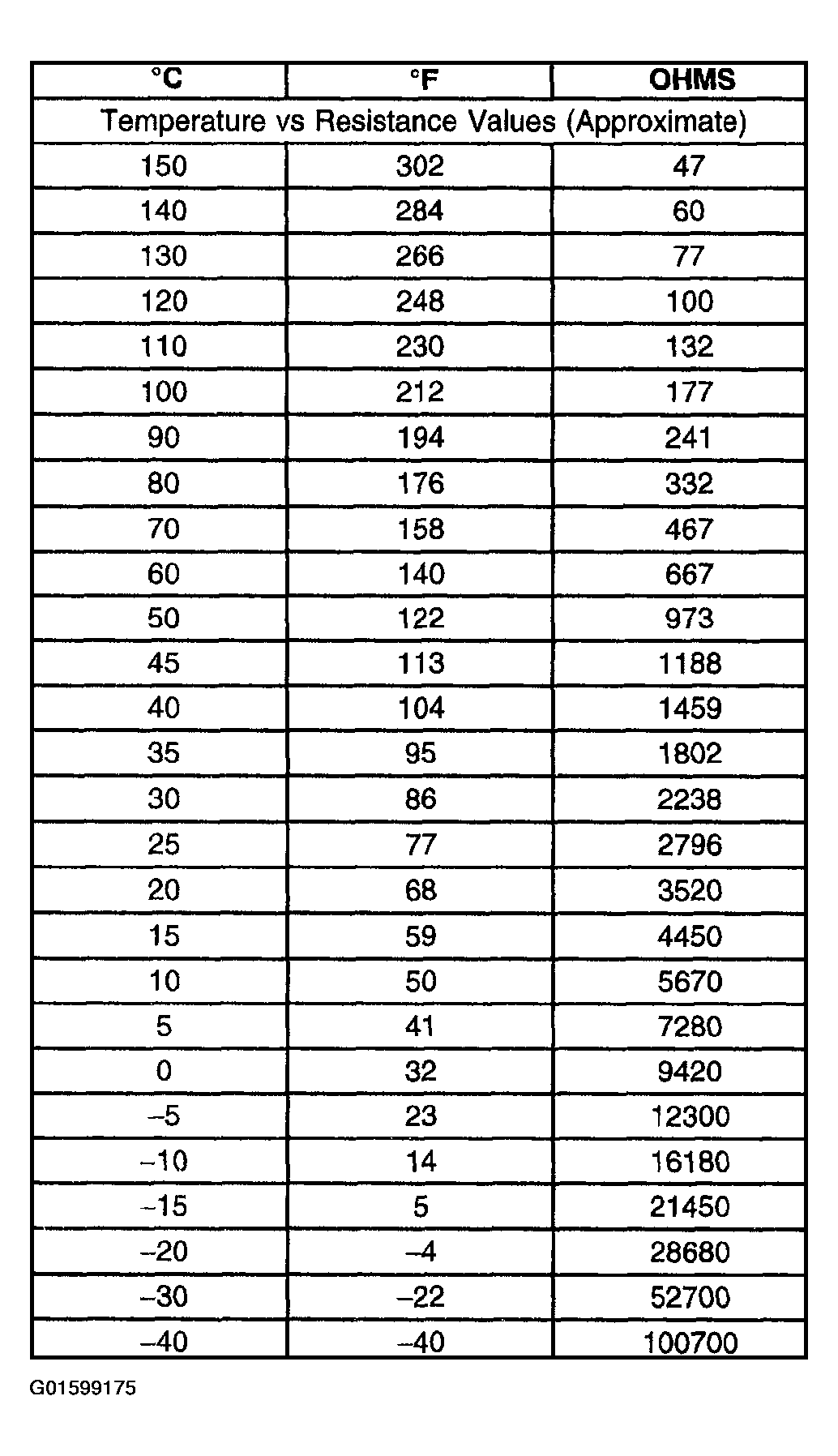

Fig 1: Temperature vs Resistance
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
