Installation Procedure

  1. Install the air filter element into the air cleaner housing.
  2. Install the housing top cover (1) to the air cleaner housing.
  3. Latch the retaining clip (2) into place.
  4. Connect the MAF/IAT electrical connector (4).
  5. Tighten the clamps on the air intake duct at the MAF/IAT sensor (3).

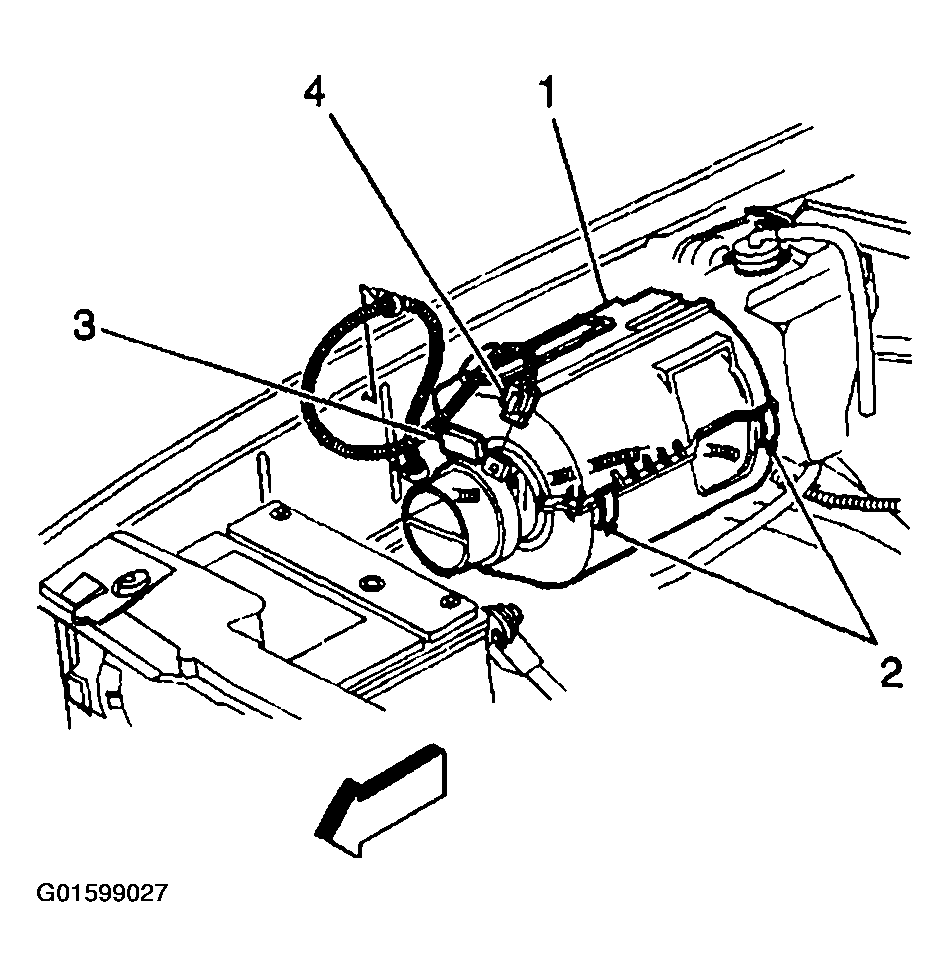

    Fig 1: Housing Top Cover, Retaining Clips, MAF/IAT Sensor & Electrical Connector
    G01599027Courtesy of GENERAL MOTORS CORP.
