Removal Procedure
- Drain the fuel below the level of the fuel filler hose. Refer to Fuel Tank Draining Procedure .
- Remove the fuel fill pipe housing to fuel fill pipe bolts.
- Remove the fuel fill pipe ground strap screw.
- Raise the vehicle.

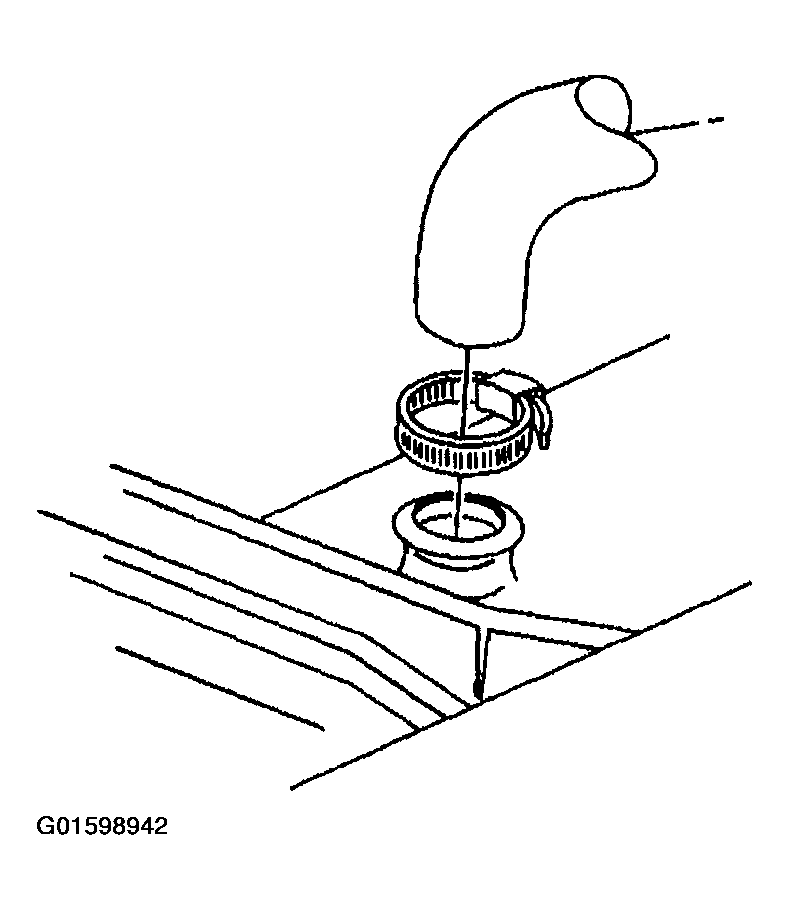

- Disconnect the fuel fill hose from the fuel tank.
Courtesy of GENERAL MOTORS CORP.

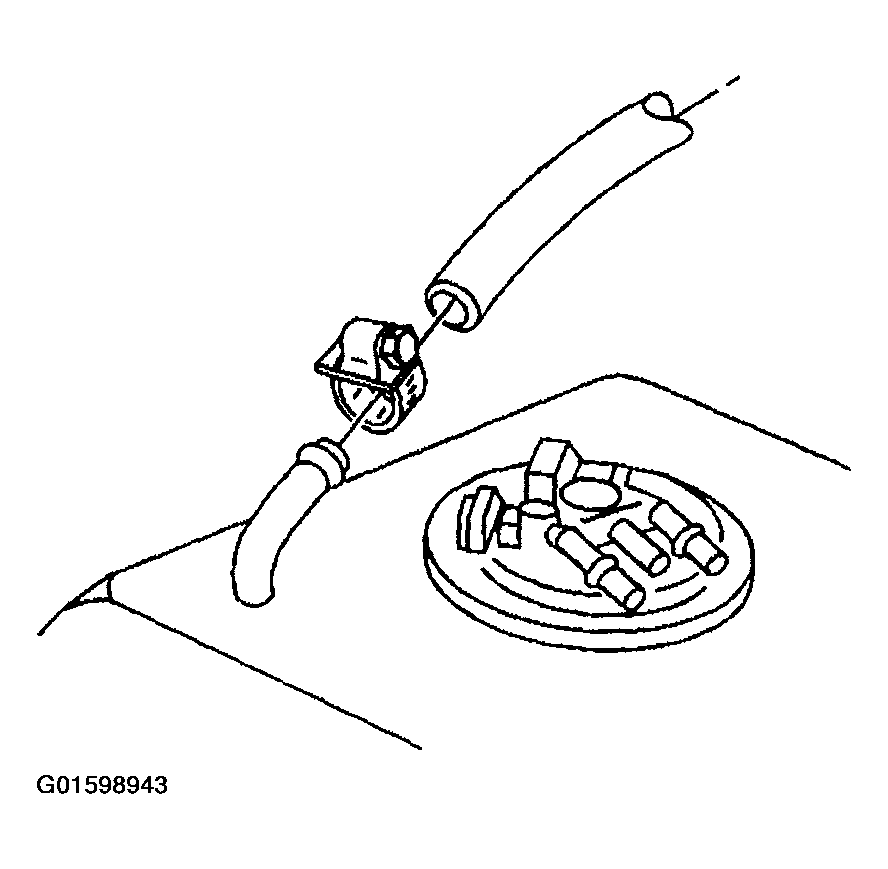

- Disconnect the vent hose from the fuel tank.
Courtesy of GENERAL MOTORS CORP.

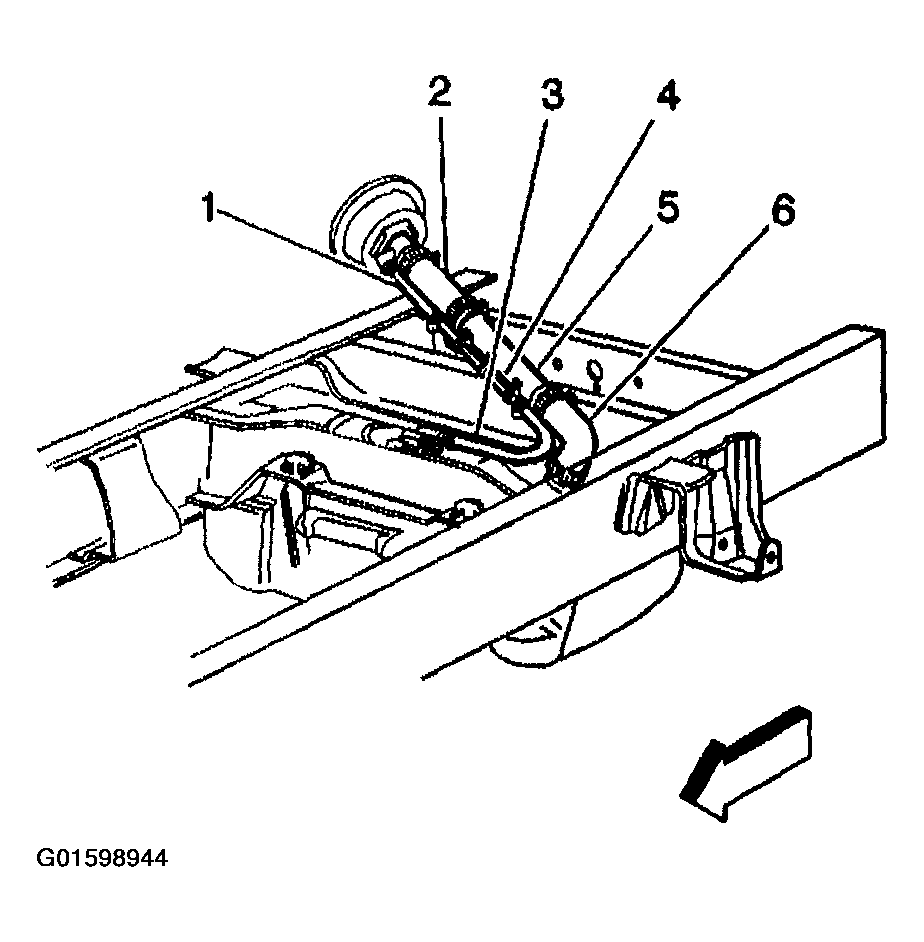

- Remove the fuel fill (2) and vent pipe and hose (1) assembly.
- Cap the open end of the fuel tank.
Courtesy of GENERAL MOTORS CORP.
