Removal Procedure
- Relieve the fuel system pressure. Refer to the Fuel Pressure Relief Procedure .
- Drain the fuel from the tank. Refer to Fuel Tank Draining Procedure .
- Raise the vehicle.
- Disconnect the vent hose at the fuel tank.
Courtesy of GENERAL MOTORS CORP.
- Disconnect the filler tube hose at the fuel tank.
Courtesy of GENERAL MOTORS CORP.
- Support the fuel tank.

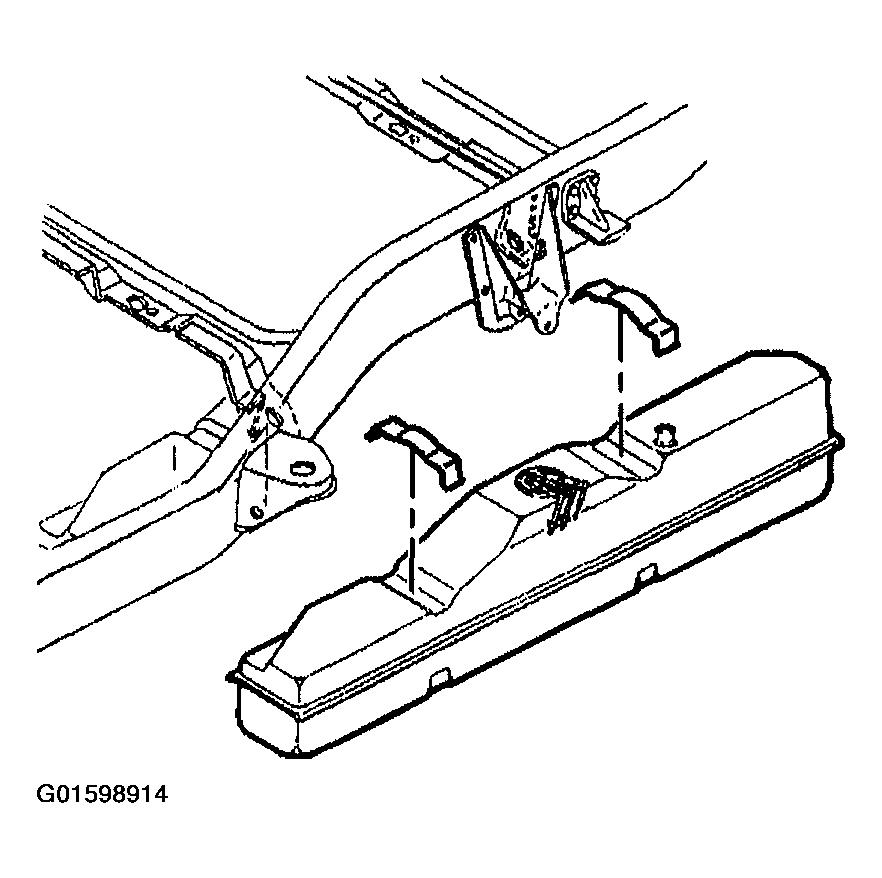

- Remove the fuel tank straps.
Courtesy of GENERAL MOTORS CORP.

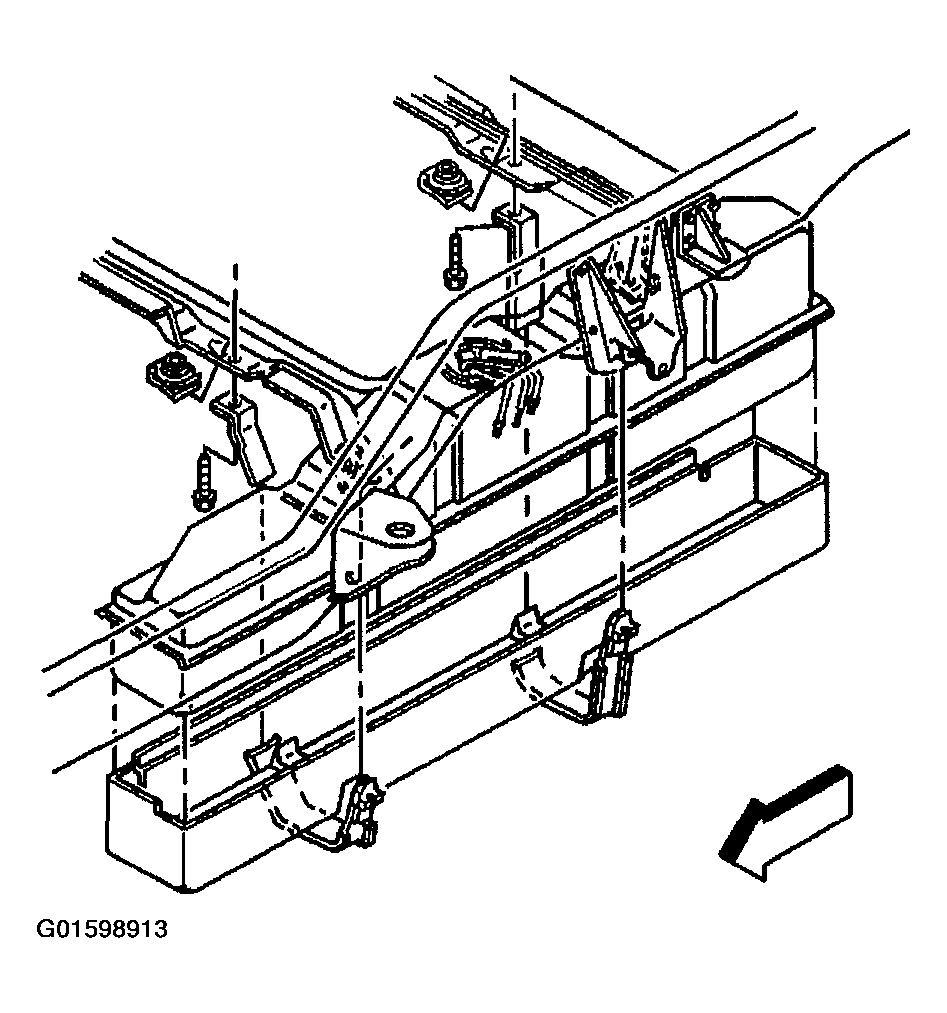

- With the aid of an assistant lower the fuel tank and shield. Lower the fuel tank shield and the fuel tank to access the top of the fuel tank.
Courtesy of GENERAL MOTORS CORP.
- Clean all the fuel pipe connections and the surrounding areas before disconnecting the fuel pipes in order to avoid possible contamination of the fuel system.

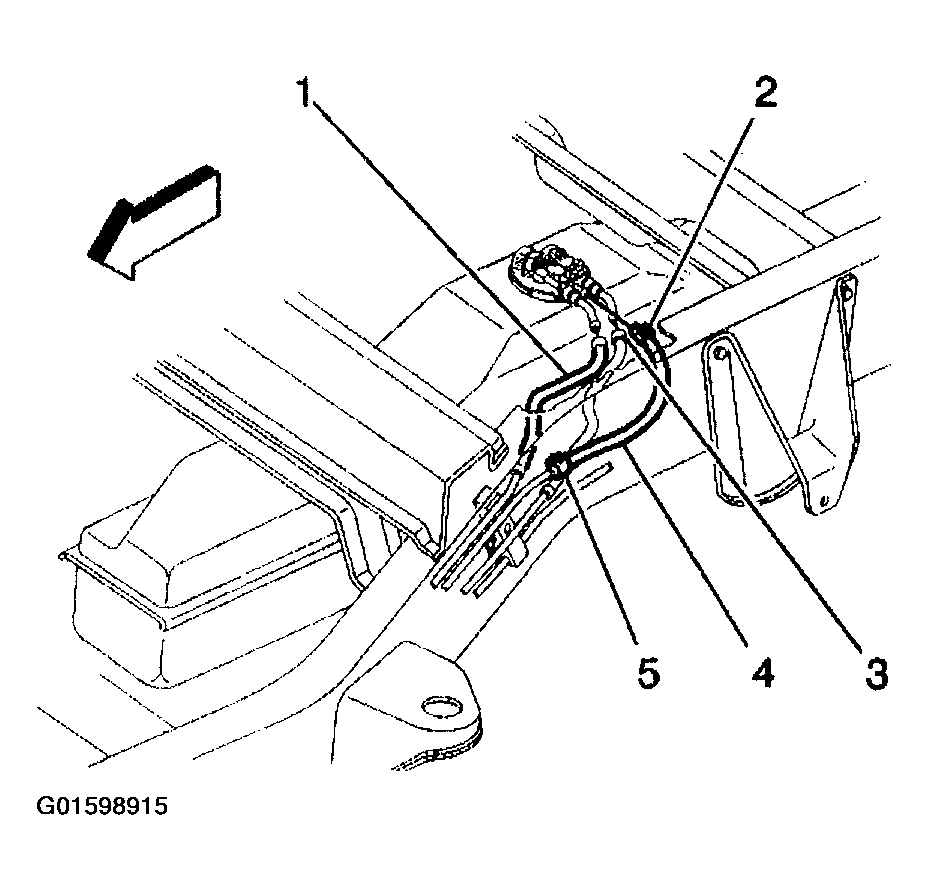

- Disconnect the fuel pipes (1,3) and the vapor pipe (2). Refer to Quick Connect Fitting(s) Service (Metal Collar) or Quick Connect Fitting(s) Service (Plastic Collar) .
- Disconnect the electrical connections at the sender.
- Remove the fuel tank and shield.
- Remove the fuel sender. Refer to Fuel Sender Assembly Replacement .
Courtesy of GENERAL MOTORS CORP.
