Installation Procedure

  1. Install the air cleaner resonator to the air cleaner intake duct (2).
  2. Tighten the air cleaner resonator clamp.

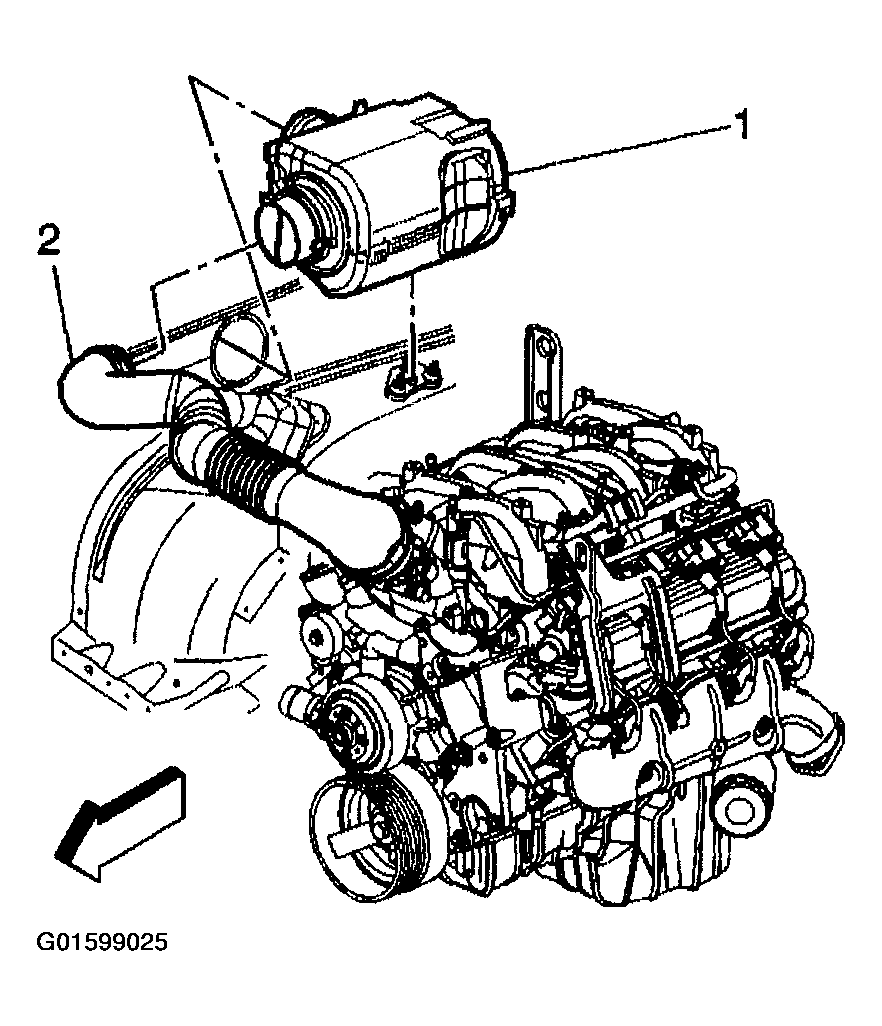

    Fig 1: Air Cleaner Intake Duct
    G01599025Courtesy of GENERAL MOTORS CORP.
