Removal Procedure

  1. Loosen the clamp and separate the air cleaner resonator from the air cleaner intake duct (2).
  2. Remove the air cleaner resonator.

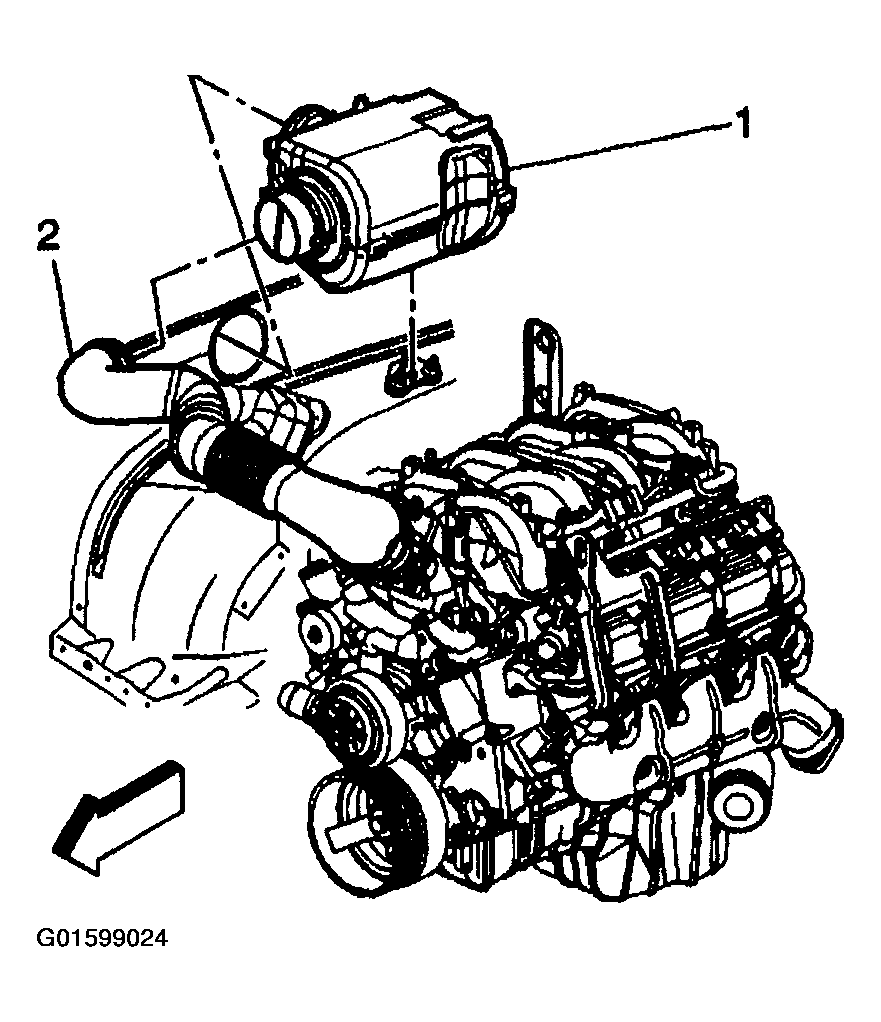

    Fig 1: Air Cleaner Intake Duct
    G01599024Courtesy of GENERAL MOTORS CORP.
