Engine Controls Schematics

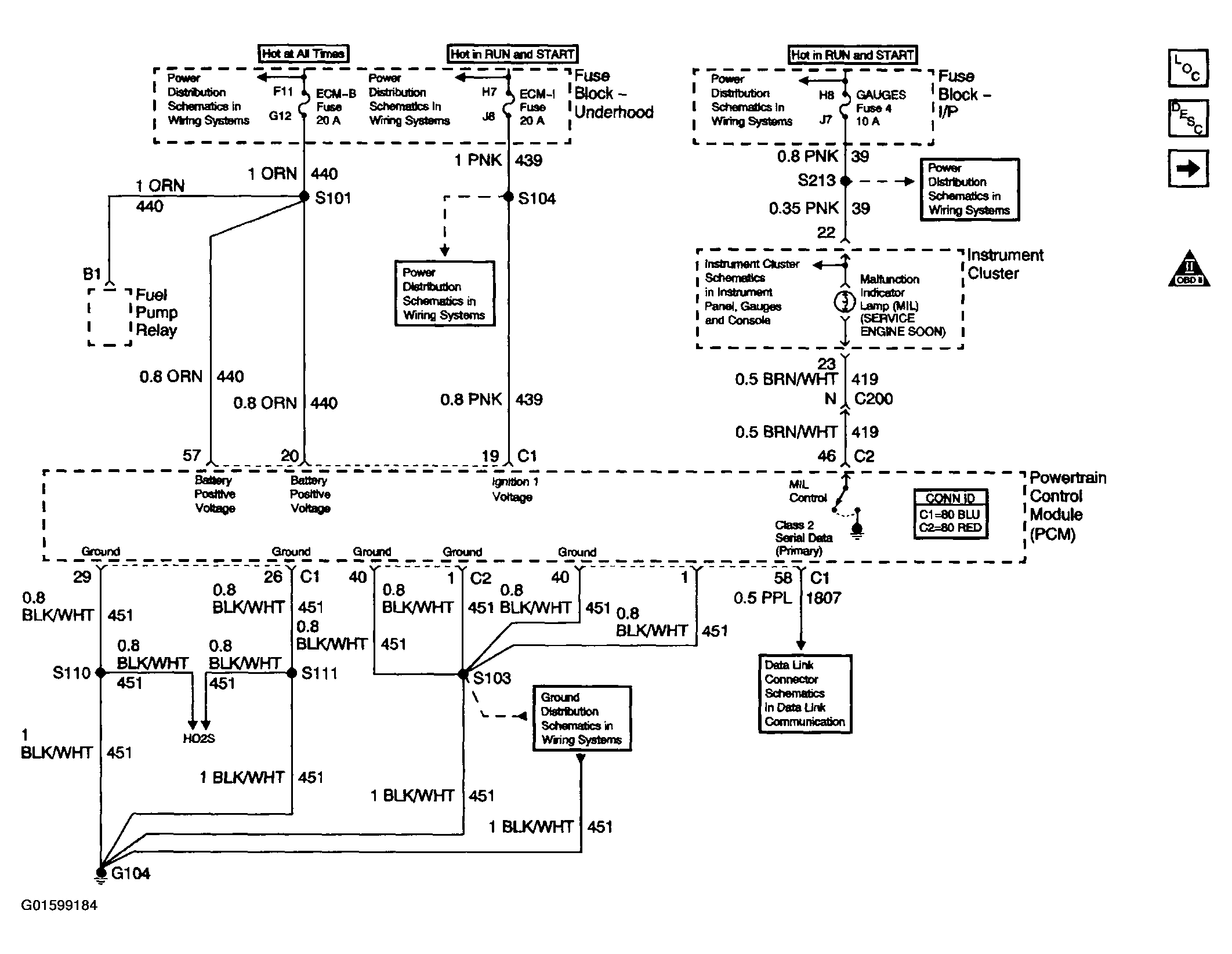

Fig 1: Engine Controls Schematics (PCM Power, Grounding, DLC & MIL)

Courtesy of GENERAL MOTORS CORP.

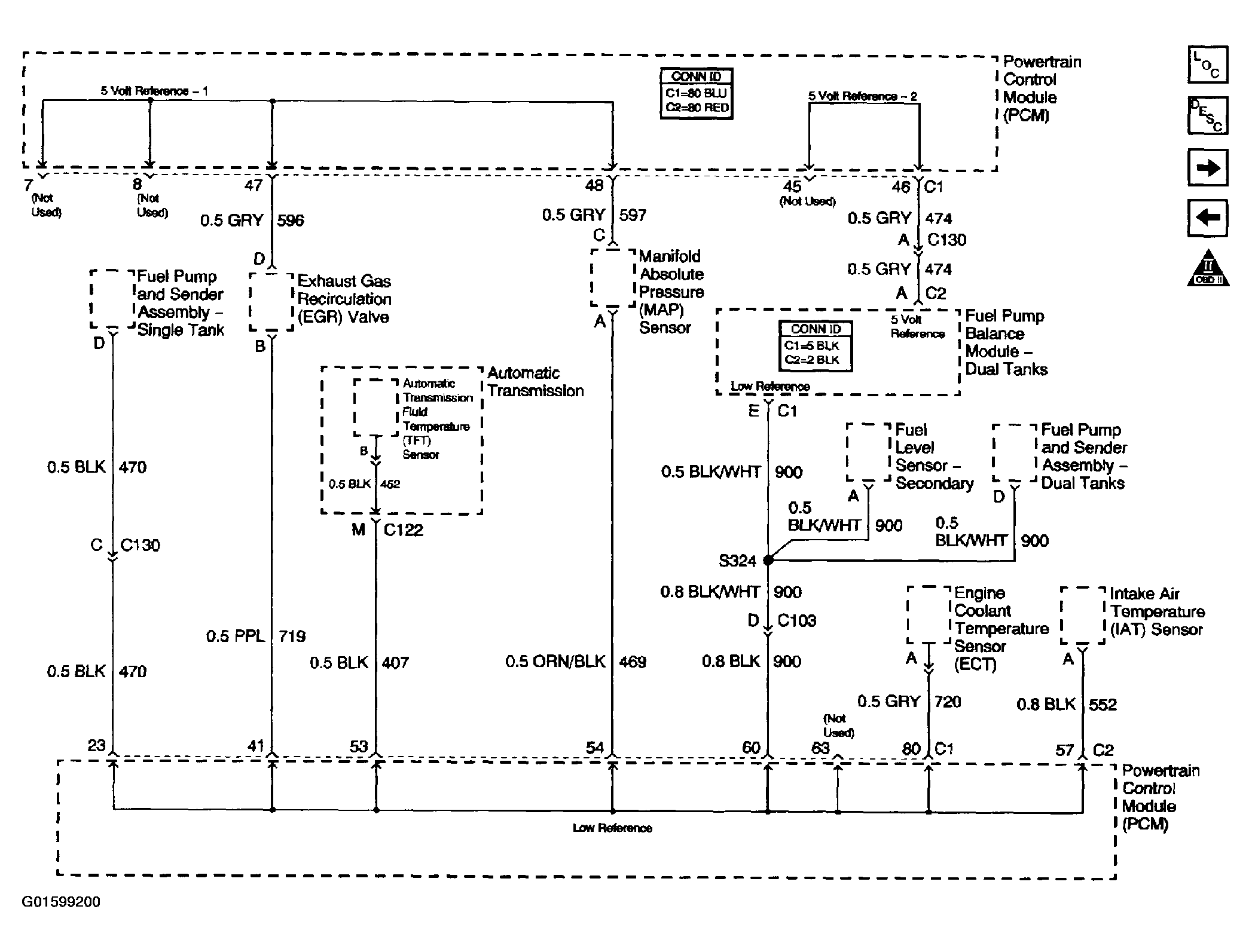

Fig 2: Engine Controls Schematics (5 Volt & Low Reference Busses)

Courtesy of GENERAL MOTORS CORP.

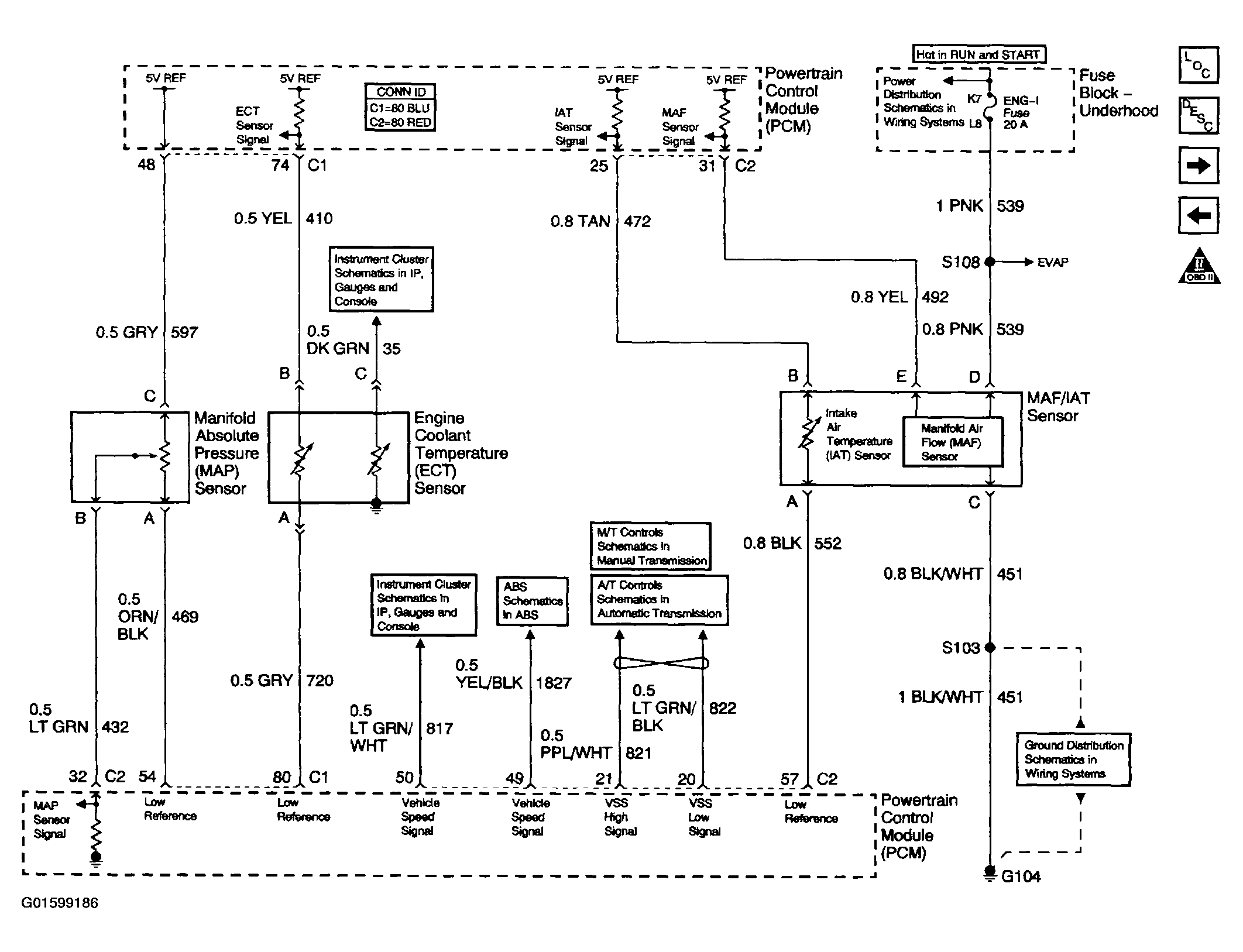

Fig 3: Engine Controls Schematics (MAP, ECT, VSS Circuit & IAT/MAF)

Courtesy of GENERAL MOTORS CORP.

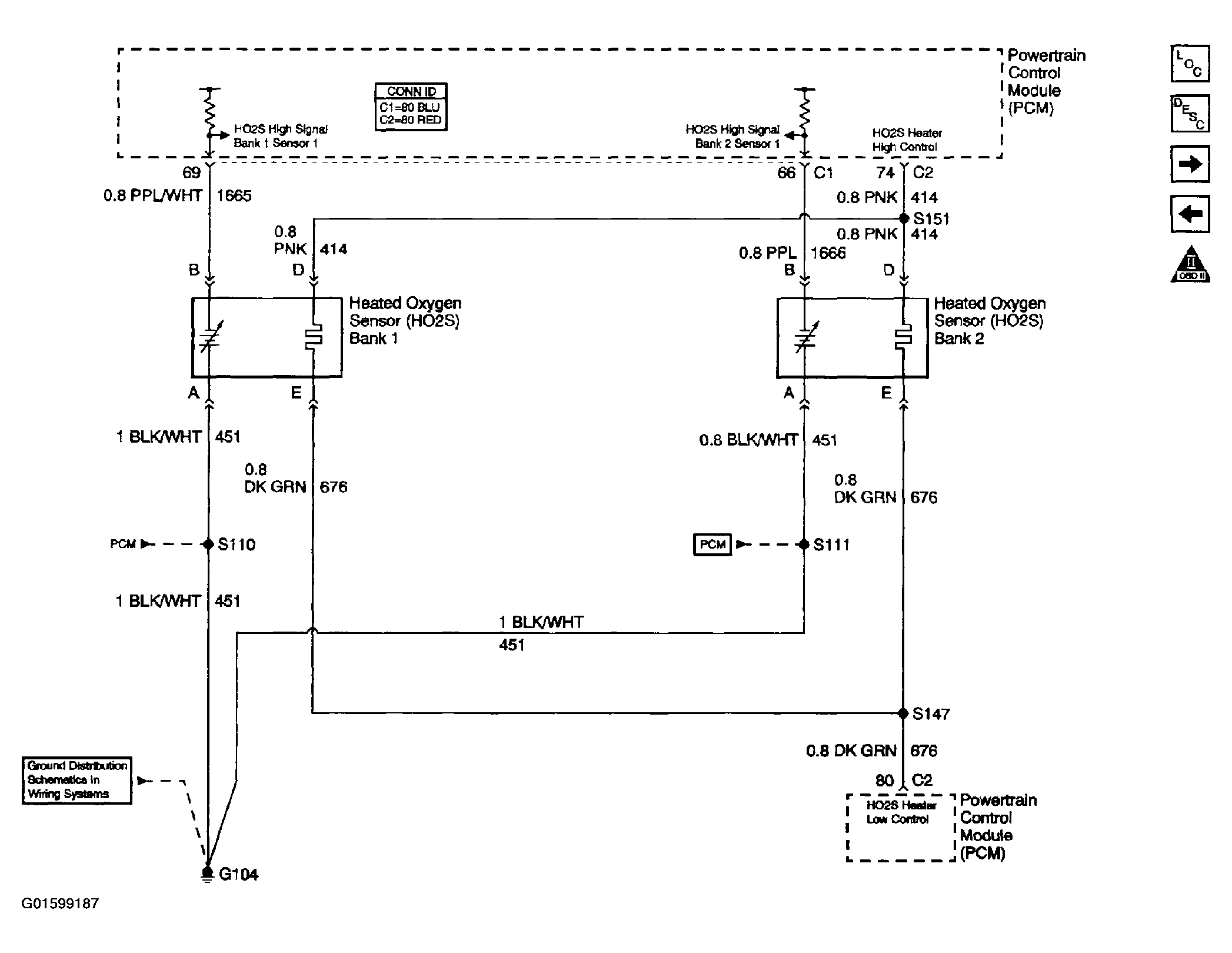

Fig 4: Engine Controls Schematics (HO2S Circuit)

Courtesy of GENERAL MOTORS CORP.

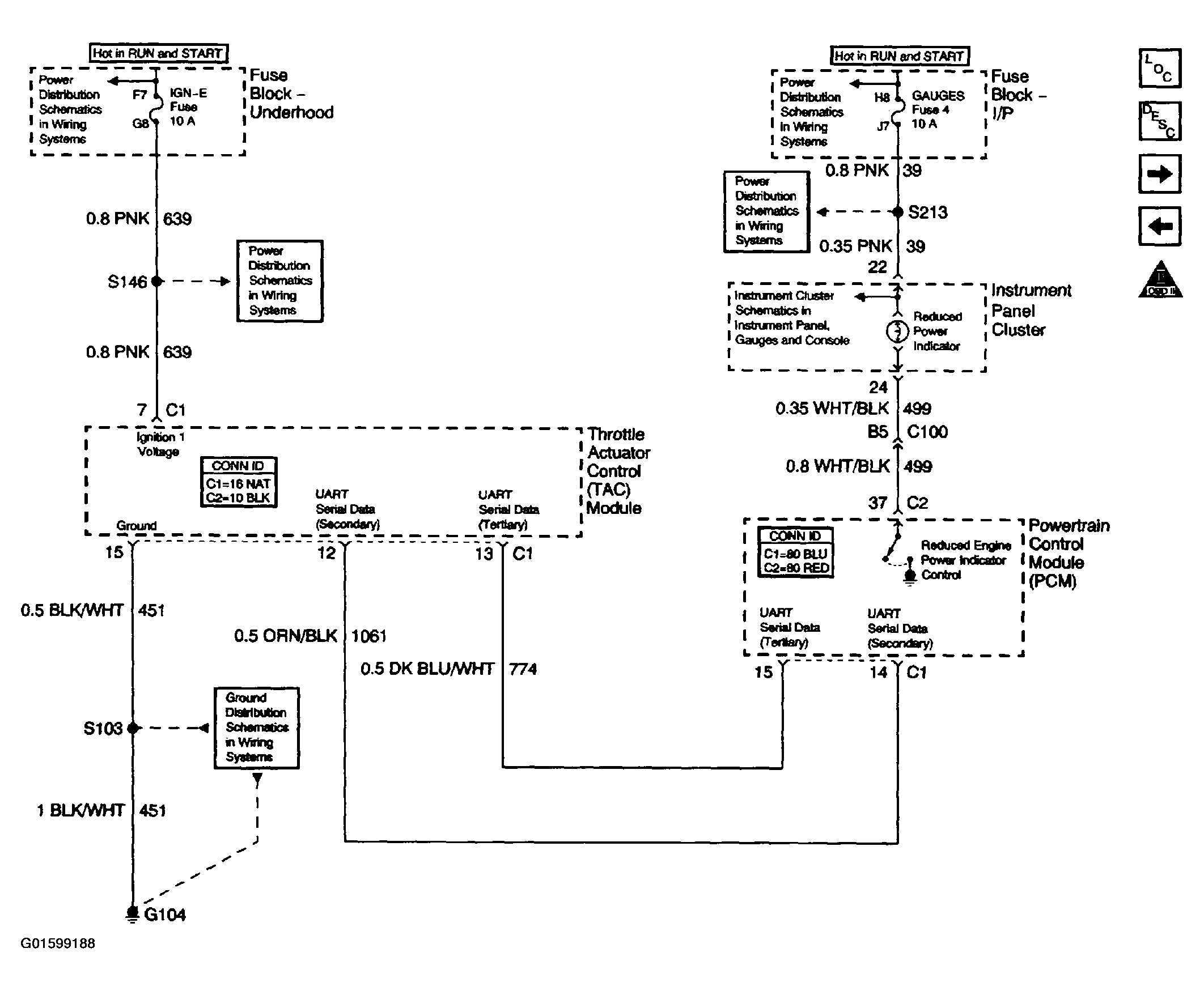

Fig 5: Engine Controls Schematics (TAC Power, Grounding, Data Circuits & Indicator Control)

Courtesy of GENERAL MOTORS CORP.

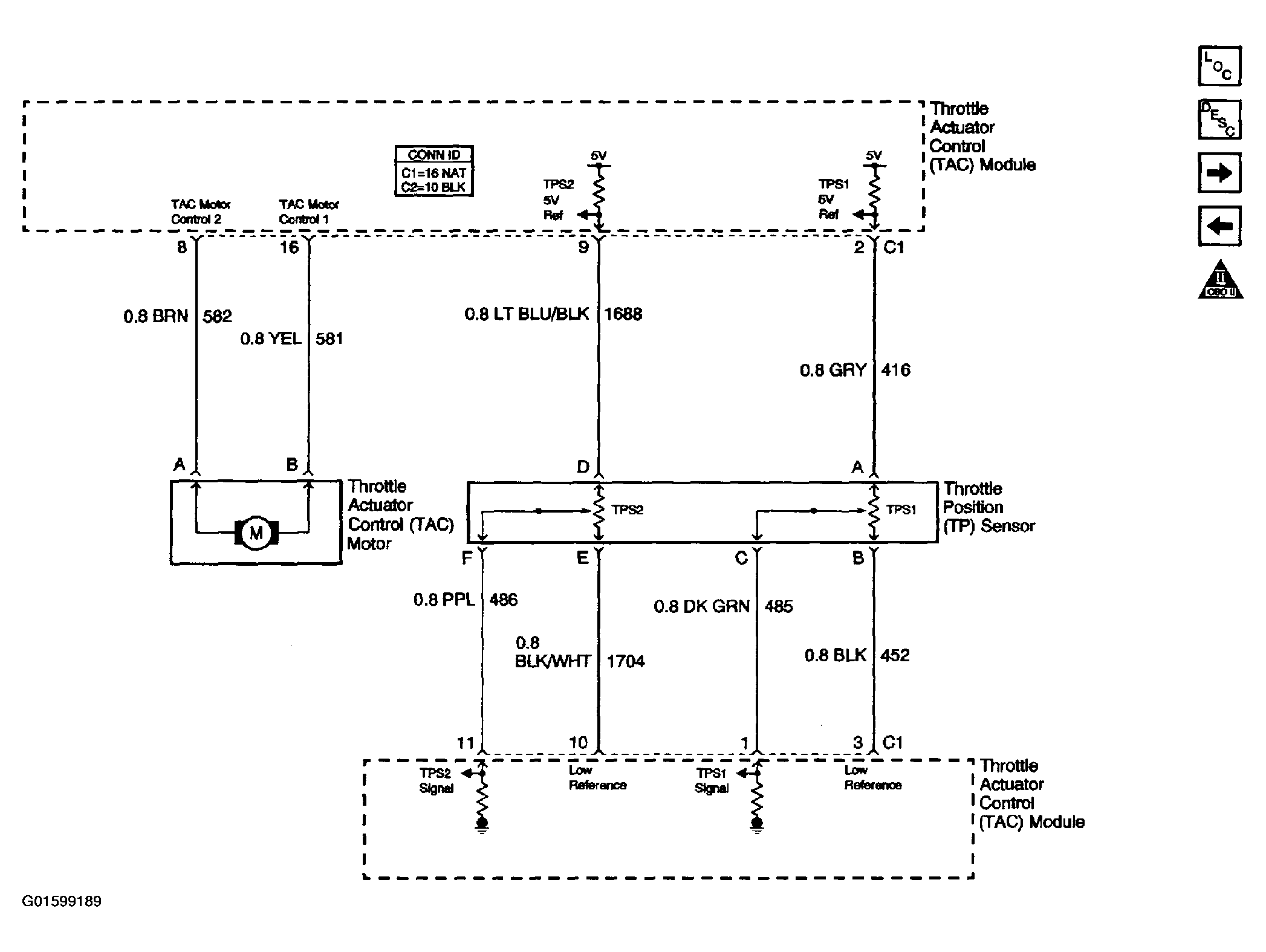

Fig 6: Engine Controls Schematics (Throttle Control Circuits)

Courtesy of GENERAL MOTORS CORP.

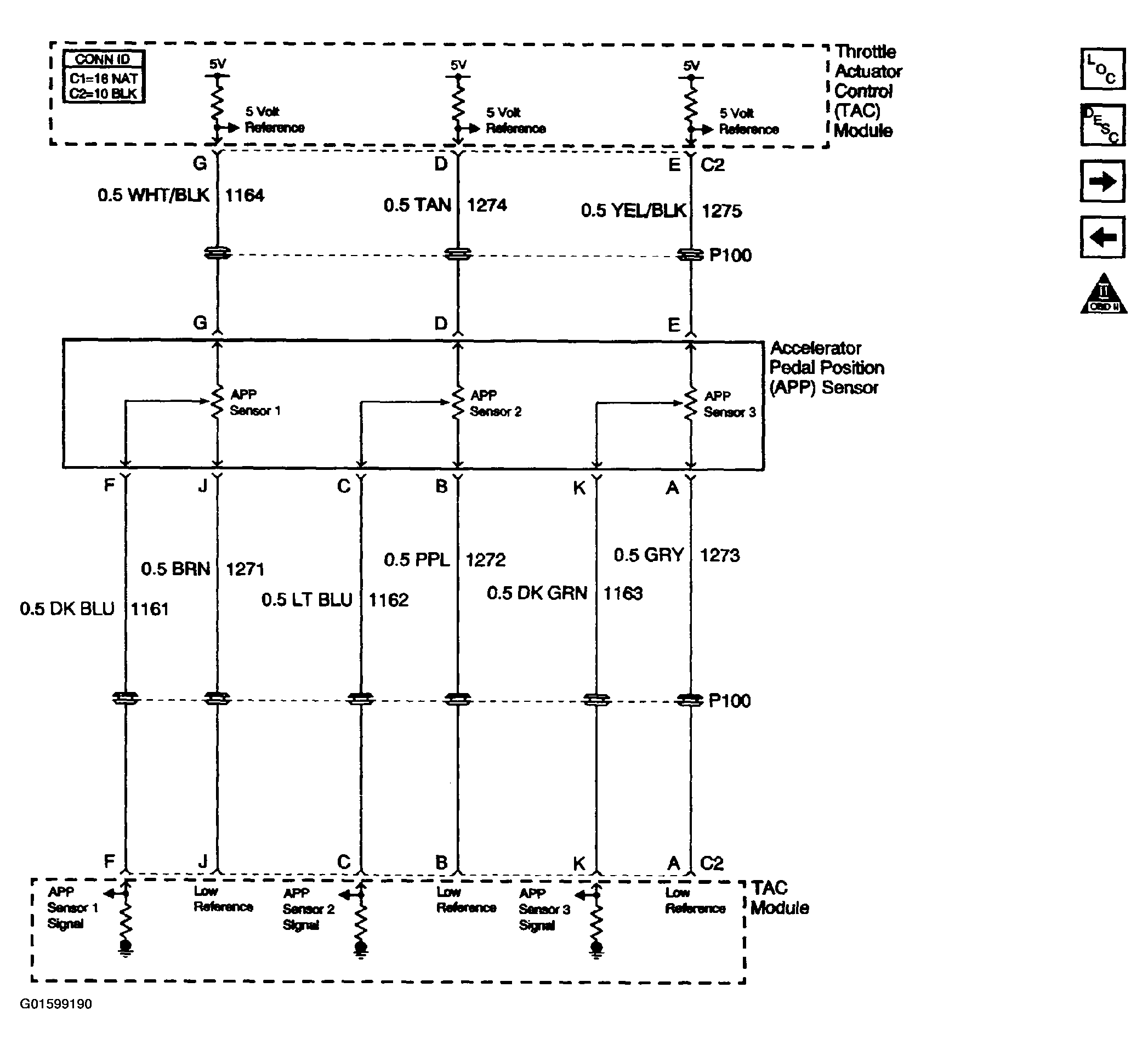

Fig 7: Engine Controls Schematics (Accelerator Pedal Position Sensor Circuits)

Courtesy of GENERAL MOTORS CORP.

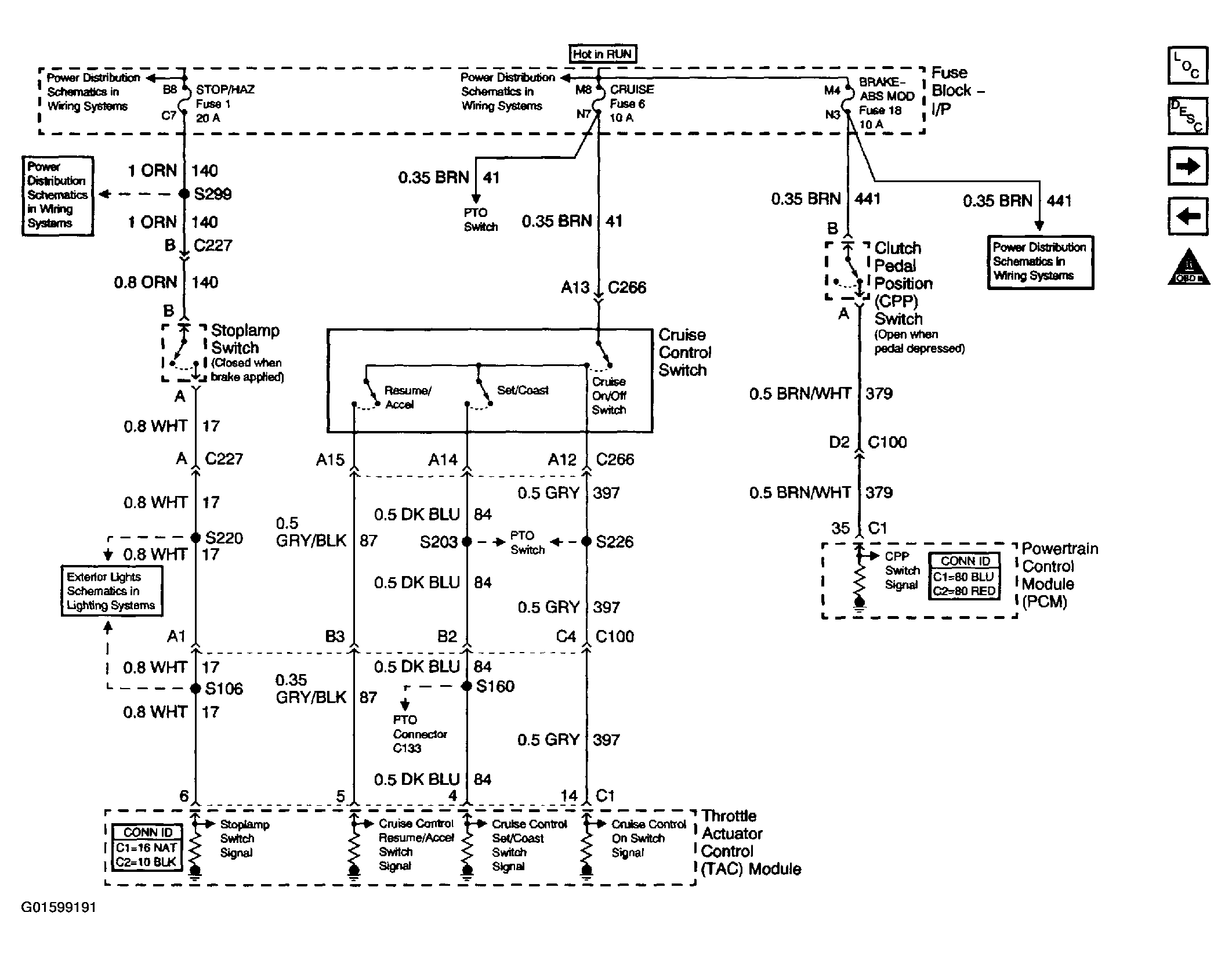

Fig 8: Engine Controls Schematics (TAC Cruise Control Inputs)

Courtesy of GENERAL MOTORS CORP.

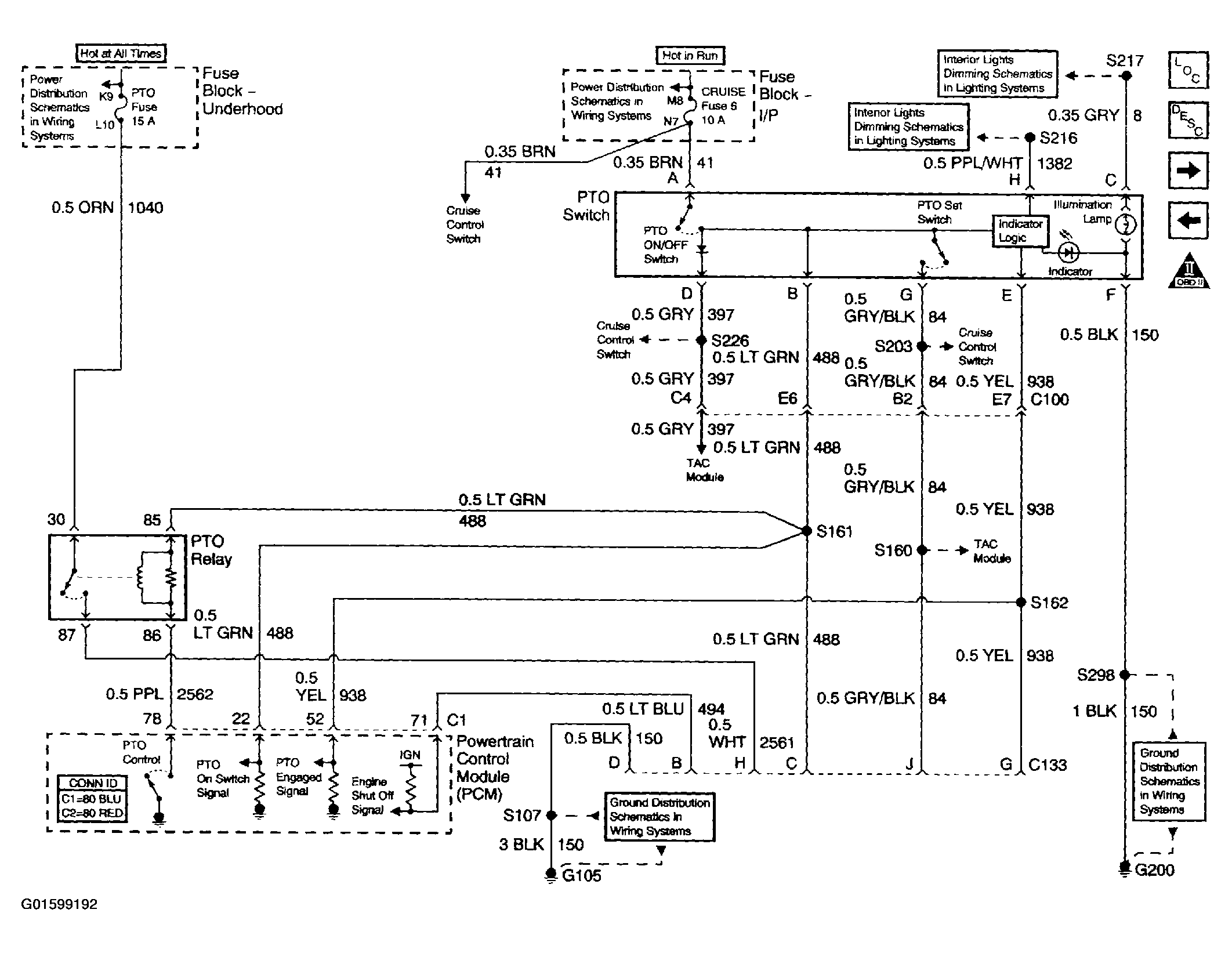

Fig 9: Engine Controls Schematics (PTO Control Provisions)

Courtesy of GENERAL MOTORS CORP.

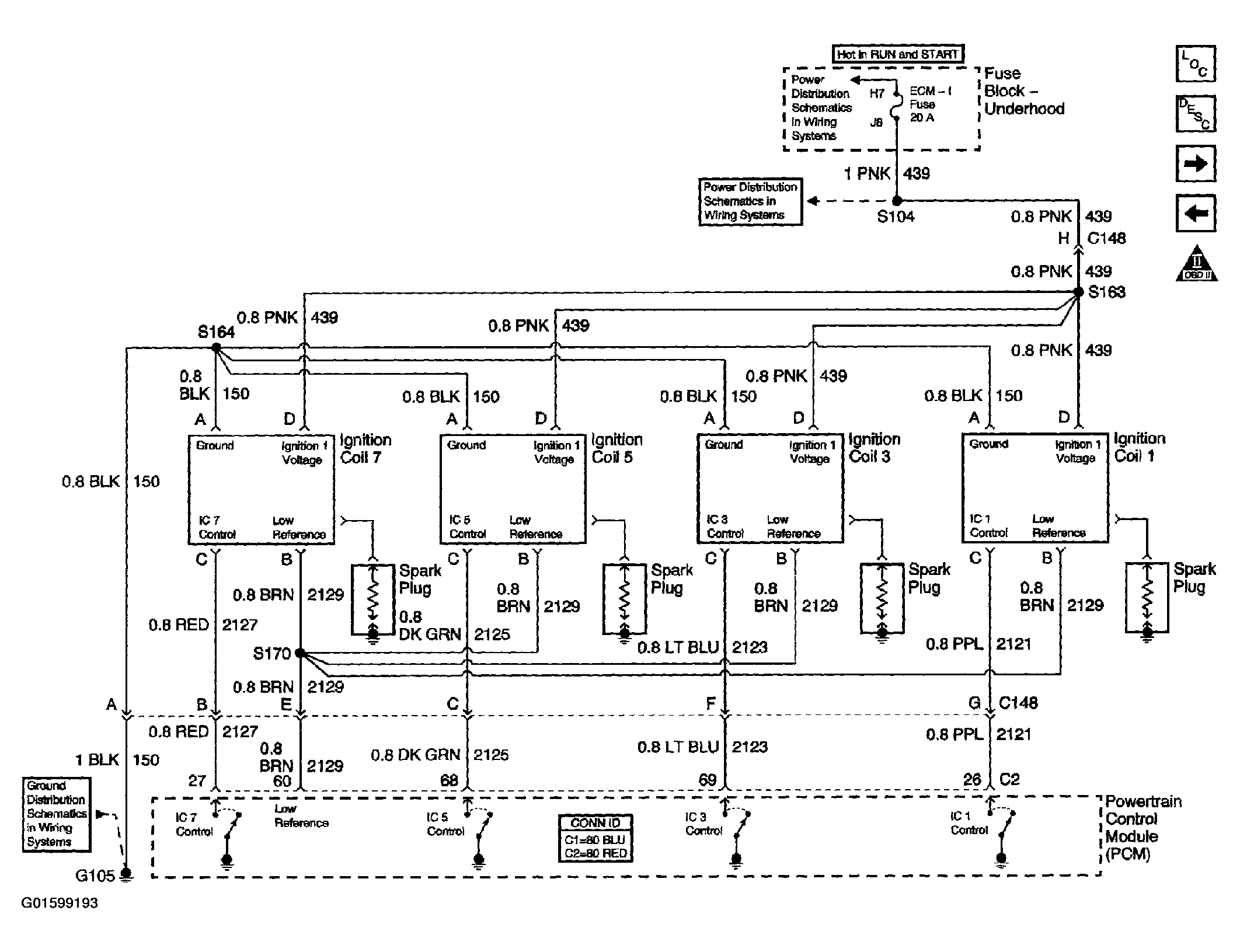

Fig 10: Engine Controls Schematics (Ignition Control, Bank 1 (Left Side))

Courtesy of GENERAL MOTORS CORP.

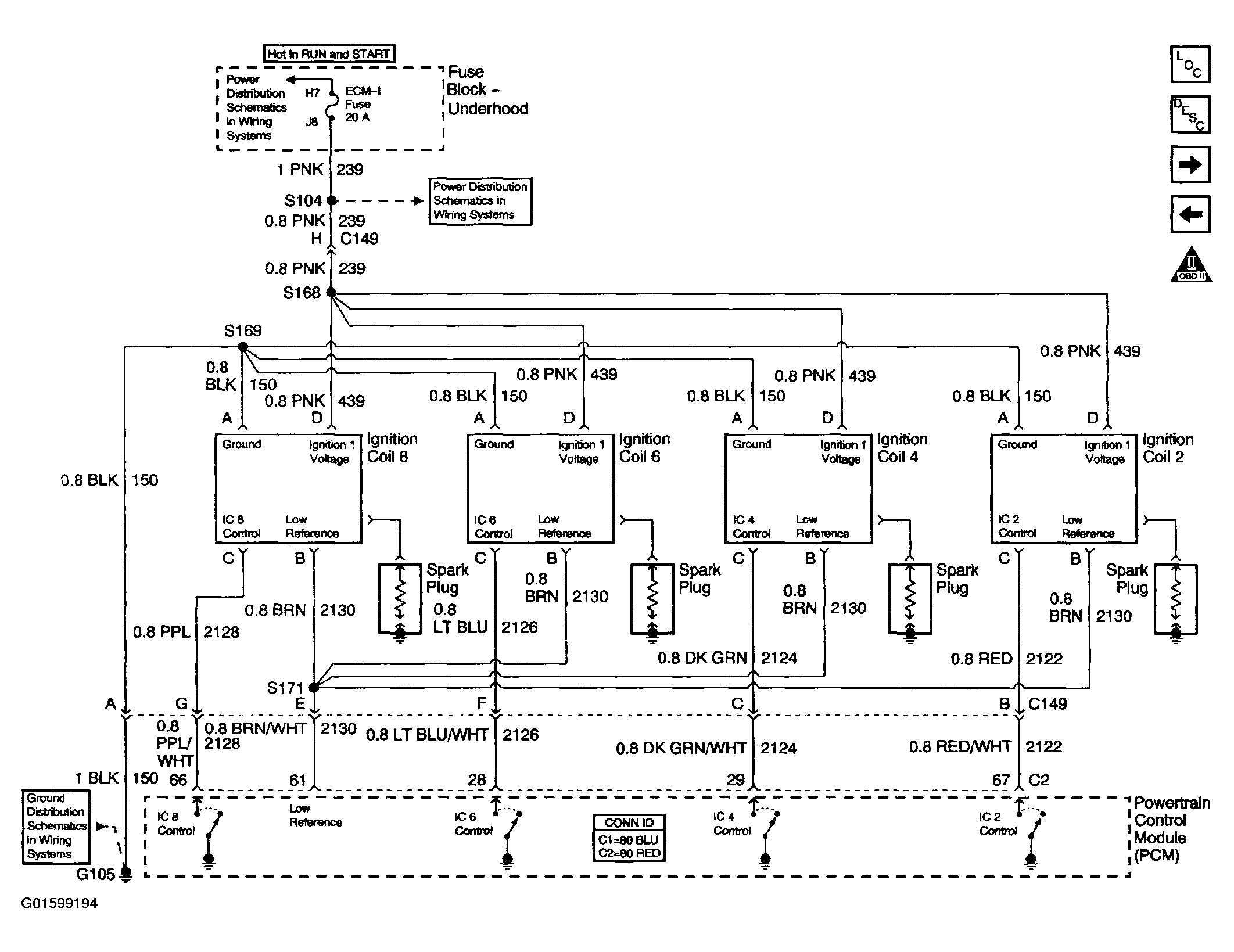

Fig 11: Engine Controls Schematics (Ignition Control, Bank 2 (Right Side))

Courtesy of GENERAL MOTORS CORP.

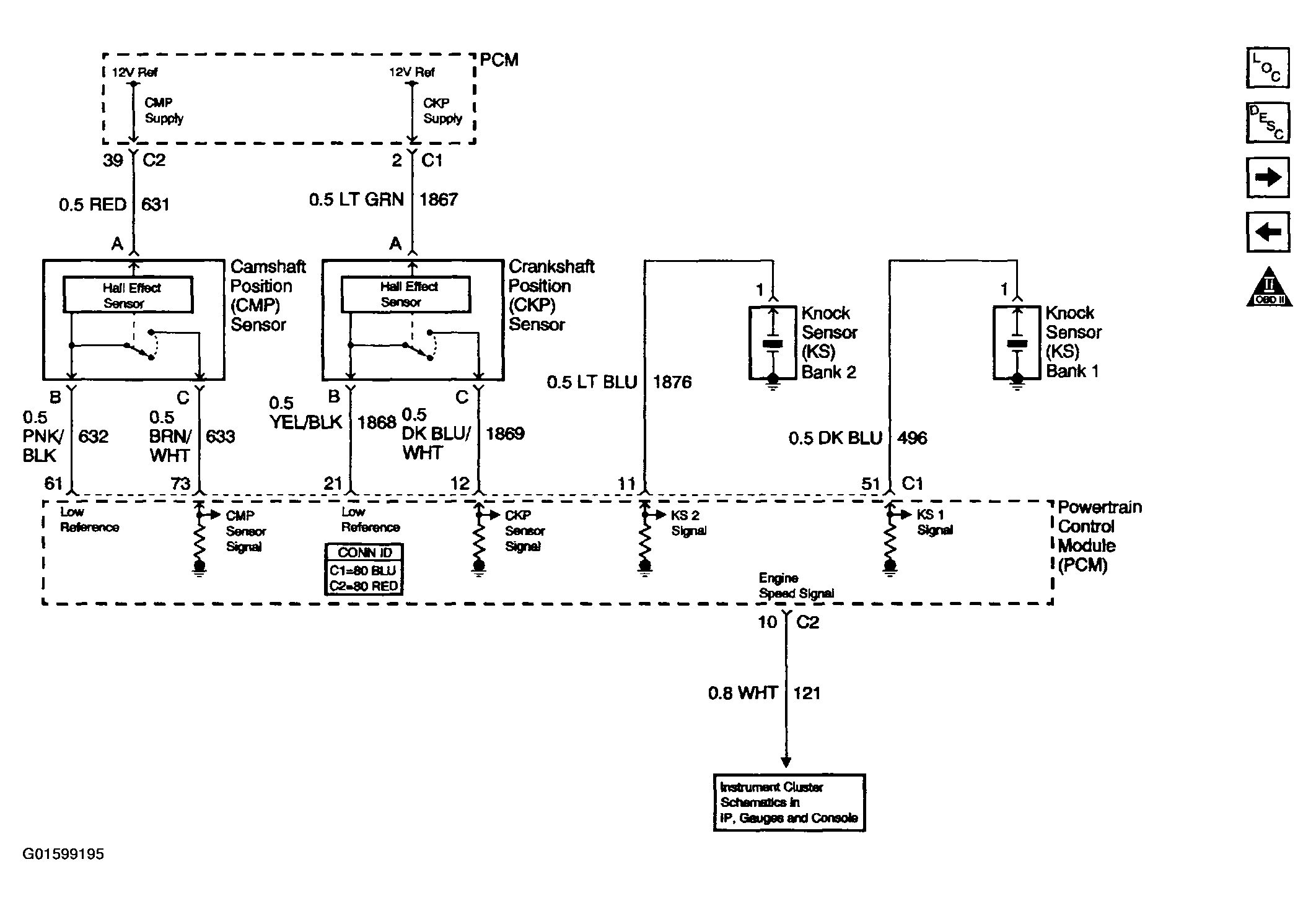

Fig 12: Engine Controls Schematics (CMP, CKP & KS)

Courtesy of GENERAL MOTORS CORP.

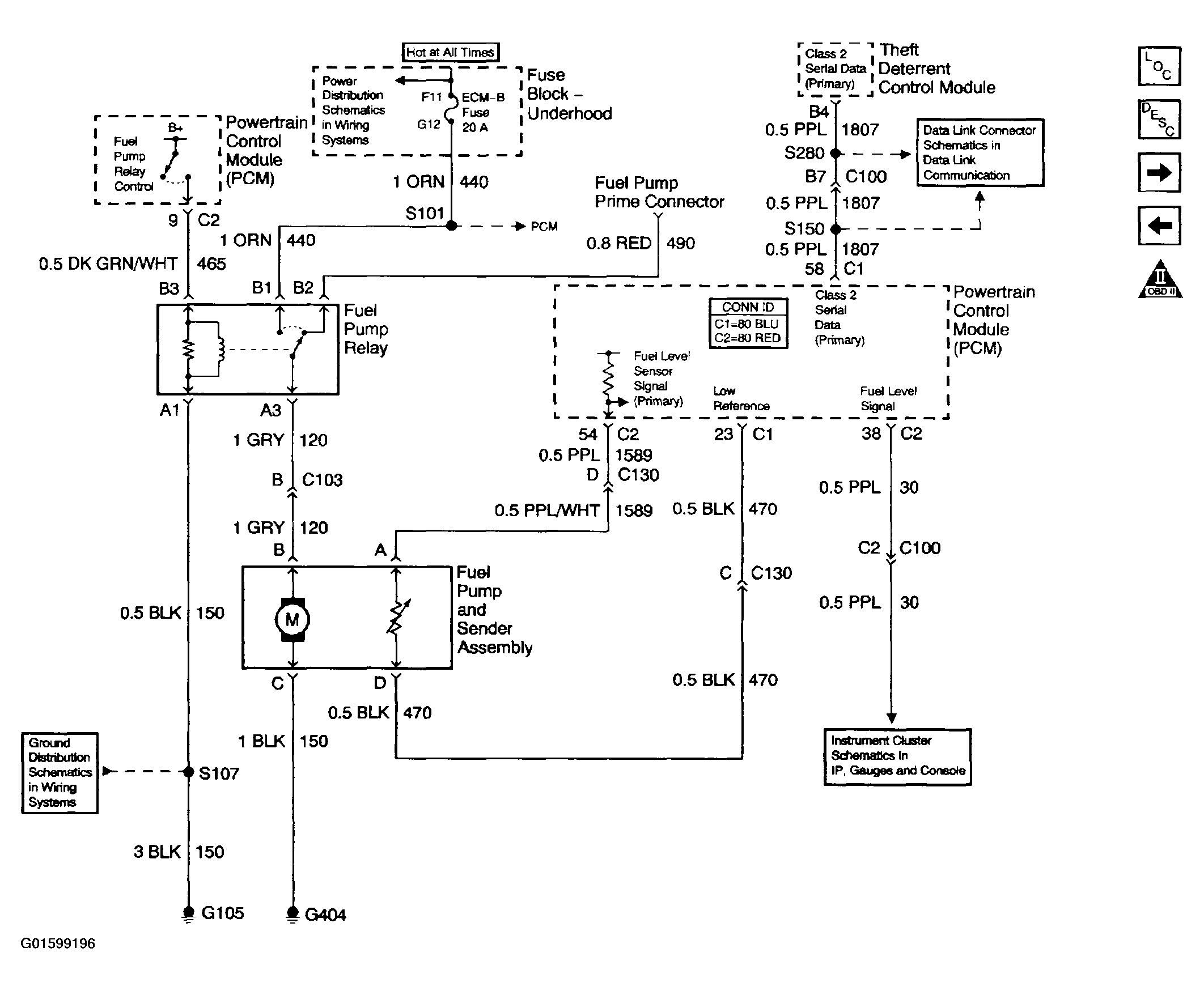

Fig 13: Engine Controls Schematics (Fuel Pump Controls, Single Tank)

Courtesy of GENERAL MOTORS CORP.

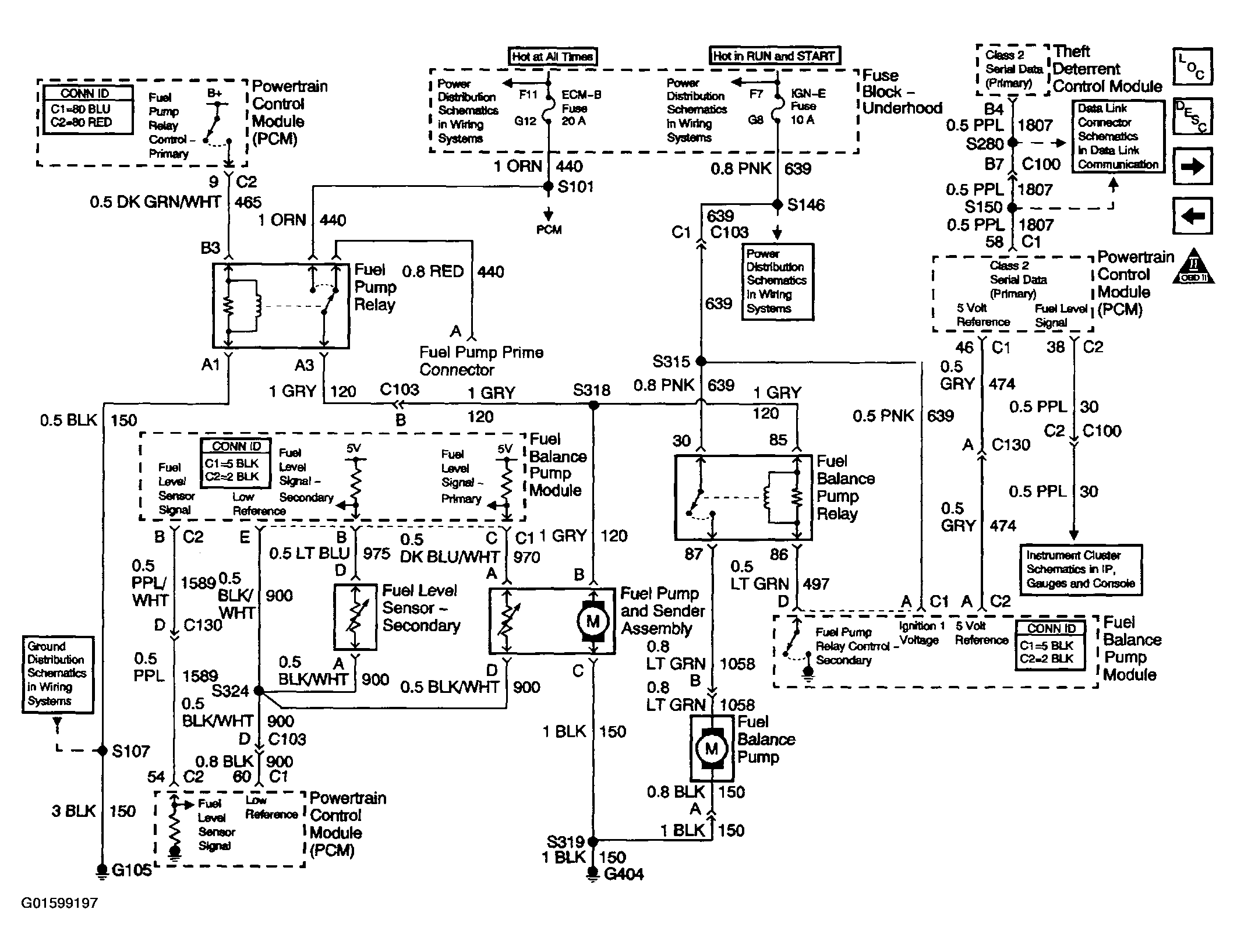

Fig 14: Engine Controls Schematics (Fuel Pump Controls, Dual Tanks)

Courtesy of GENERAL MOTORS CORP.

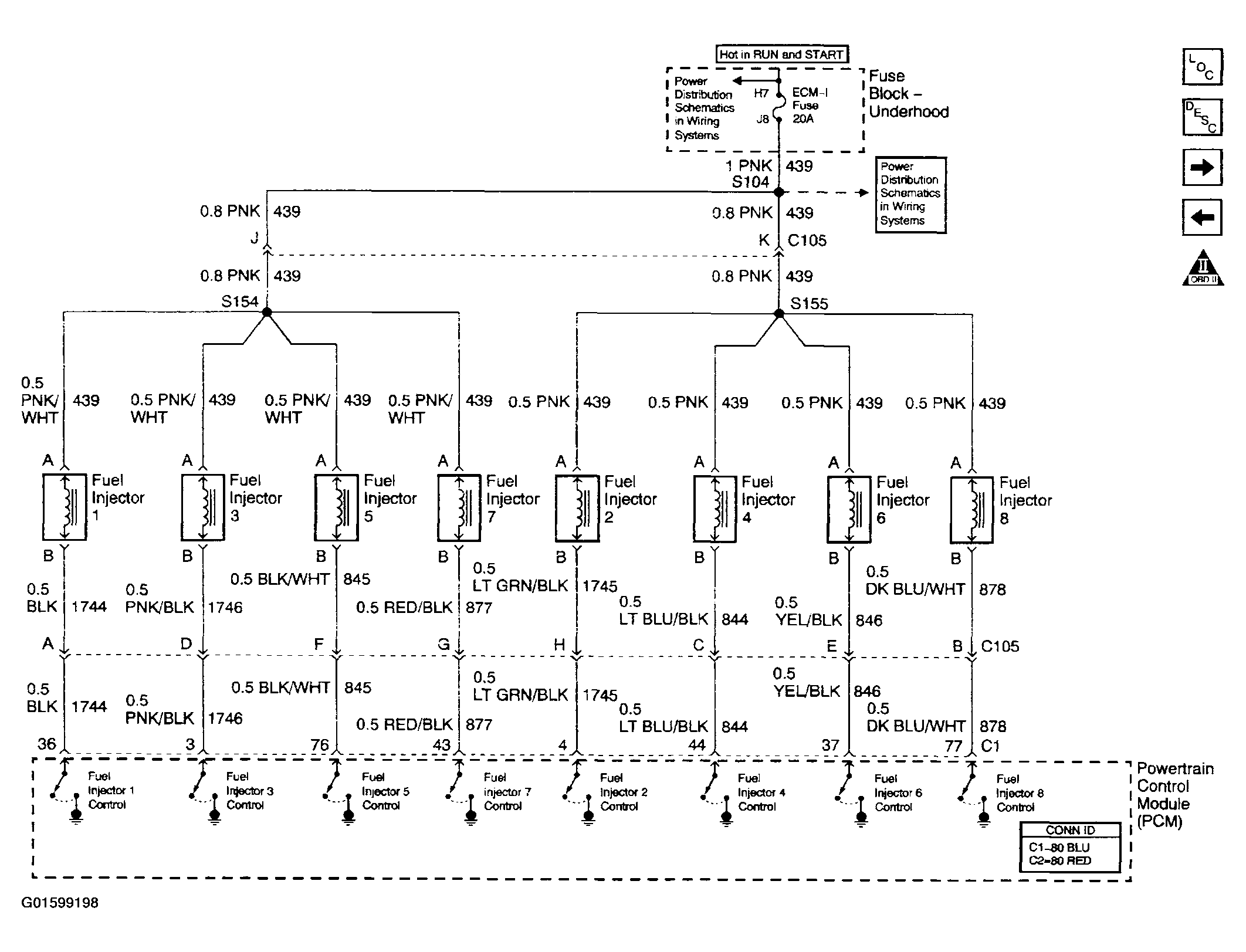

Fig 15: Engine Controls Schematics (Fuel Injector Controls)

Courtesy of GENERAL MOTORS CORP.

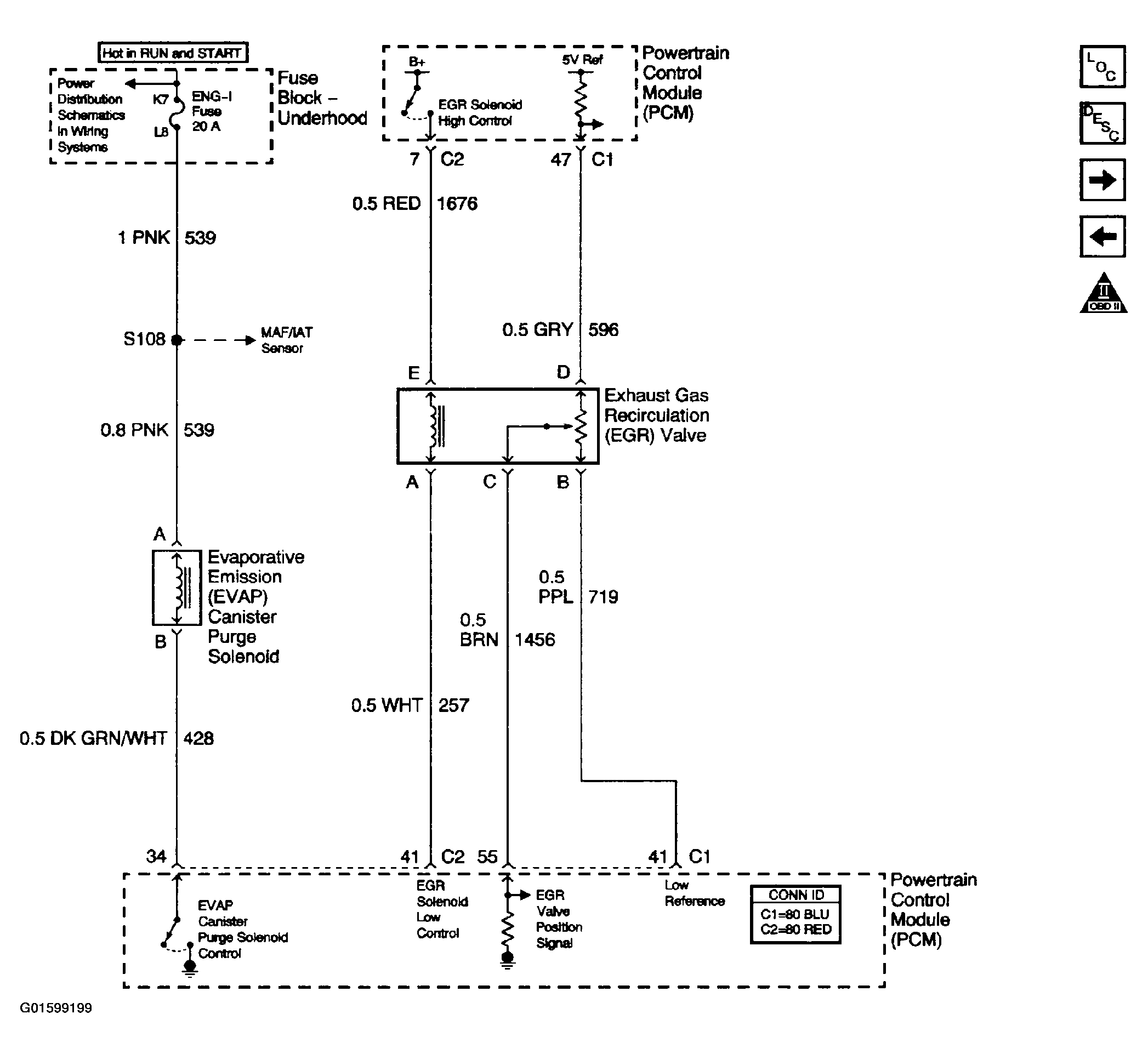

Fig 16: Engine Controls Schematics (EVAP & EGR)

Courtesy of GENERAL MOTORS CORP.

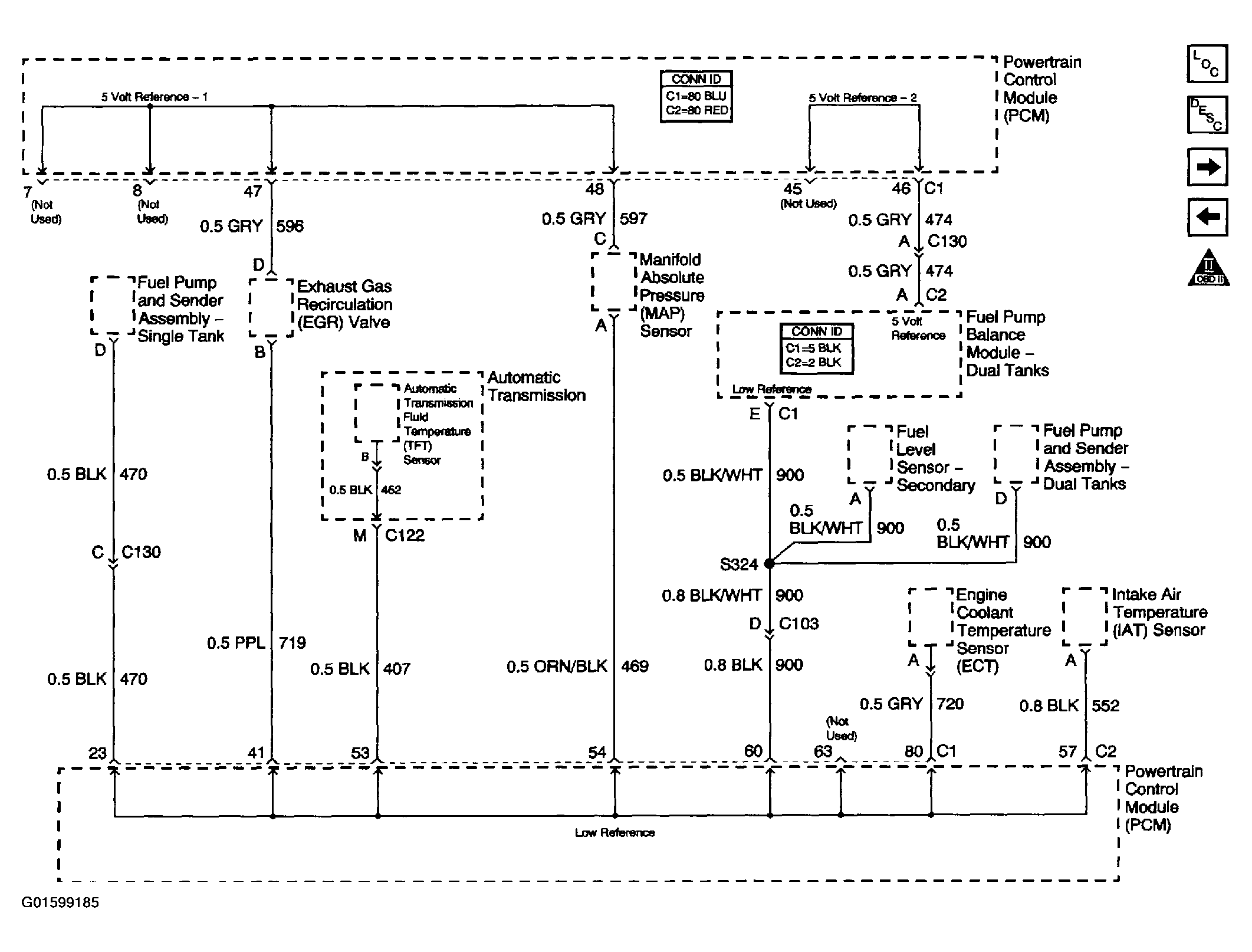

Fig 17: Engine Controls Schematics (5 Volt & Low Reference Busses)

Courtesy of GENERAL MOTORS CORP.

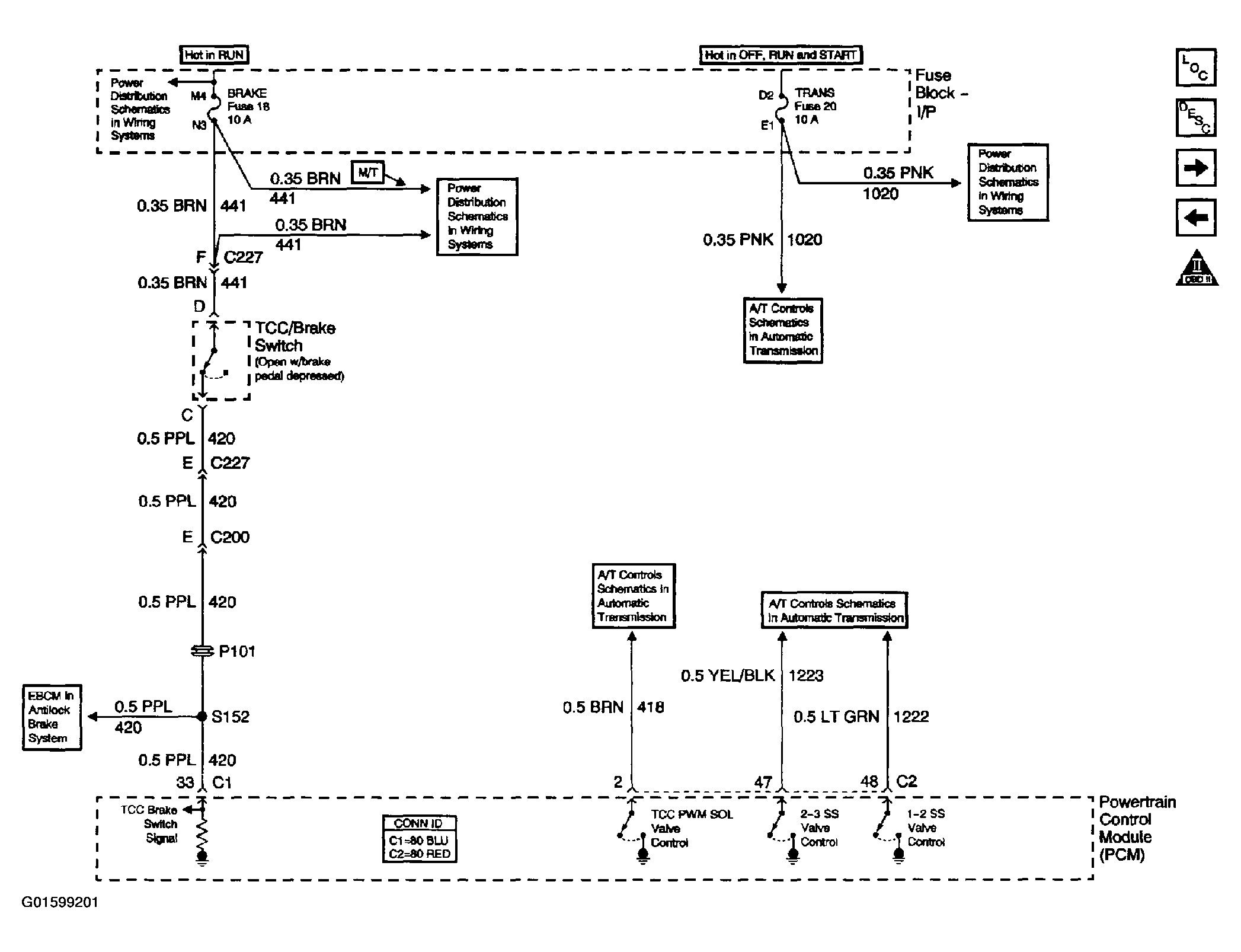

Fig 18: Engine Controls Schematics (A/T TCC/Stop Lamp Switch, Shift Solenoids)

Courtesy of GENERAL MOTORS CORP.

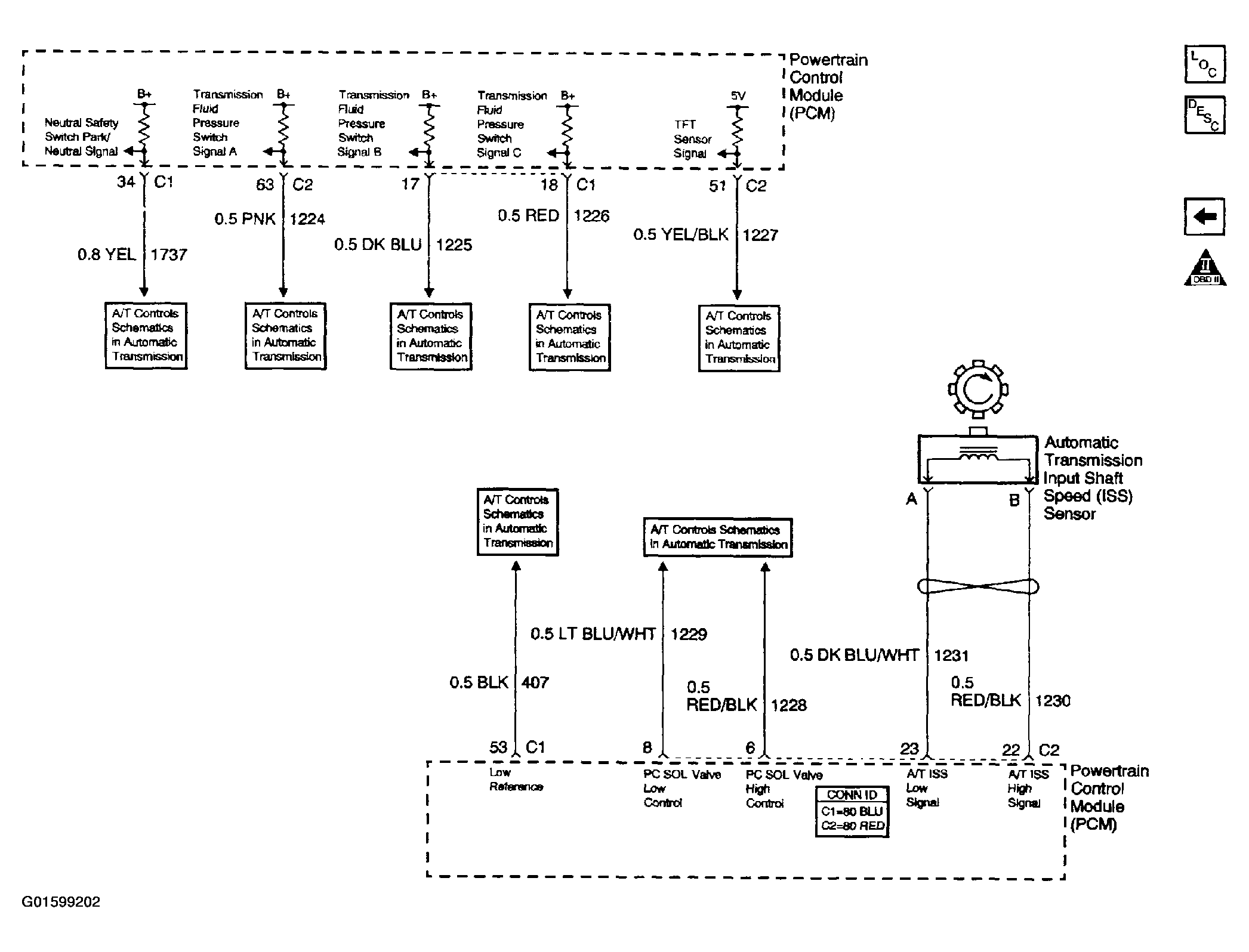

Fig 19: Engine Controls Schematics (A/T Internal Switches, TFT, PC Solenoid Valve)

Courtesy of GENERAL MOTORS CORP.
