Floor Console: Installation

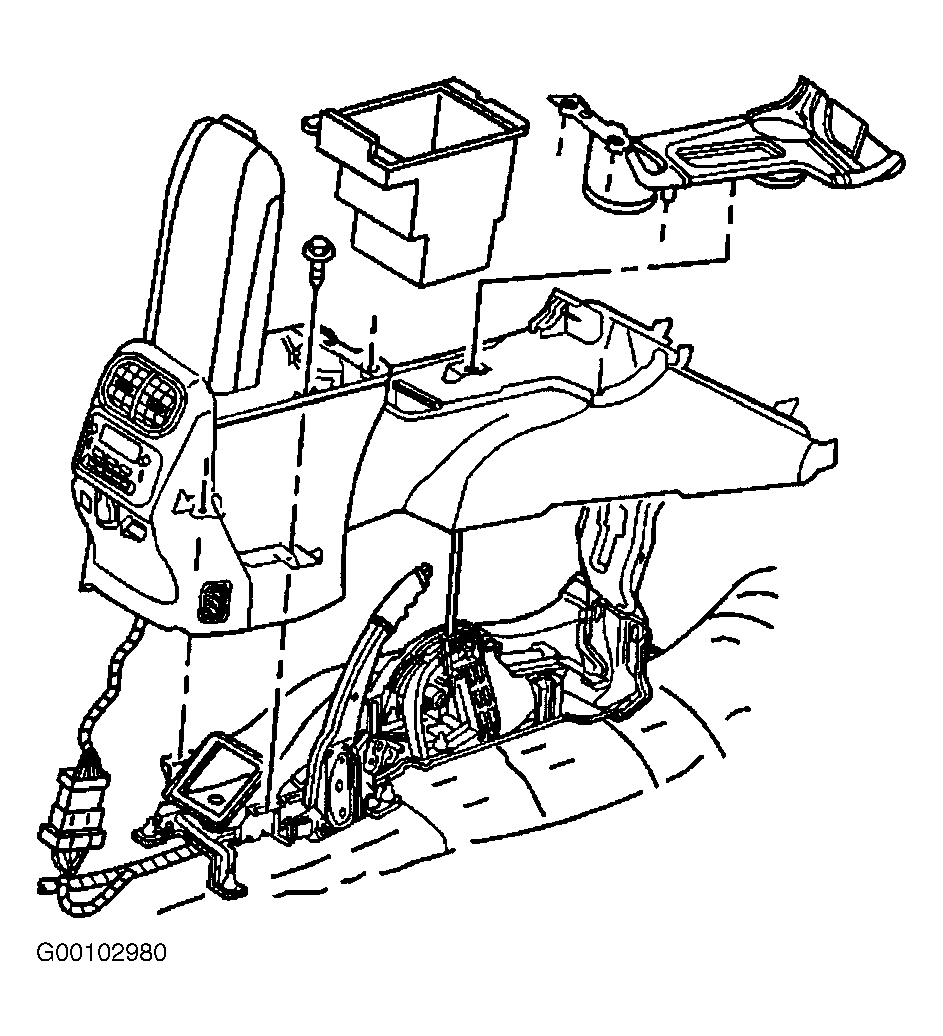

- Position the center console to the vehicle. Adjust the parking brake to the or fully engaged position. See Fig 1
. Connect the electrical connectors as necessary.
- Lower the rear of the console and slide the console forward into position. Ensure the 2 retaining ears on the front extensions of the console are fully engaged to the lower instrument panel (Bravada only).
- Install the center console retaining screws. Tighten the screws to 22 INCH lbs. (2.5 N.m). Install the console storage bin. See FLOOR CONSOLE STORAGE BIN
.
- Install the center console shift lever bezel. Install the floor shift knob. See FLOOR SHIFT KNOB
.
- Install the rubber ash tray inserts and rubber mat to the console. Remove the bocks from the vehicle.
Courtesy of GENERAL MOTORS CORP.
