Installation Procedure

  1. Install the remote control door lock receiver from the instrument panel sound insulator by snapping it.
  2. Connect the electrical connector.
  3. Install the left side instrument panel sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .
  4. Reprogram the transmitters. Refer to Transmitter Programming .
  5. Test the operation of the system.

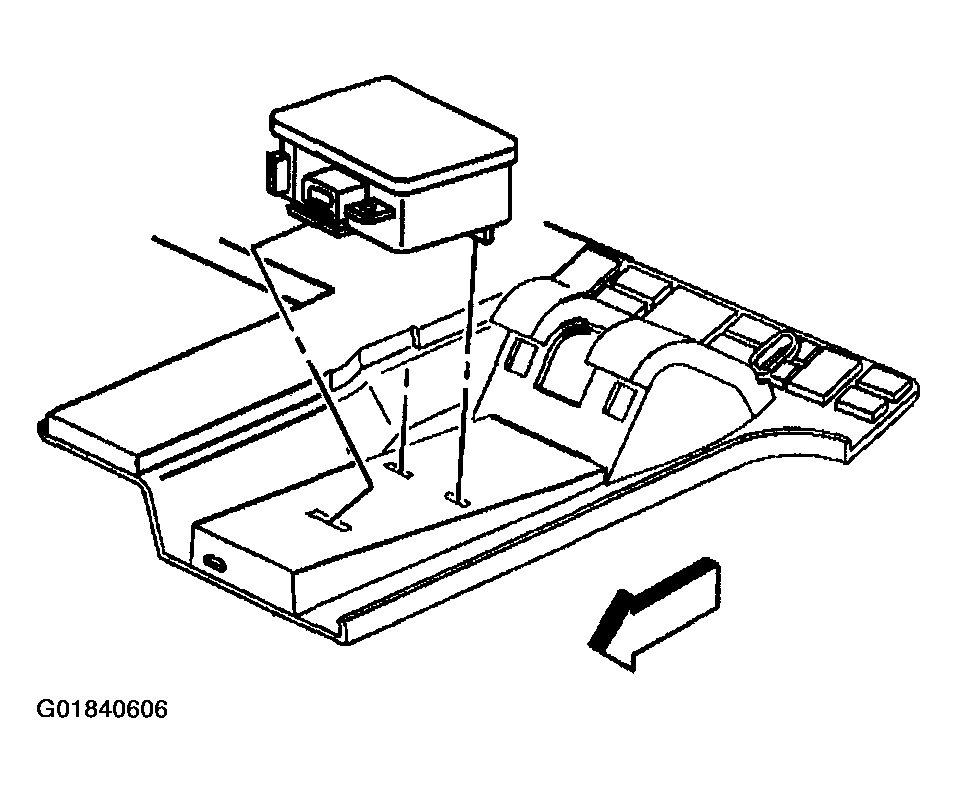

    Fig 1: Installing Remote Control Door Lock Receiver
    G01840606Courtesy of GENERAL MOTORS CORP.
