Stationary Windows Component Views

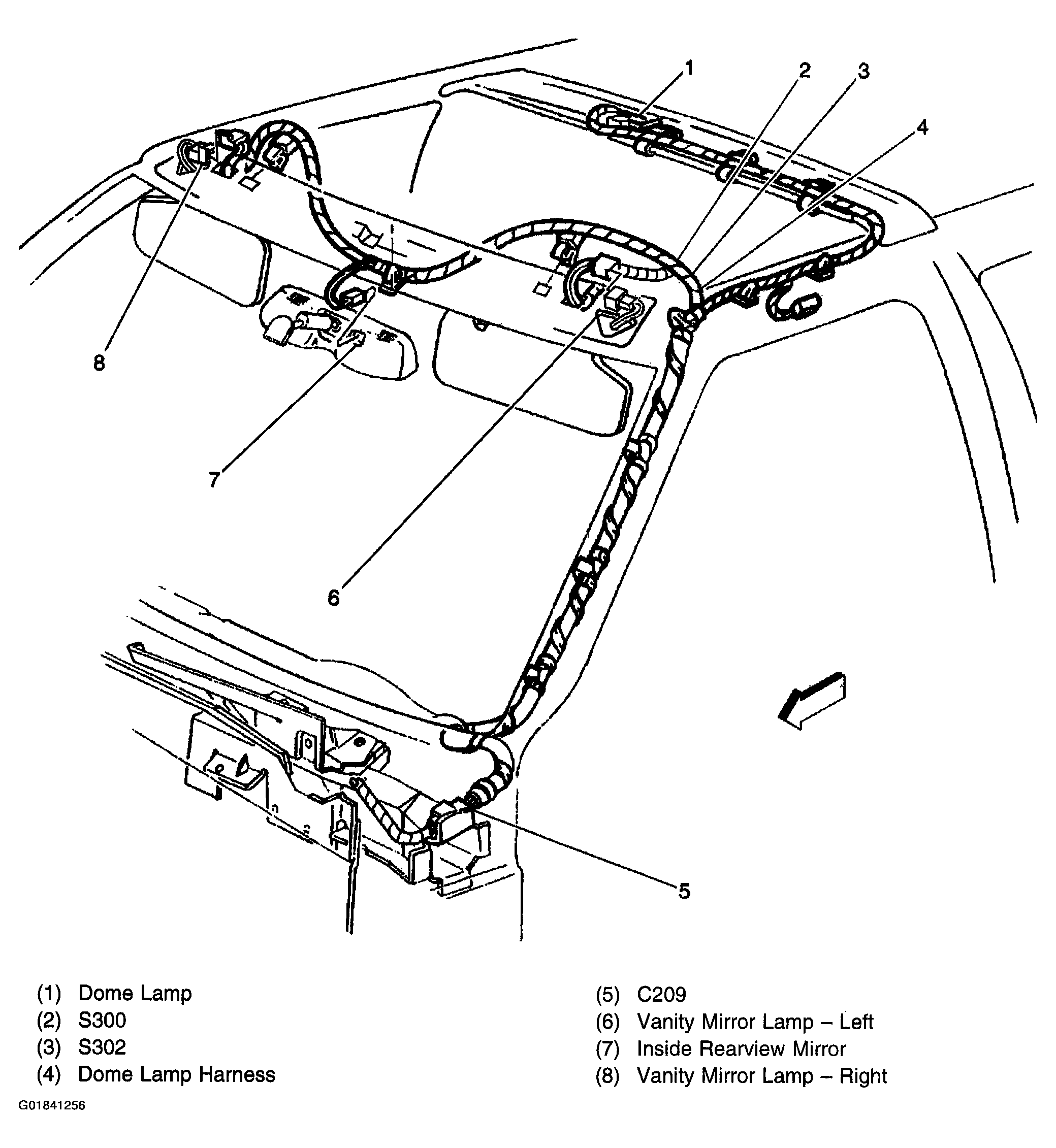

Fig 1: Dome Lamp Harness w/o Driver Information Center (DIC) - Utility
G01841256Courtesy of GENERAL MOTORS CORP.

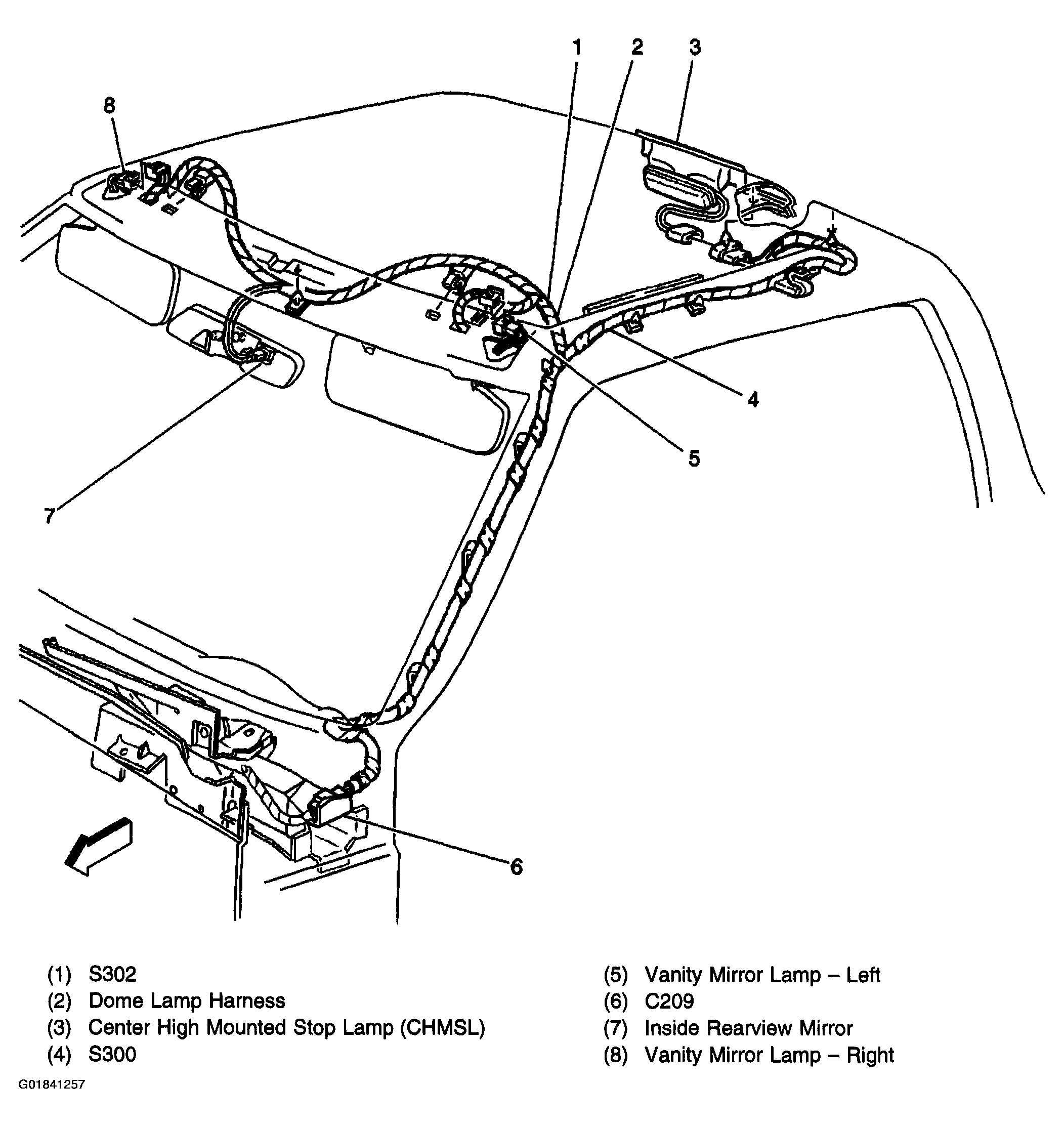

Fig 2: Dome Lamp Harness - Regular Cab Pickup
G01841257Courtesy of GENERAL MOTORS CORP.

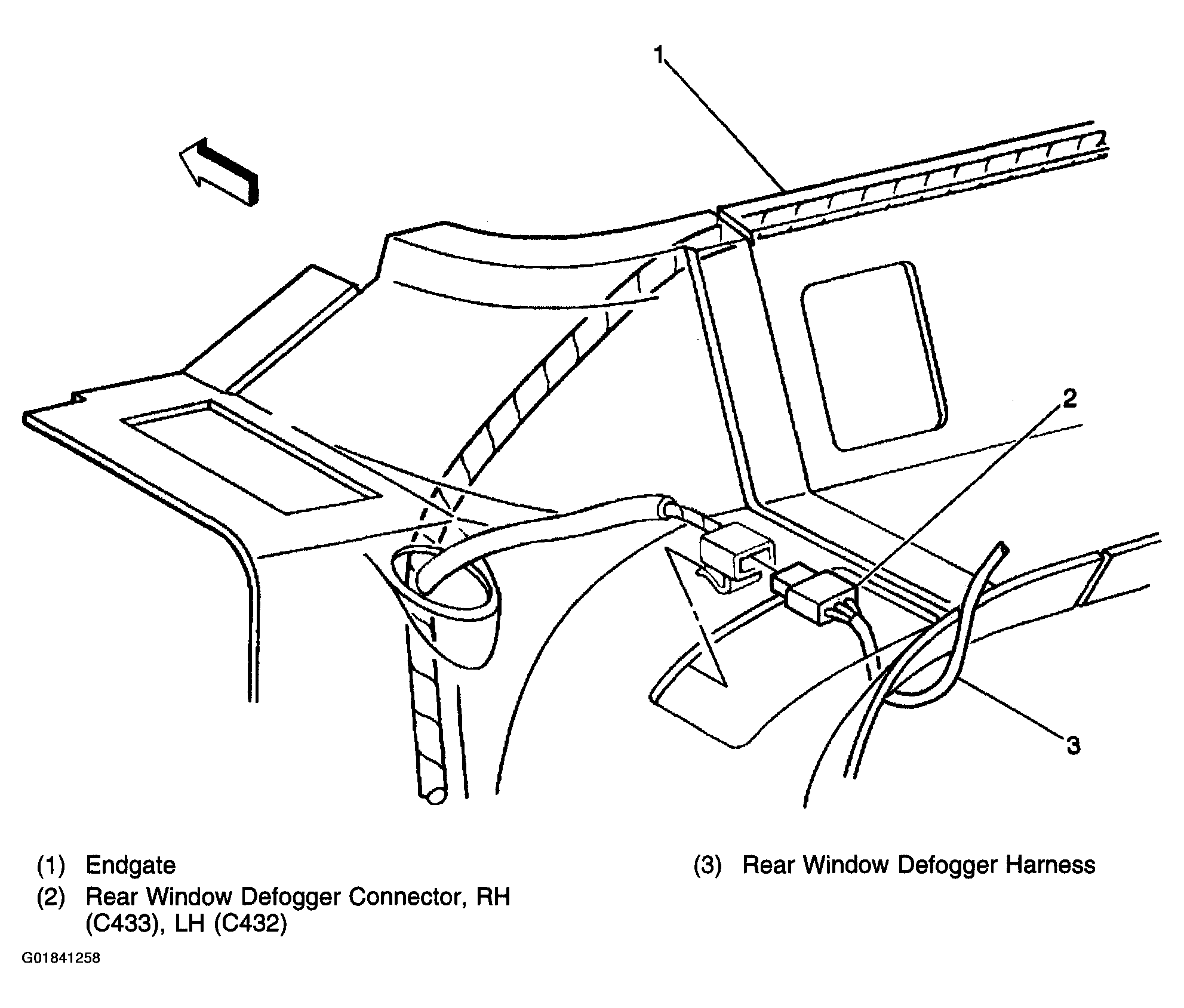

Fig 3: Body Opening Frame, Rear Window Defogger, Extension Harness
G01841258Courtesy of GENERAL MOTORS CORP.
