Stationary Windows Connector End Views

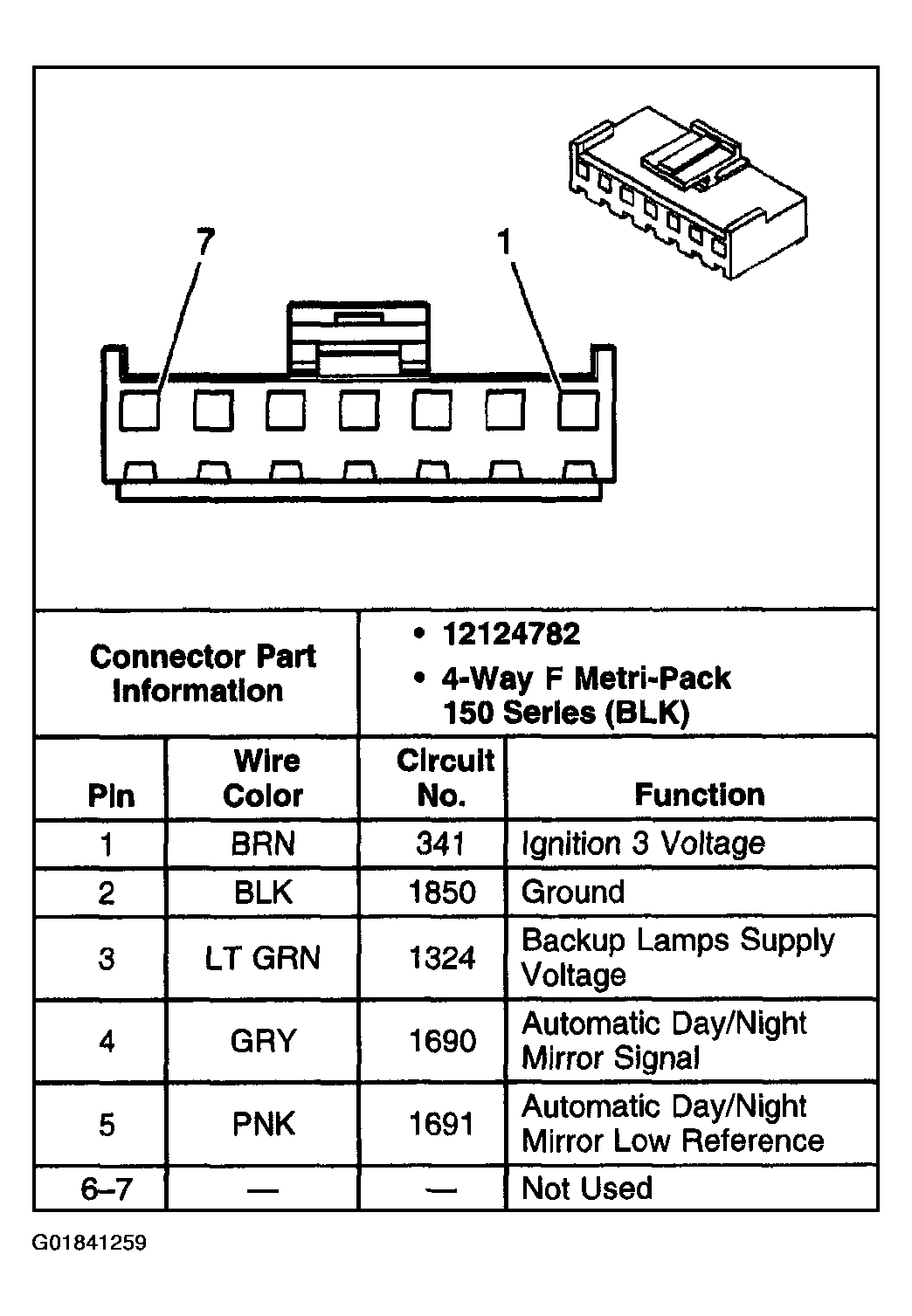

Fig 1: Inside Rear View Mirror Connector End View - Automatic Day/Night Mirror
G01841259Courtesy of GENERAL MOTORS CORP.
