ABS Component Views

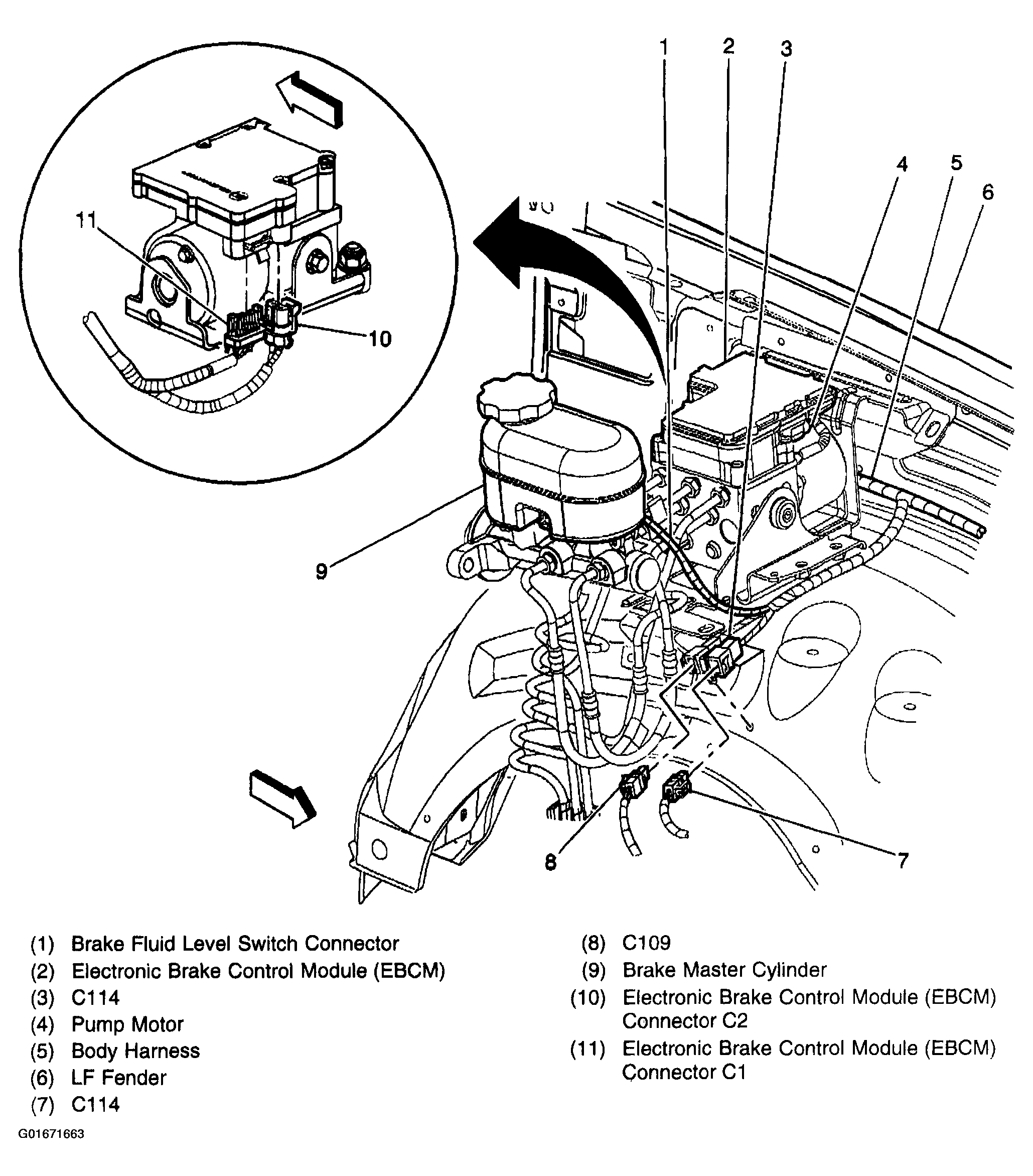

Fig 1: Electronic Brake Control Module (EBCM) Components
G01671663Courtesy of GENERAL MOTORS CORP.

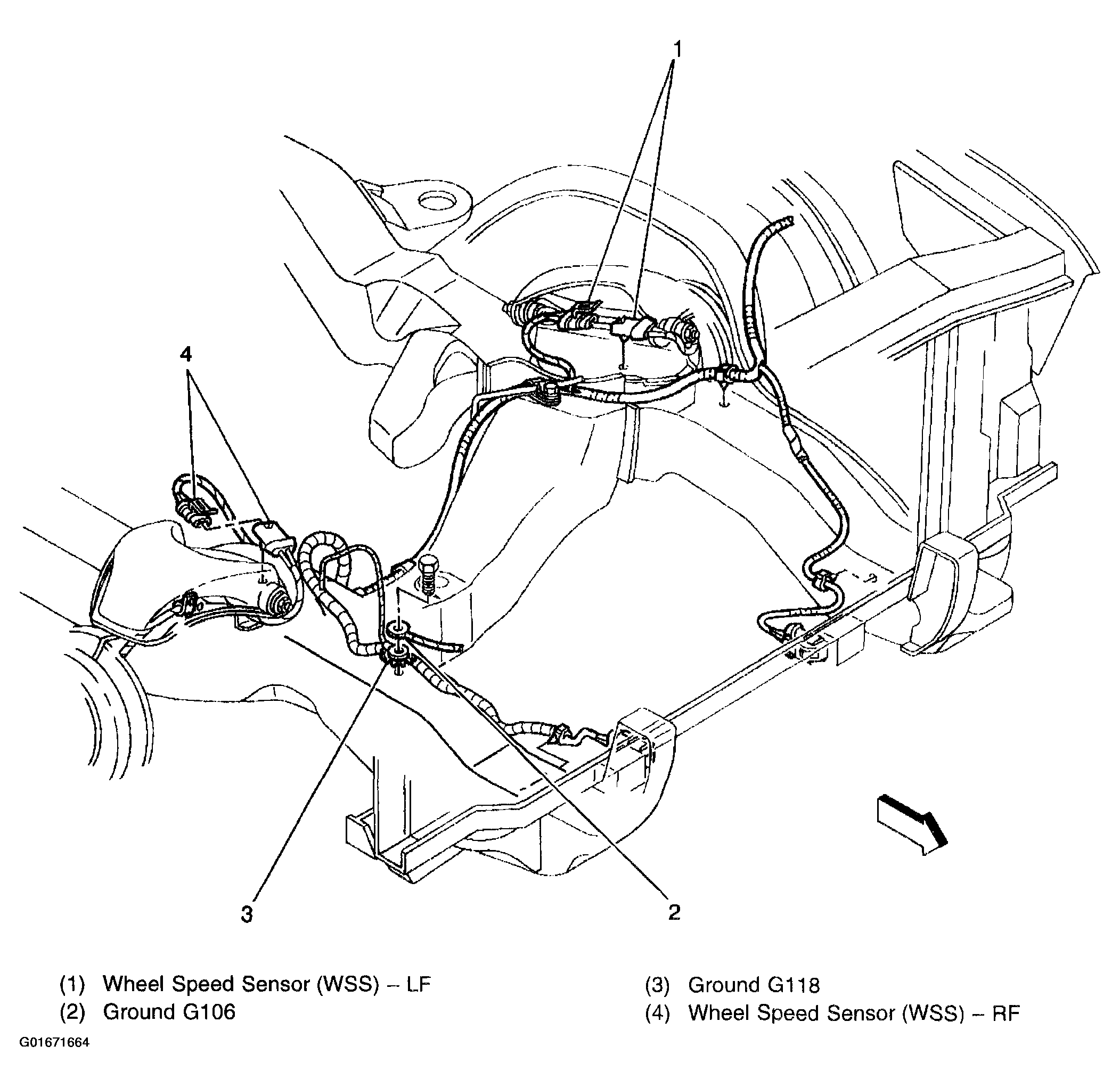

Fig 2: Forward Wiring Sensor Components
G01671664Courtesy of GENERAL MOTORS CORP.
