Schematic and Routing Diagrams

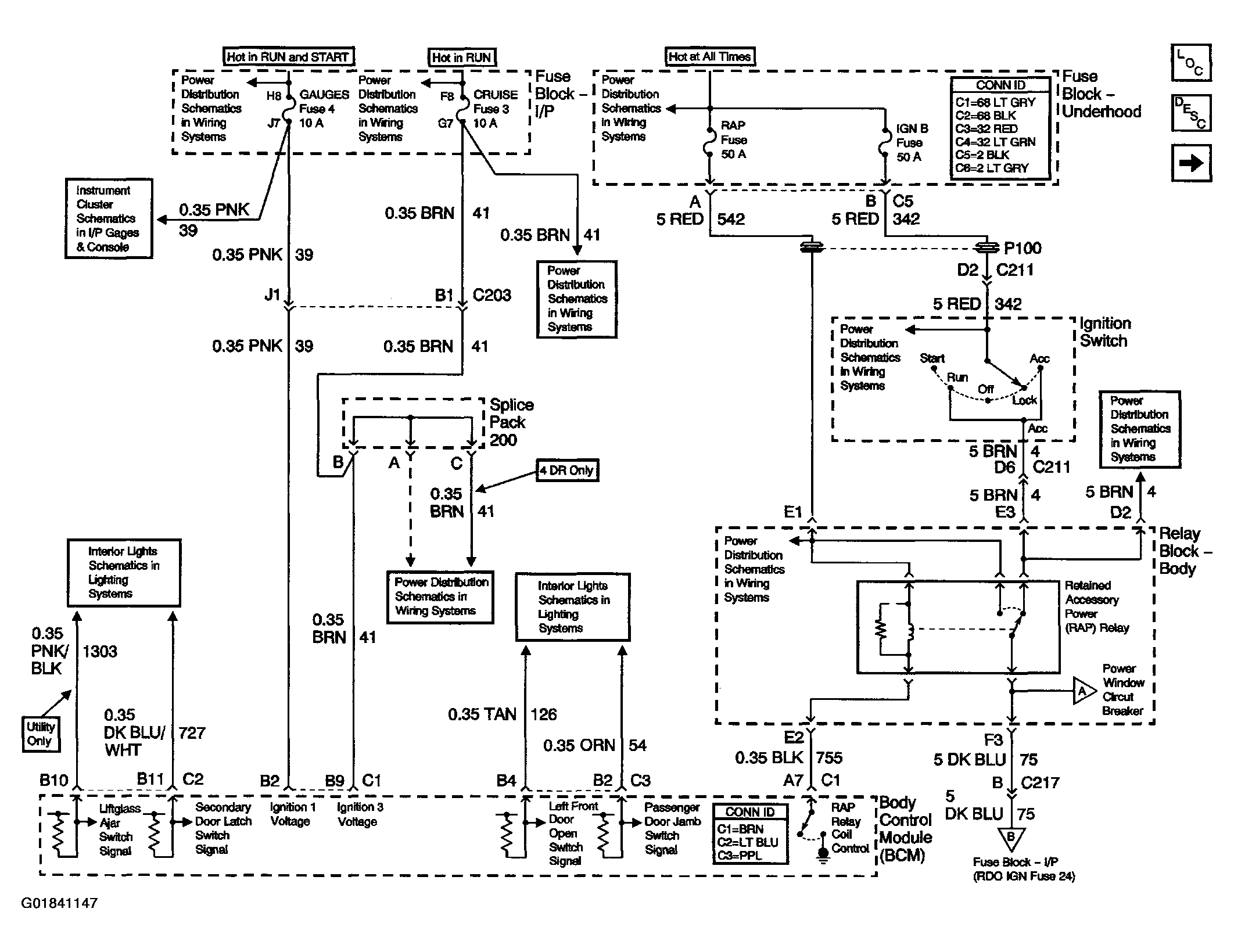

Fig 1: Retained Accessory Power (RAP) Schematic (RAP Relay And Ignition Switch)

Courtesy of GENERAL MOTORS CORP.

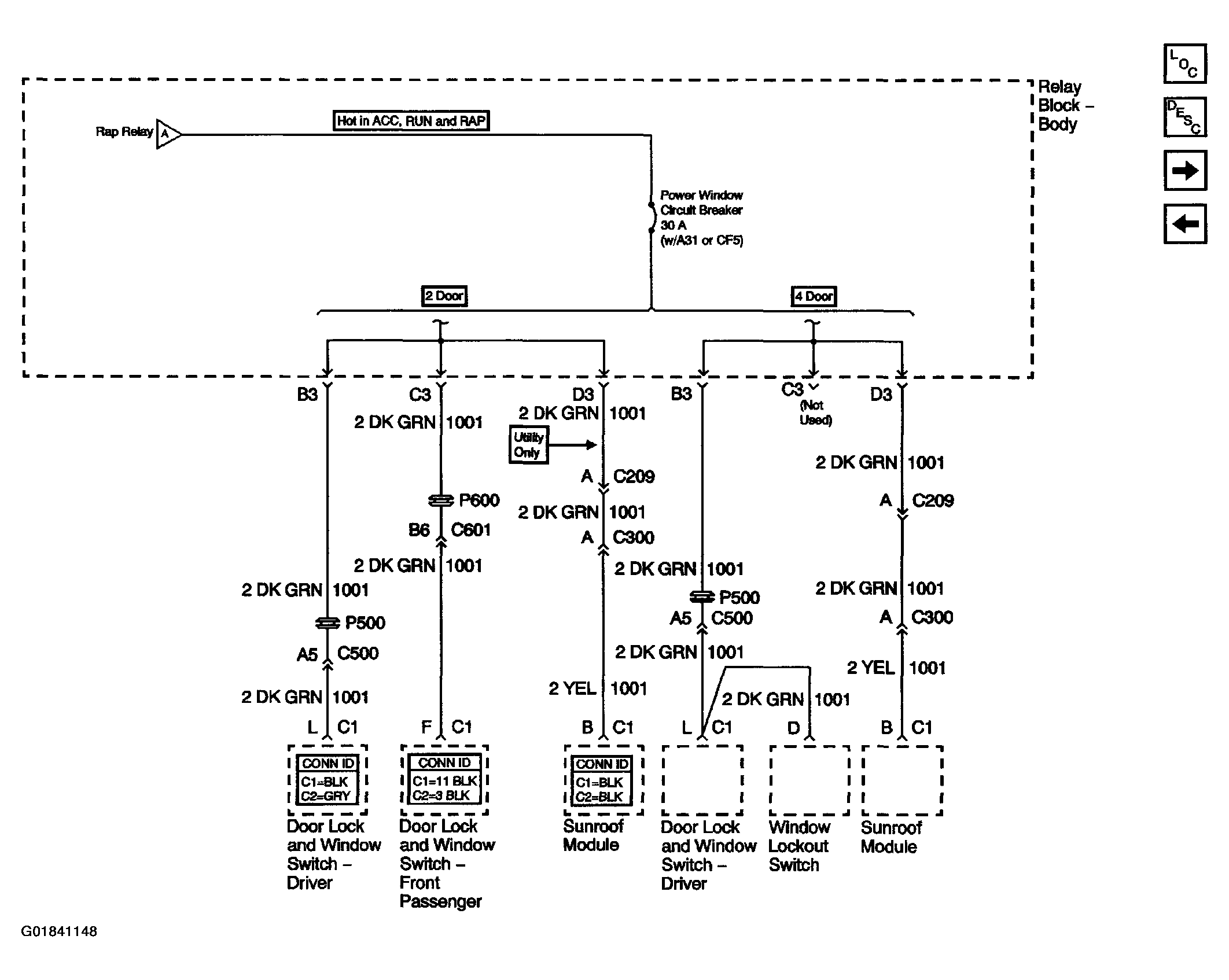

Fig 2: Retained Accessory Power (RAP) Schematics (Door Lock And Window Switches)

Courtesy of GENERAL MOTORS CORP.

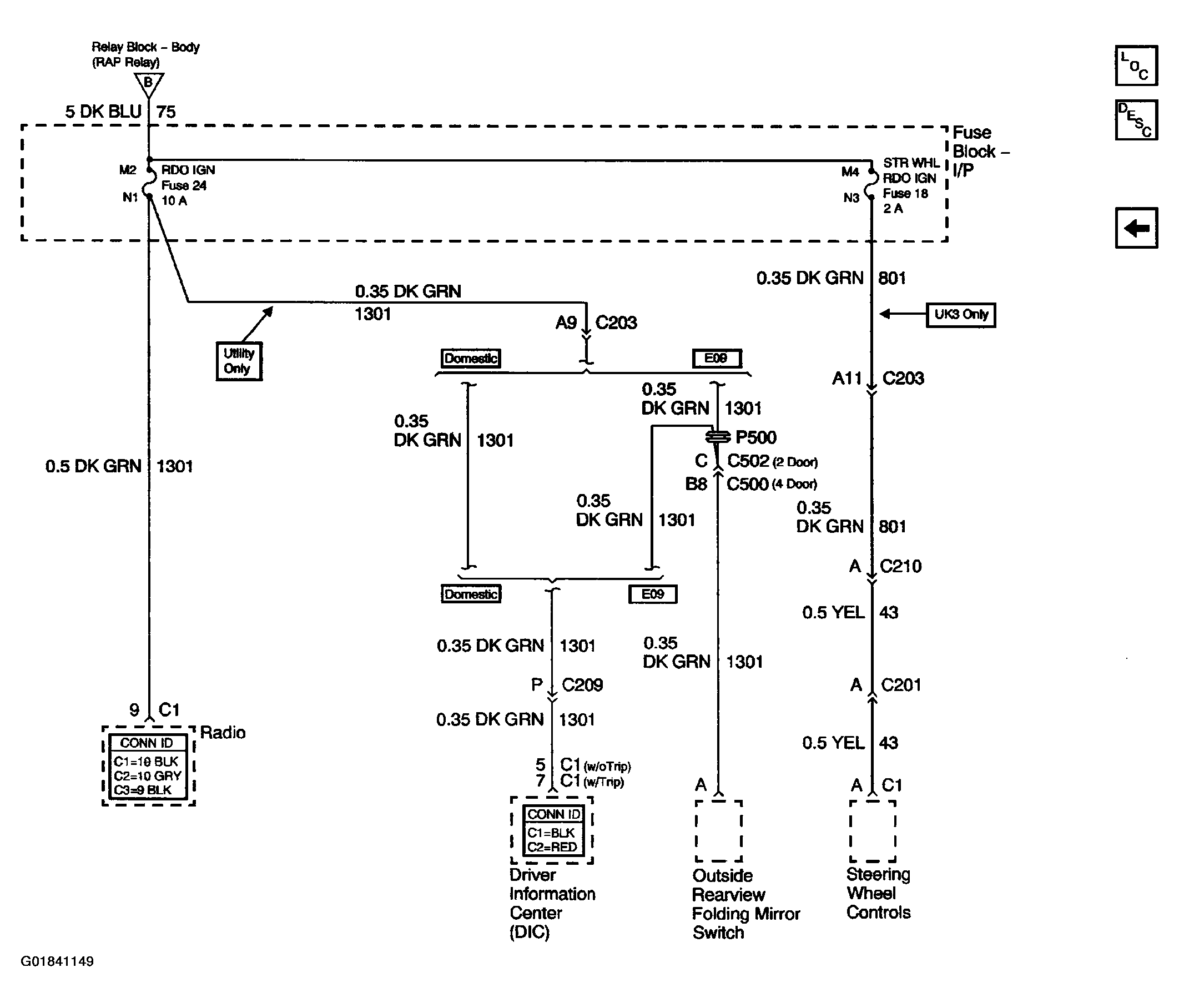

Fig 3: Retained Accessory Power (RAP) Schematic (RDO IGN And STR WHL RDO IGN Fuses)

Courtesy of GENERAL MOTORS CORP.
