Engine Electrical Component Views

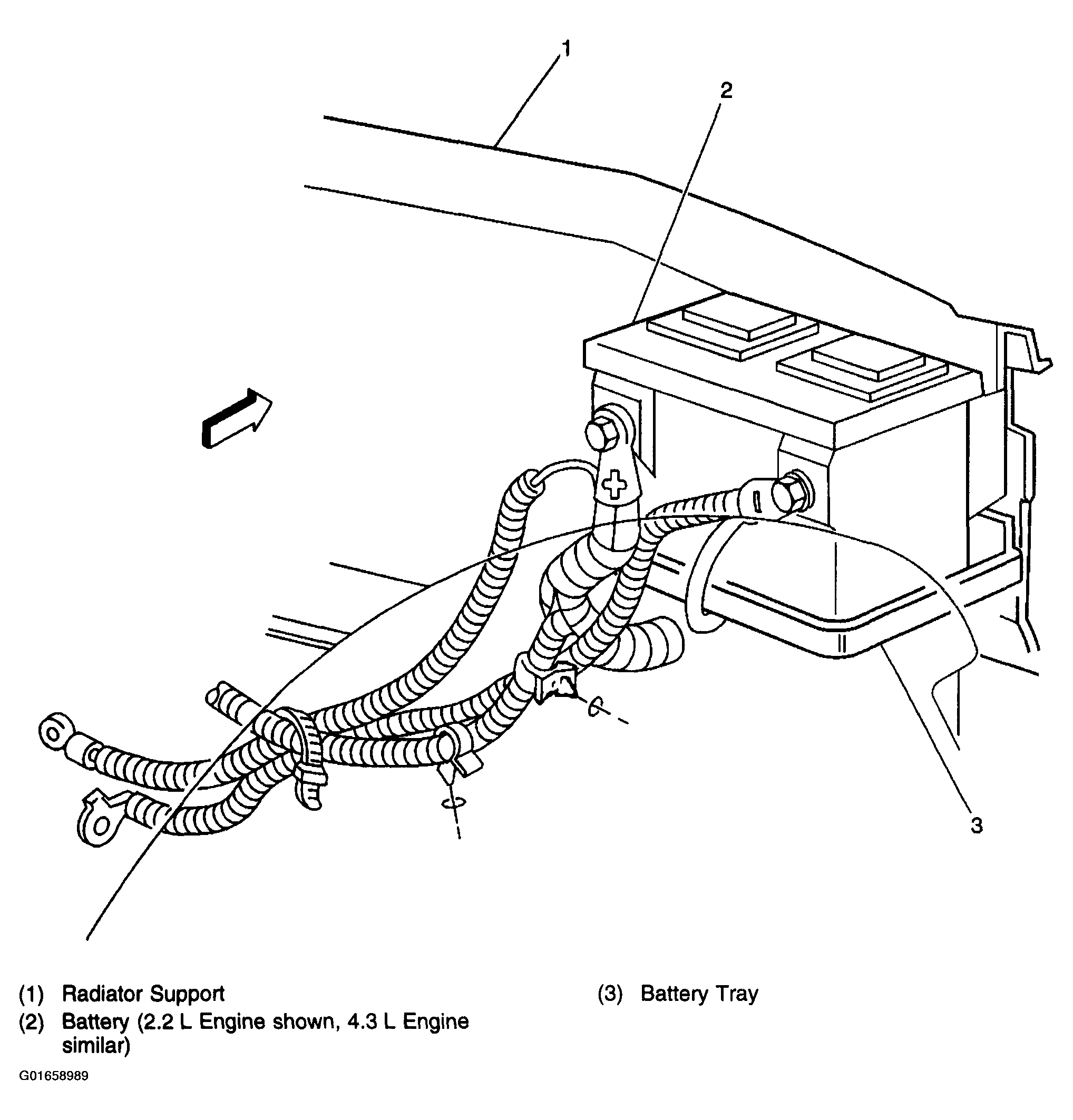

Fig 1: Battery Component View
G01658989Courtesy of GENERAL MOTORS CORP.

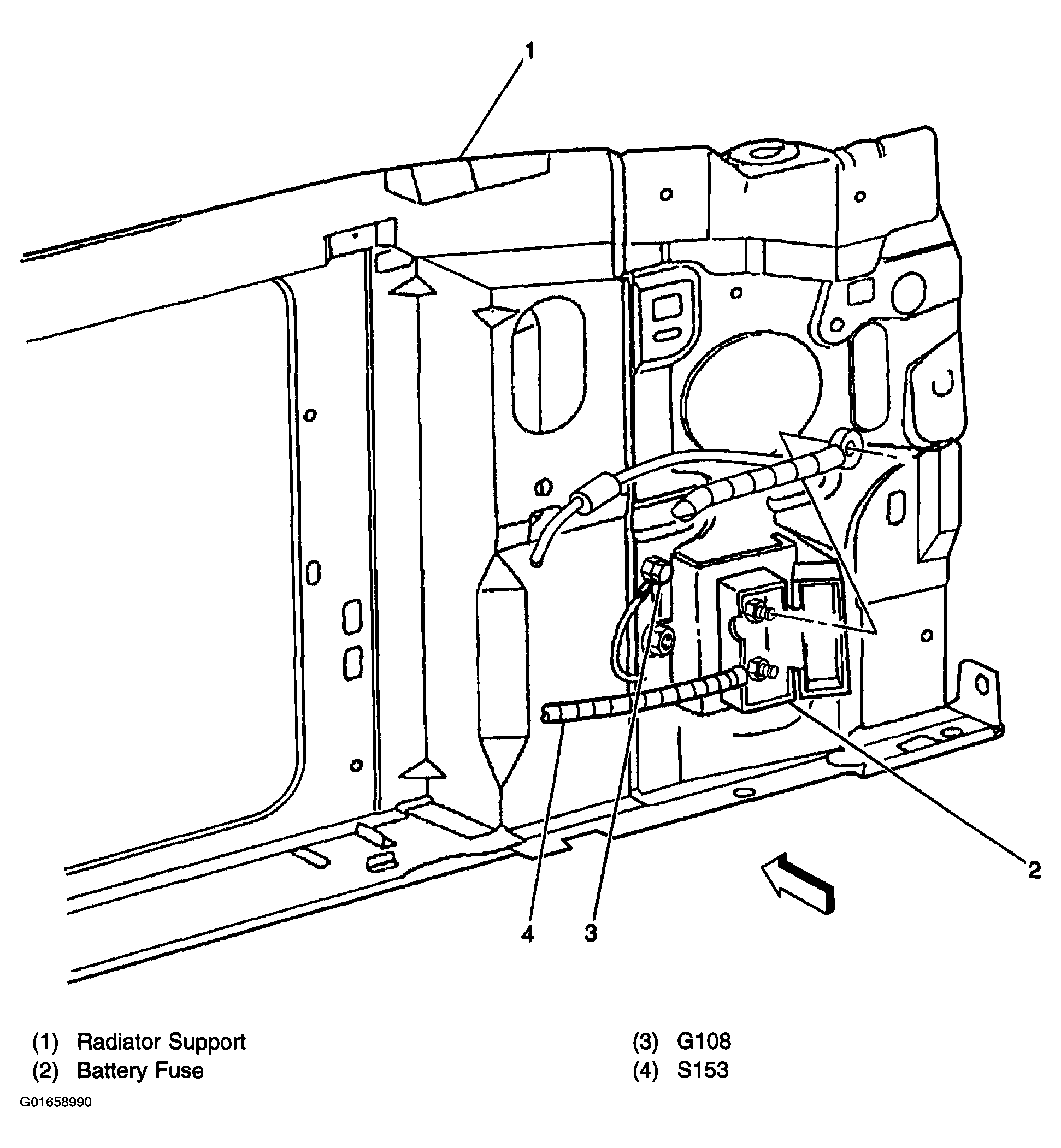

Fig 2: Battery Fuse Component View
G01658990Courtesy of GENERAL MOTORS CORP.
