Removal Procedure

  1. Turn off all the lamps and accessories.
  2. Turn the ignition OFF.
    CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  3. Remove the battery ground negative cable and bolt from the battery 4.3L.

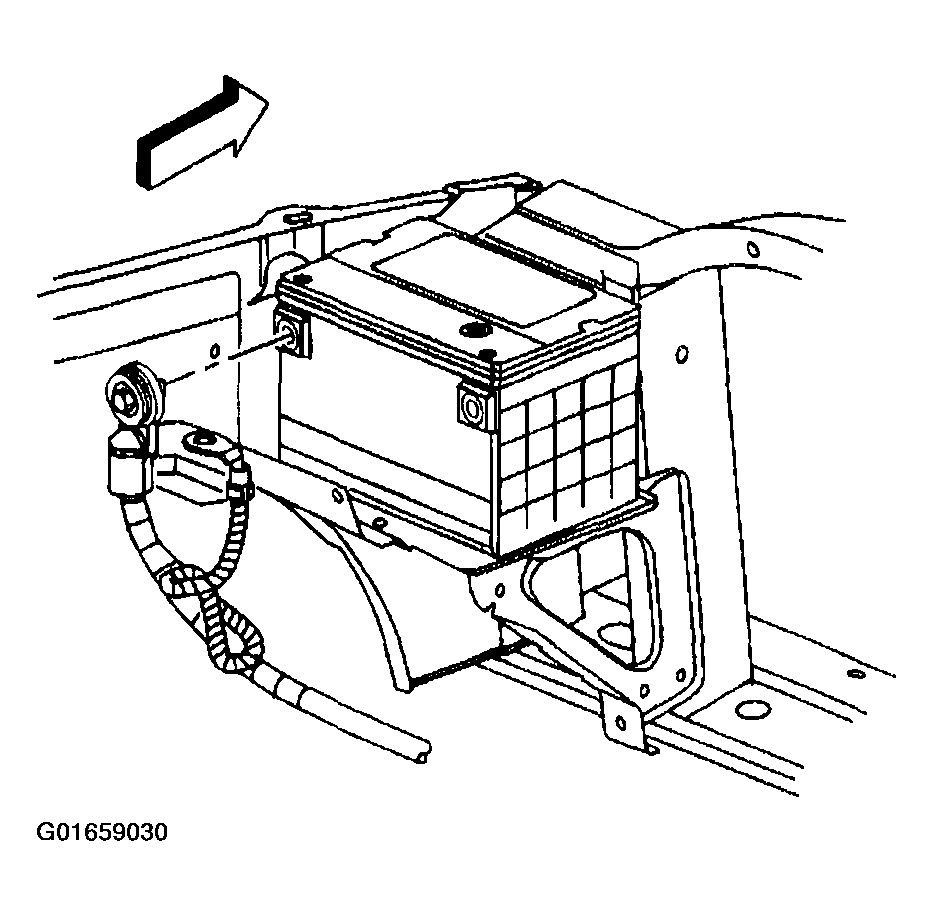

    Fig 1: Battery Ground Negative Cable & Bolt
    G01659030Courtesy of GENERAL MOTORS CORP.
