Battery Usage

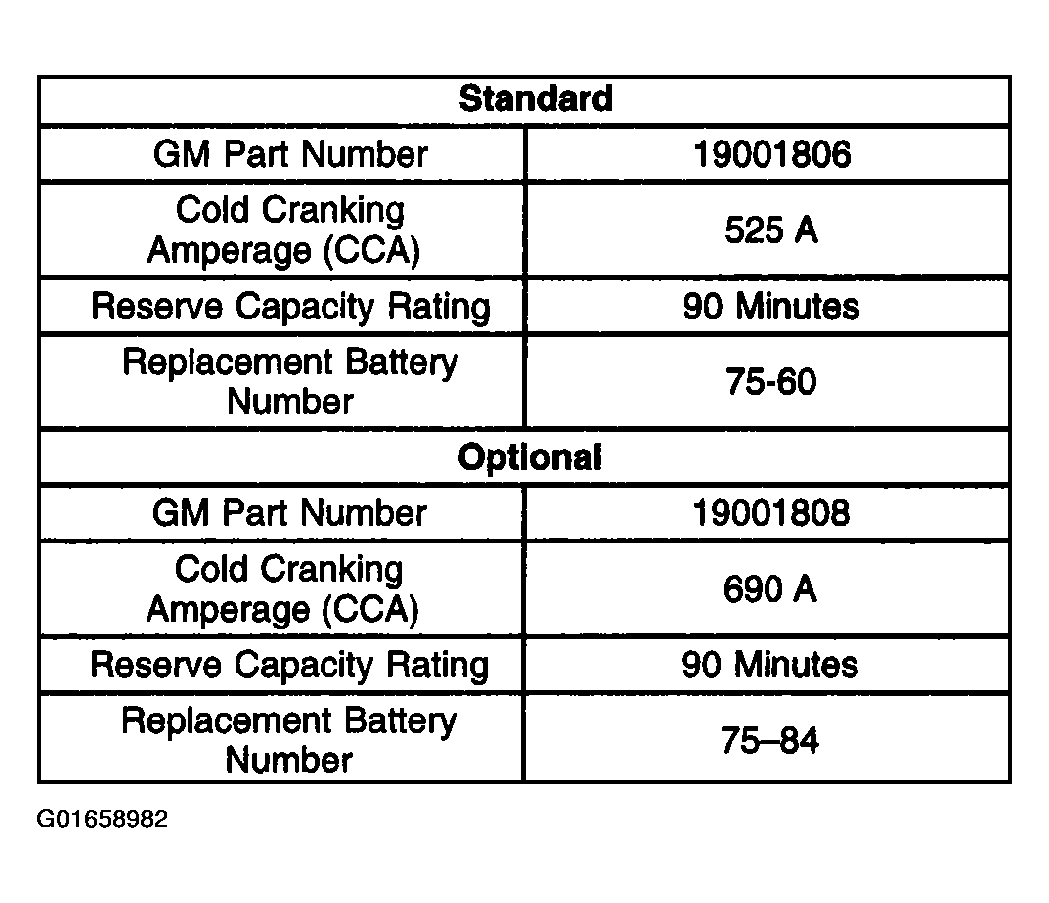

Fig 1: Battery Usage
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
