Component Locations

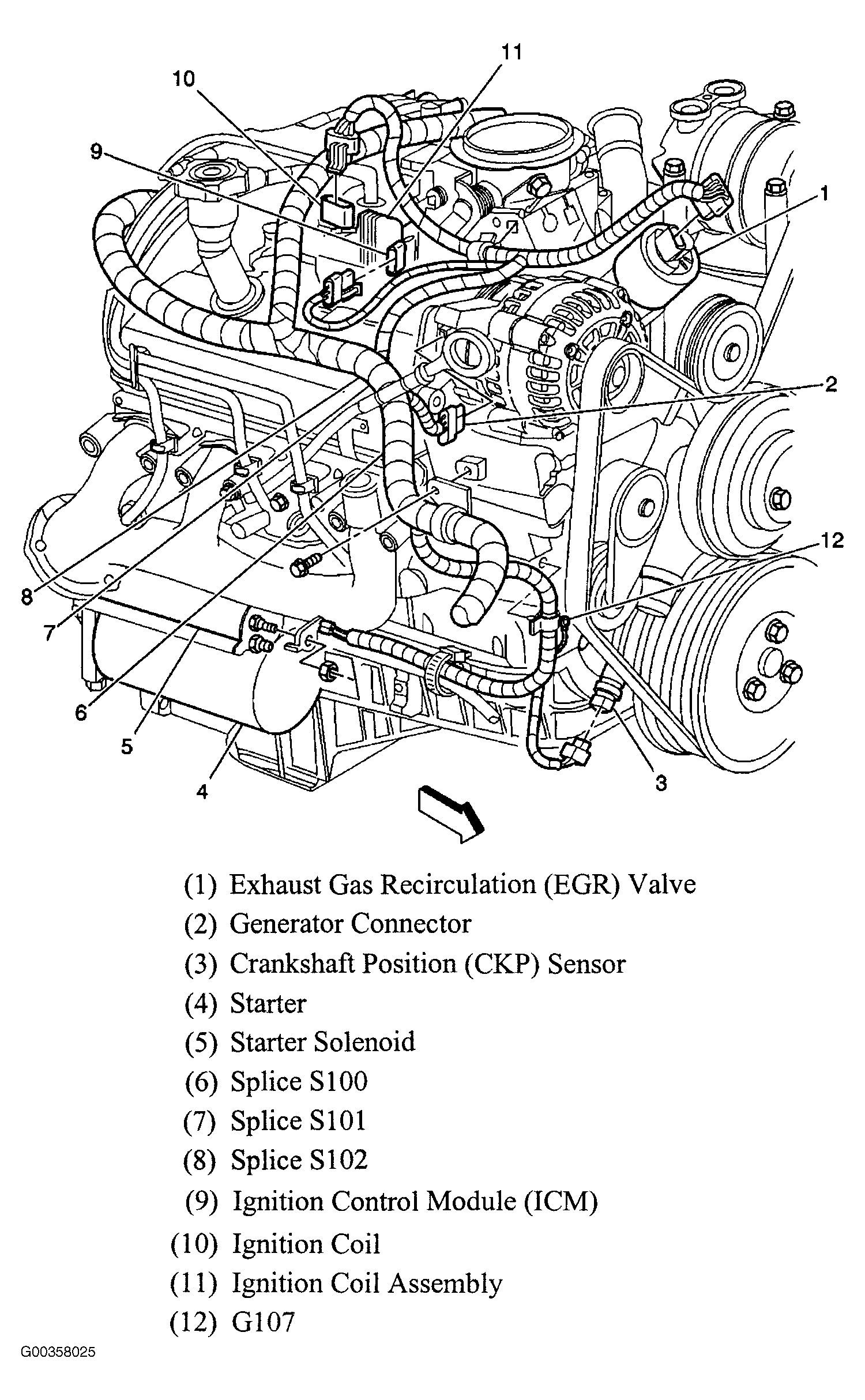

Fig 1: Locating Starter Motor (4.3L)
G00358025Courtesy of GENERAL MOTORS CORP.

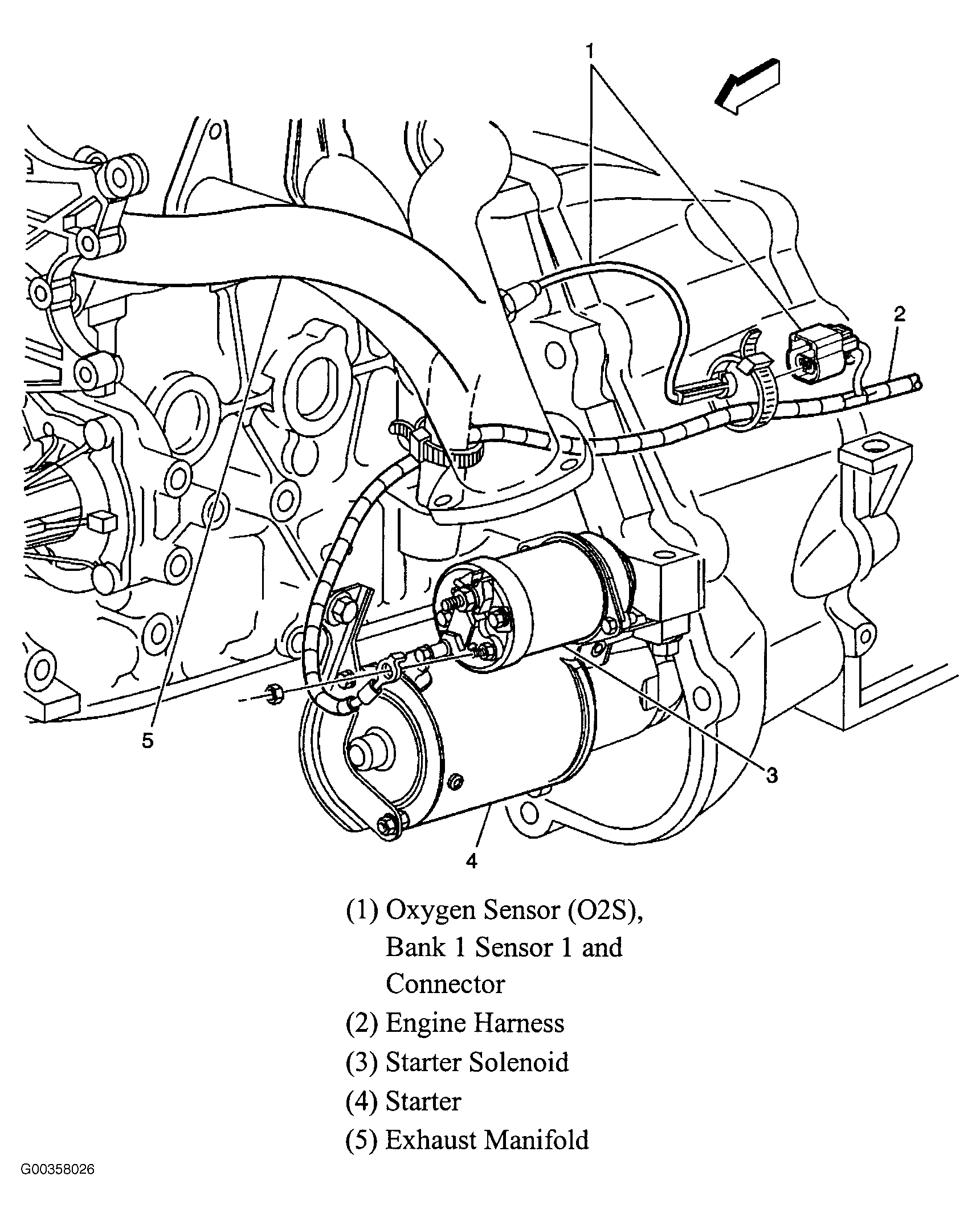

Fig 2: Locating Starter Solenoid And Oxygen Sensor
G00358026Courtesy of GENERAL MOTORS CORP.
