Installation Procedure

  1. Place the power steering pump pulley on the end of the power steering pump shaft.
  2. Install the power steering pump pulley using J 25033-C  .

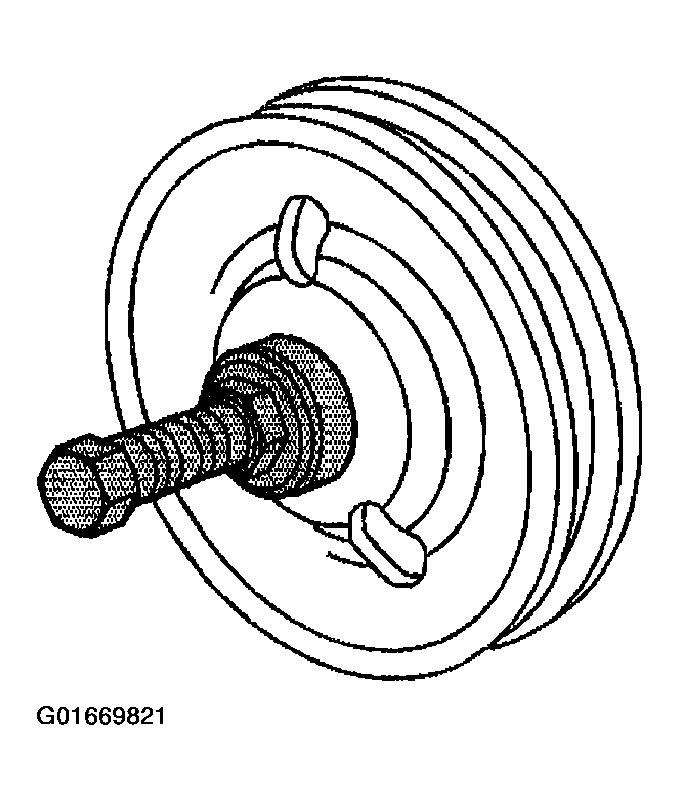

    Fig 1: Installing Power Steering Pump Pulley Using J 25033-C
    G01669821Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the power steering pump pulley (1) is flush against the power steering pump shaft (2), with an allowable variance of 0.25 mm (0.010 in).
  4. Install the drive belt. Refer to DRIVE BELT TENSIONER REPLACEMENT for 2.2L or DRIVE BELT REPLACEMENT for 4.3L.
  5. Install the fan clutch. Refer to FAN CLUTCH REPLACEMENT .

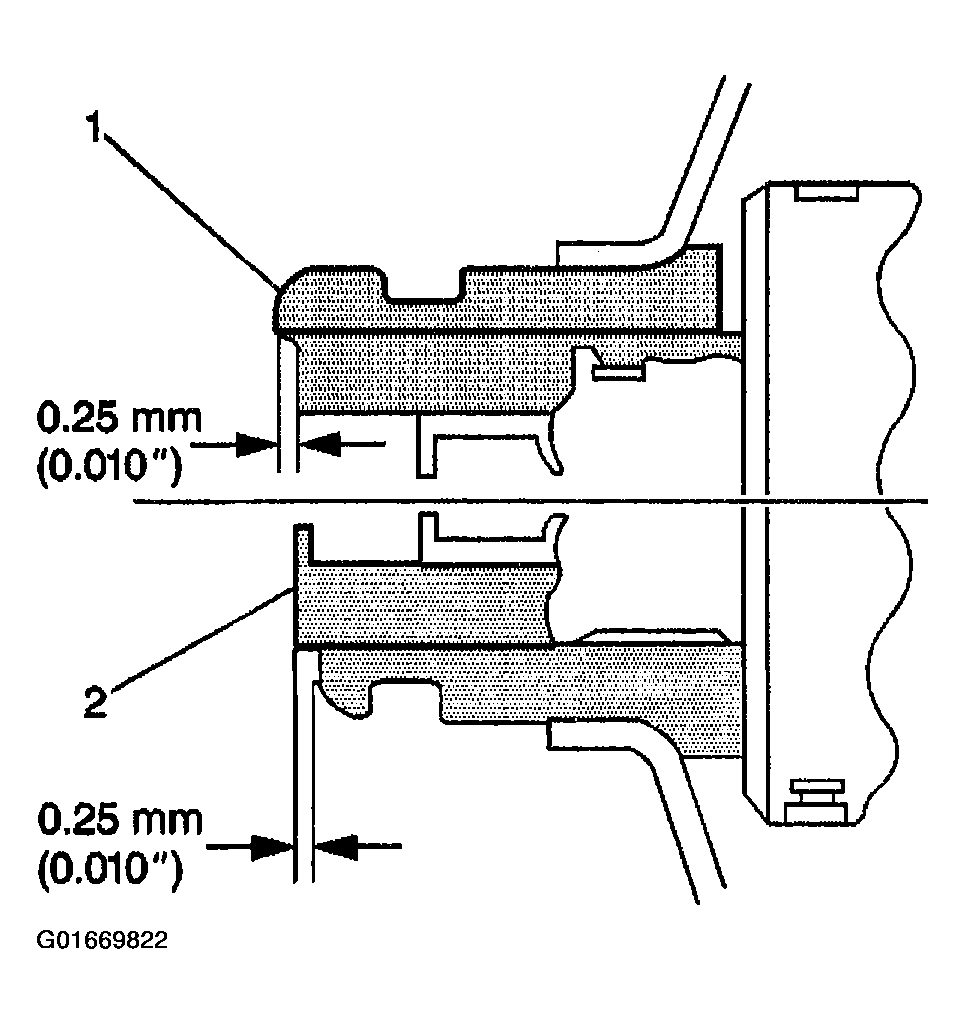

    Fig 2: Ensuring Power Steering Pump Pulley Is Flush
    G01669822Courtesy of GENERAL MOTORS CORP.
