Removal Procedure

Important:  If you must remove more than one tube adapter at one time, stamp the BPMV with a number (1, 2 or 3) in order to indicate the number of grooves cut into the tube adapters. This procedure will aid proper reassembly.

1. Remove the appropriate brake line from the tube adapter (1).
2. Remove the tube adapter from the BPMV (3).

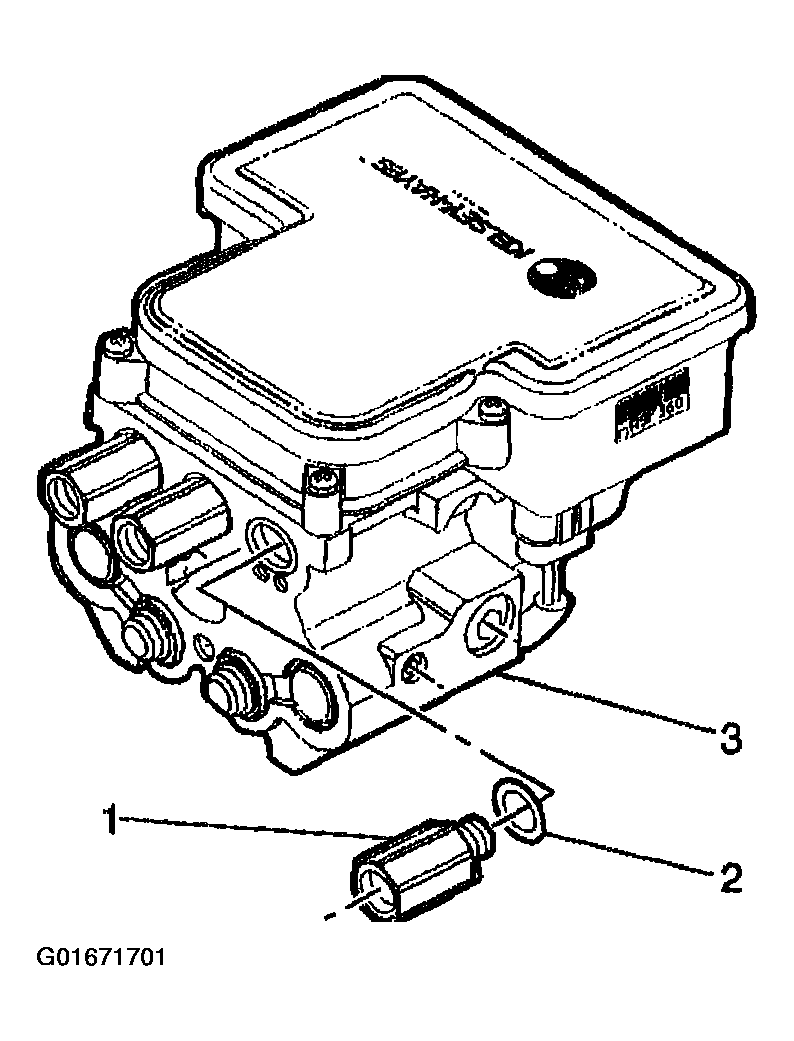

Fig 1: Tube Adapter
Courtesy of GENERAL MOTORS CORP.
