Installation Procedure

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  1. Install the tether anchor (1) to the seat frame with the mounting bolt.

    Tighten

    Tighten the tether anchor bolt to 24 N.m (18 lb ft).

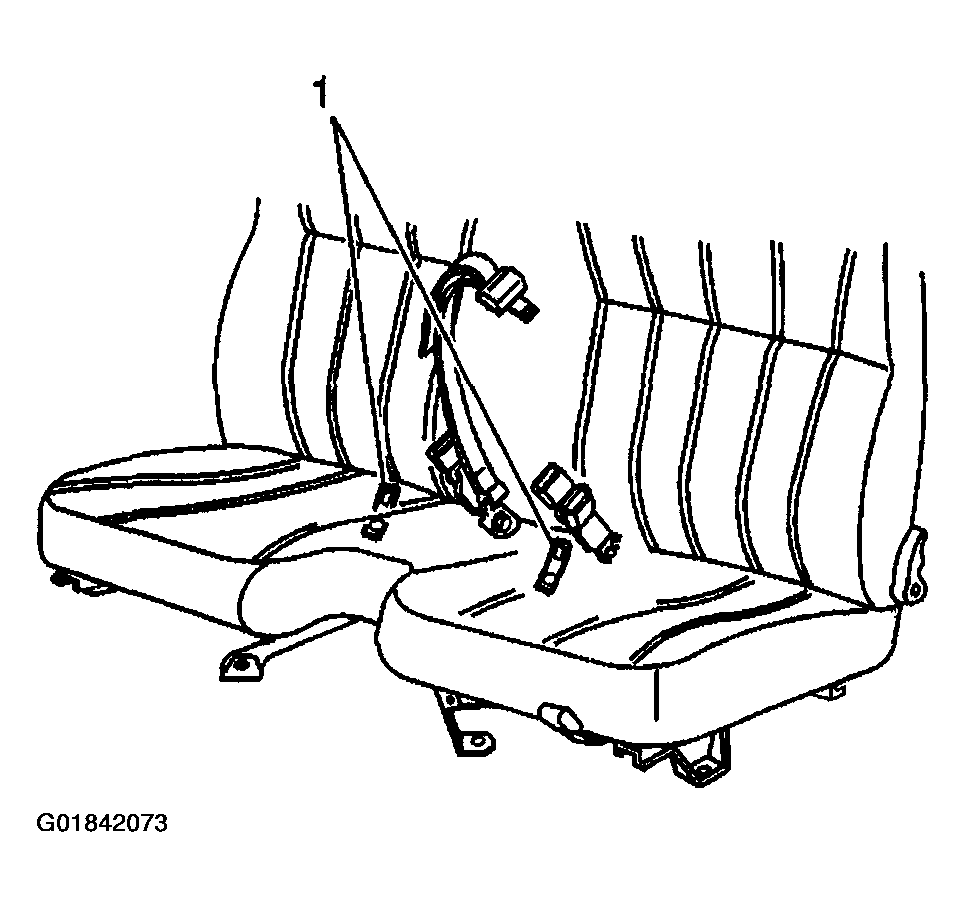

    2. Fig 1: Tether Anchor
    G01842073Courtesy of GENERAL MOTORS CORP.
  2. Work the seat cover back to the original position.
  3. Engage the J-strip to the seat bottom frame.

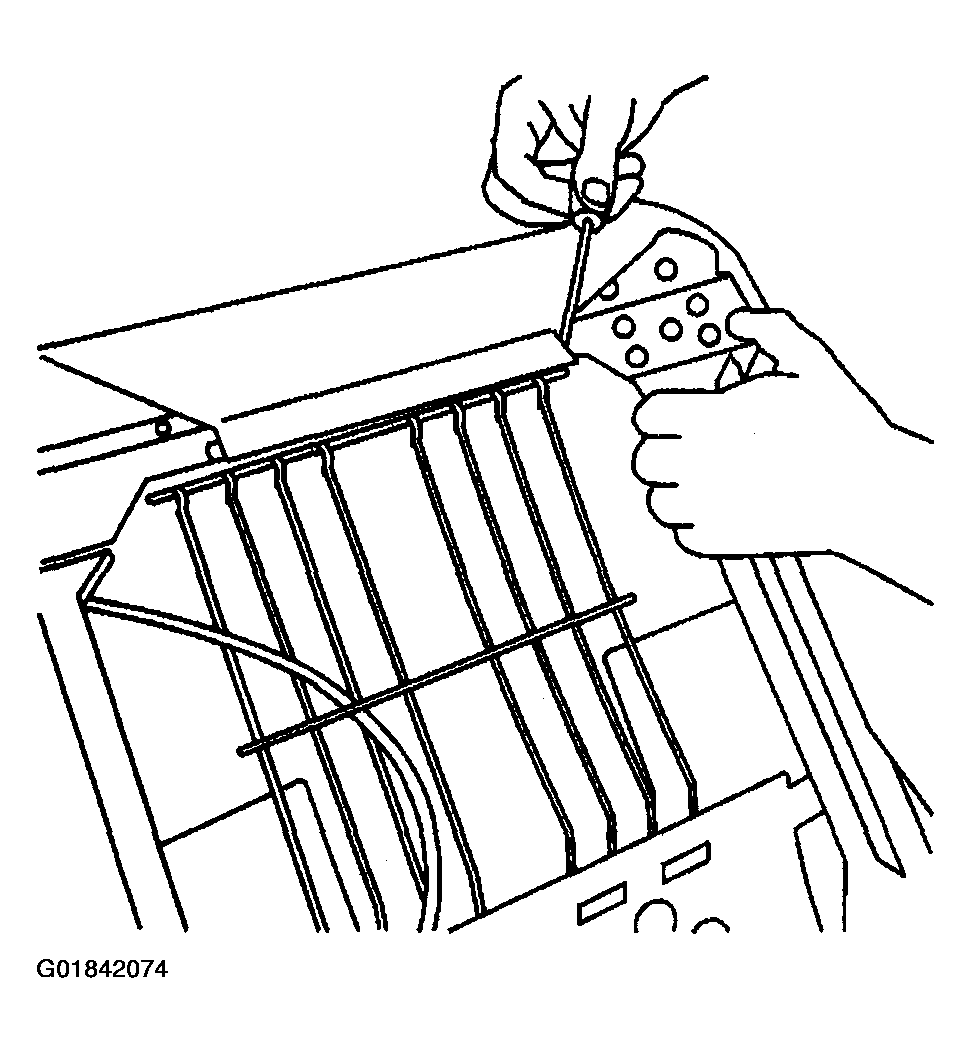

    4. Fig 2: J-Strip To Seat Bottom Frame
    G01842074Courtesy of GENERAL MOTORS CORP.
