Floor Shift Boot: Installation

Install the shift boot to the console trim. Install the retainer securing the shift boot to the console trim. See Fig 1.

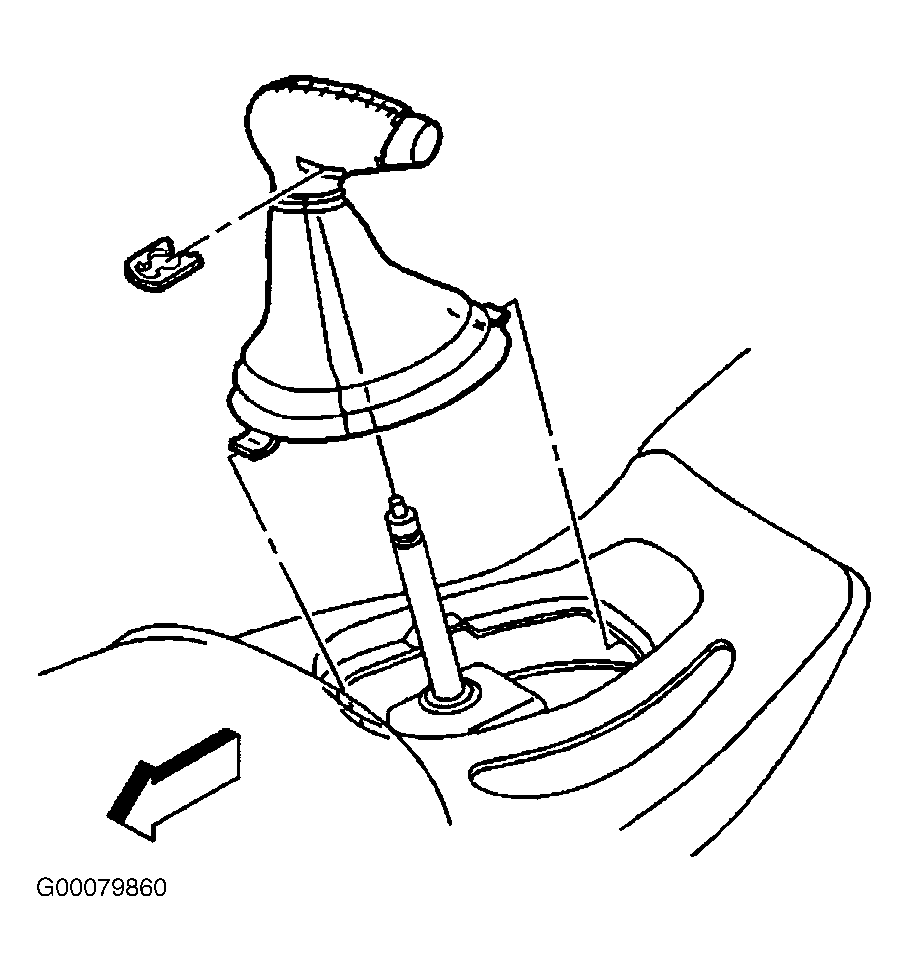

Fig 1: Removing & Installing Shift Boot
G00079860Courtesy of GENERAL MOTORS CORP.
