PCM Harness Resistance

Turn ignition switch to LOCK position. Disconnect PCM and appropriate component harness connectors. Check for open or short circuits between appropriate PCM harness connector terminal and appropriate component harness connector terminal. If harness is open or shorted, repair as necessary.

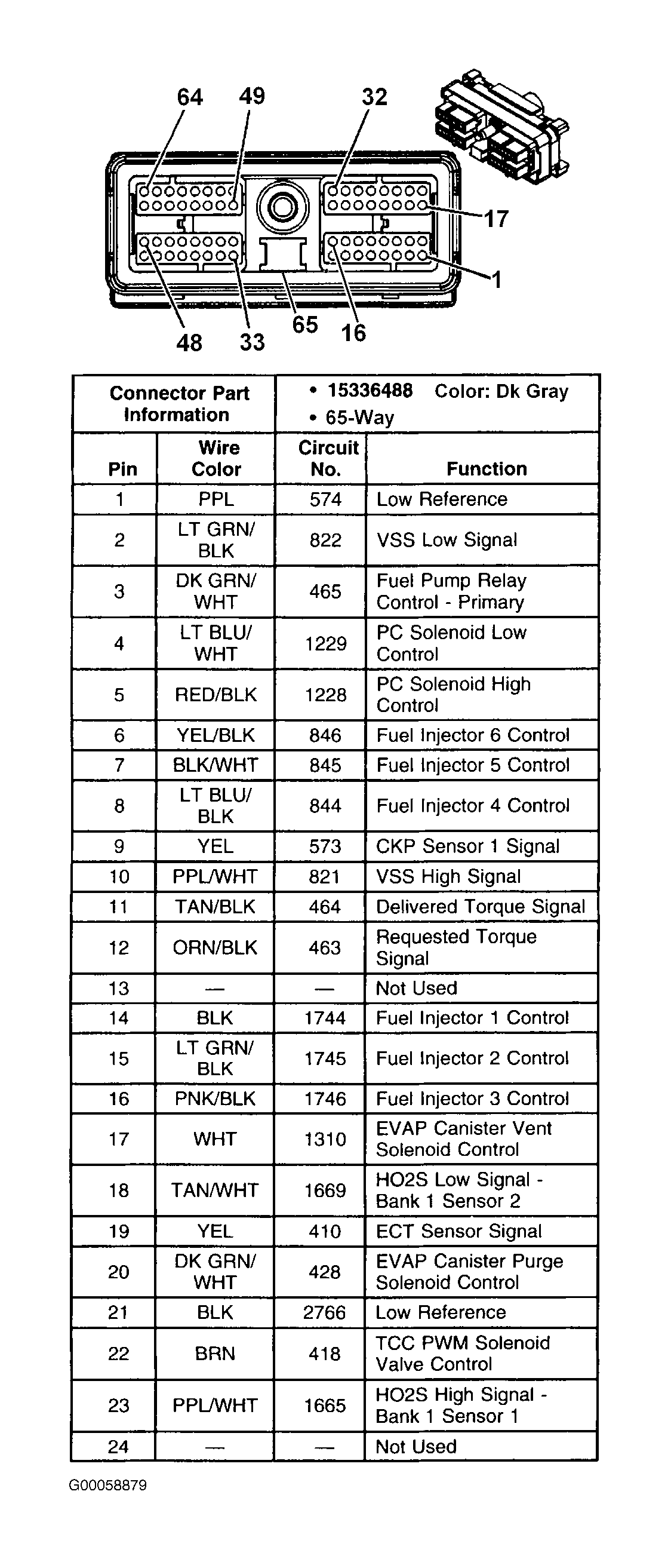

Fig 1: Identifying PCM Connector C1 Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

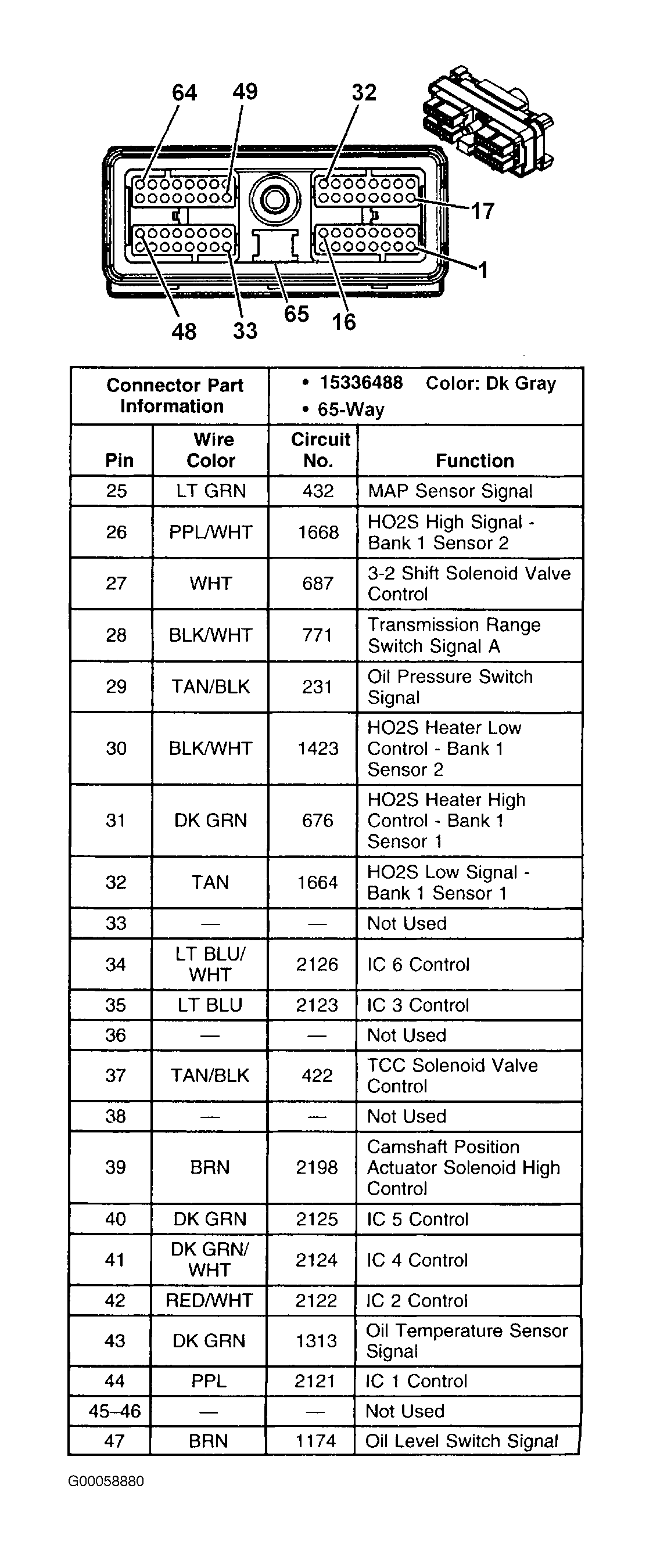

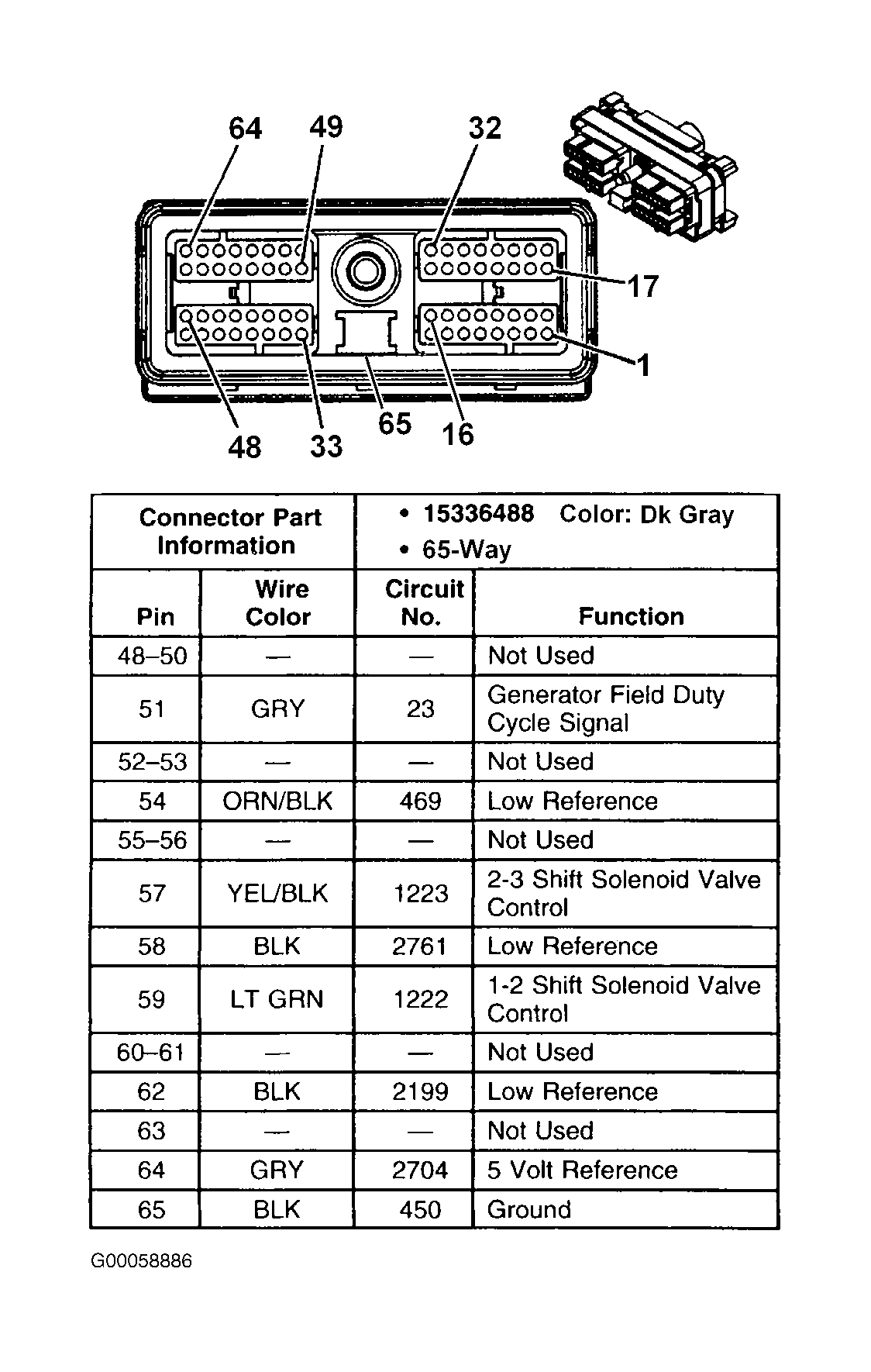

Fig 2: Identifying PCM Connector C1 Terminals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

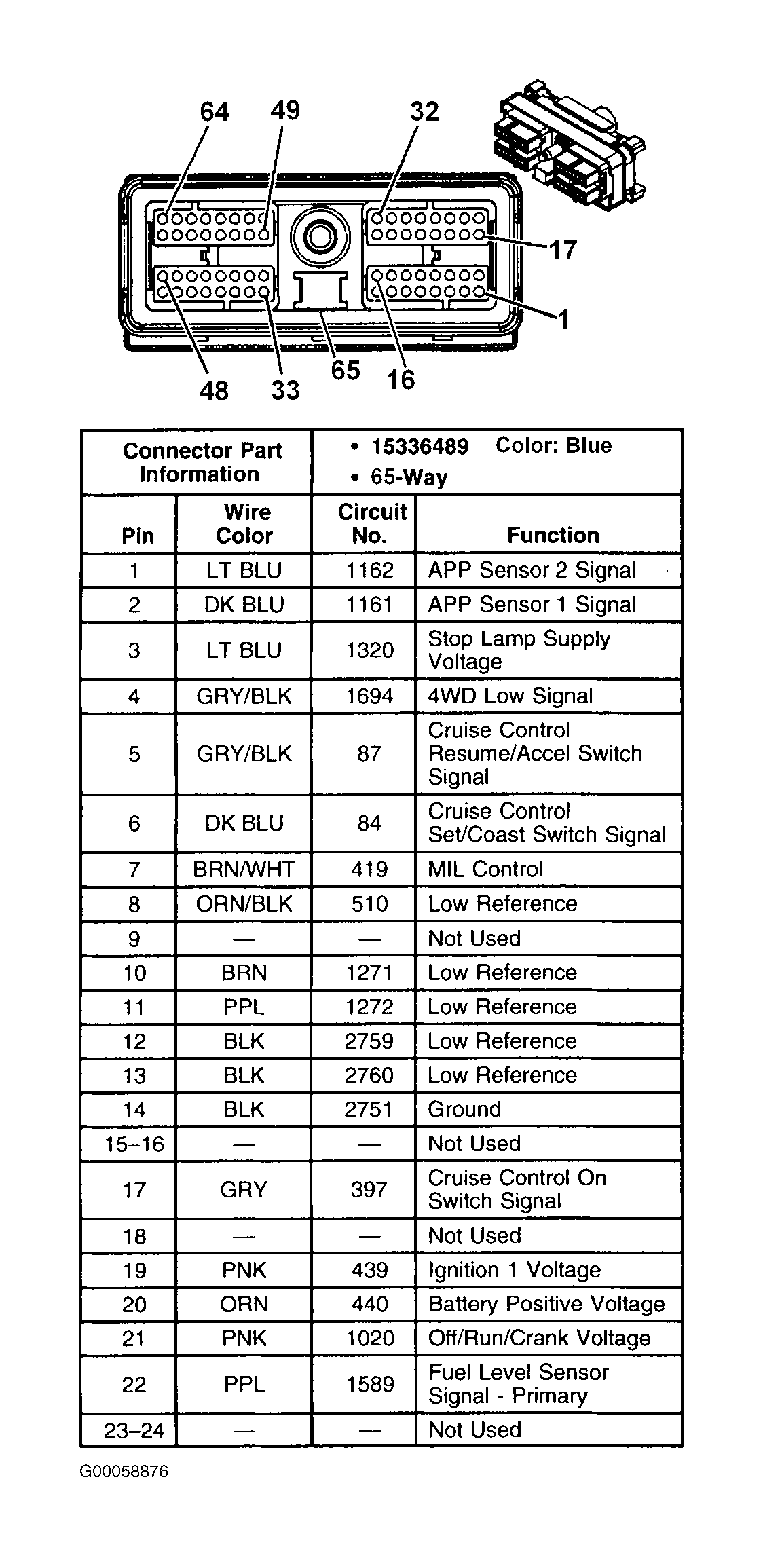

Fig 3: Identifying PCM Connector C2 Terminals (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

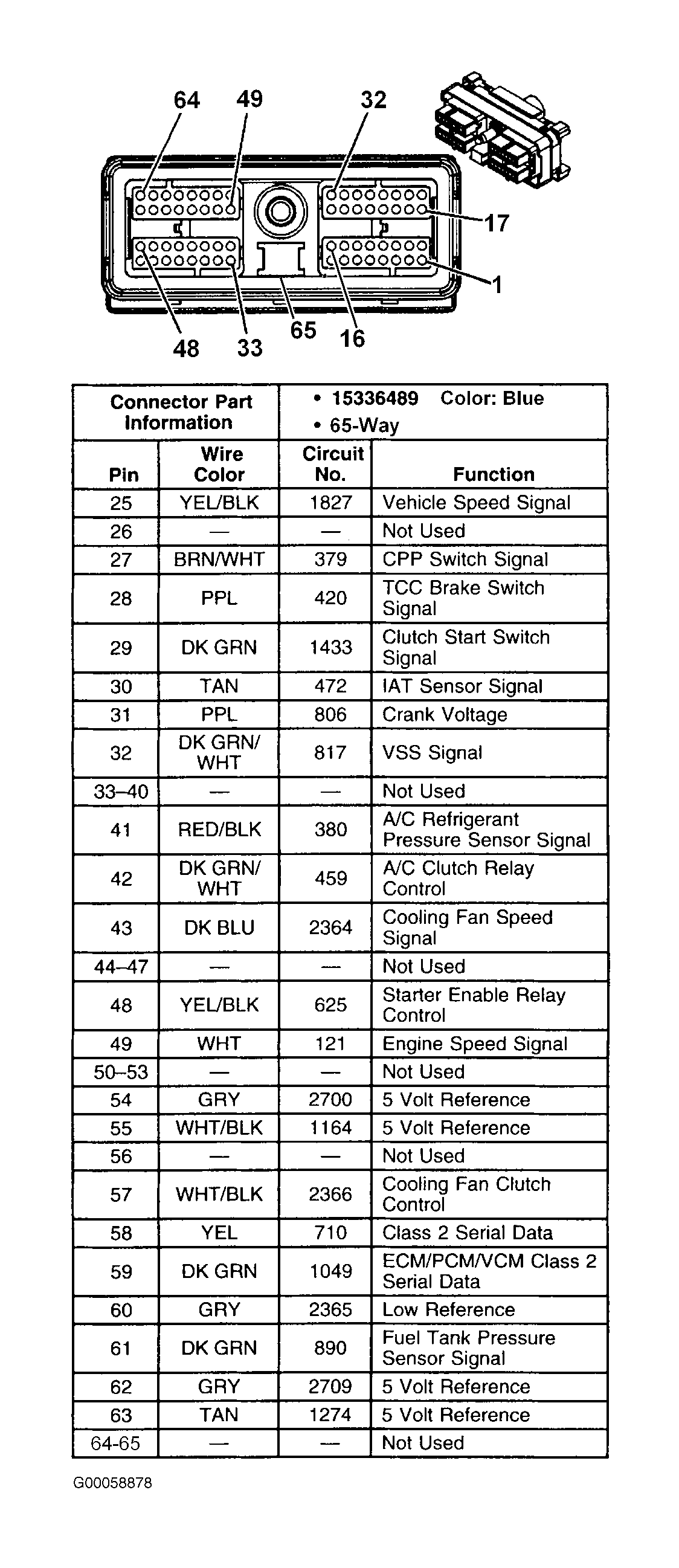

Fig 4: Identifying PCM Connector C2 Terminals (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying PCM Connector C2 Terminals (3 Of 3)

Courtesy of GENERAL MOTORS CORP.

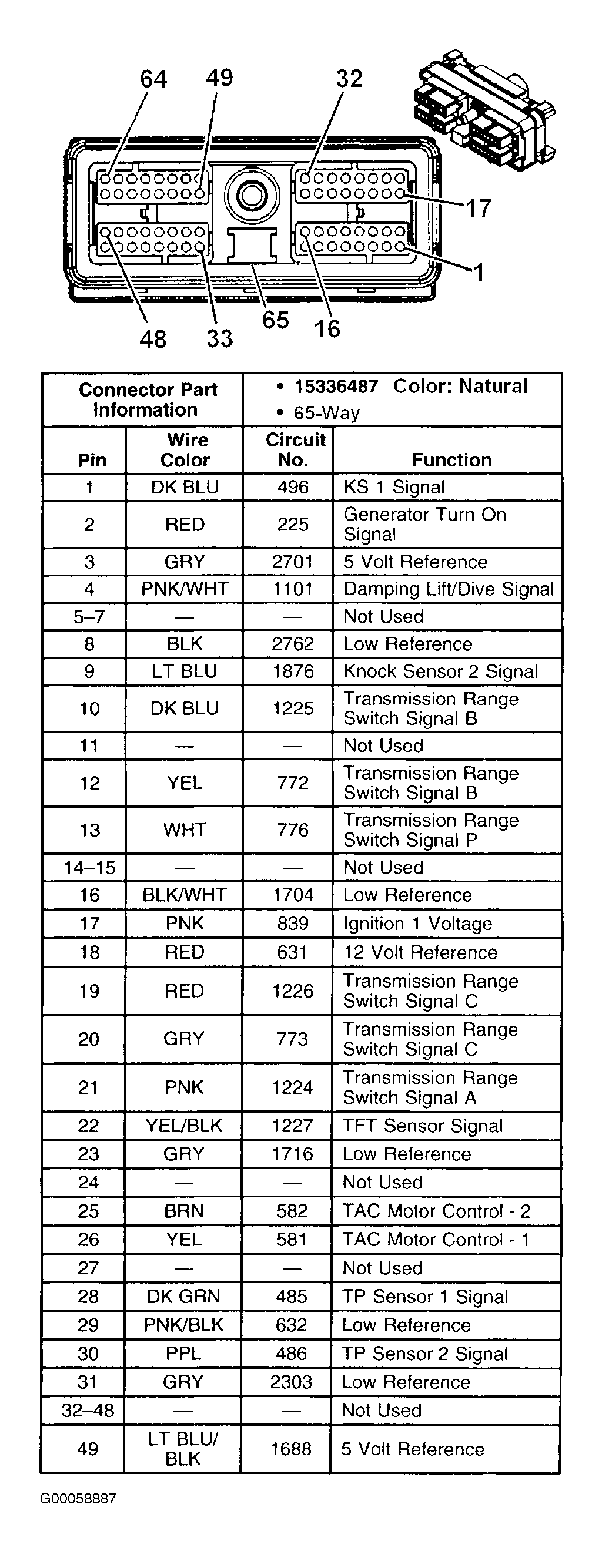

Fig 6: Identifying PCM Connector C3 Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

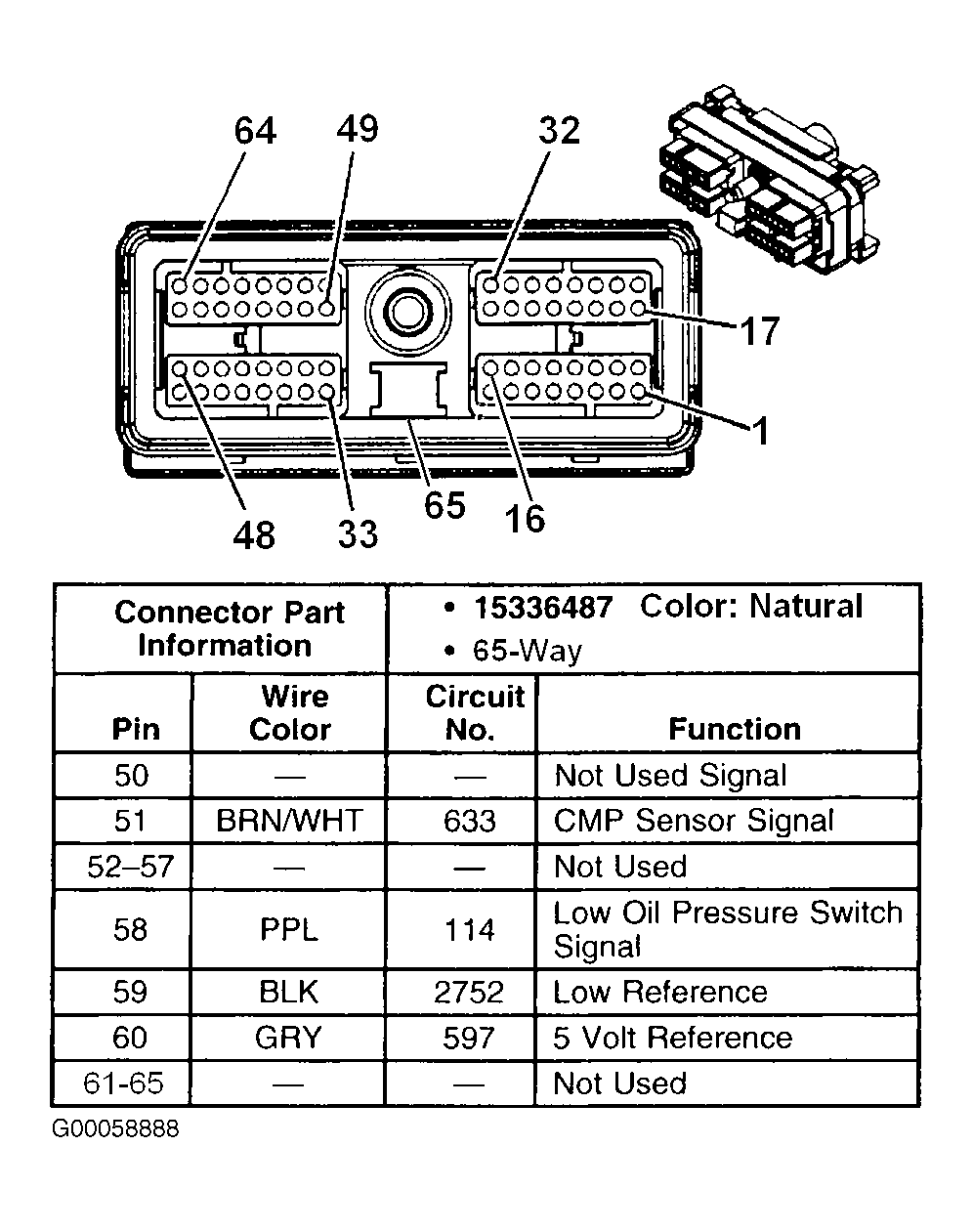

Fig 7: Identifying PCM Connector C3 Terminals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
