Automatic Transmission Shift Lock Control Connector End Views

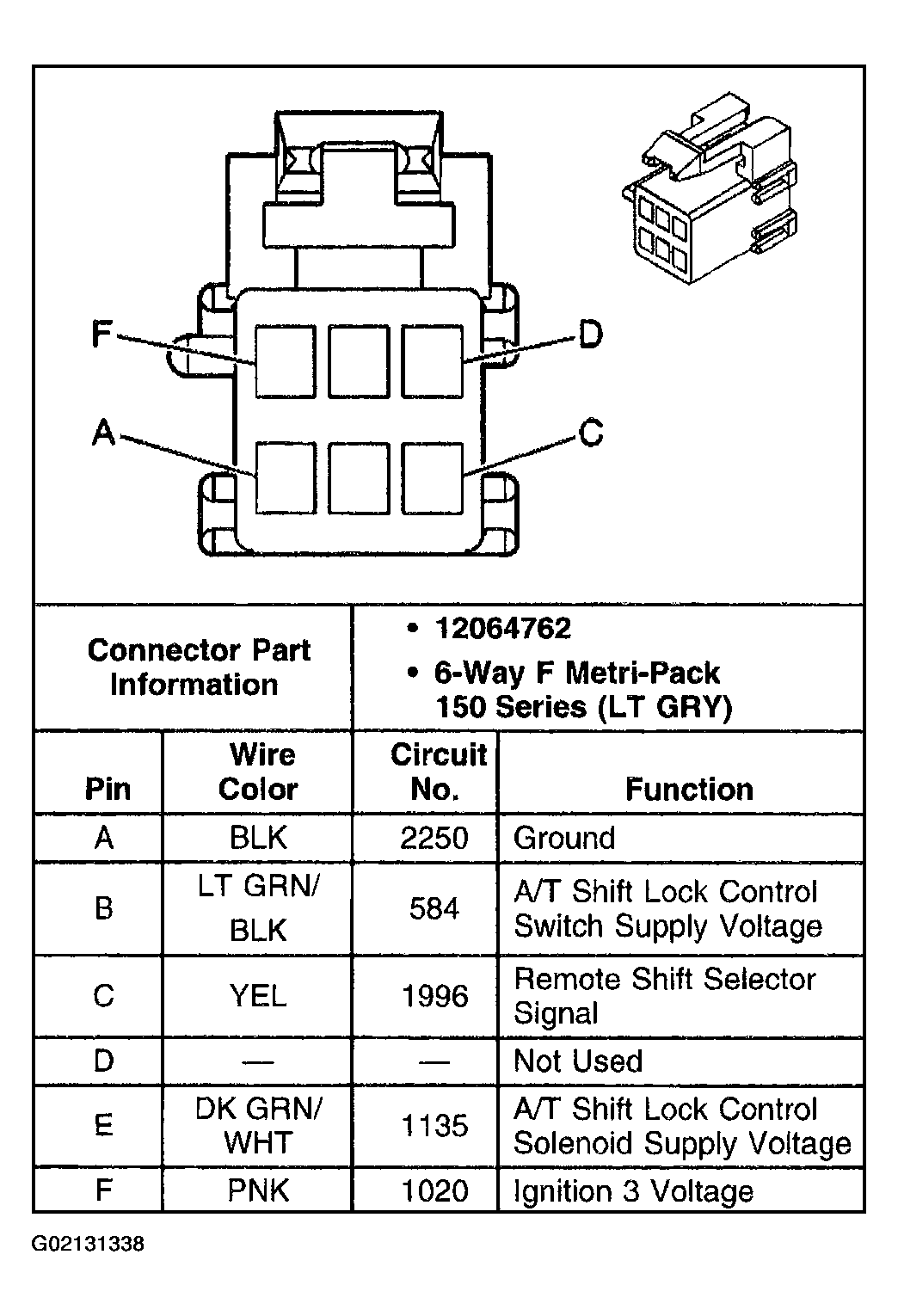

Fig 1: Identifying Automatic Transmission Shift Lever Connector & Pin Function Specifications
G02131338Courtesy of GENERAL MOTORS CORP.
