Installation Procedure

Install a stationary window into the opening. Refer to URETHANE ADHESIVE INSTALLATION OF STATIONARY WINDOWS .
Install the window side reveal moldings to the vehicle.

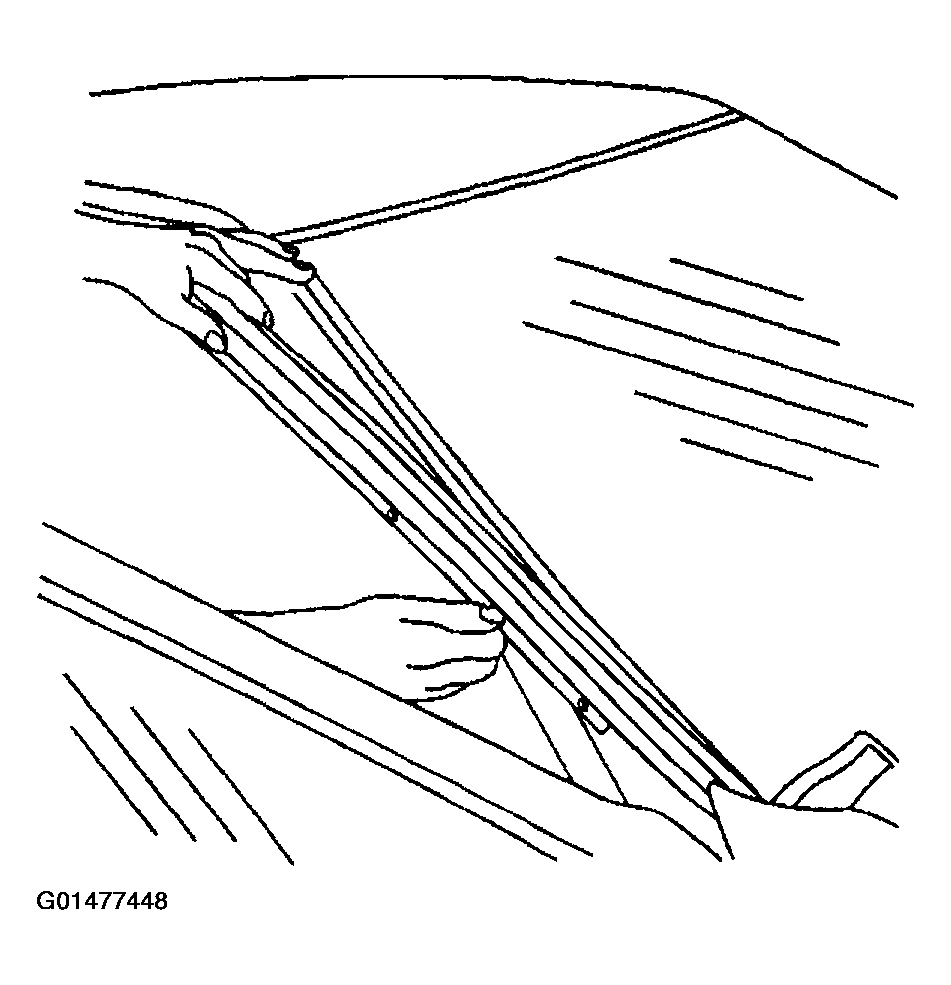

Fig 1: Installing Window Side Reveal Moldings
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the screws to the left and right sides of window side reveal moldings.
Tighten

Tighten the window side reveal moldings screws to 2 N.m (18 lb in).

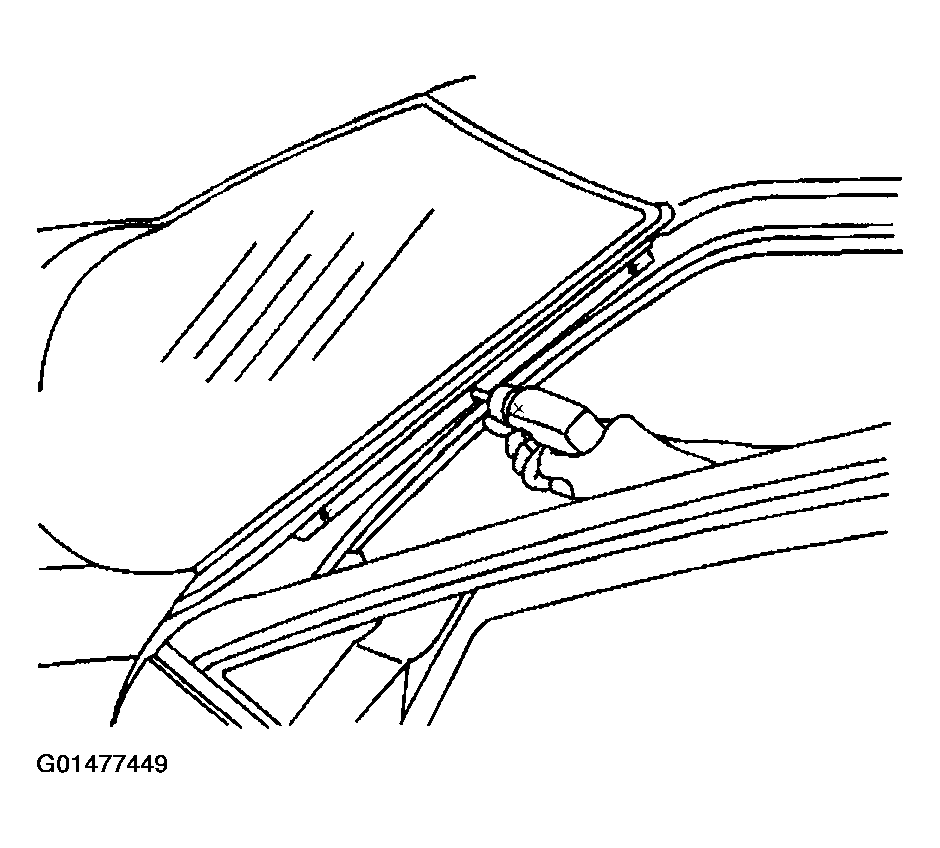

Fig 2: Installing Screws To Left & Right Sides Of Window Side Reveal Moldings
Courtesy of GENERAL MOTORS CORP.
Install the front door sealing weather-strips (1) to the retainer (2).

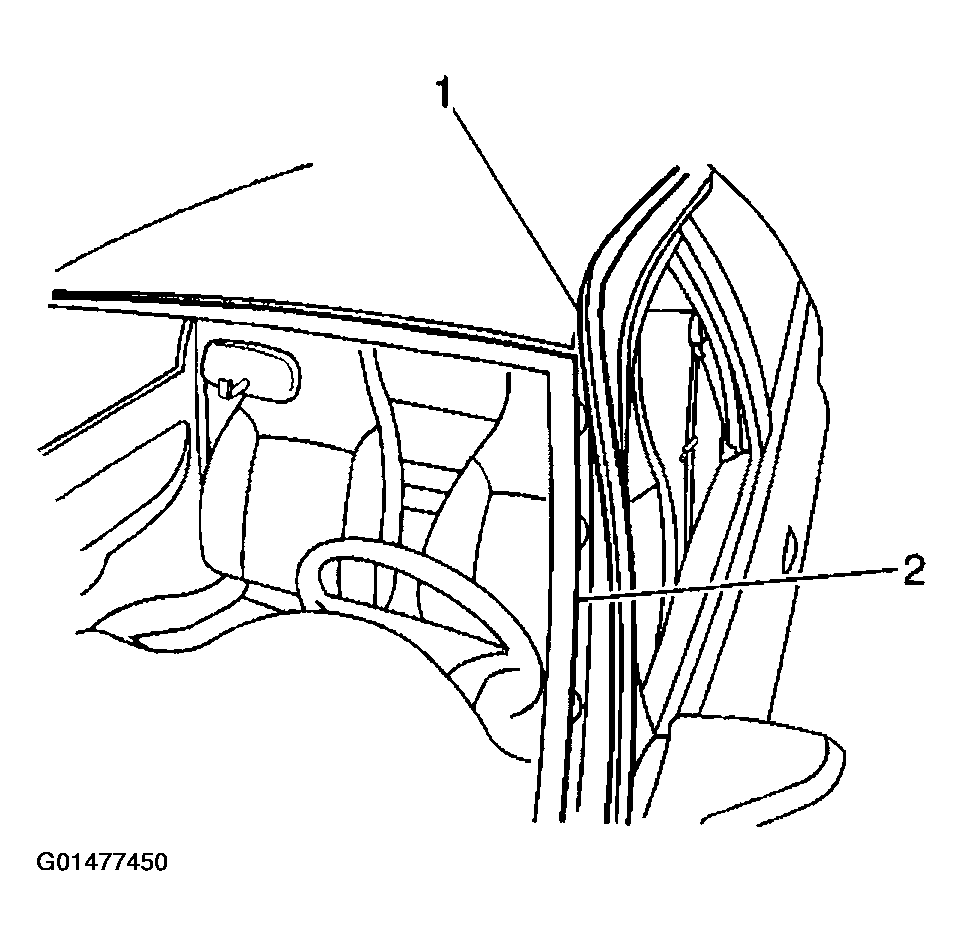

Fig 3: Installing Front Door Sealing Weather-strips To Retainer
Courtesy of GENERAL MOTORS CORP.
Install the cowl air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
Install the window wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.
Install the antenna mast, if equipped. Refer to FIXED ANTENNA MAST REPLACEMENT in Entertainment.
Install the rear view mirror. Refer to REARVIEW MIRROR REPLACEMENT .
Close the hood.
Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
