Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

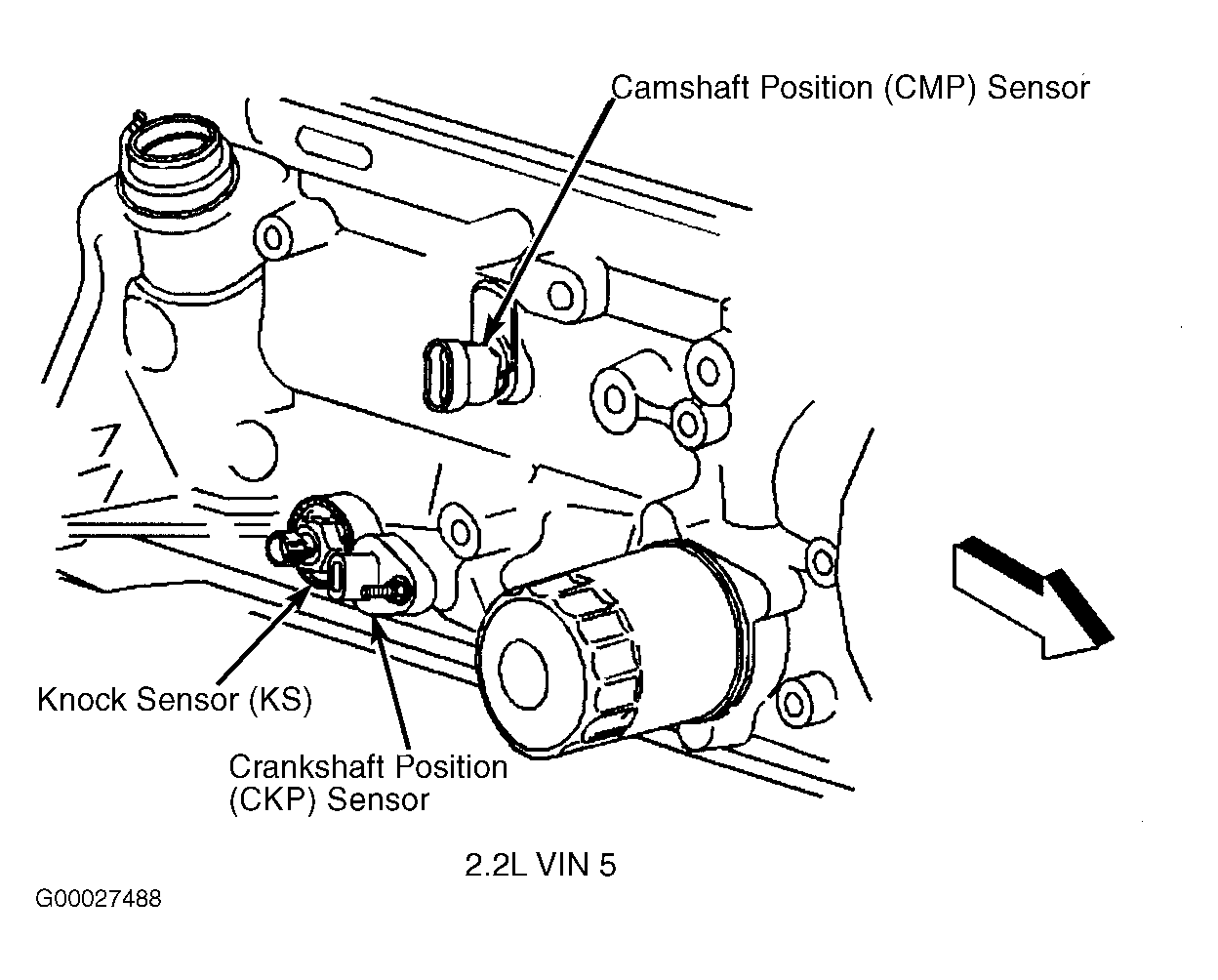

Fig 1: Right Side Of Engine (2.2L VIN 5)

Courtesy of GENERAL MOTORS CORP.

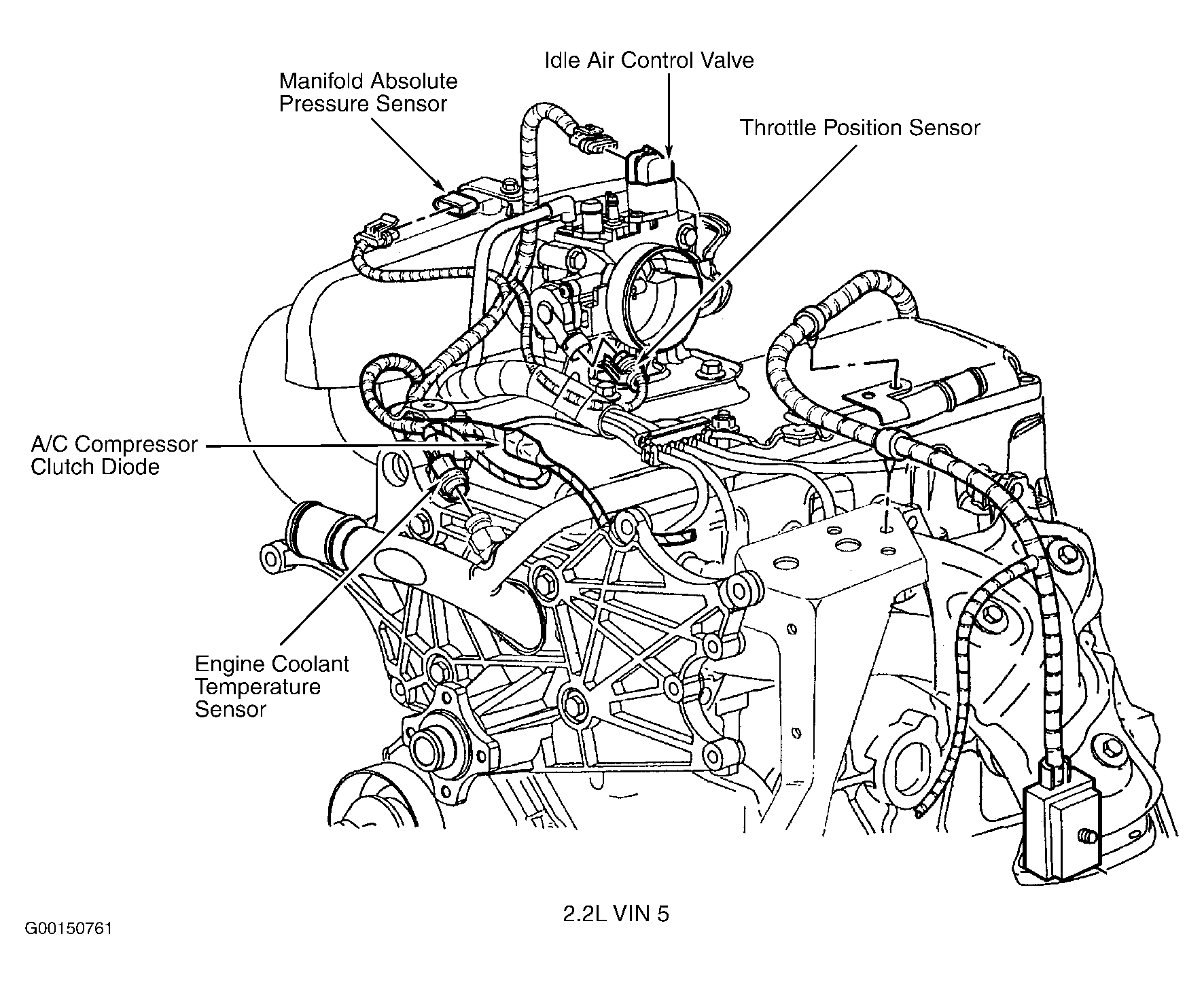

Fig 2: Left Front Of Engine (2.2L VIN 5)

Courtesy of GENERAL MOTORS CORP.

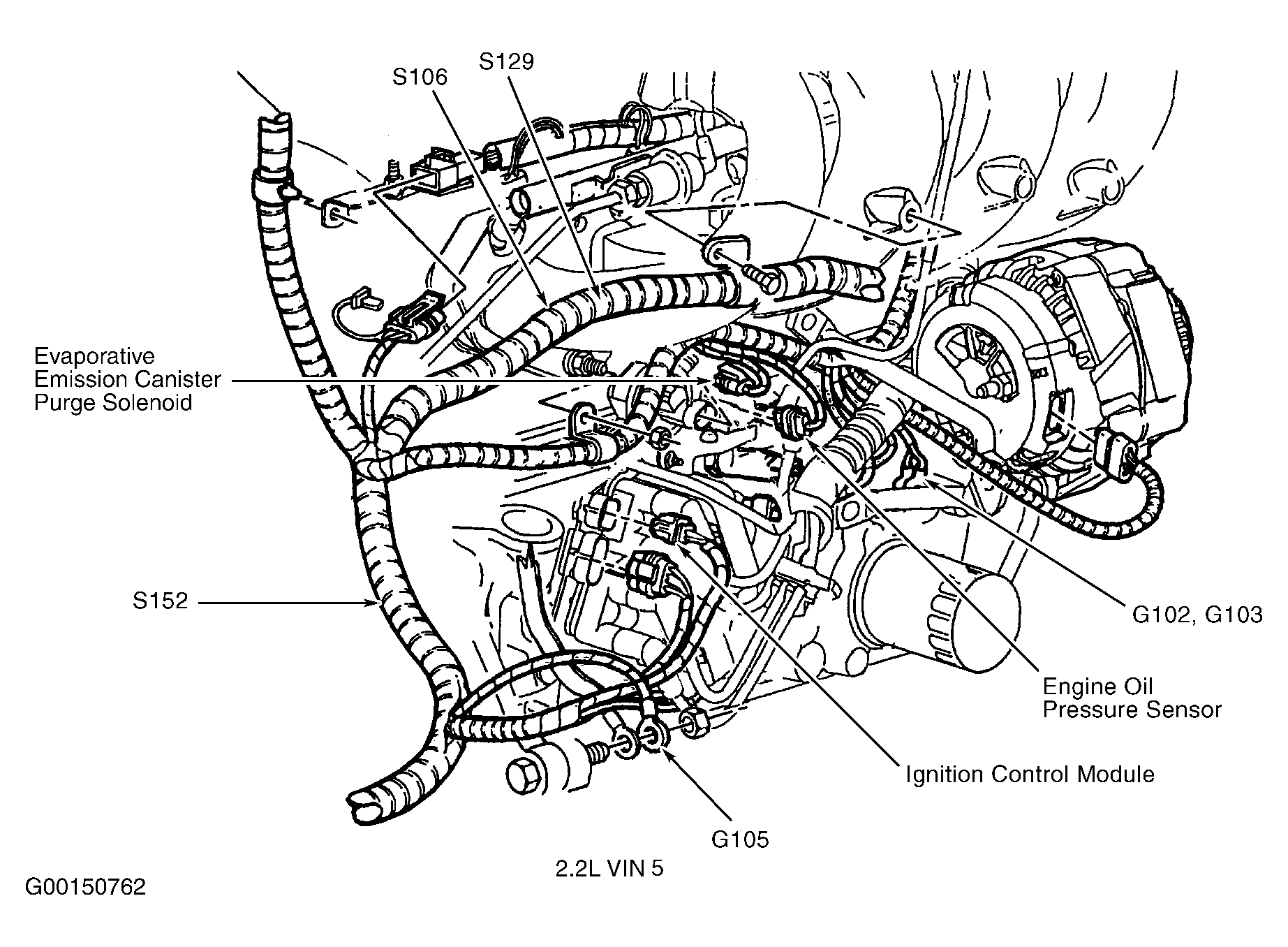

Fig 3: Right Side Of Engine (2.2L VIN 5)

Courtesy of GENERAL MOTORS CORP.

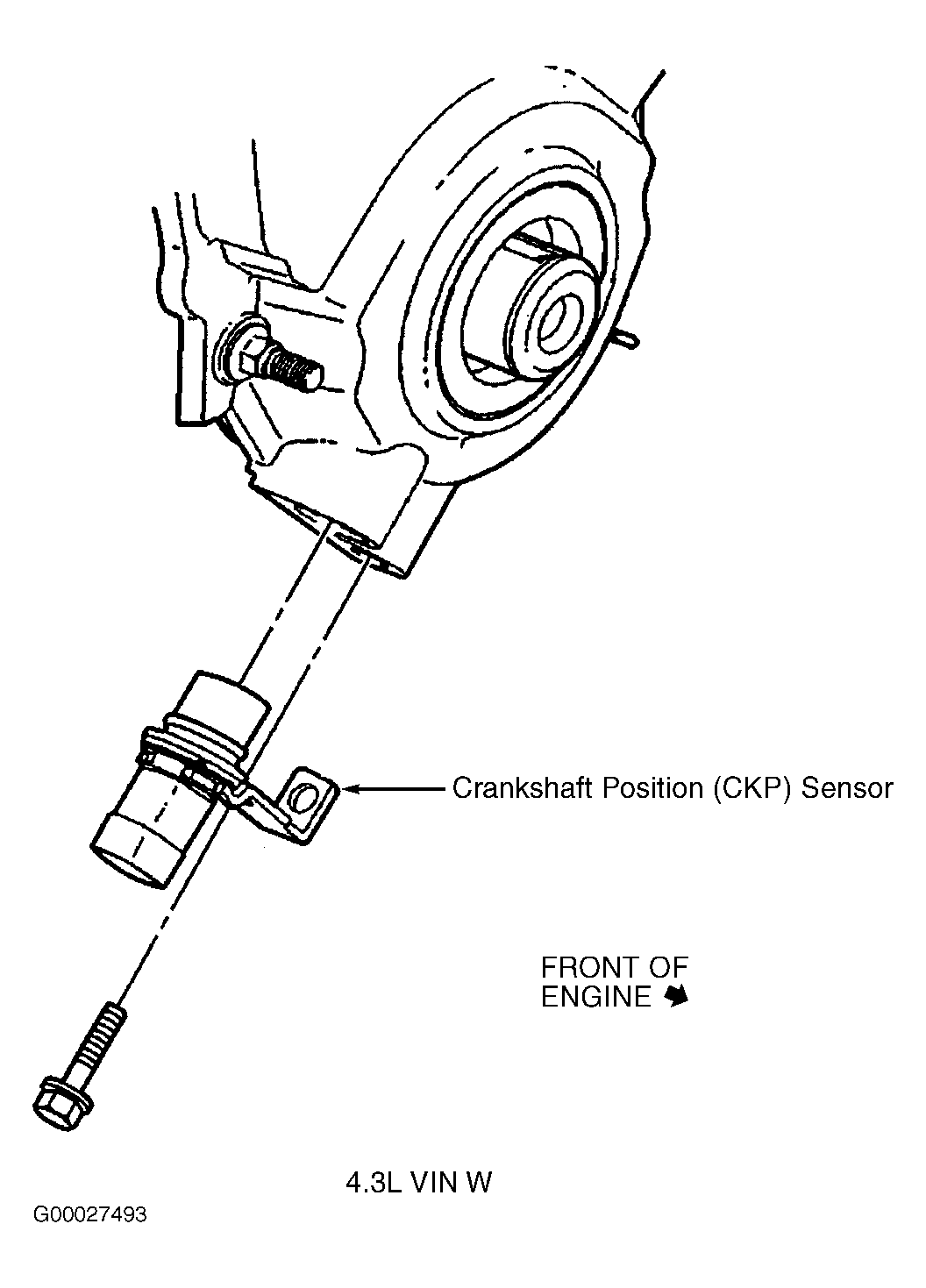

Fig 4: Rear Of Engine (4.3L VIN W)

Courtesy of GENERAL MOTORS CORP.

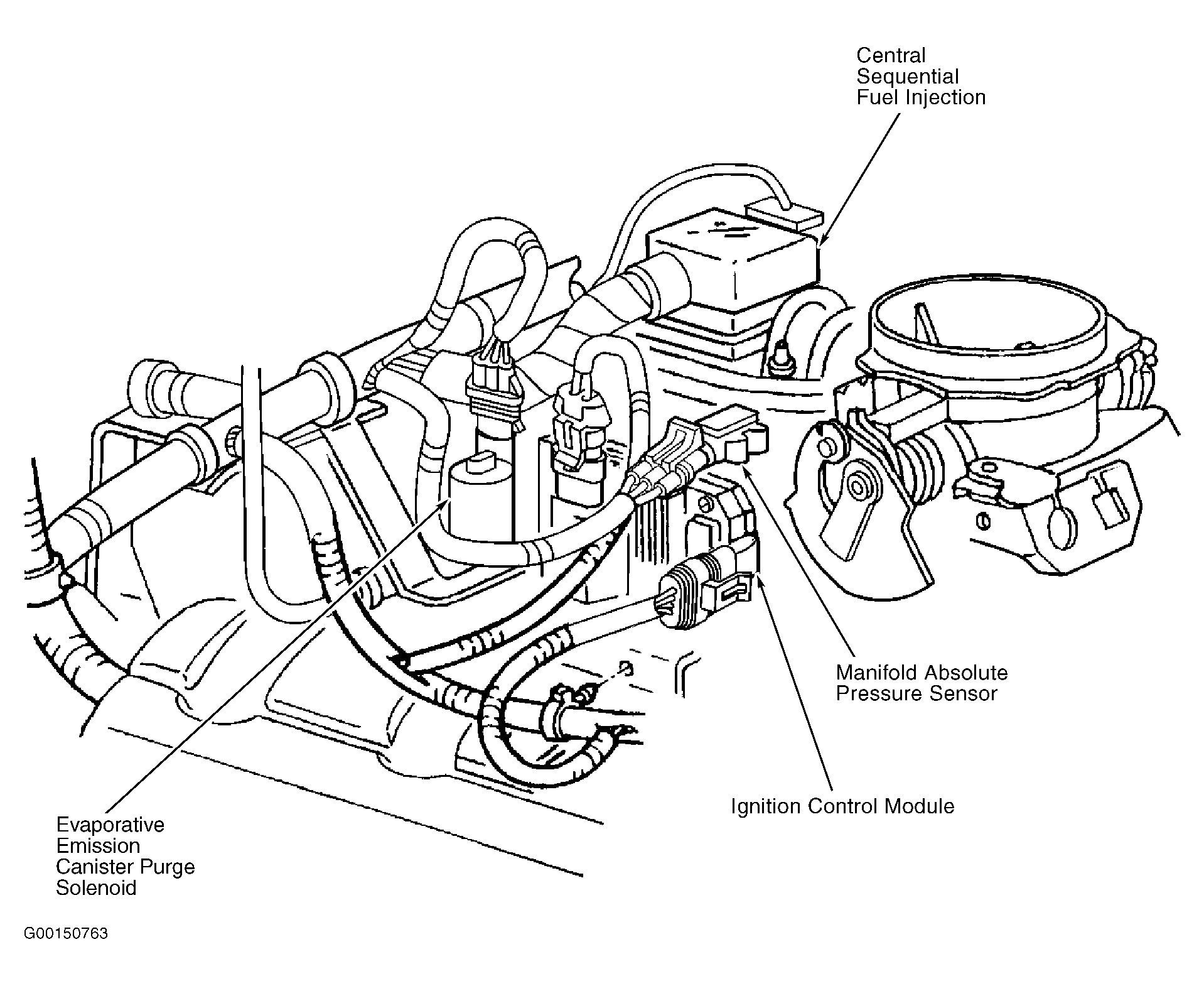

Fig 5: Top Of Engine (4.3L VIN W)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Lower Front Of Engine (4.3L VIN W)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Left Side Of Engine (4.3L VIN W)

Courtesy of GENERAL MOTORS CORP.

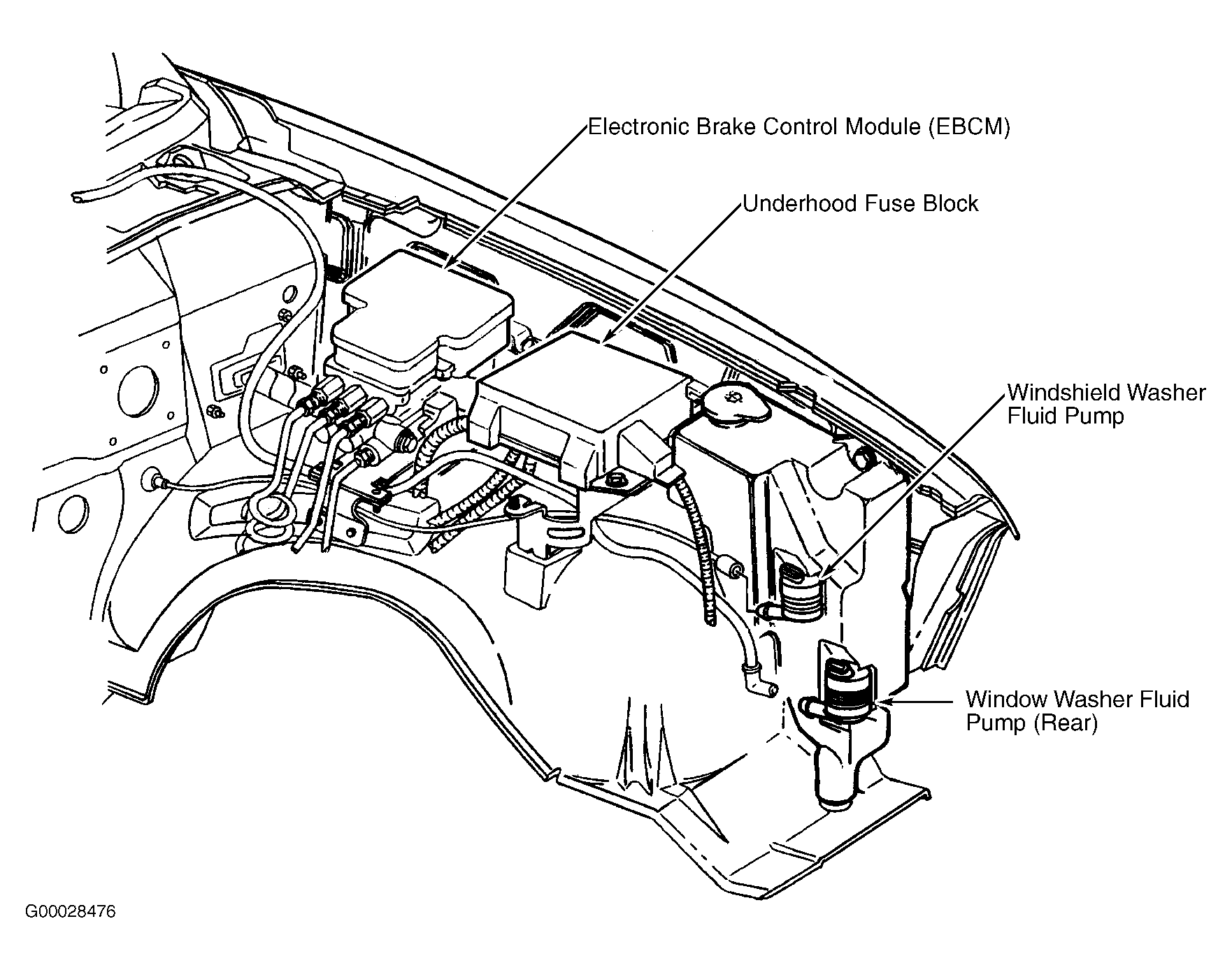

Fig 8: Left Side Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.
