Identifying PCM Connector C1 Terminals (Astro & Safari)

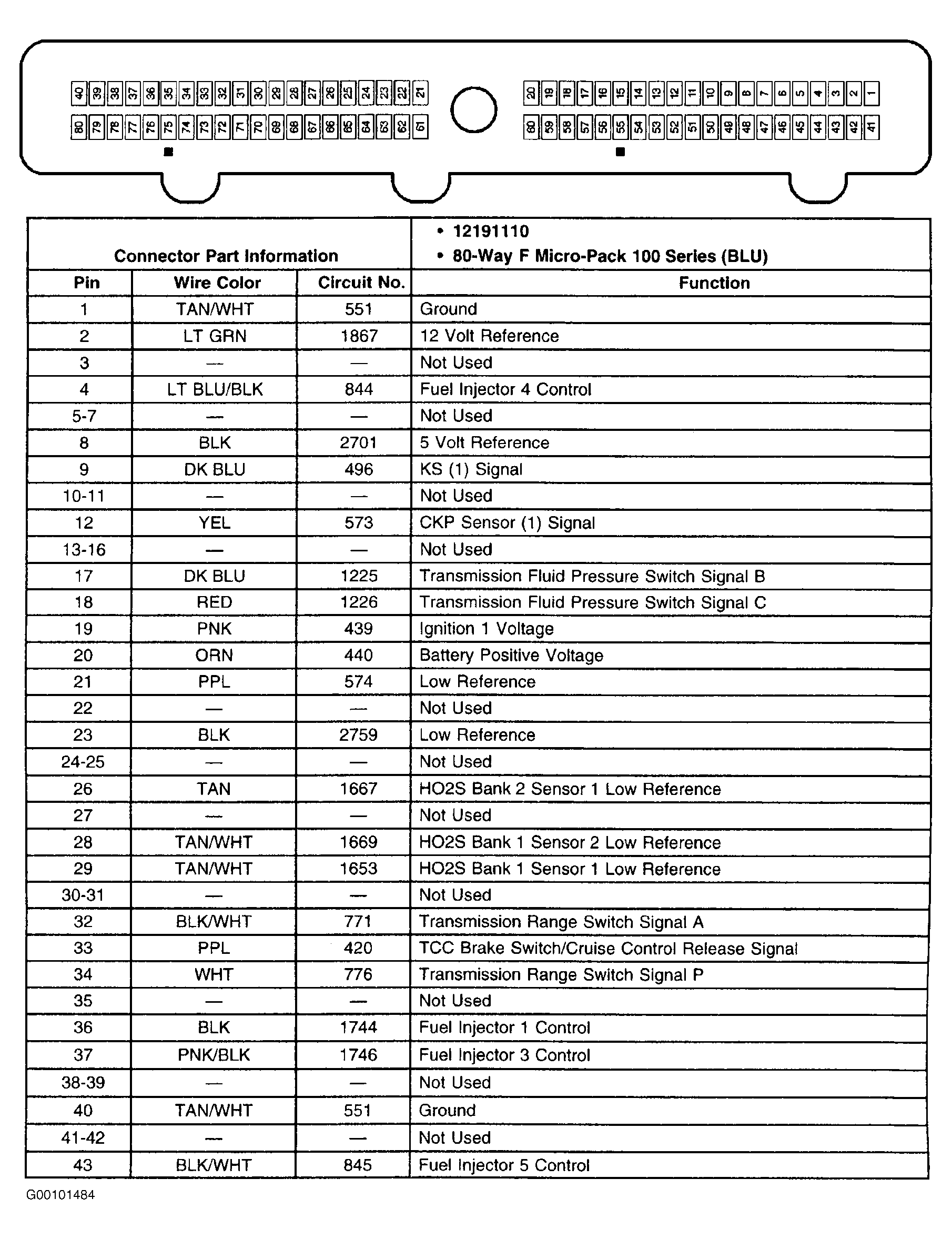

Fig 1: Identifying PCM Connector C1 Terminals (Astro & Safari - 1 Of 2)
G00101484Courtesy of GENERAL MOTORS CORP.

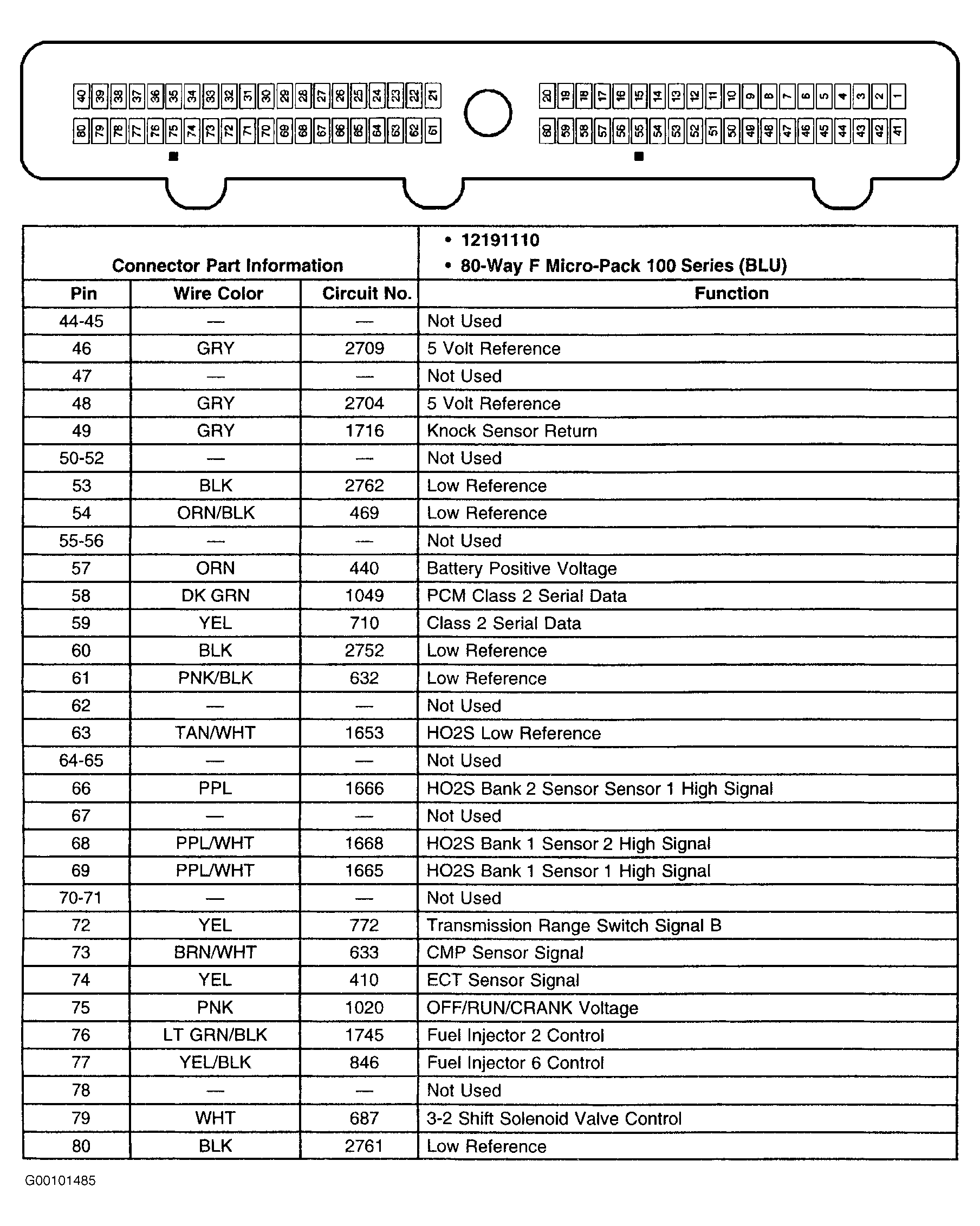

Fig 2: Identifying PCM Connector C1 Terminals (Astro & Safari - 2 Of 2)
G00101485Courtesy of GENERAL MOTORS CORP.
