Installation Procedure

  1. Place the power steering pump pulley on the end of the power steering pump shaft.
  2. Install the power steering pump pulley using J 25033-C  .

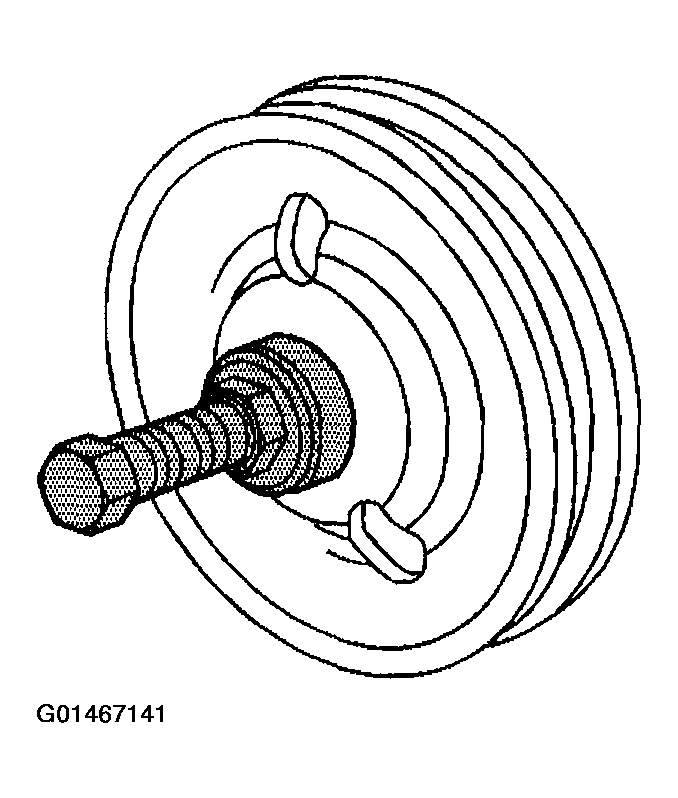

    Fig 1: Identifying Power Steering Pump Pulley Installer For Installing Pump Pulley (SST)
    G01467141Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the power steering pump pulley (1) is flush against the power steering pump shaft (2), with an allowable variance of 0.25 mm (0.010 in).
  4. Install the drive belt. Refer to DRIVE BELT REPLACEMENT in Engine Mechanical 2.2L or DRIVE BELT REPLACEMENT in Engine Mechanical 4.3L.
  5. Install the fan clutch. Refer to FAN CLUTCH REPLACEMENT in Engine Cooling.

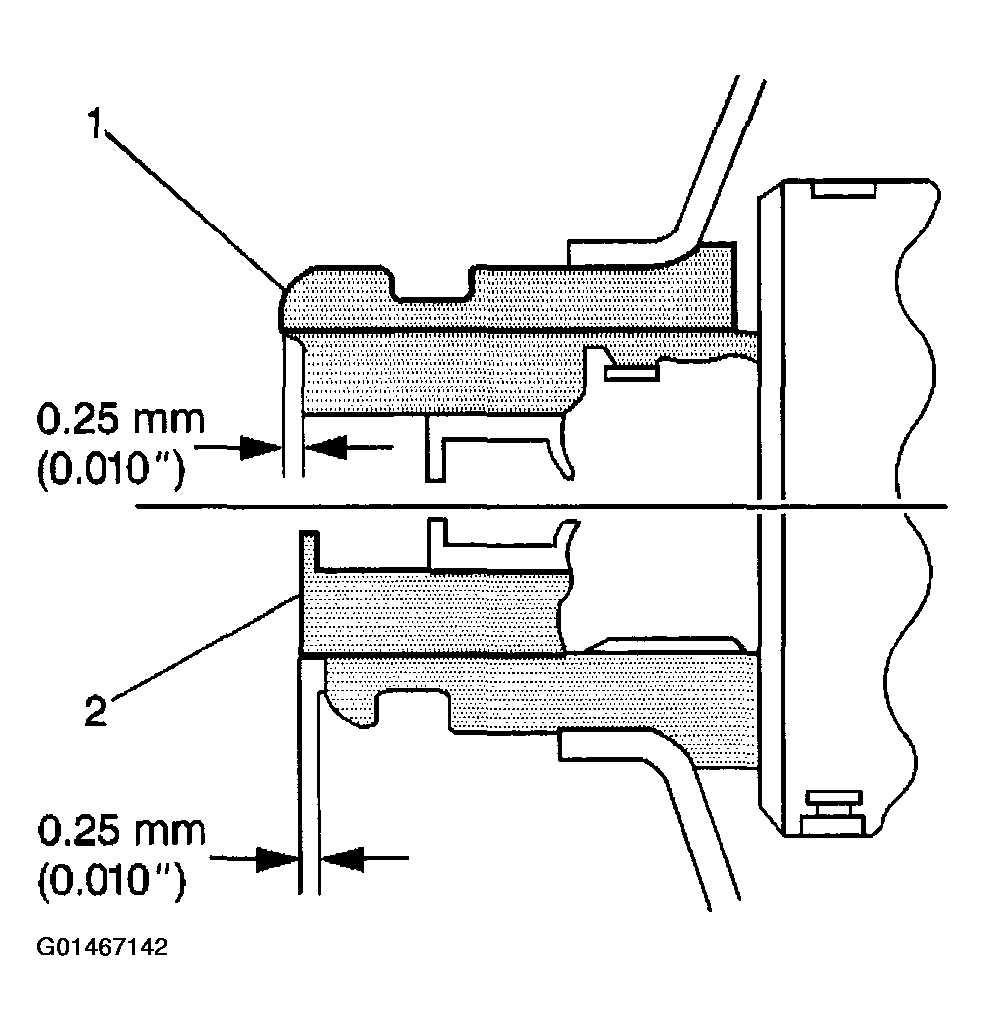

Fig 2: Checking Power Steering Pump Pulley Attachment Against Power Steering Pump Shaft With Specific Gap
G01467142Courtesy of GENERAL MOTORS CORP.
