Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the tether anchor (1) to the seat frame with the mounting bolt.
Tighten

Tighten the tether anchor bolt to 24 N.m (18 lb ft).

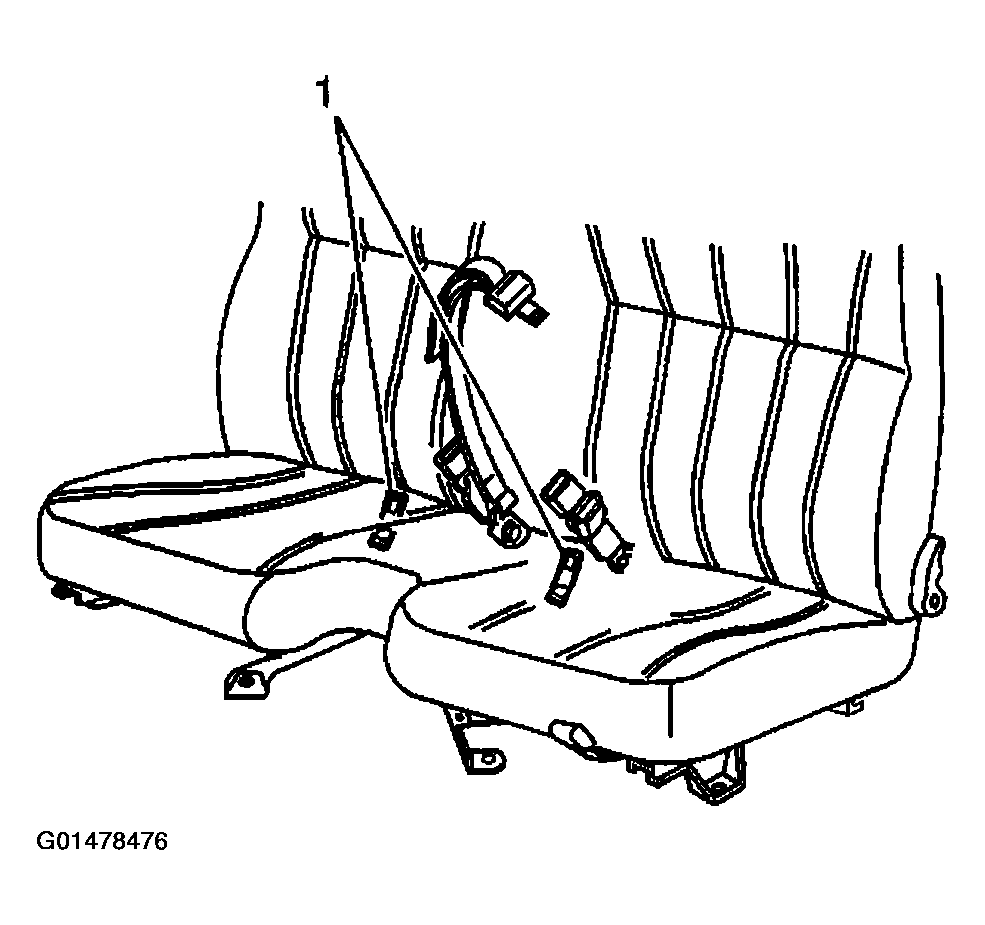

Fig 1: Installing Tether Anchor (Pickup)
Courtesy of GENERAL MOTORS CORP.
Work the seat cover back to the original position.
Engage the J-strip to the seat bottom frame.

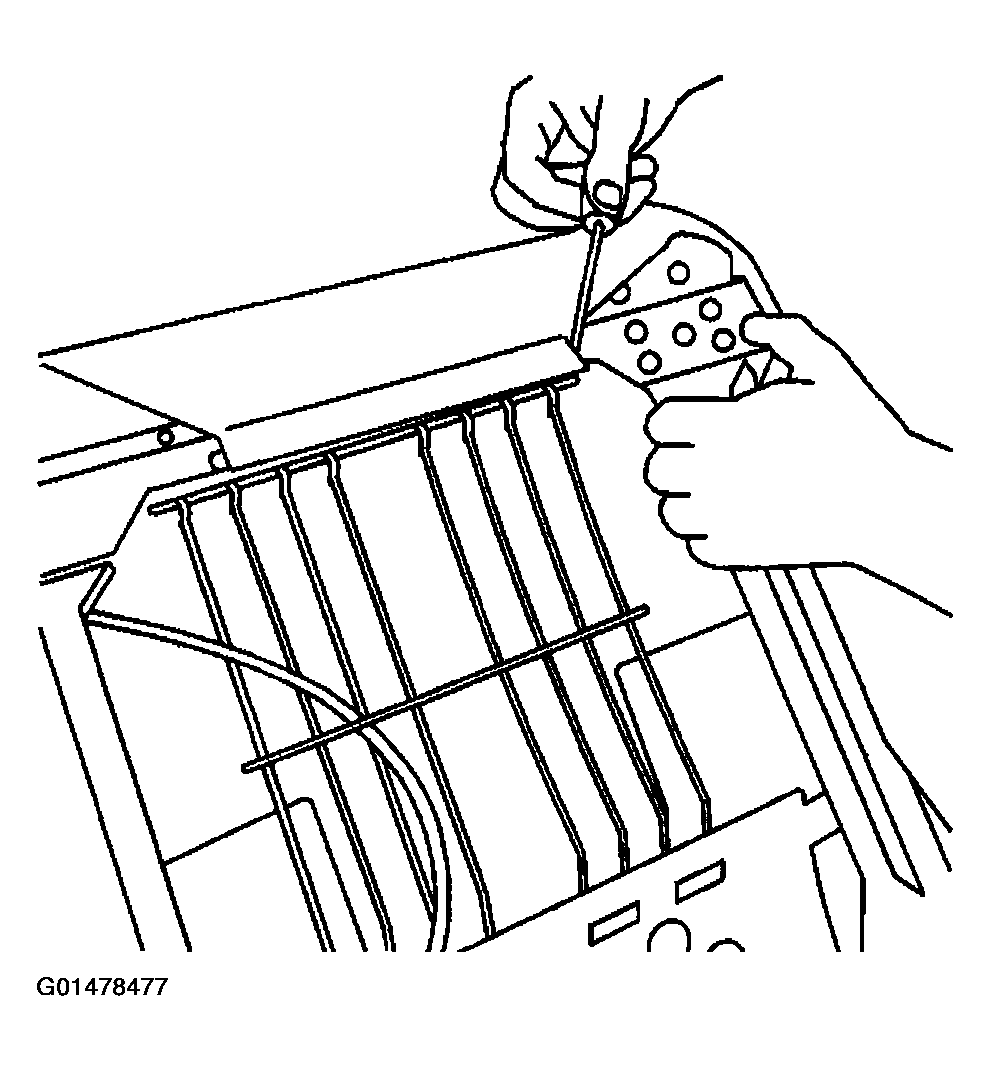

Fig 2: Installing J-Strips To Seat Bottom Frame (Pickup)
Courtesy of GENERAL MOTORS CORP.
