Engine Controls Component Views

Fig 1: Engine Controls Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Throttle Actuator Control (TAC), Throttle Body
2	Intake Air Temperature (IAT) Sensor
3	Manifold Absolute Pressure (MAP) Sensor

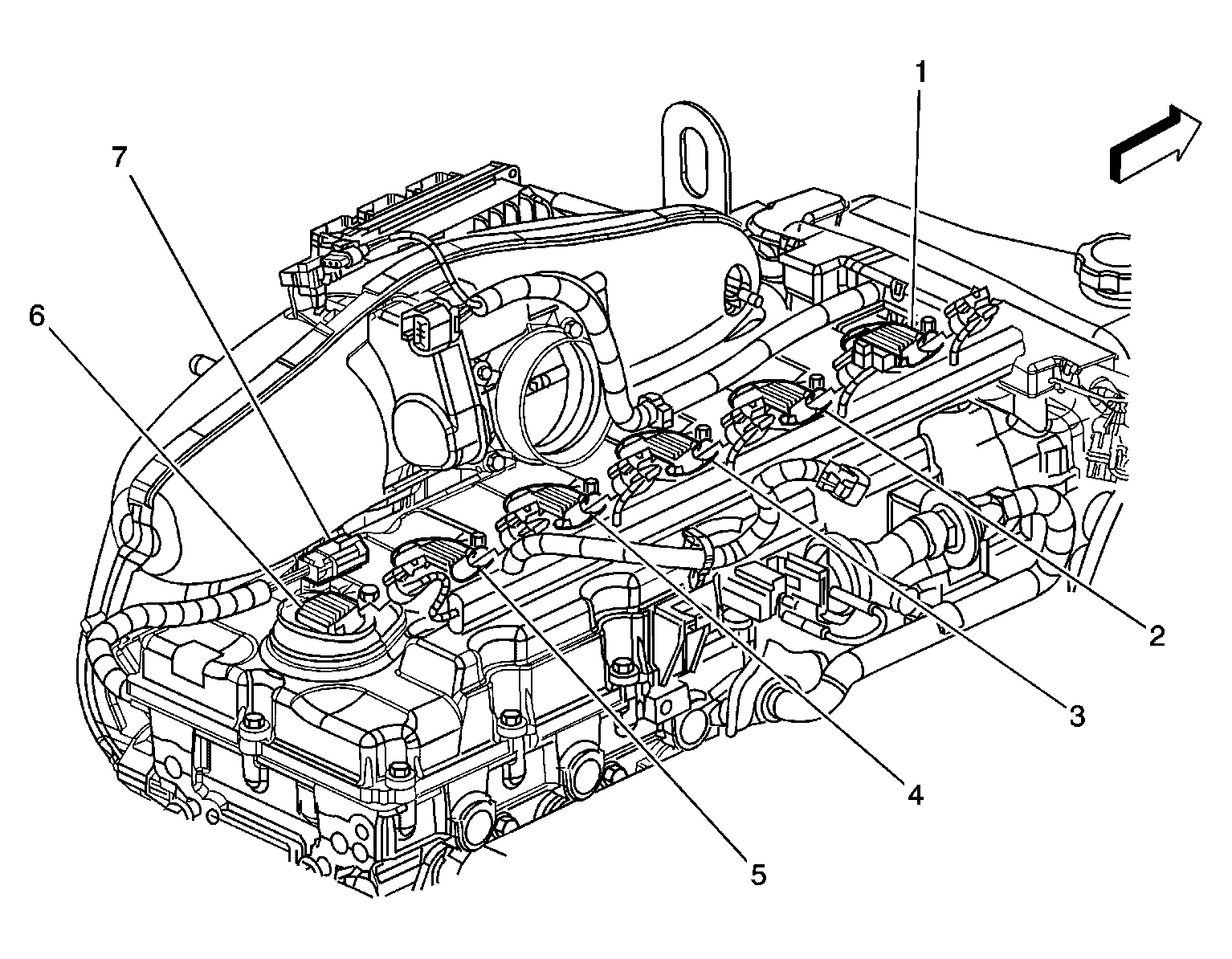

Fig 2: Engine Controls Component Views - With Air Duct Removed

Courtesy of GENERAL MOTORS CORP.

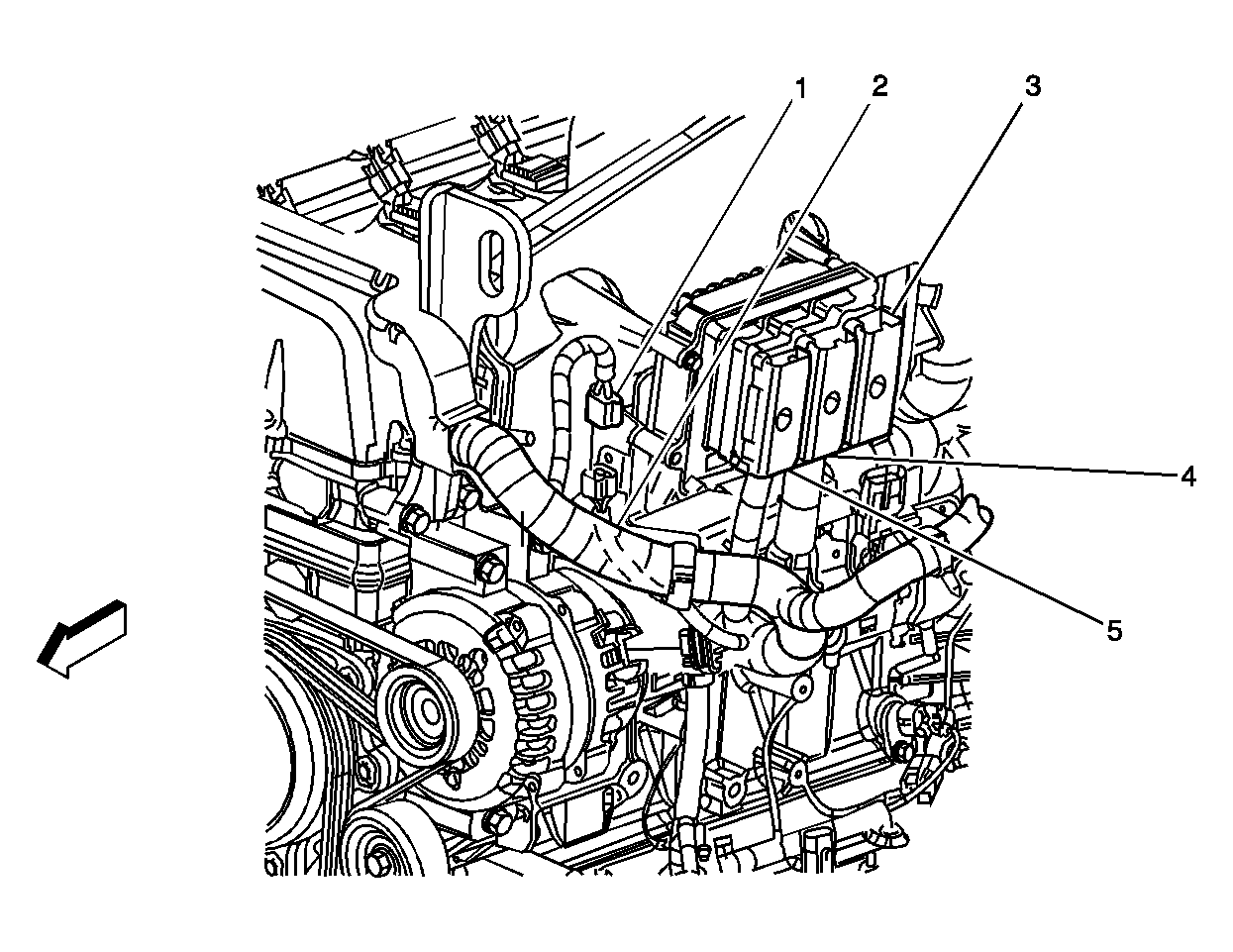

Fig 3: Engine Controls Component Views, Left Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Coolant Temperature (ECT) Sensor
2	Engine Harness
3	PCM C1
4	PCM C2
5	Powertrain Control Module (PCM) C3

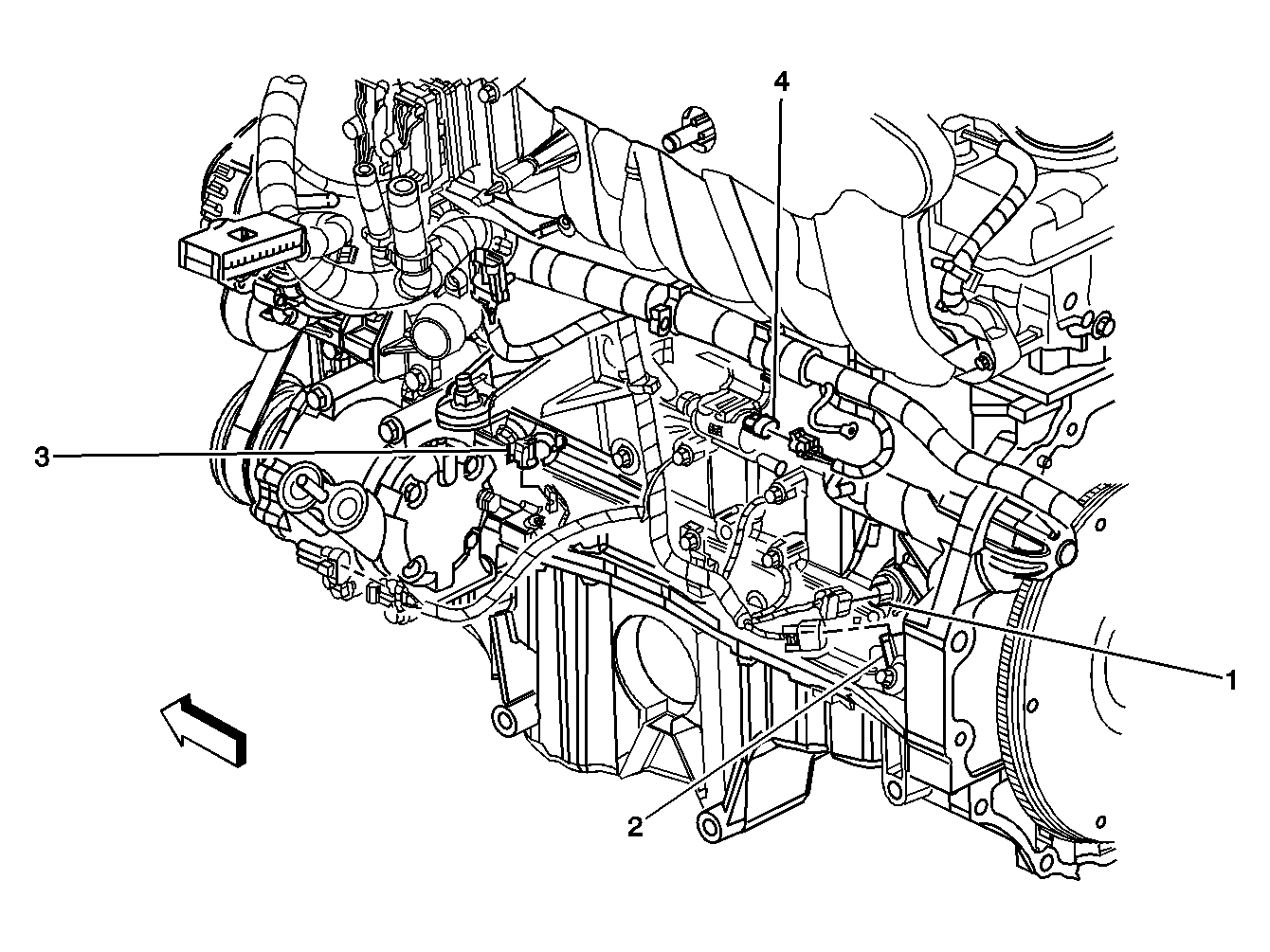

Fig 4: Engine Controls Component Views, Left Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Crankshaft Position (CKP) Sensor
2	Knock Sensor (KS) 2
3	Knock Sensor (KS) 1
4	Evaporative Emission (EVAP) Canister Purge Solenoid

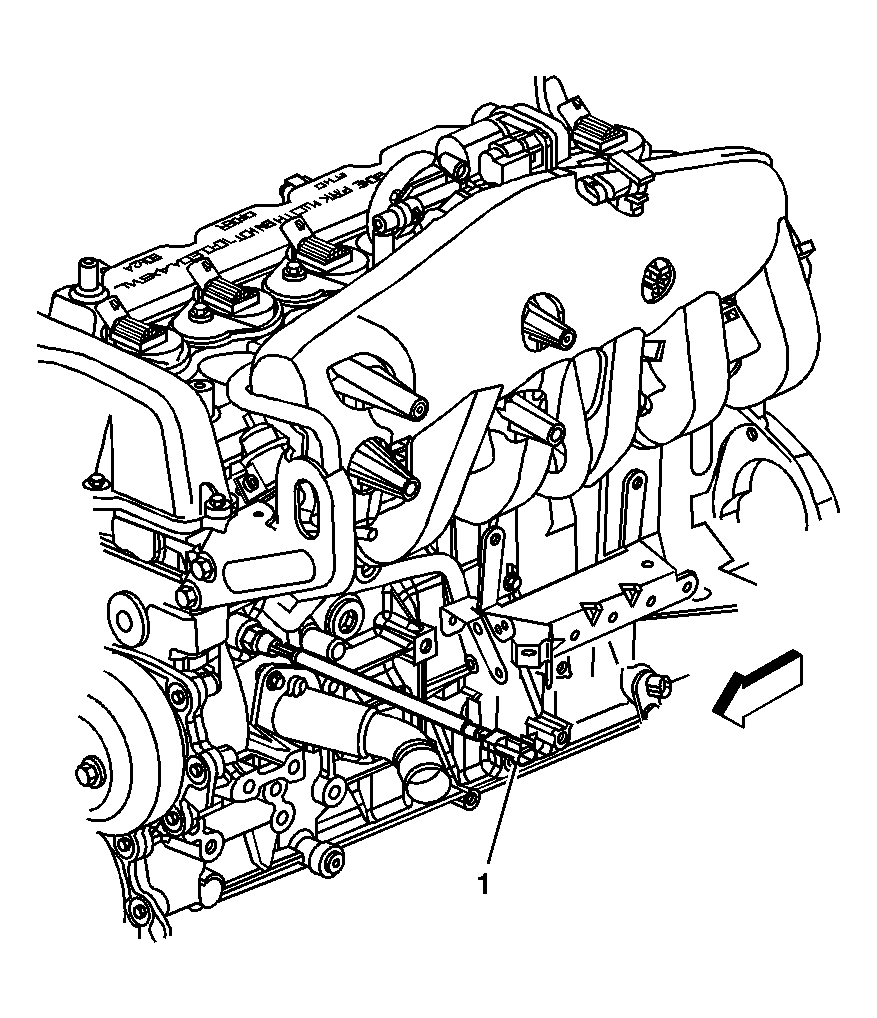

Fig 5: Engine Controls Component Views, Left Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Coolant Temperature (ECT) Sensor Connector

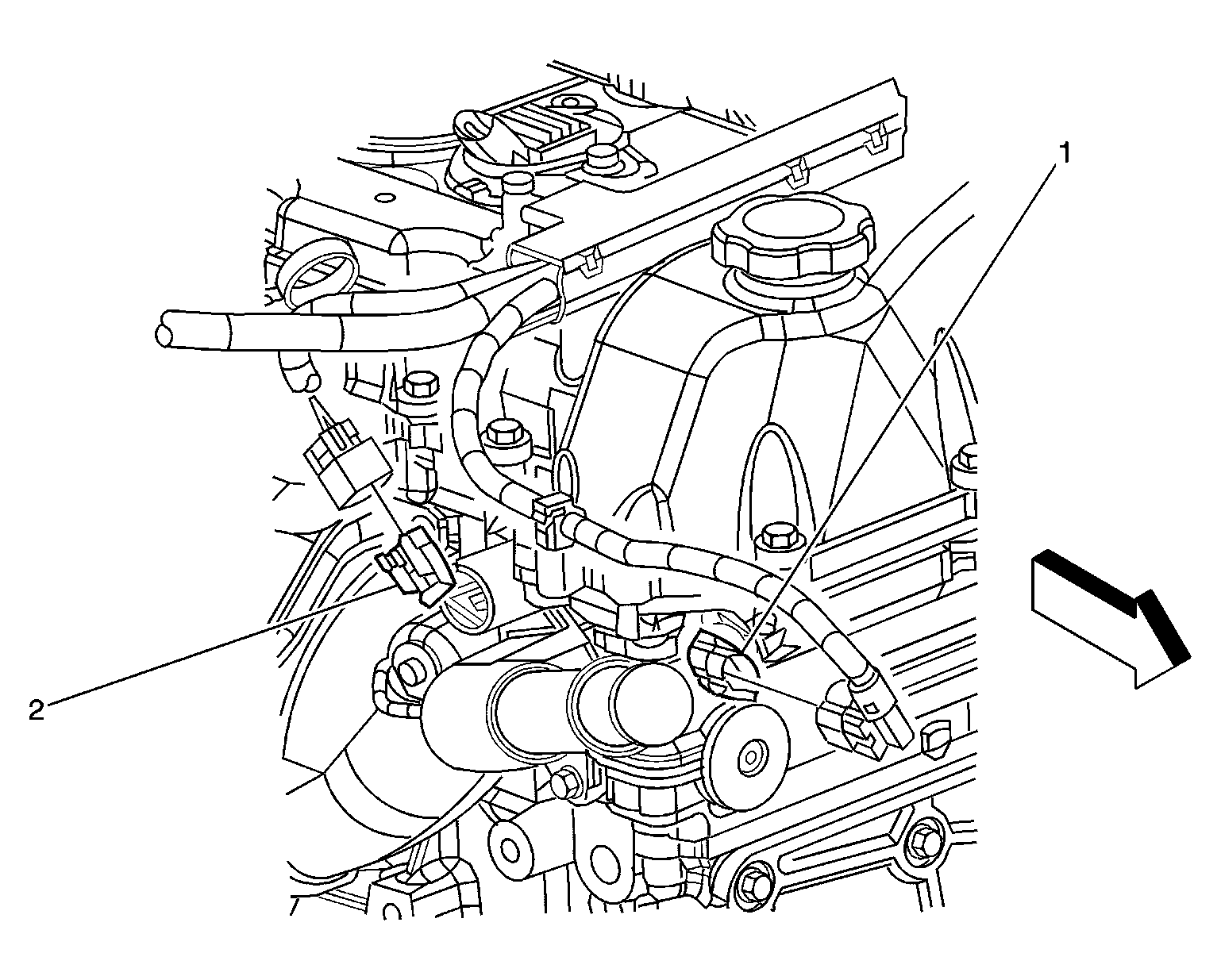

Fig 6: Engine Controls Component Views, Right Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Camshaft Position (CMP) Sensor
2	Camshaft Actuator Solenoid Assembly

Fig 7: Engine Controls Component Views, Right Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Oxygen Sensor (HO2S) 1

Fig 8: Exhaust Pipe

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Oxygen Sensor (HO2S) 2

Fig 9: Automatic Transmission Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmittion
2	Vehicle Speed Sensor (VSS)

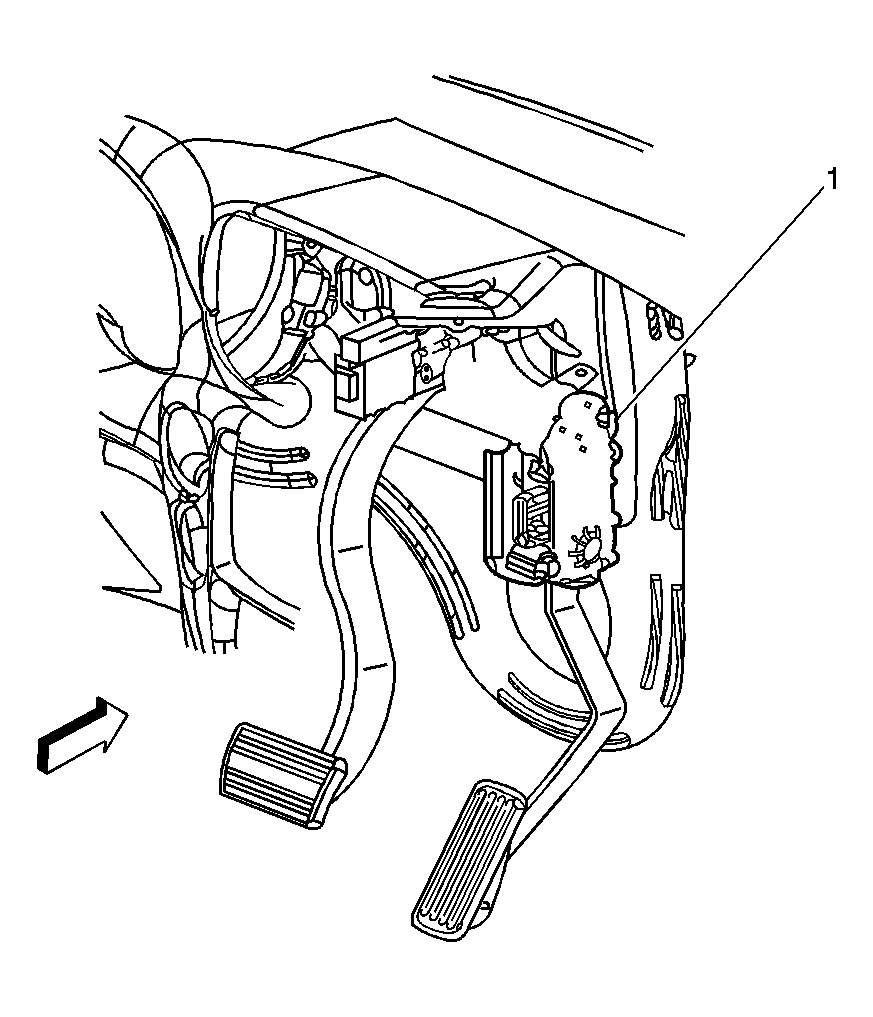

Fig 10: Accelerator Pedal Position Sensor (APP)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accelerator Pedal Position (APP) Sensor

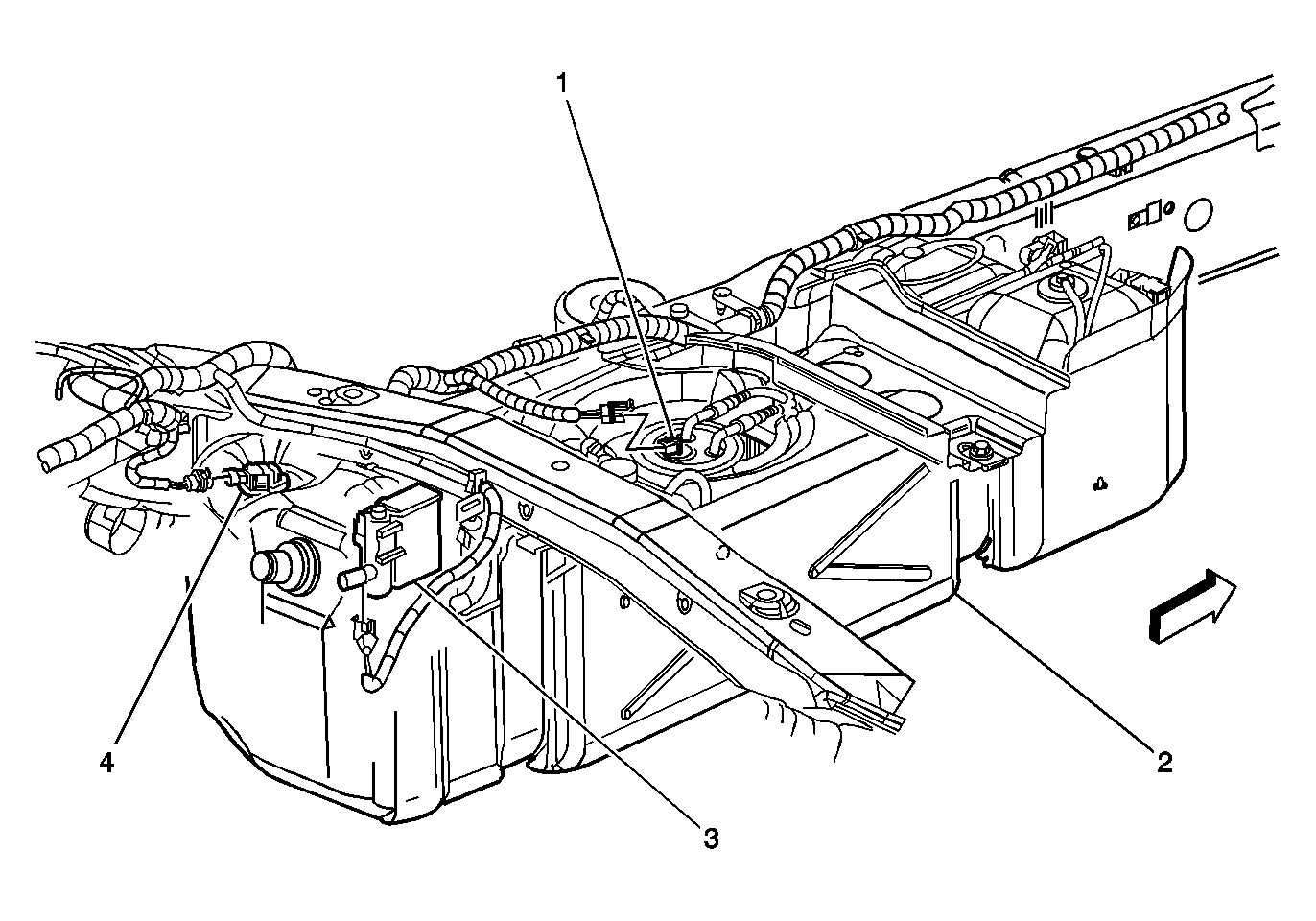

Fig 11: Fuel Tank Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Pump and Sender Assembly
2	Fuel Tank
3	Evaporative Emission (EVAP) Canister Vent Solenoid
4	Fuel Tank Pressure (FTP) Sensor
