Engine Controls Schematics

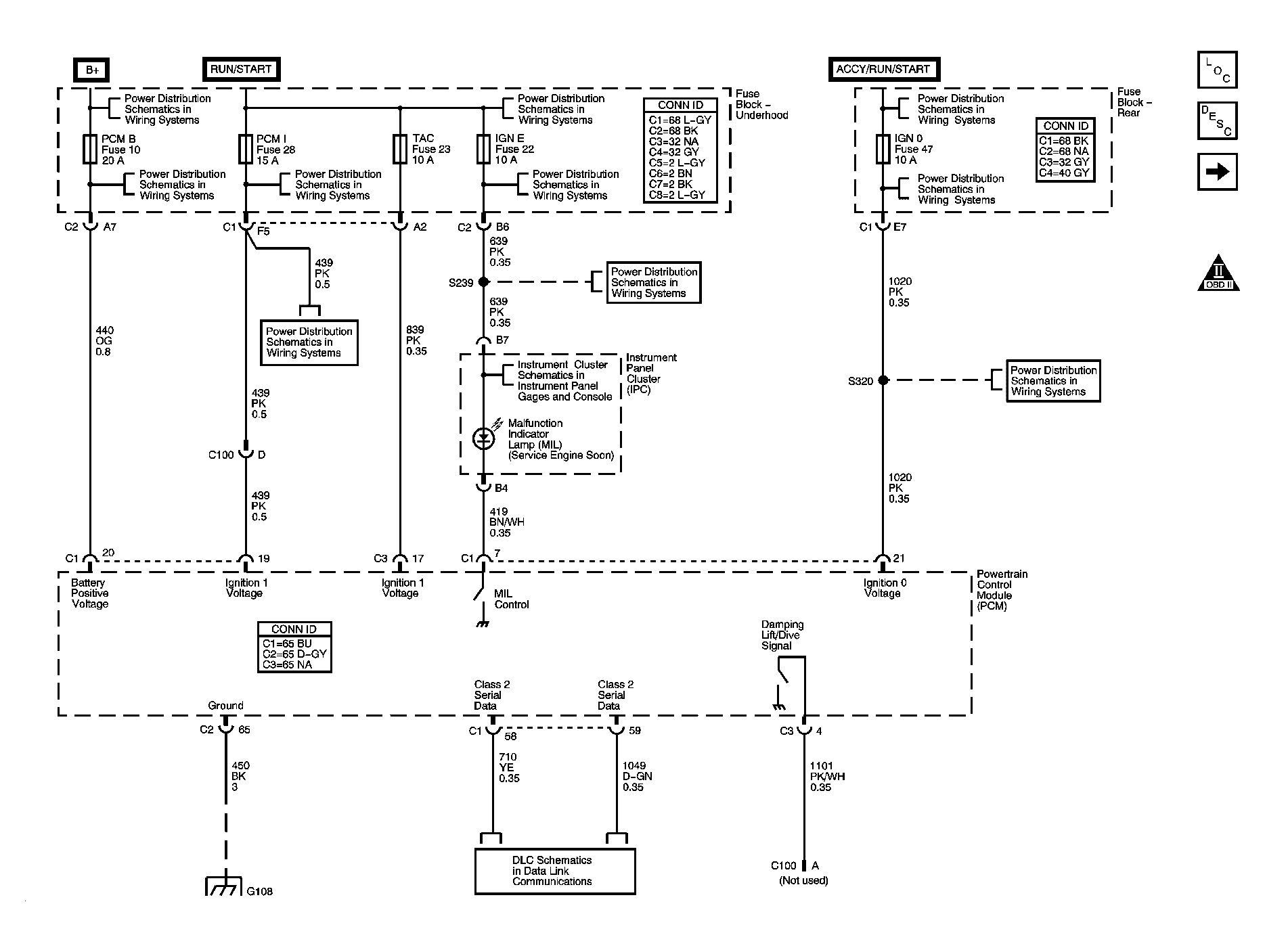

Fig 1: Power, Ground, Serial Data, and MIL Schematic

Courtesy of GENERAL MOTORS CORP.

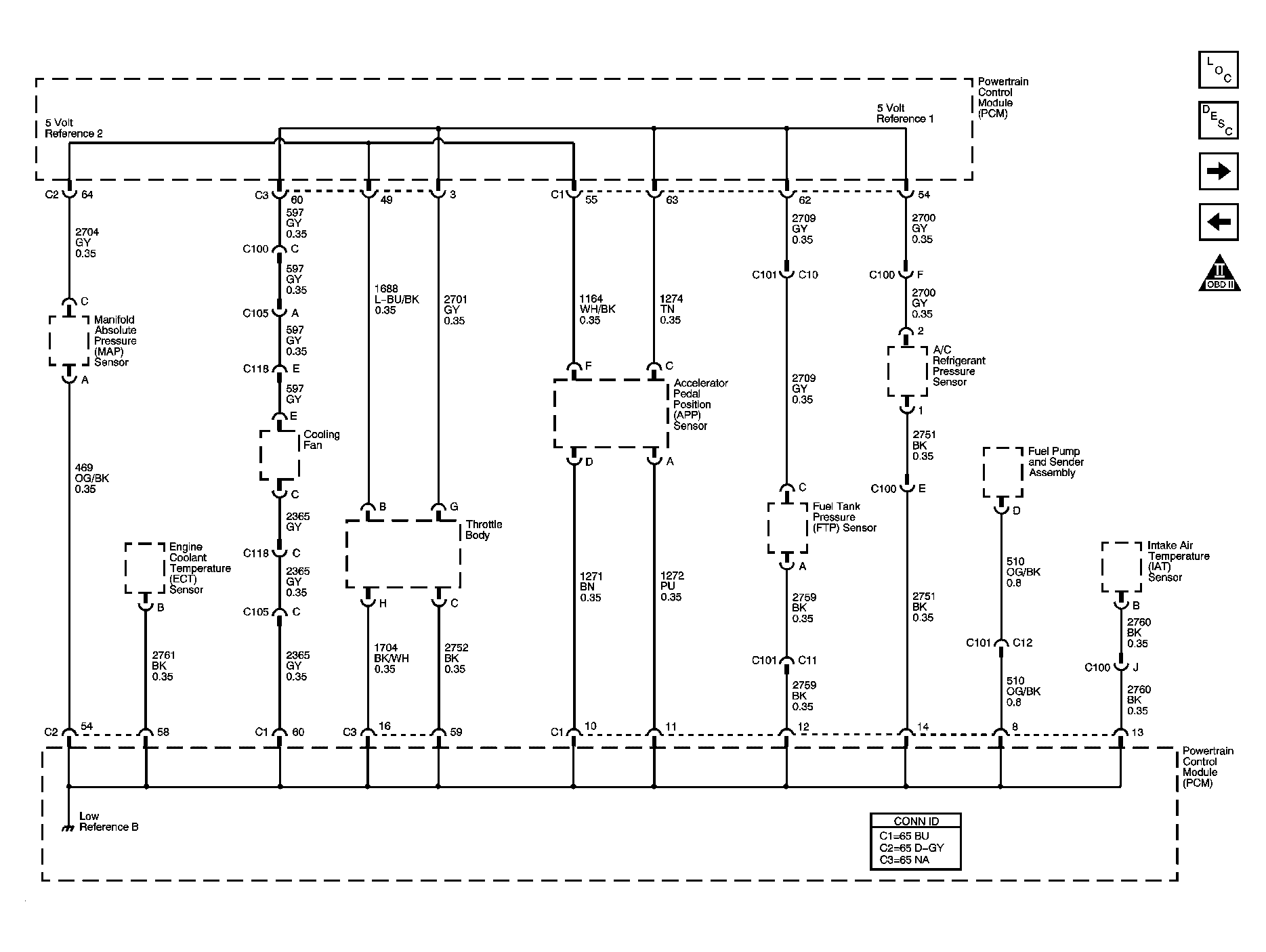

Fig 2: 5-Volt and Low Reference Schematic

Courtesy of GENERAL MOTORS CORP.

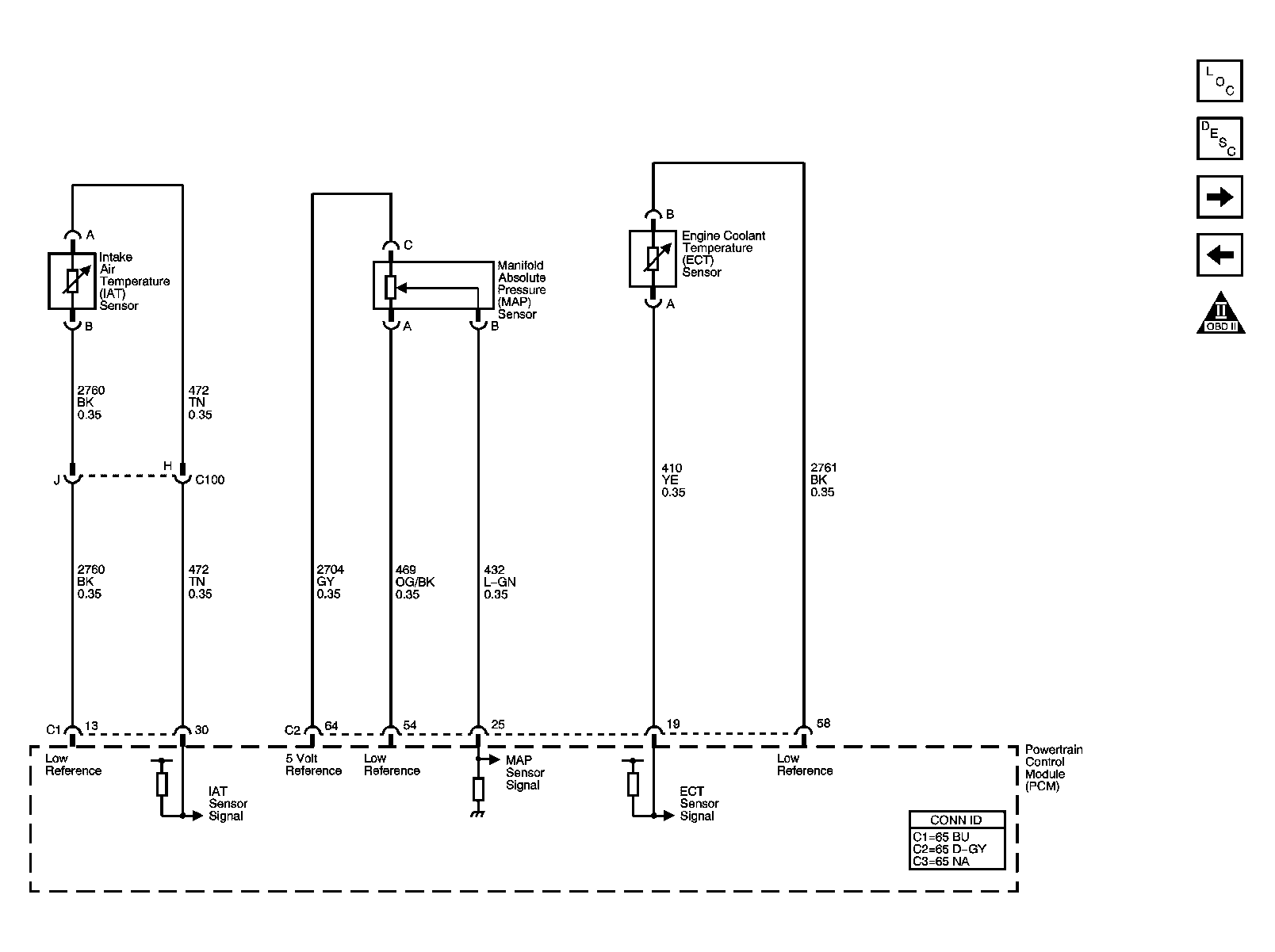

Fig 3: Engine Data Sensors - Pressure and Temperature Schematic

Courtesy of GENERAL MOTORS CORP.

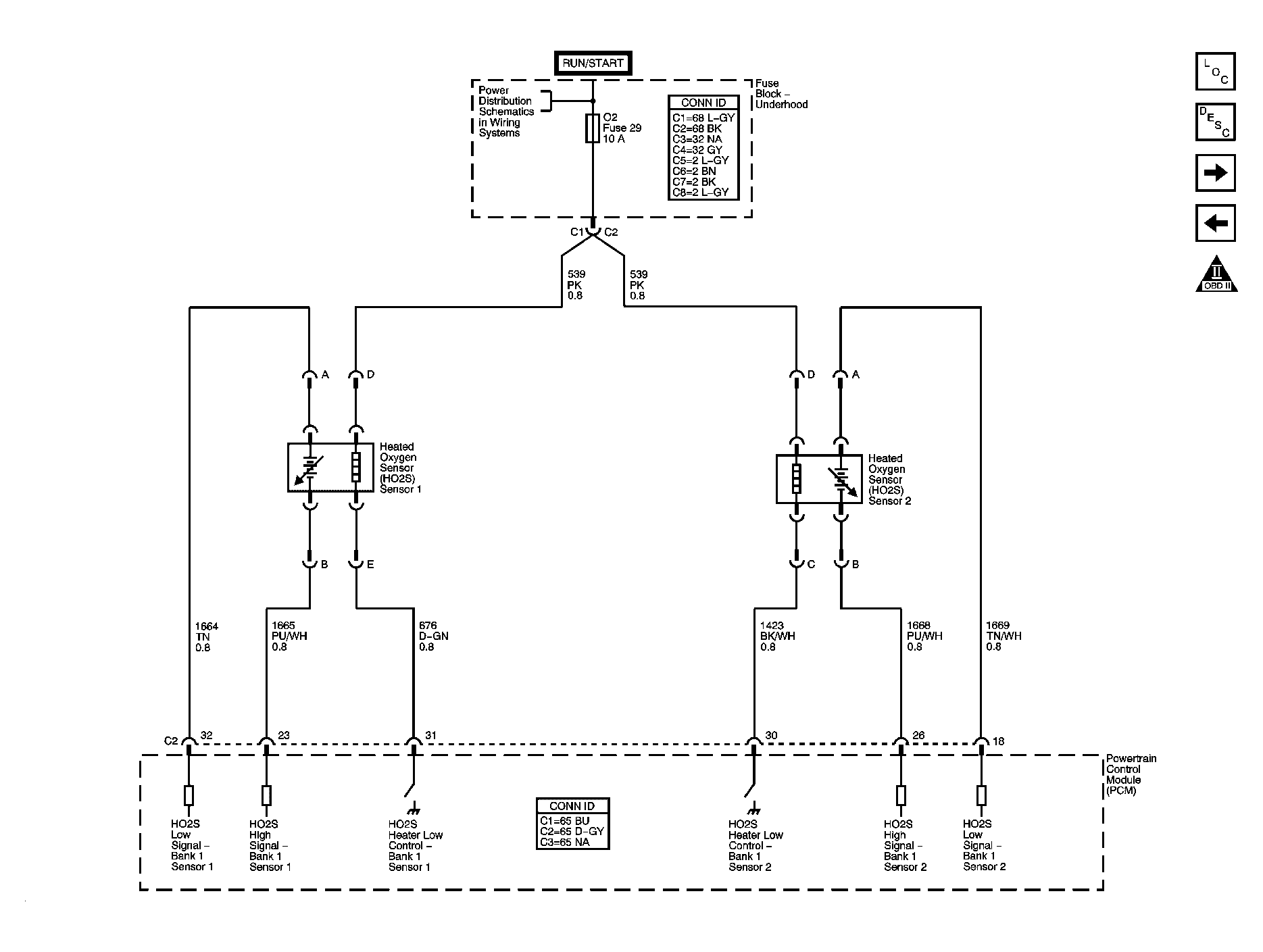

Fig 4: Engine Data Sensors Schematic - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

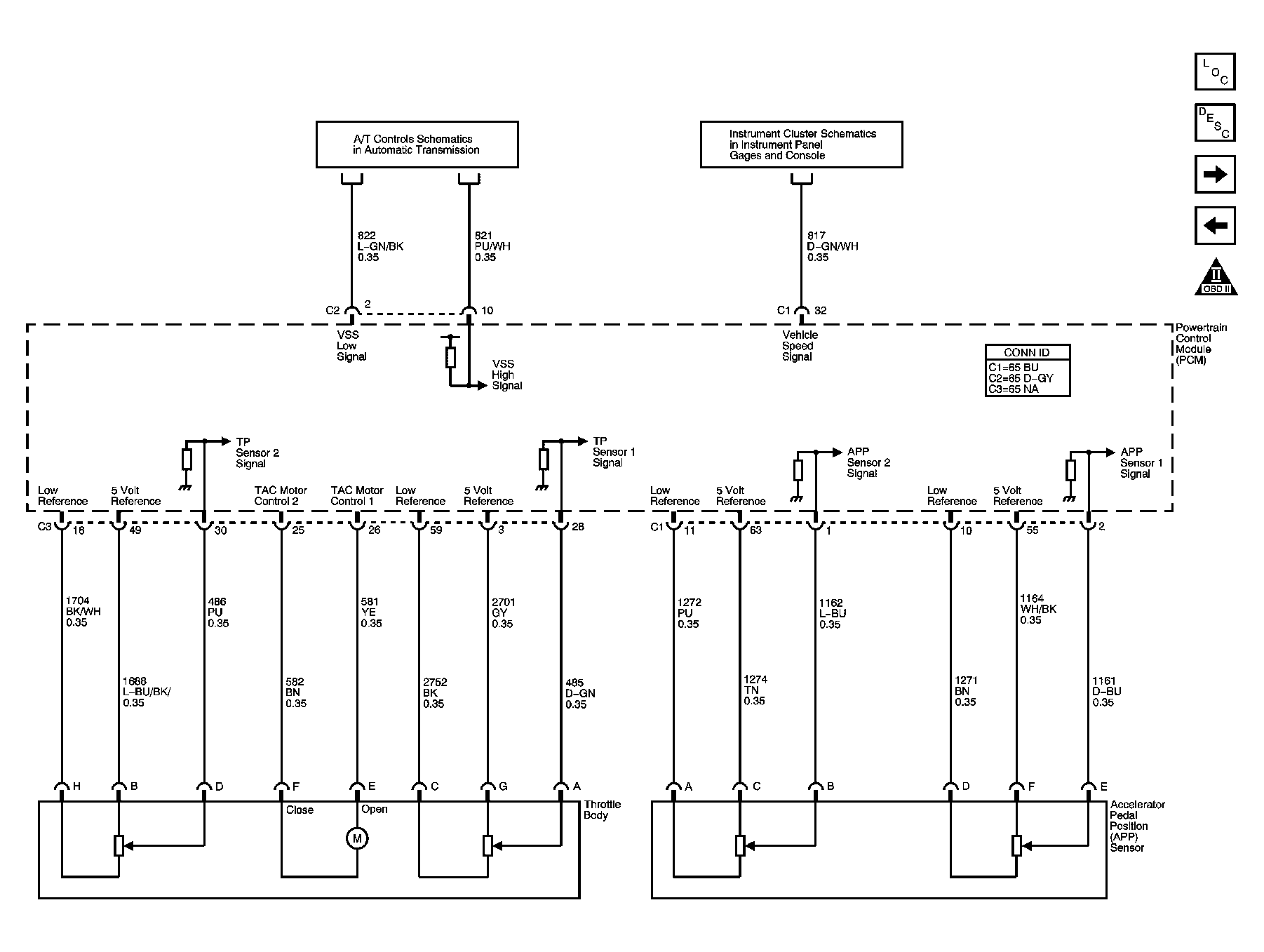

Fig 5: Engine Data Sensors Schematic - Throttle Actuator Controls and VSS

Courtesy of GENERAL MOTORS CORP.

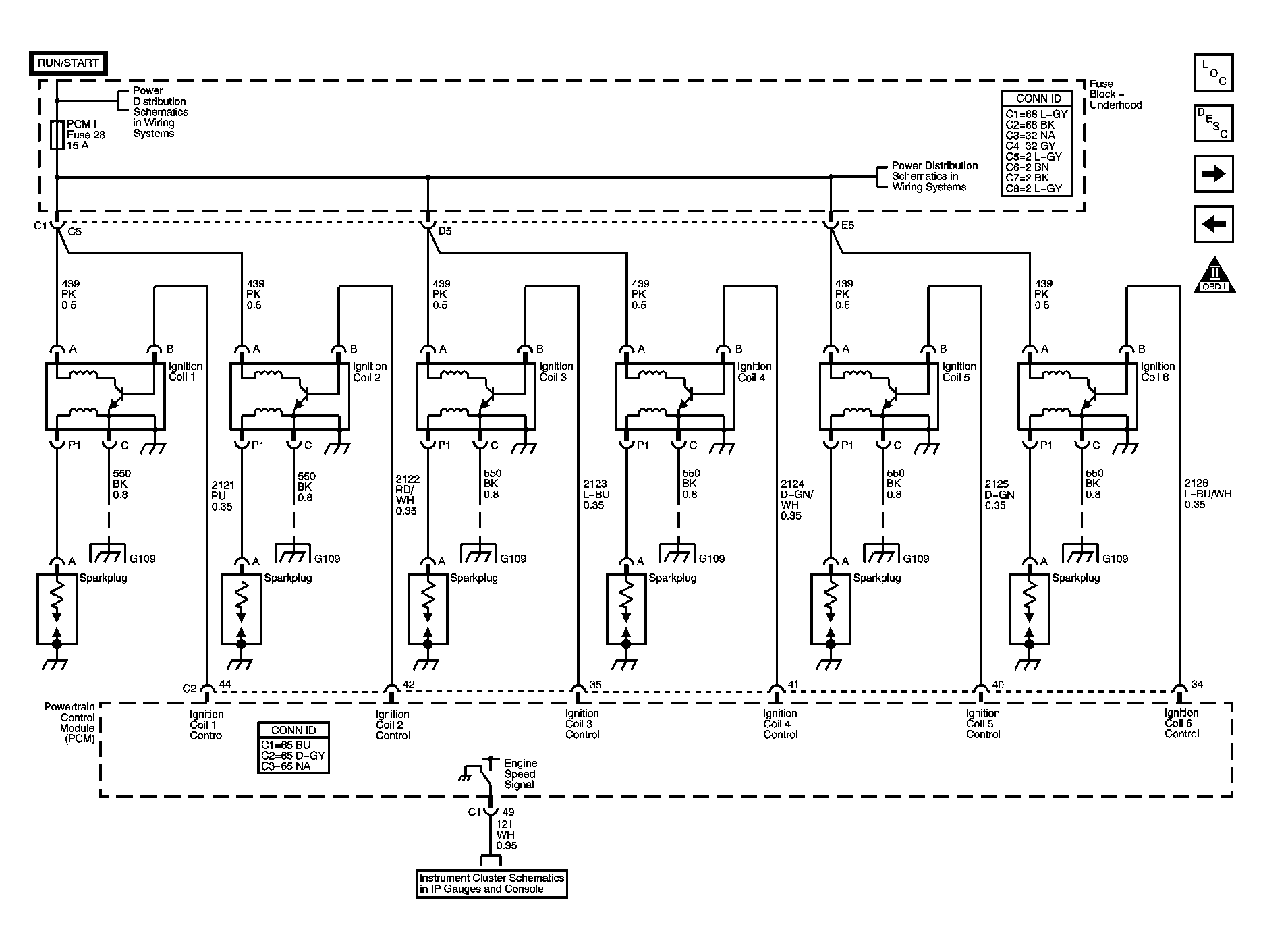

Fig 6: Ignition Controls Schematic - Ignition System

Courtesy of GENERAL MOTORS CORP.

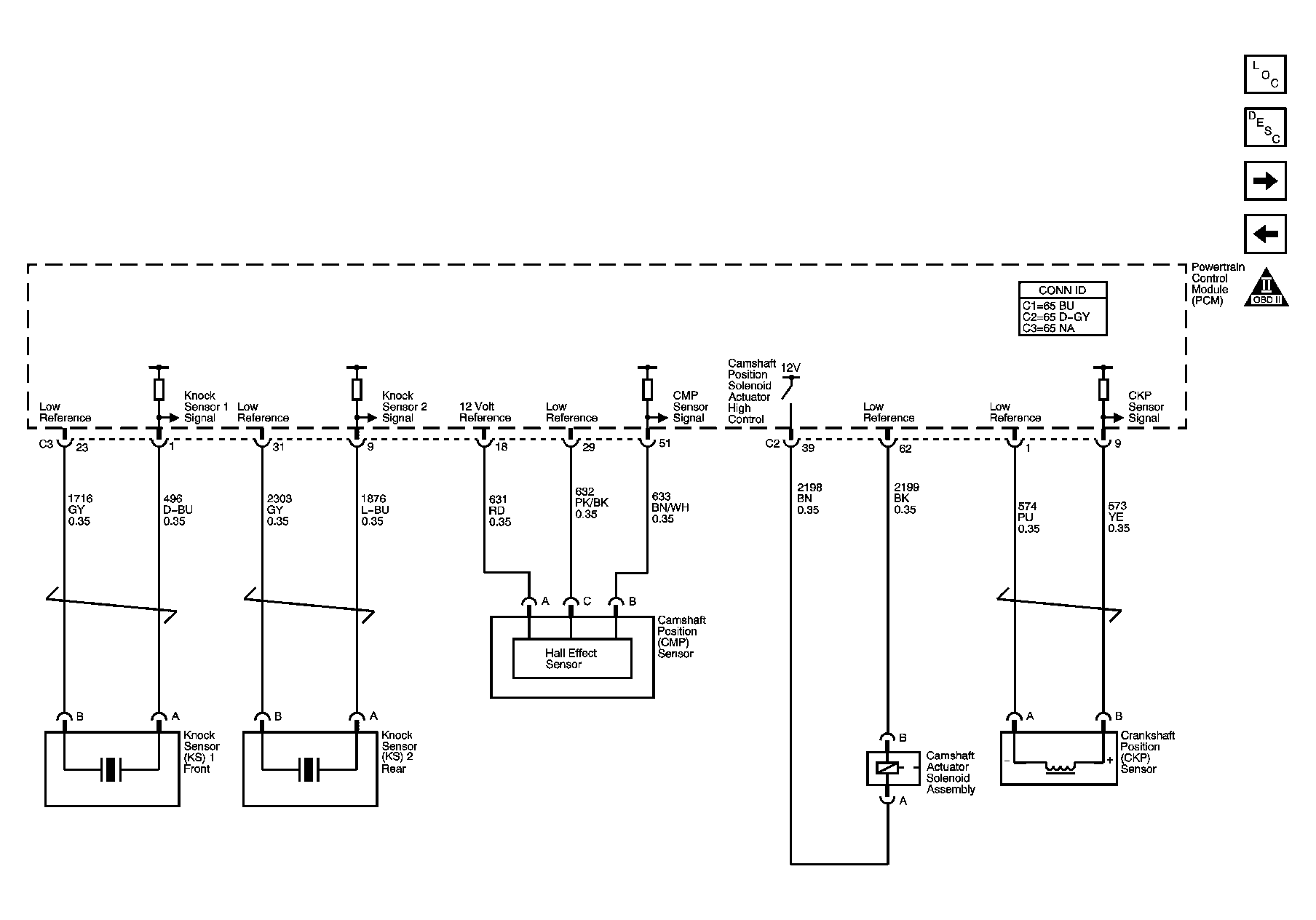

Fig 7: Ignition Controls Schematic - Sensors

Courtesy of GENERAL MOTORS CORP.

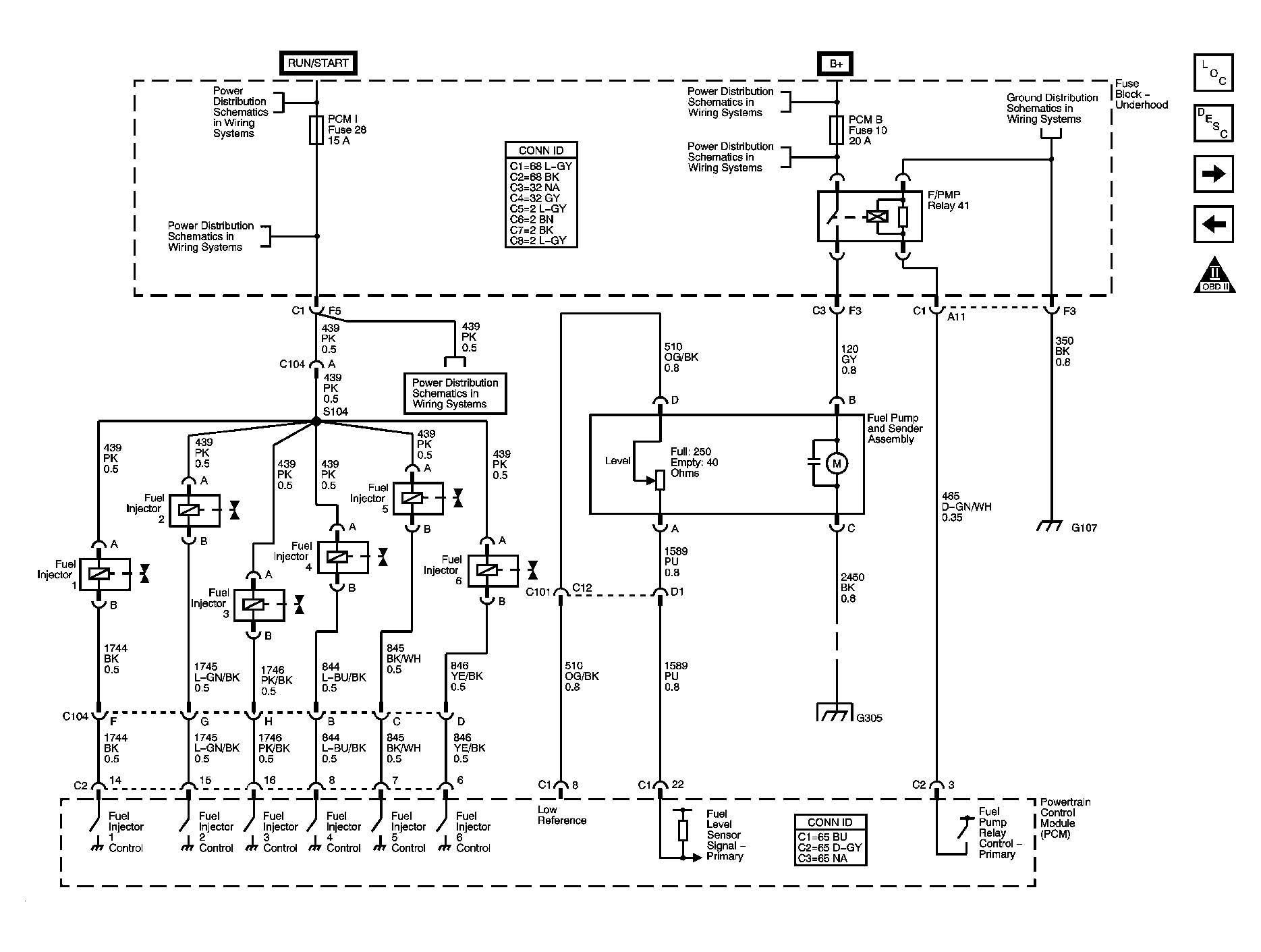

Fig 8: Fuel Controls Schematic - Fuel Pump Controls and Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

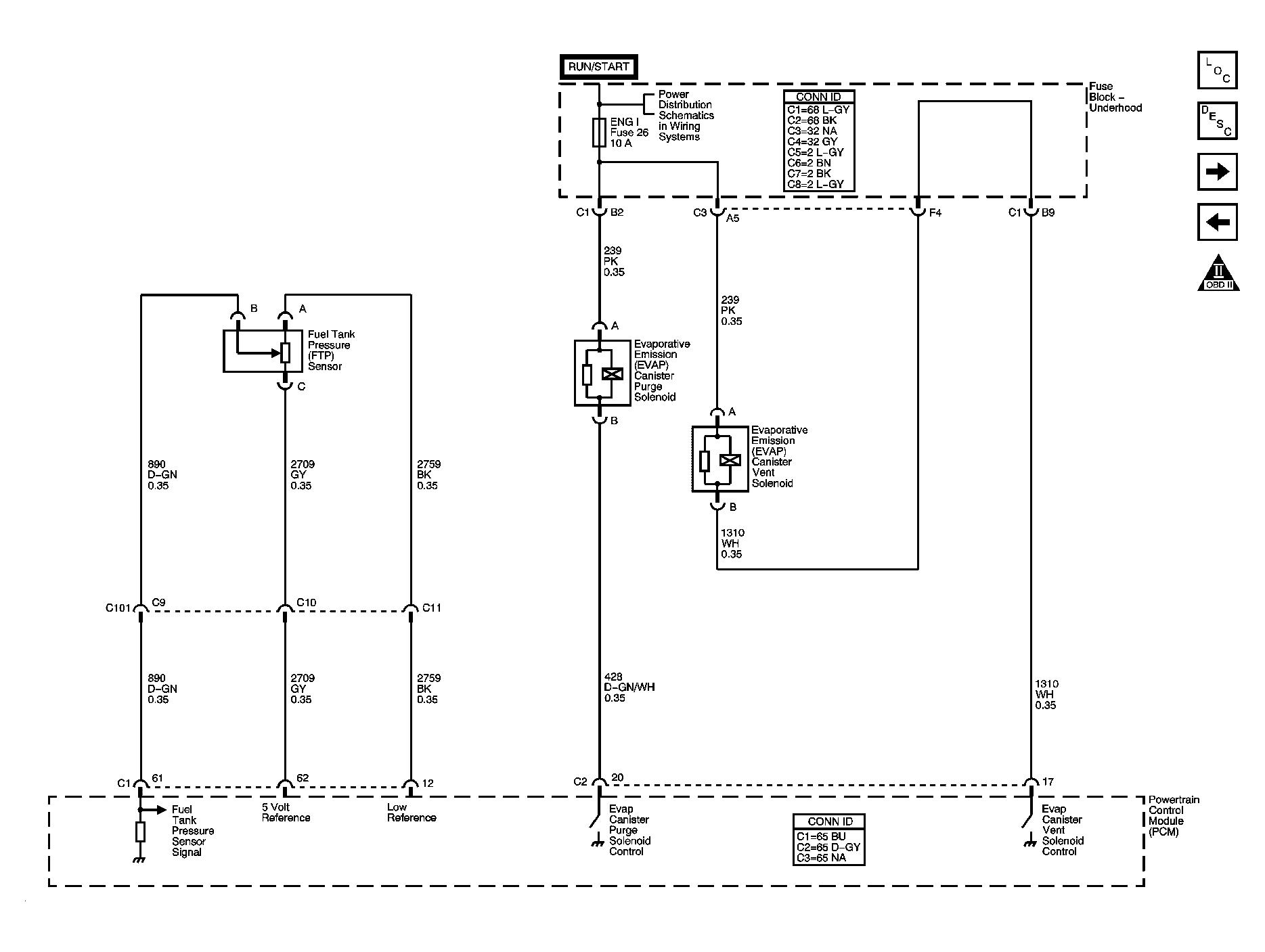

Fig 9: Fuel Controls Schematic - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

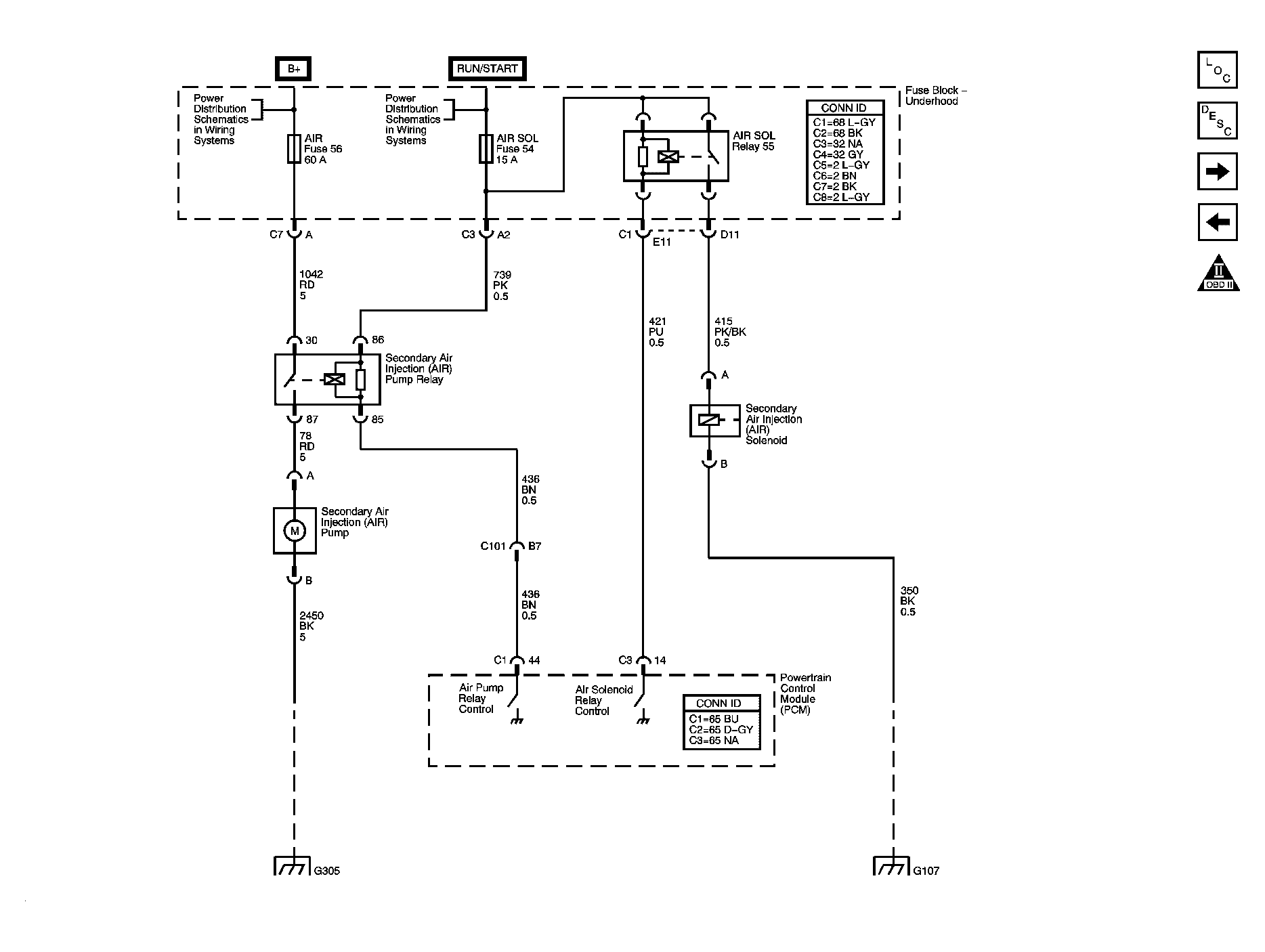

Fig 10: Device Controls (K18) Schematic

Courtesy of GENERAL MOTORS CORP.

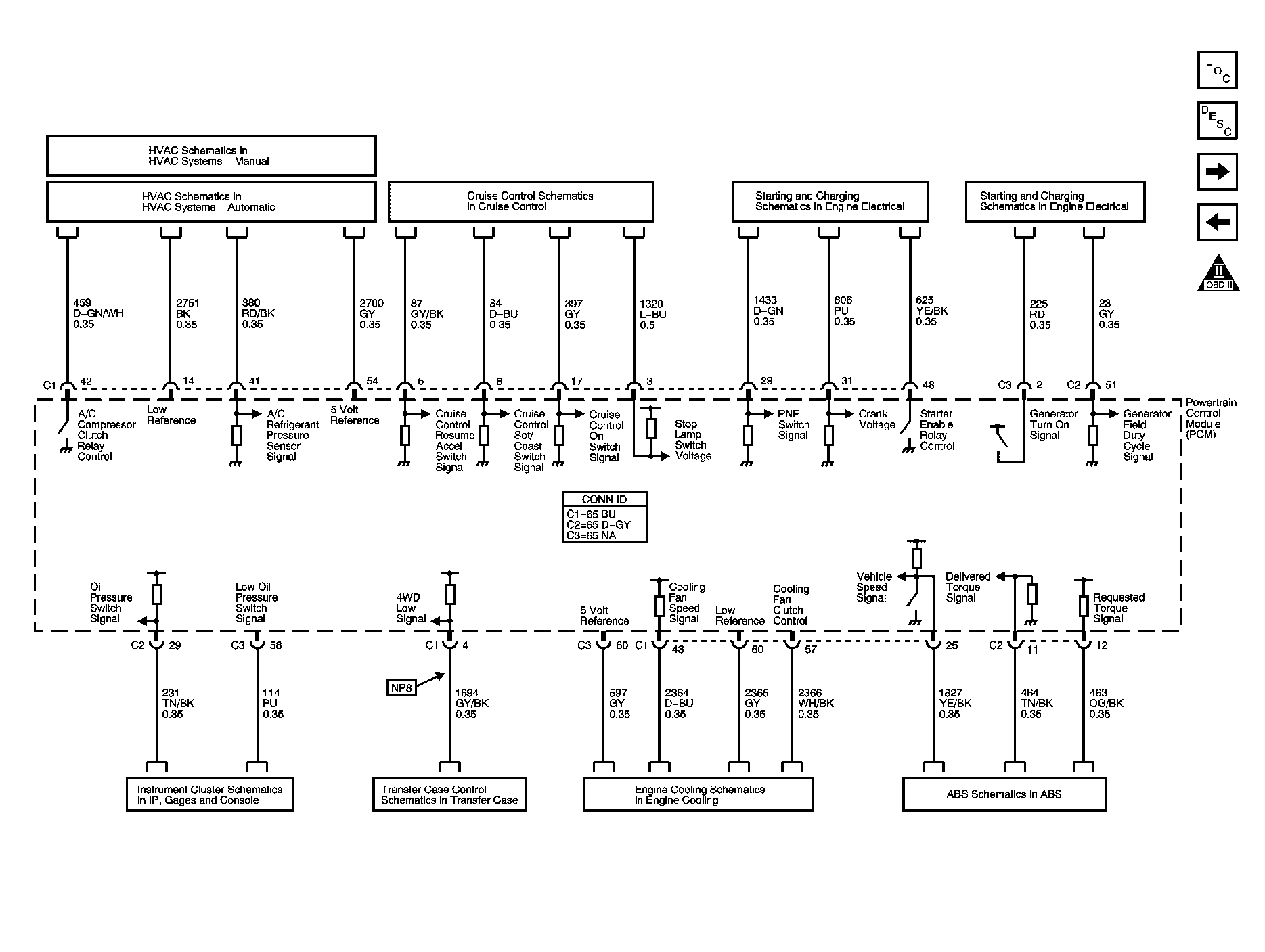

Fig 11: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

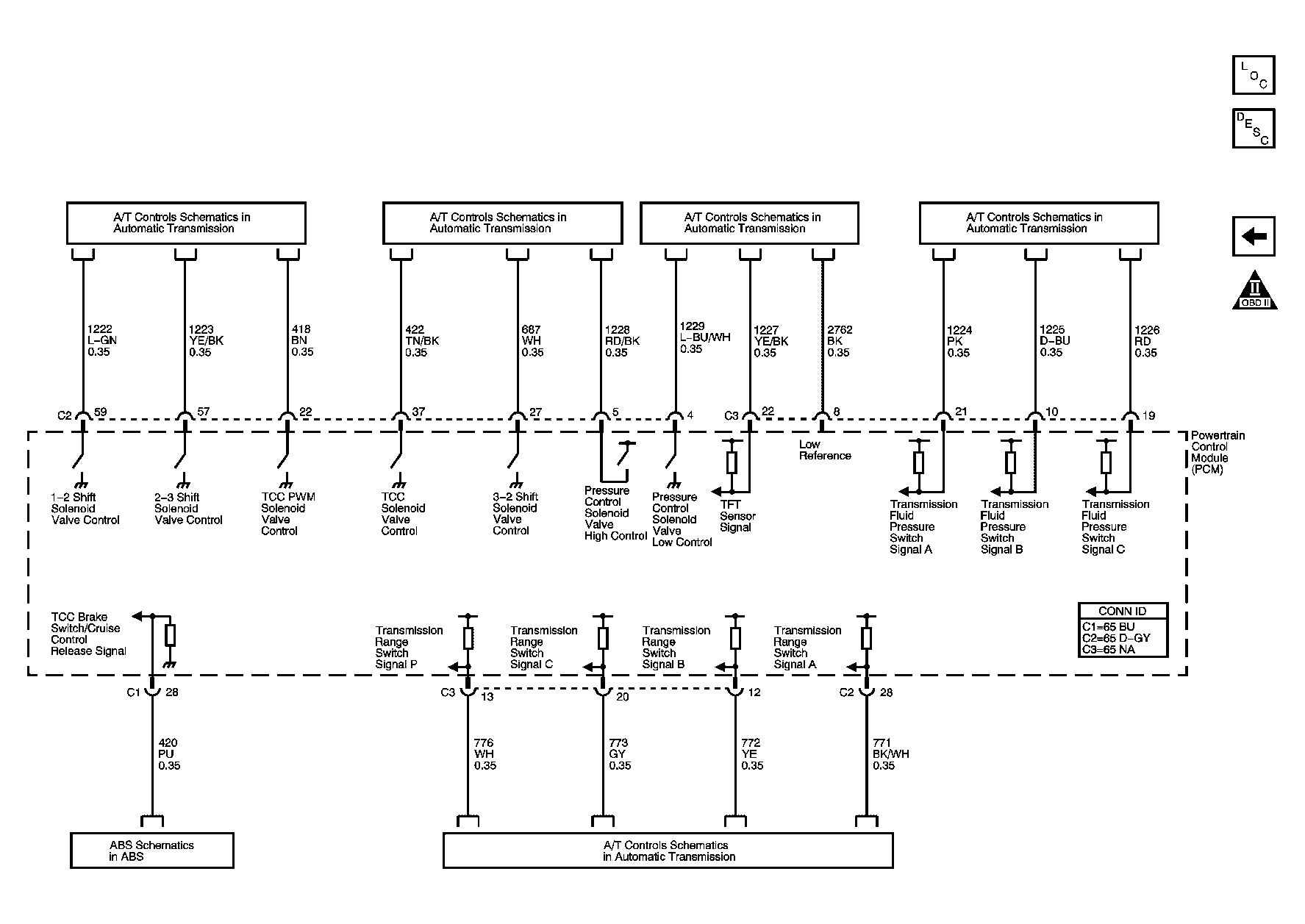

Fig 12: Transmission Control References Schematic - A/T

Courtesy of GENERAL MOTORS CORP.
