Stationary Windows Component Views

Fig 1: Dome Lamp Harness w/o Driver Information Center (DIC) - Utility
GM357174Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dome Lamp
2 S300
3 S302
4 Dome Lamp Harness
5 C209
6 Vanity Mirror Lamp - Left
7 Inside Rearview Mirror
8 Vanity Mirror Lamp - Right

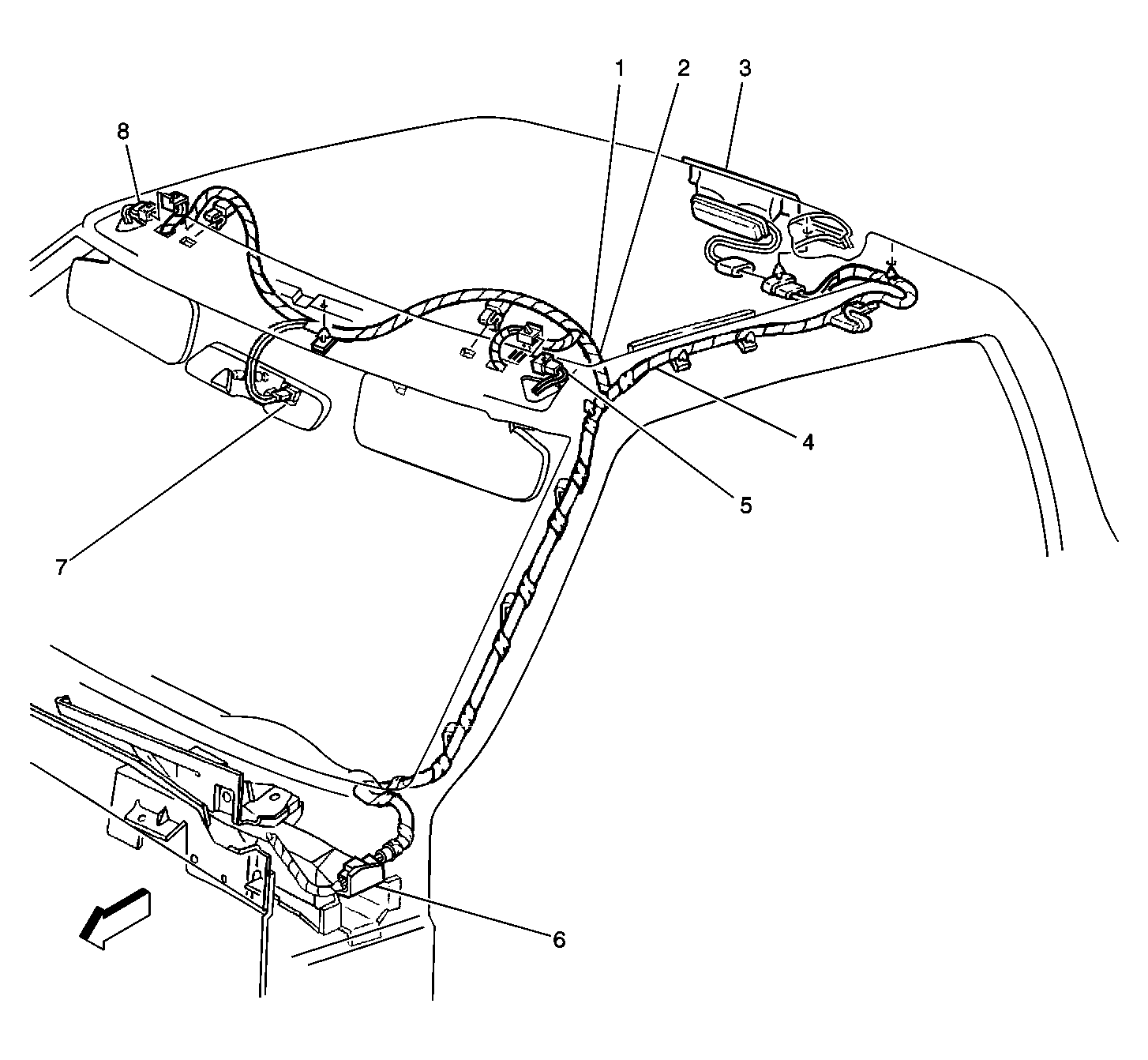

Fig 2: Dome Lamp Harness - Regular Cab Pickup
GM357172Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S302
2 Dome Lamp Harness
3 Center High Mounted Stop Lamp (CHMSL)
4 S300
5 Vanity Mirror Lamp - Left
6 C209
7 Inside Rearview Mirror
8 Vanity Mirror Lamp - Right
Fig 3: Body Opening Frame, Rear Window Defogger, Extension Harness
GM357346Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Endgate
2 Rear Window Defogger Connector, RH (C433), LH (C432)
3 Rear Window Defogger Harness
