Installation Procedure

IMPORTANT:
  • When installing the CKP sensor, make sure the sensor is fully seated before tightening the mounting bolt. A poorly seated CKP sensor may perform erratically and may set false DTCs.
  • DO NOT reuse the original O-ring.
  1. Replace the CKP sensor O-ring.
  2. Lubricate the O-ring with clean engine oil before installing the CKP sensor.

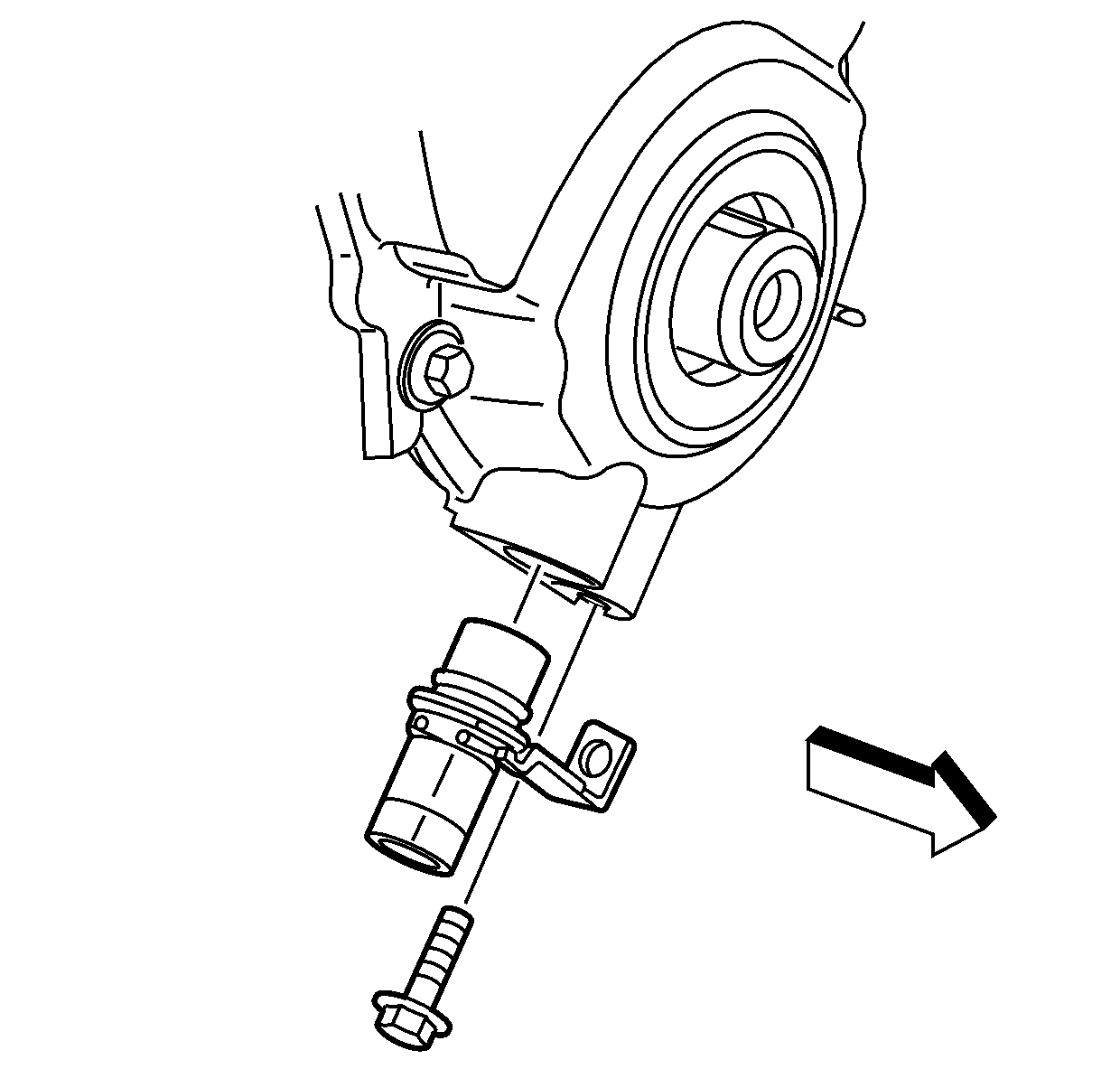

    3. Fig 1: View Of CKP Sensor & Bolt
    GM11485Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Make sure the CKP sensor mounting surface is clean and free of burrs.
  3. Install the CKP sensor.

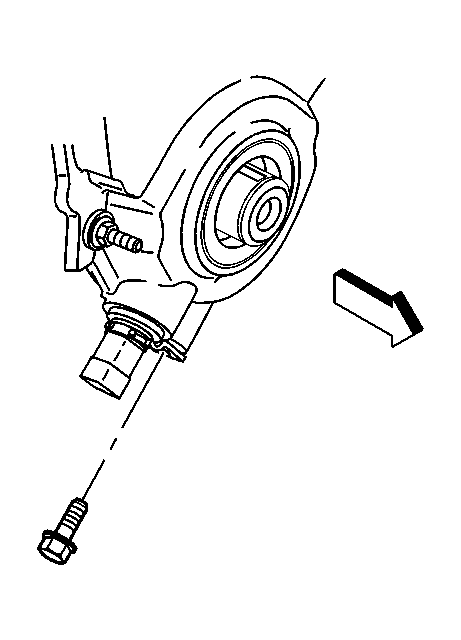

    4. Fig 2: View Of CKP Sensor Bolt
    GM10938Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the CKP sensor mounting bolt.

    Tighten:  Tighten the CKP sensor mounting bolt to 9 N.m (80 lb in).

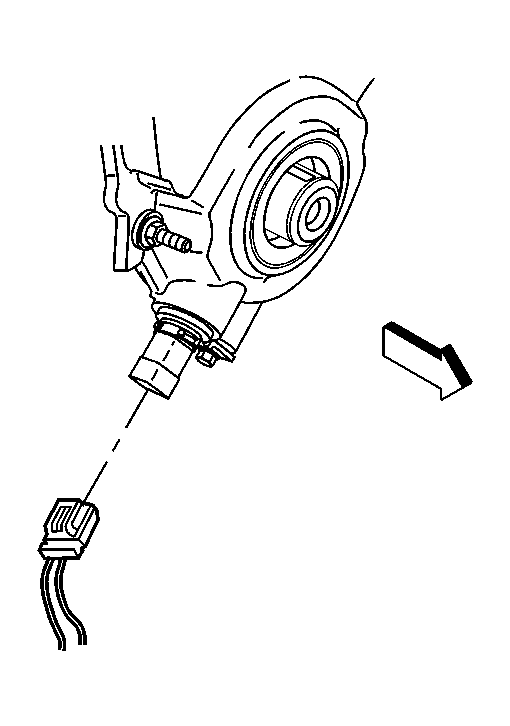

    5. Fig 3: Identifying CKP Sensor Harness Connector
    GM10937Courtesy of GENERAL MOTORS CORP.
  5. Connect the CKP sensor harness connector.

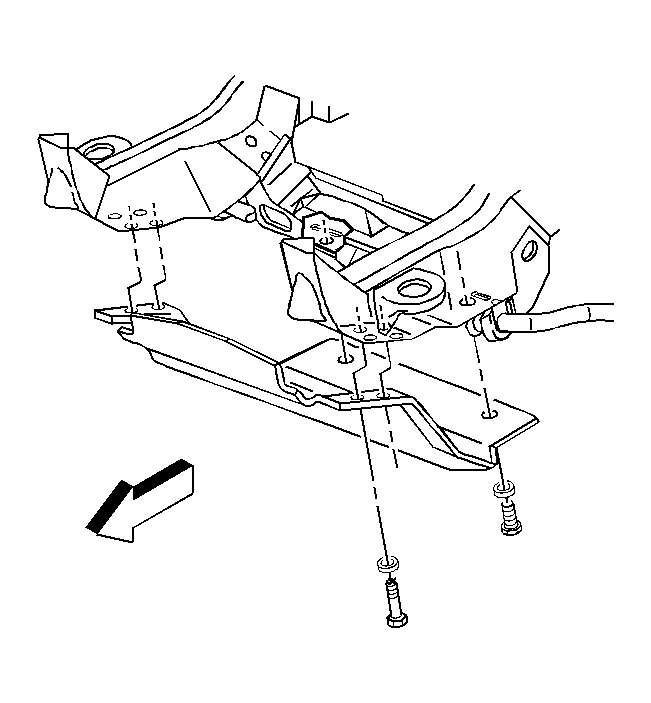

    6. Fig 4: View Of Steering Linkage Shield
    GM325348Courtesy of GENERAL MOTORS CORP.
  6. Install the steering linkage shield.

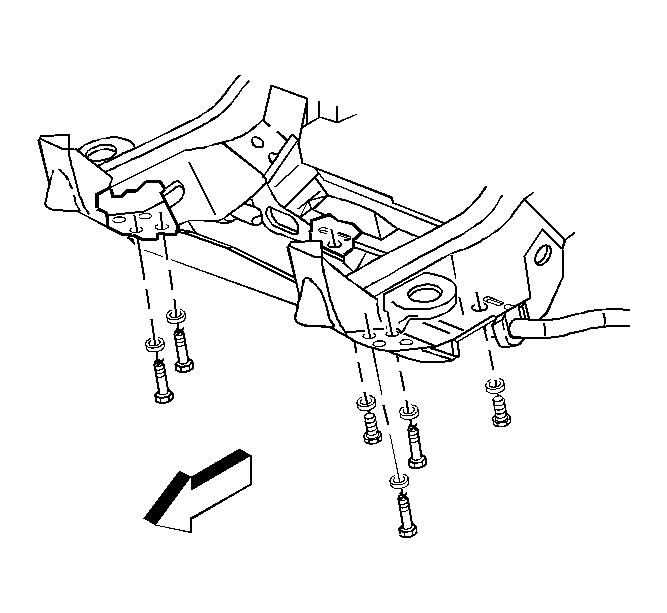

    7. Fig 5: Identifying Steering Linkage Shield Mounting Bolts
    GM325346Courtesy of GENERAL MOTORS CORP.
  7. Install the steering linkage shield mounting bolts.

    Tighten:  Tighten the bolts to 33 N.m (24 lb ft).

  8. Lower the vehicle.
  9. Perform the CKP system variation learn procedure. Refer to CKP System Variation Learn Procedure .
