Installation Procedure
Courtesy of GENERAL MOTORS CORP.

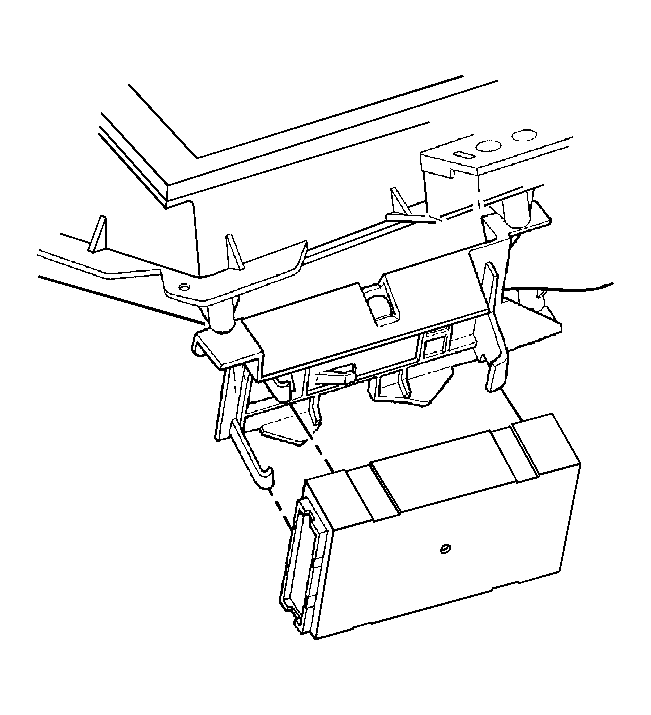

- Install the BCM to the bracket at an angle under the wide hook retainer, with the label facing away from the bracket.
- Apply pressure on the left side of the BCM in order to move the module toward the mounting bracket base. Snap the module into place.
- Ensure that the module is fully seated. Ensure that both snap retainers are holding the module.
- Connect the electrical connectors to the BCM. Connect the brown connector LAST.
- Install the lower I/P sound insulator to the vehicle. Refer to Closeout/Insulator Panel Replacement - Instrument Panel (I/P) Lower
in Instrument Panel, Gages and Console.
- Install the left I/P sound insulator to the vehicle. Refer to Closeout/Insulator Panel Replacement - Left
in Instrument Panel, Gages and Console.
- Use the following components in order to program the BCM with the proper calibrations:
- The Techline Terminal
- The scan tool
- Perform the BCM programming. Refer to Body Control Module (BCM) Programming/RPO Configuration .
- Clear the DTCs.
