Keyless Entry Component Views

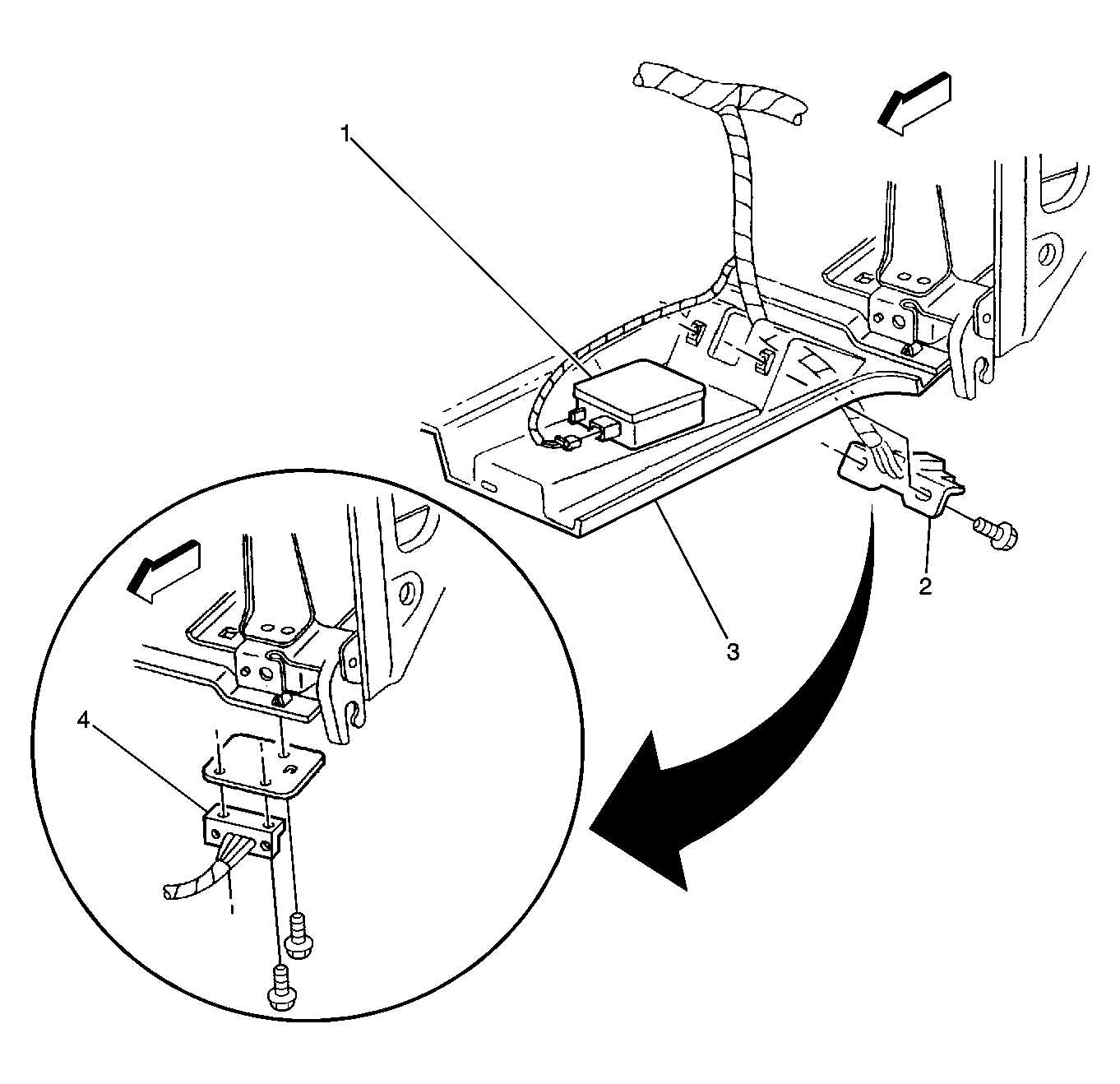

Fig 1: Body Wiring Harness, DLC and RCDLR
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Remote Control Door Lock Receiver (RCDLR)
2
Data Link Connector (DLC) (Except Base Pickup)
3
Instrument Panel (I/P) Sound Insulator, Left
4
Data Link Connector (DLC) (Base Pickup)
