Installation Procedure

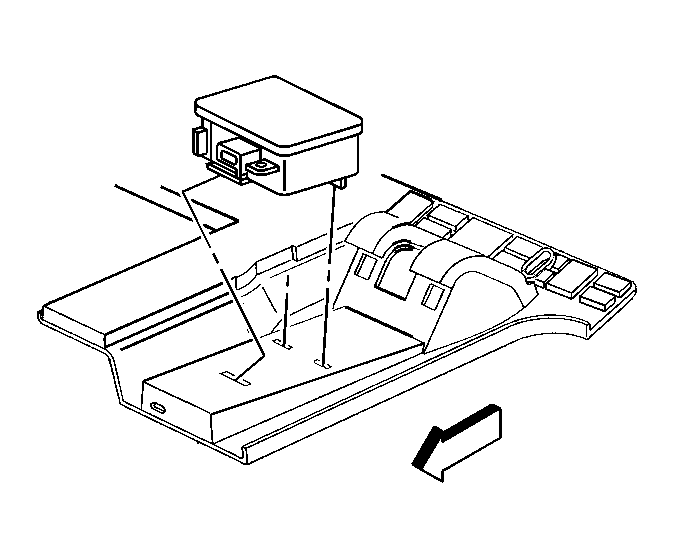

Fig 1: View Of Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.

Install the remote control door lock receiver from the instrument panel sound insulator by snapping it.
Connect the electrical connector.
Install the left side instrument panel sound insulator. Refer to Closeout/Insulator Panel Replacement - Left .
Reprogram the transmitters. Refer to Transmitter Programming .
Test the operation of the system.
