Installation Procedure

    Fig 1: Removing/Installing Rearview Mirror
    GM330783Courtesy of GENERAL MOTORS CORP.
  1. Install the rearview mirror to the mounting button.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the set screw to the rearview mirror.

    Tighten:  Tighten the screw to 2 N.m (18 lb in).

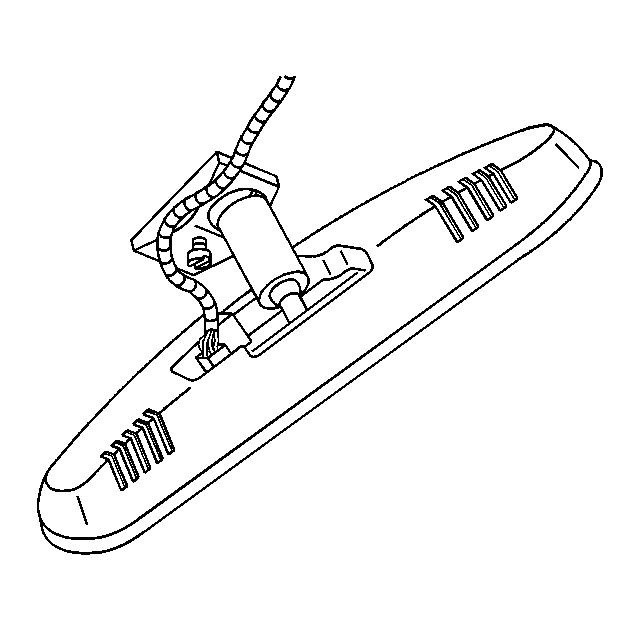

    3. Fig 2: Locating Electrical Connector
    GM330777Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the rearview mirror, if equipped.
