ABS Component Views

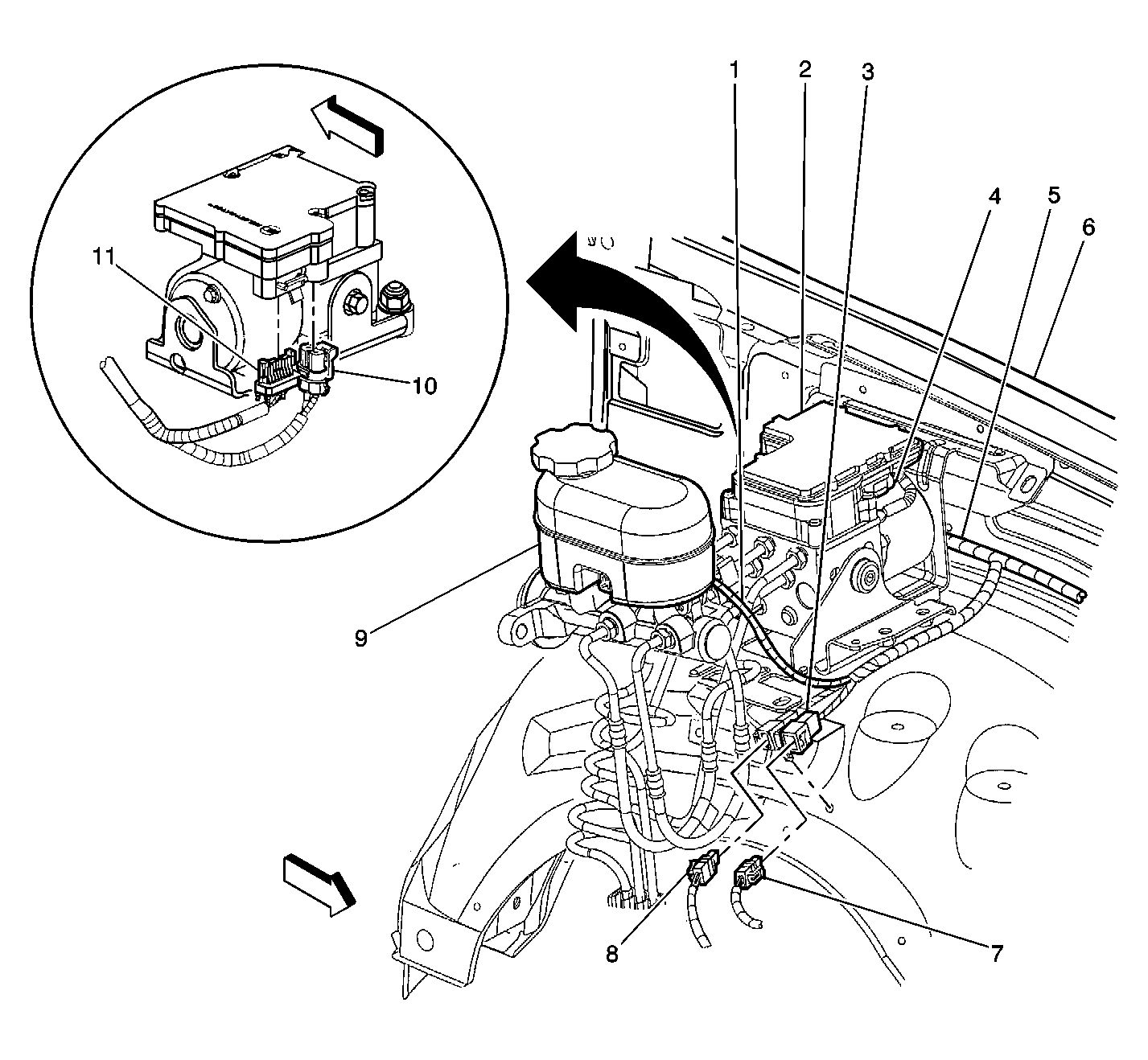

| Callout | Component Name |
|---|---|
| 1 | Brake Fluid Level Switch Connector |
| 2 | Electronic Brake Control Module (EBCM) |
| 3 | C114 |
| 4 | Pump Motor |
| 5 | Body Harness |
| 6 | LF Fender |
| 7 | C114 |
| 8 | C109 |
| 9 | Brake Master Cylinder |
| 10 | Electronic Brake Control Module (EBCM) Connector C2 |
| 11 | Electronic Brake Control Module (EBCM) Connector C1 |

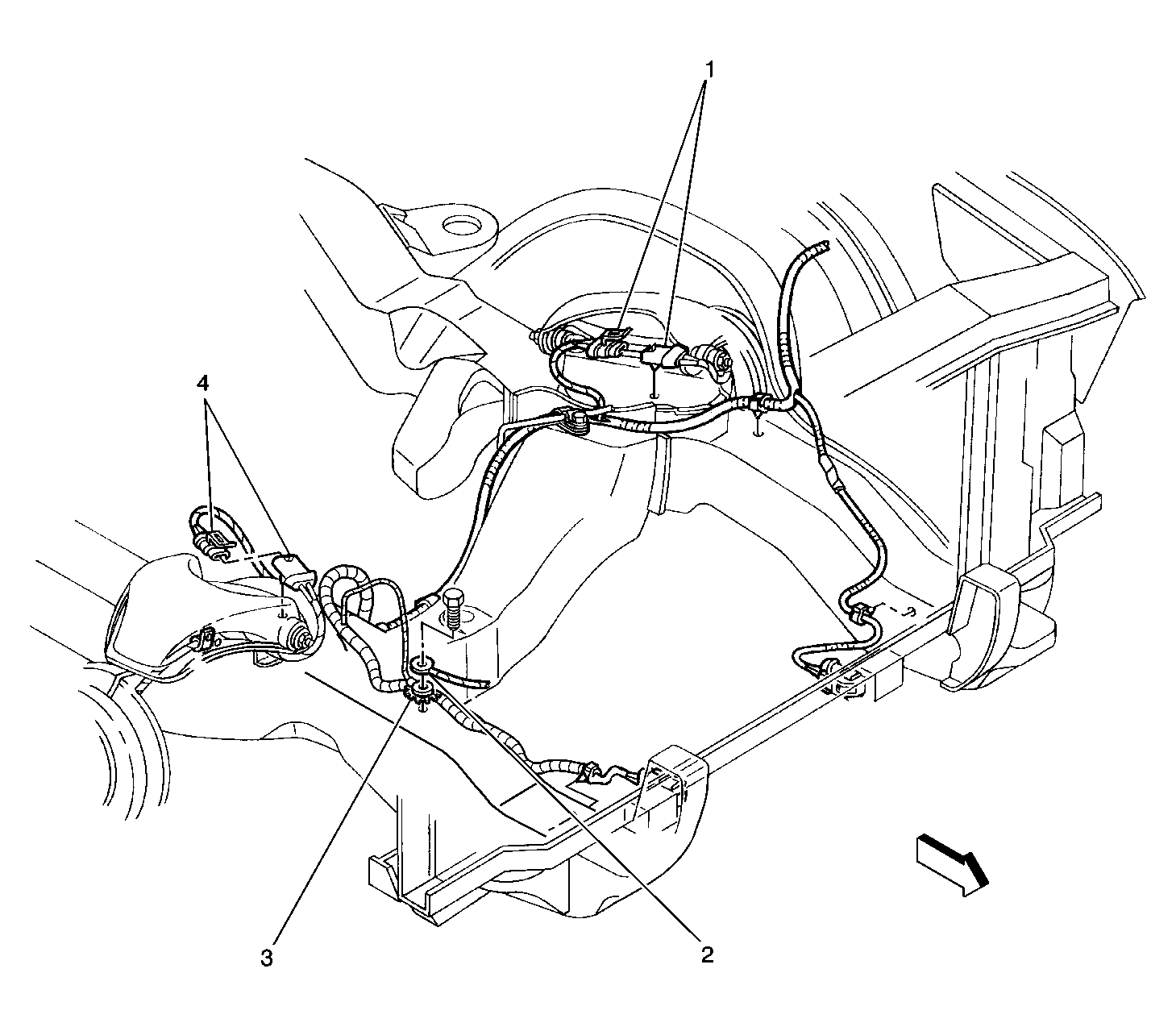

| Callout | Component Name |
|---|---|
| 1 | Wheel Speed Sensor (WSS) - LF |
| 2 | Ground G106 |
| 3 | Ground G118 |
| 4 | Wheel Speed Sensor (WSS) - RF |
