Installation Procedure

IMPORTANT: Do not reuse the old mounting screws. Always install new mounting screws with the new EBCM.

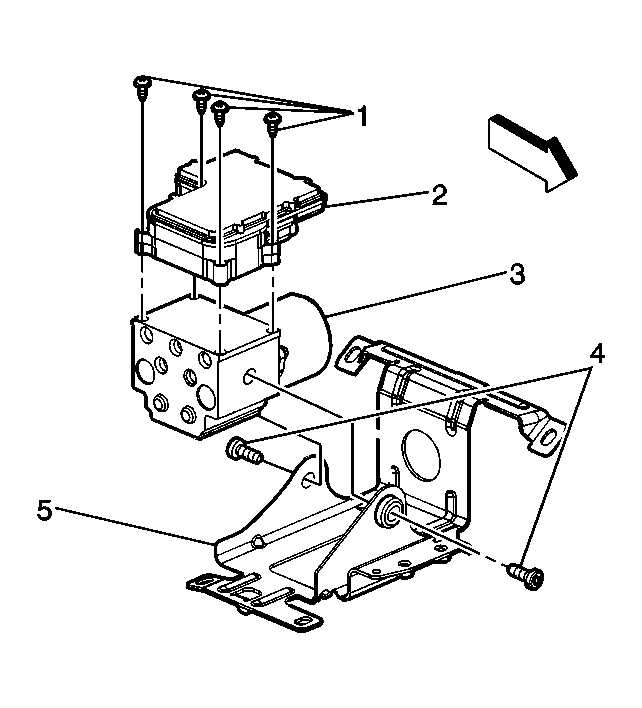

Fig 1: Locating Electronic Brake Control Module Components

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Do not use RTV or any other type of sealant on the EBCM gasket or mating surfaces.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the four new T-25 TORX® screws (1) in the EBCM (2).
Tighten: Tighten the four T-25 TORX® screws to 5 N.m (39 lb in) in an X-pattern.
Connect the electrical connectors to the EBCM (2).
Revise the tire calibration using the Scan Tool Tire Size Calibration function.
