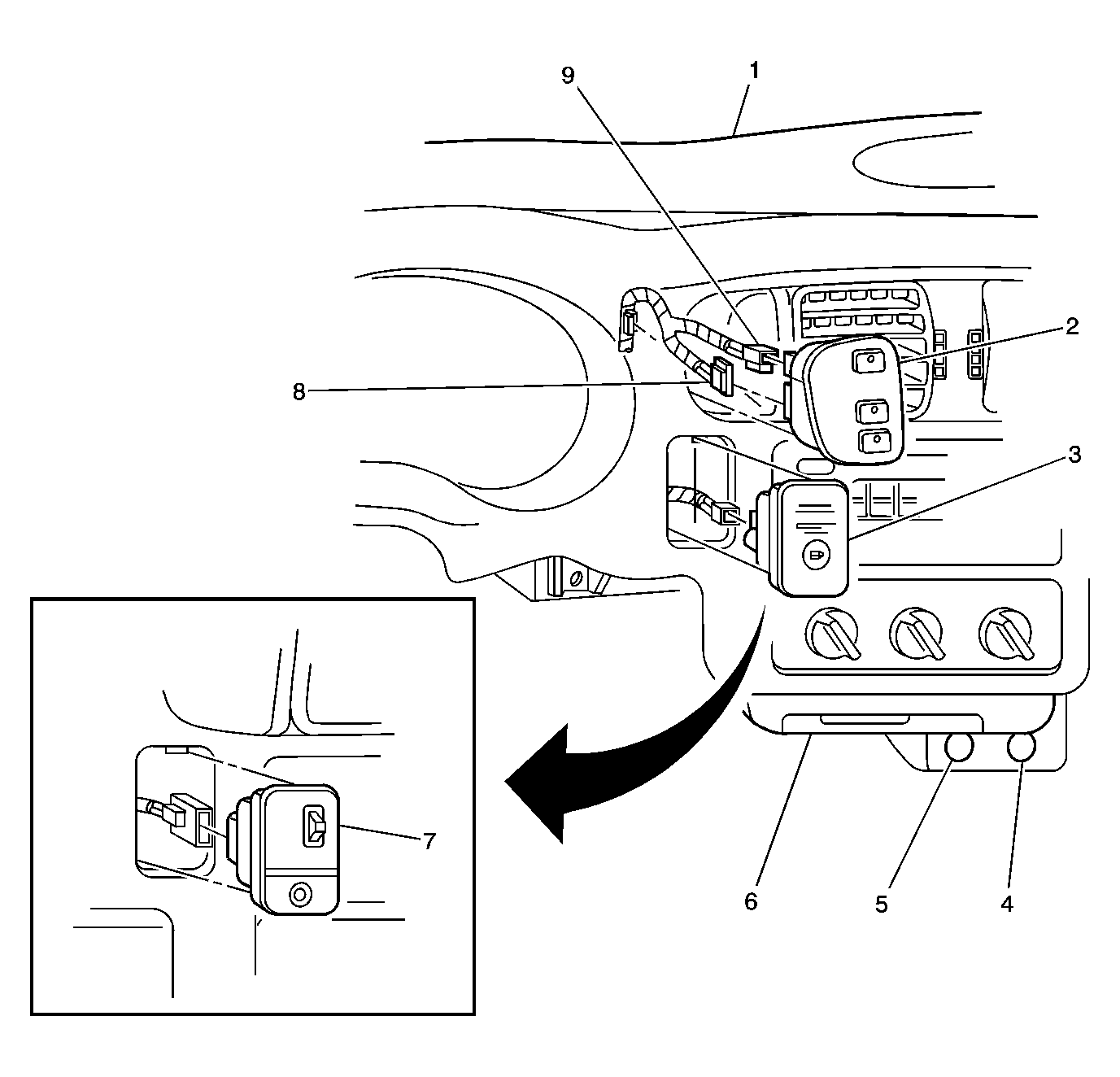

Power Outlet Component Views
| Callout | Component Name |
|---|---|
| 1 | Instrument Panel (I/P) |
| 2 | Transfer Case Shift Control Switch |
| 3 | Inflatable Restraint I/P Module Switch (Pickup Only) |
| 4 | Auxiliary Power Outlet - Right |
| 5 | Auxiliary Power Outlet - Left |
| 6 | I/P Tray, Ashtray and Cigar Lighter |
| 7 | Rear Wiper/Washer Switch and Endgate/Liftglass Window Release Switch (Utility) |
| 8 | Transfer Case Shift Control Switch C2 |
| 9 | Transfer Case Shift Control Switch C1 |
