Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

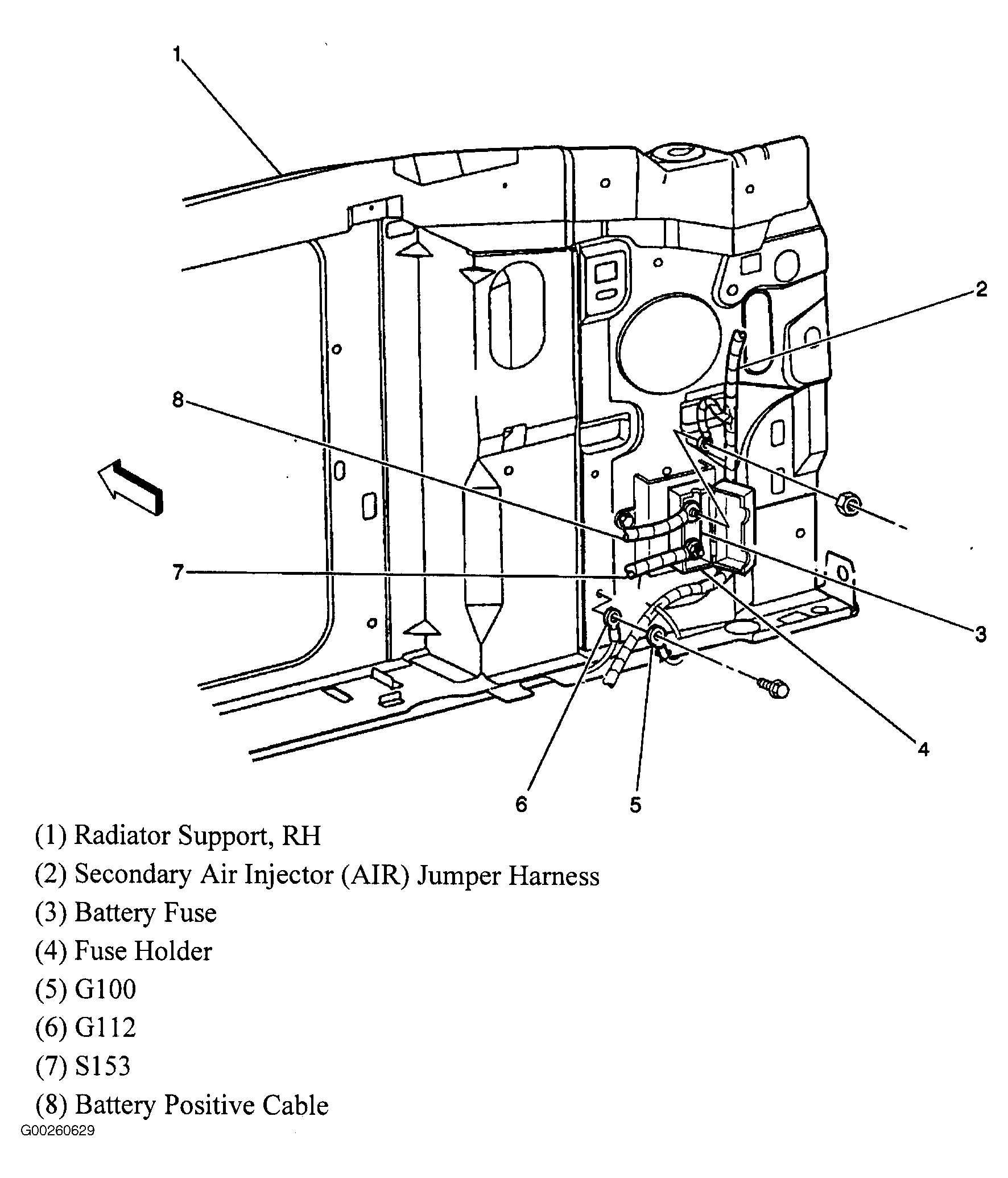

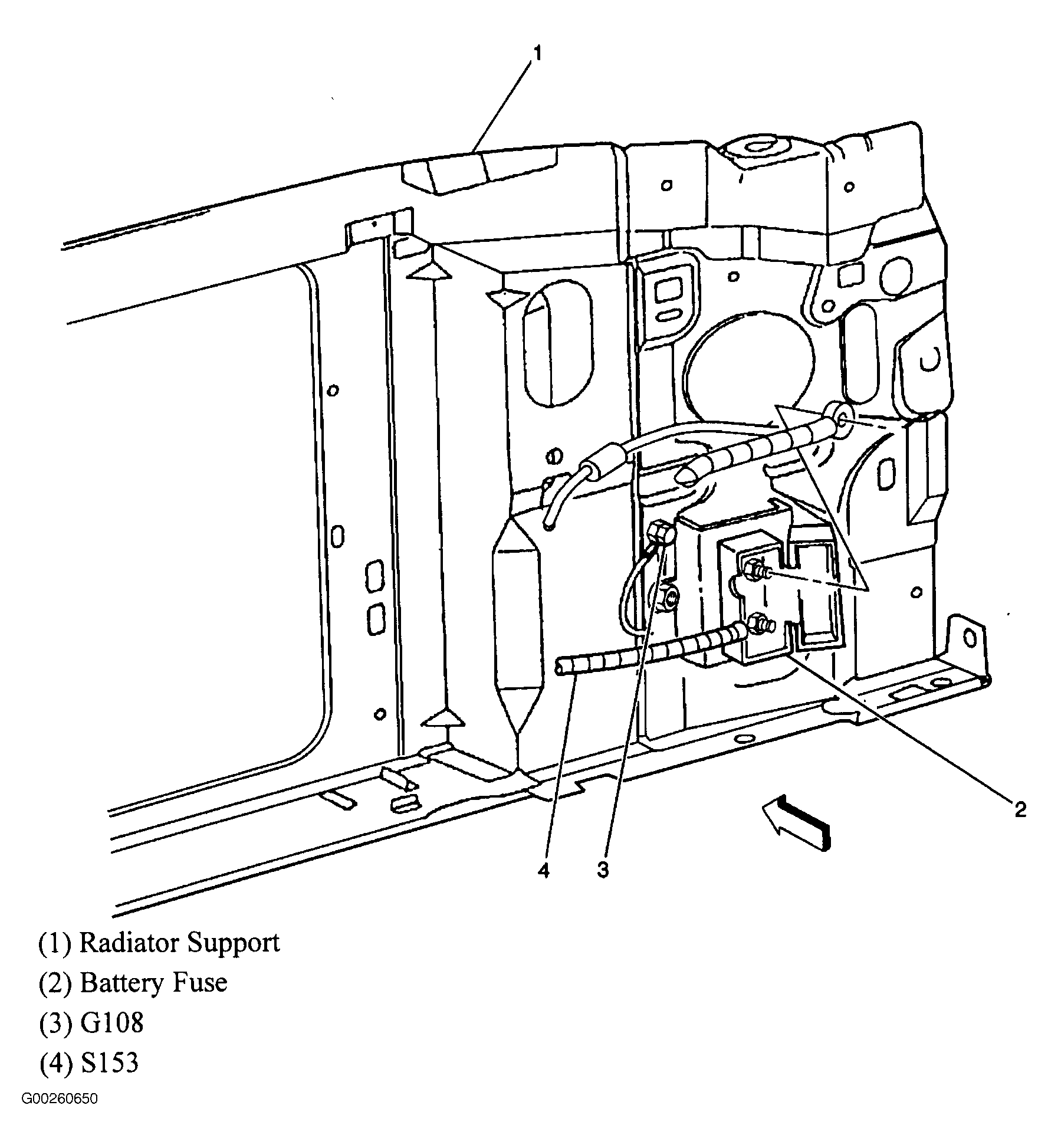

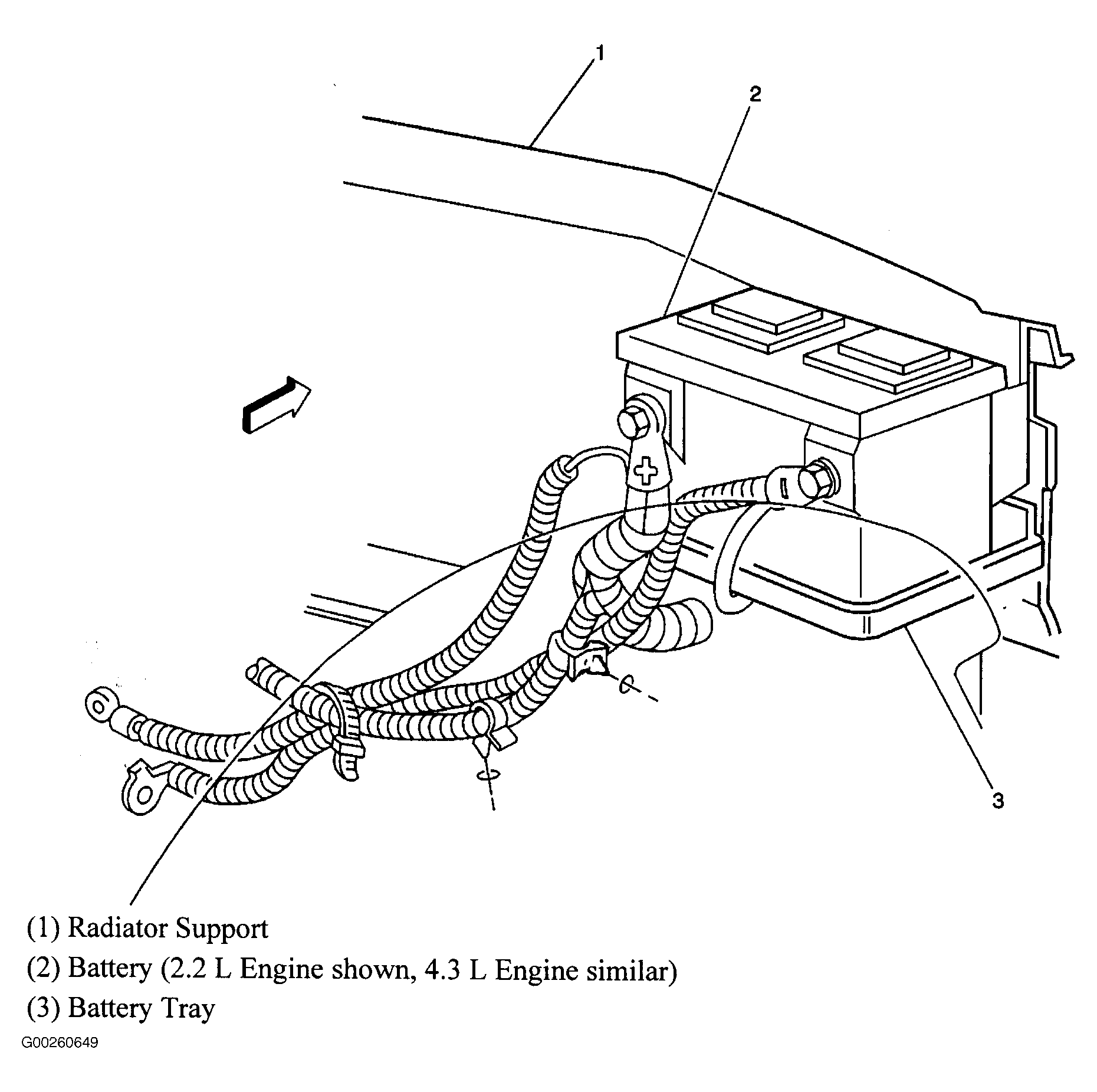

Fig 1: Front Of Radiator Support
Courtesy of GENERAL MOTORS CORP.

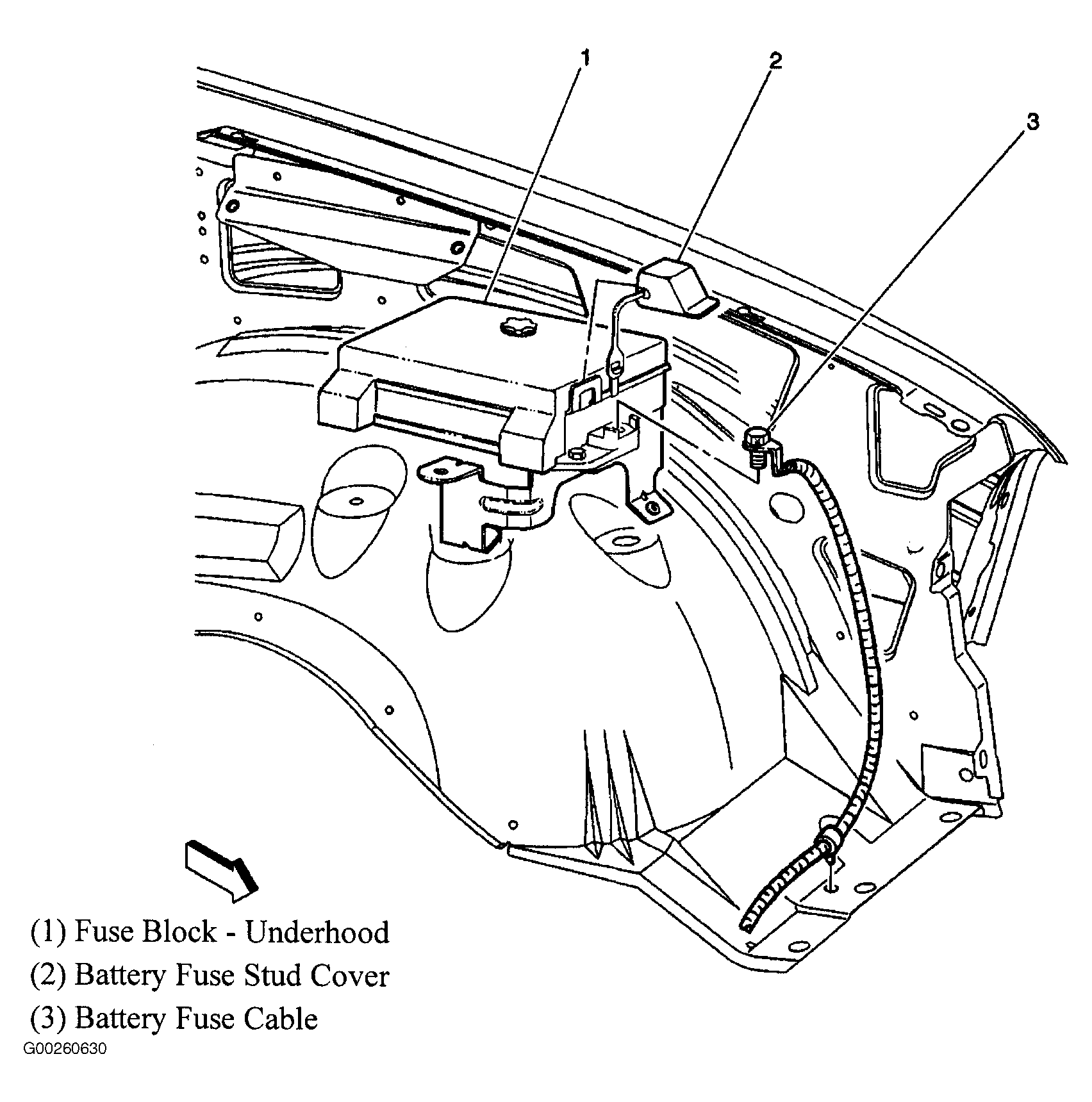

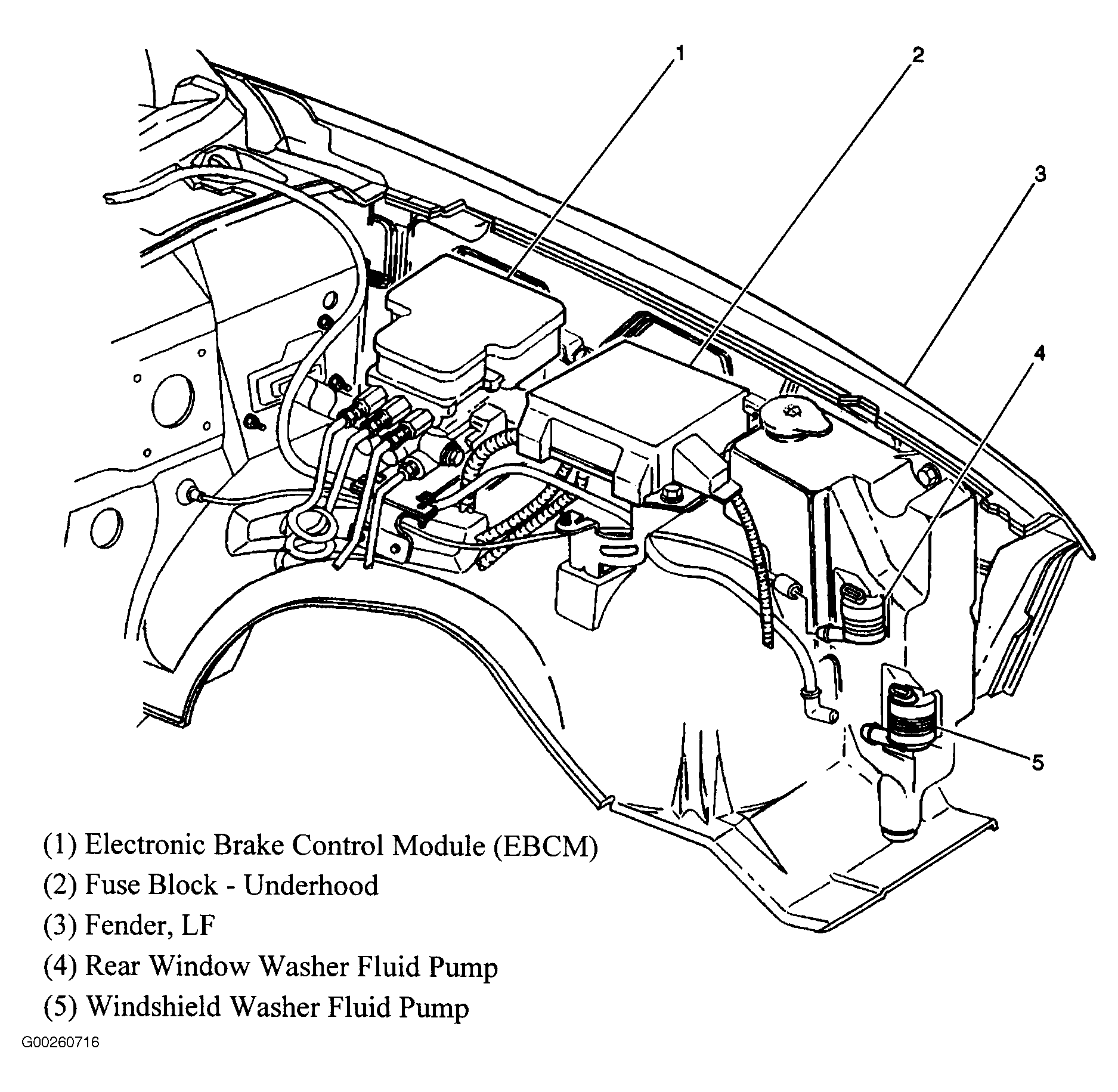

Fig 2: Left Front Wheelwell
Courtesy of GENERAL MOTORS CORP.

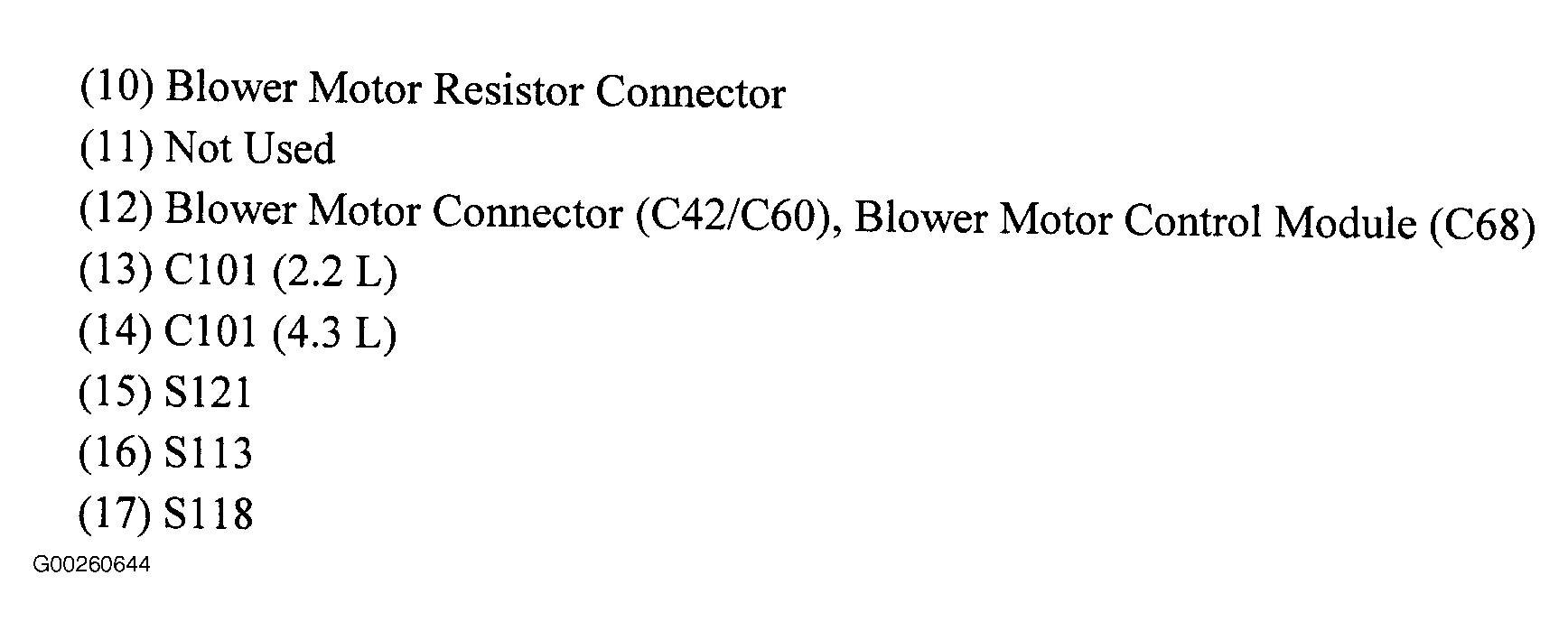

Fig 3: Electrical Center Identification Views
Courtesy of GENERAL MOTORS CORP.

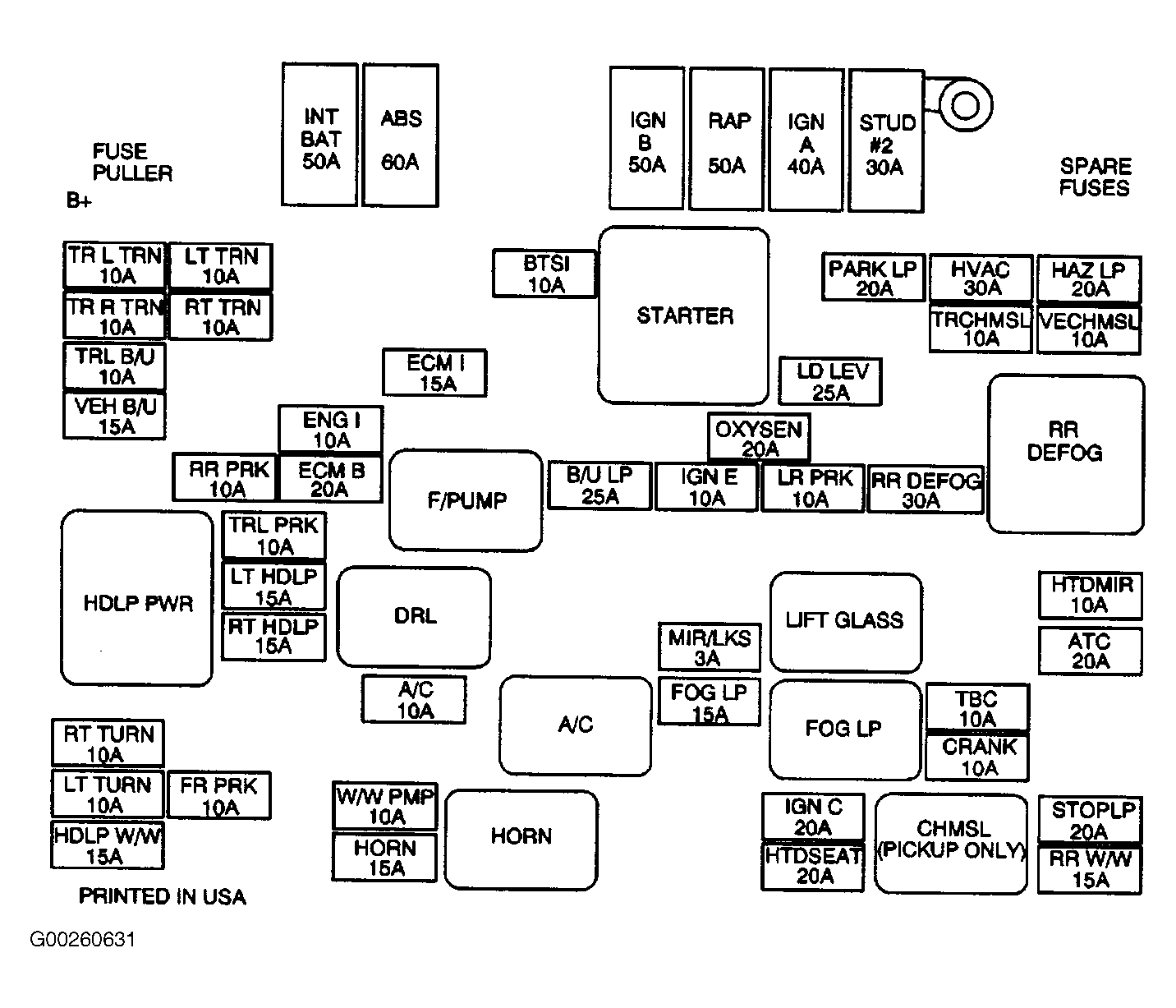

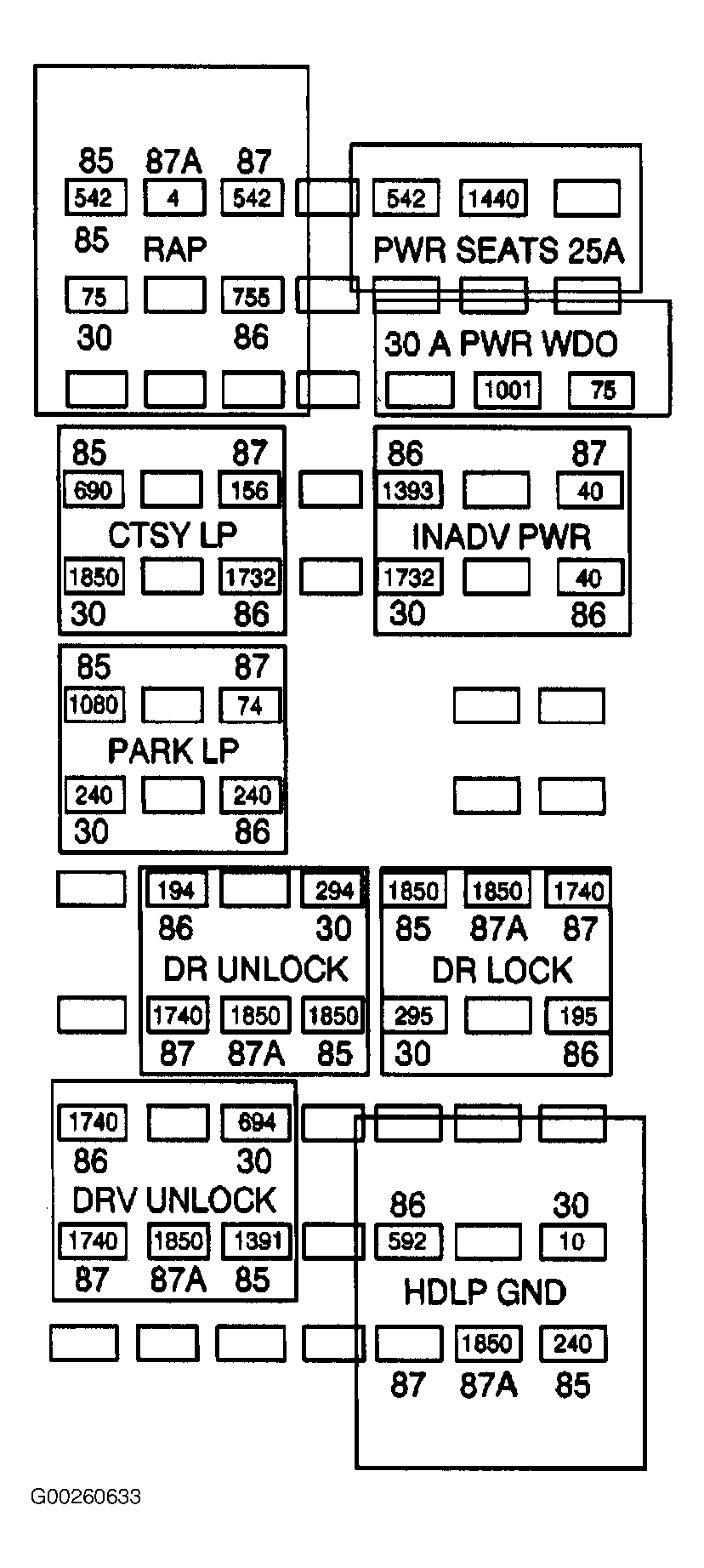

Fig 4: Body Relay Block
Courtesy of GENERAL MOTORS CORP.

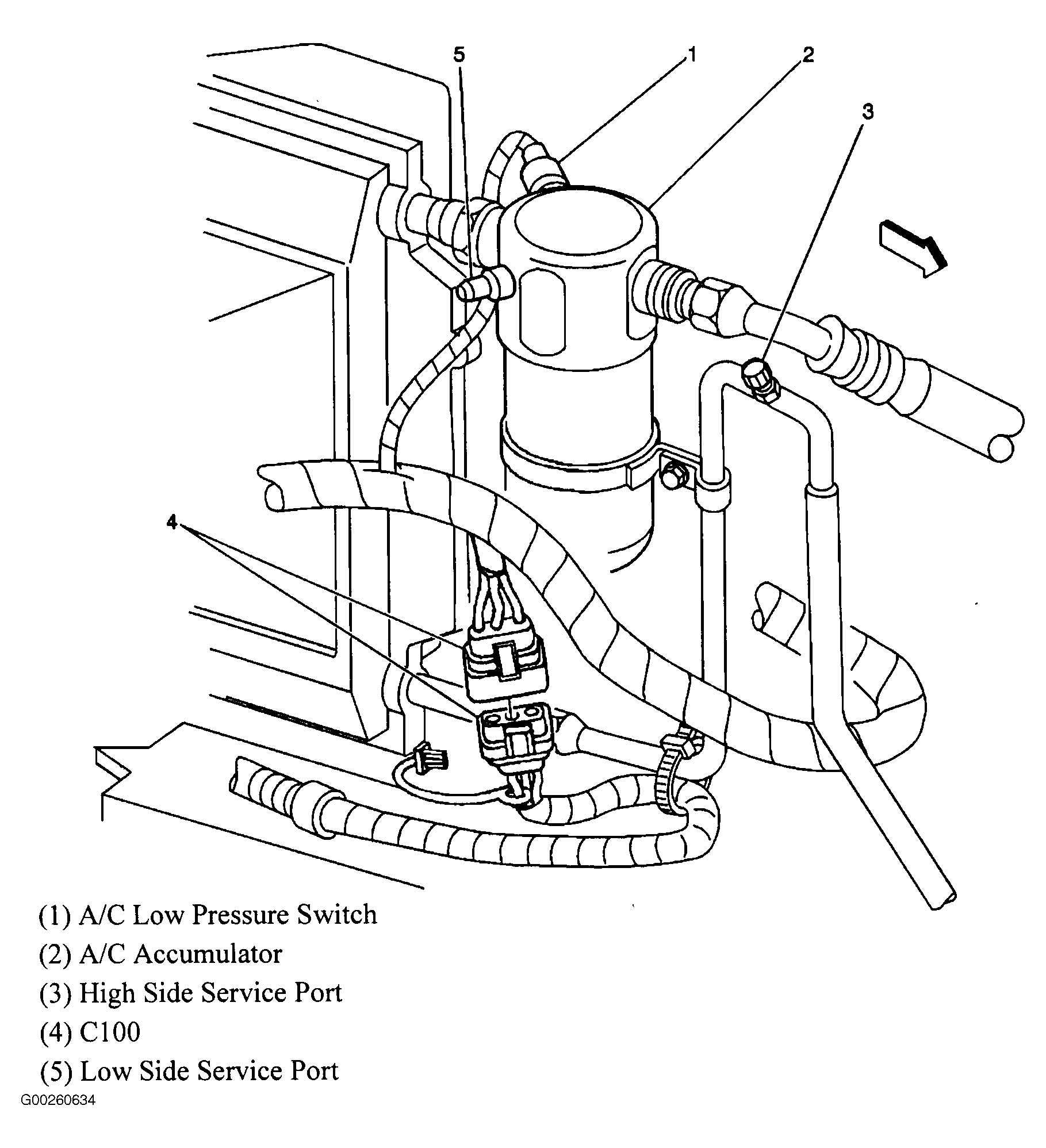

Fig 5: A/C Accumulator
Courtesy of GENERAL MOTORS CORP.

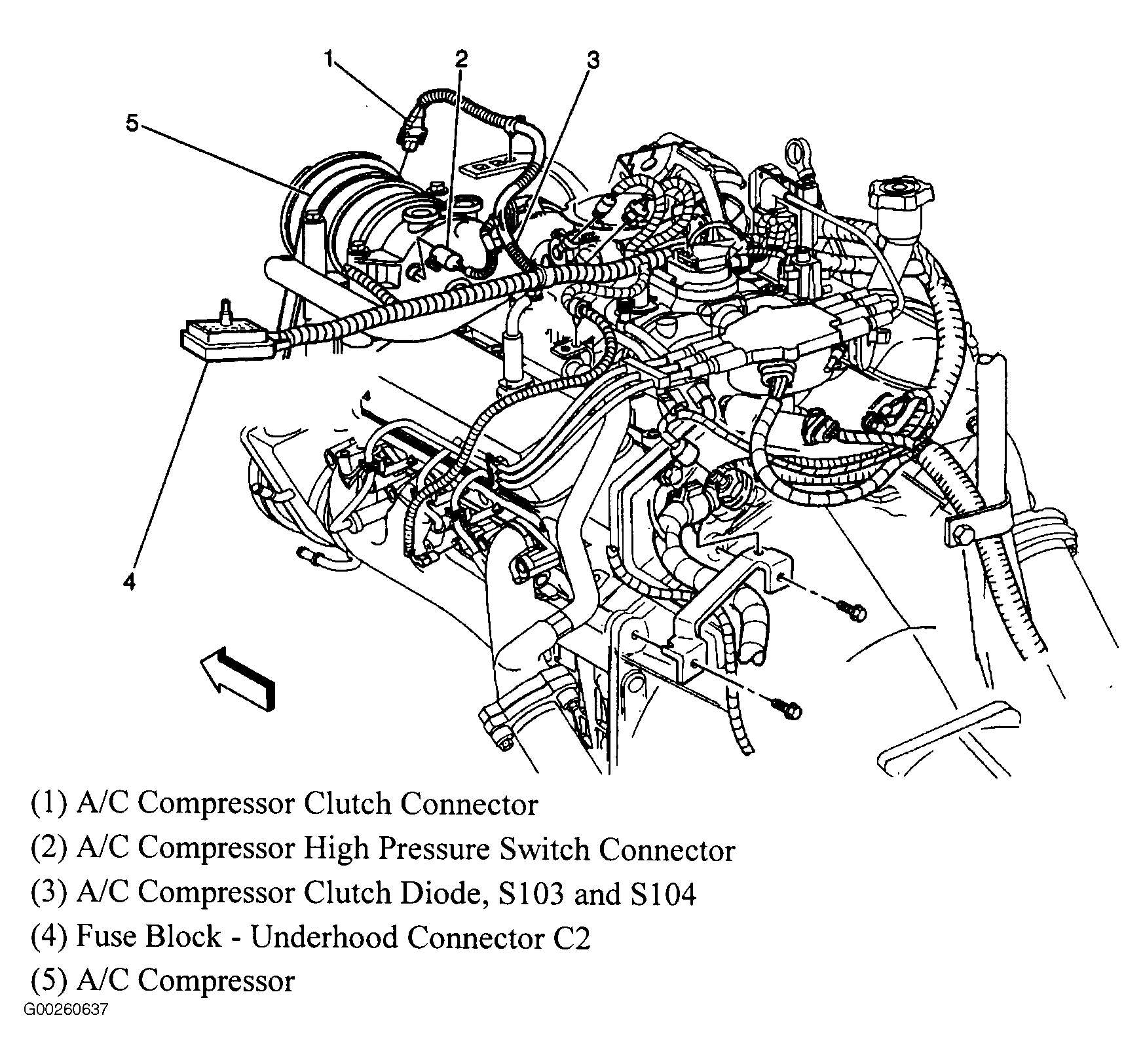

Fig 6: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

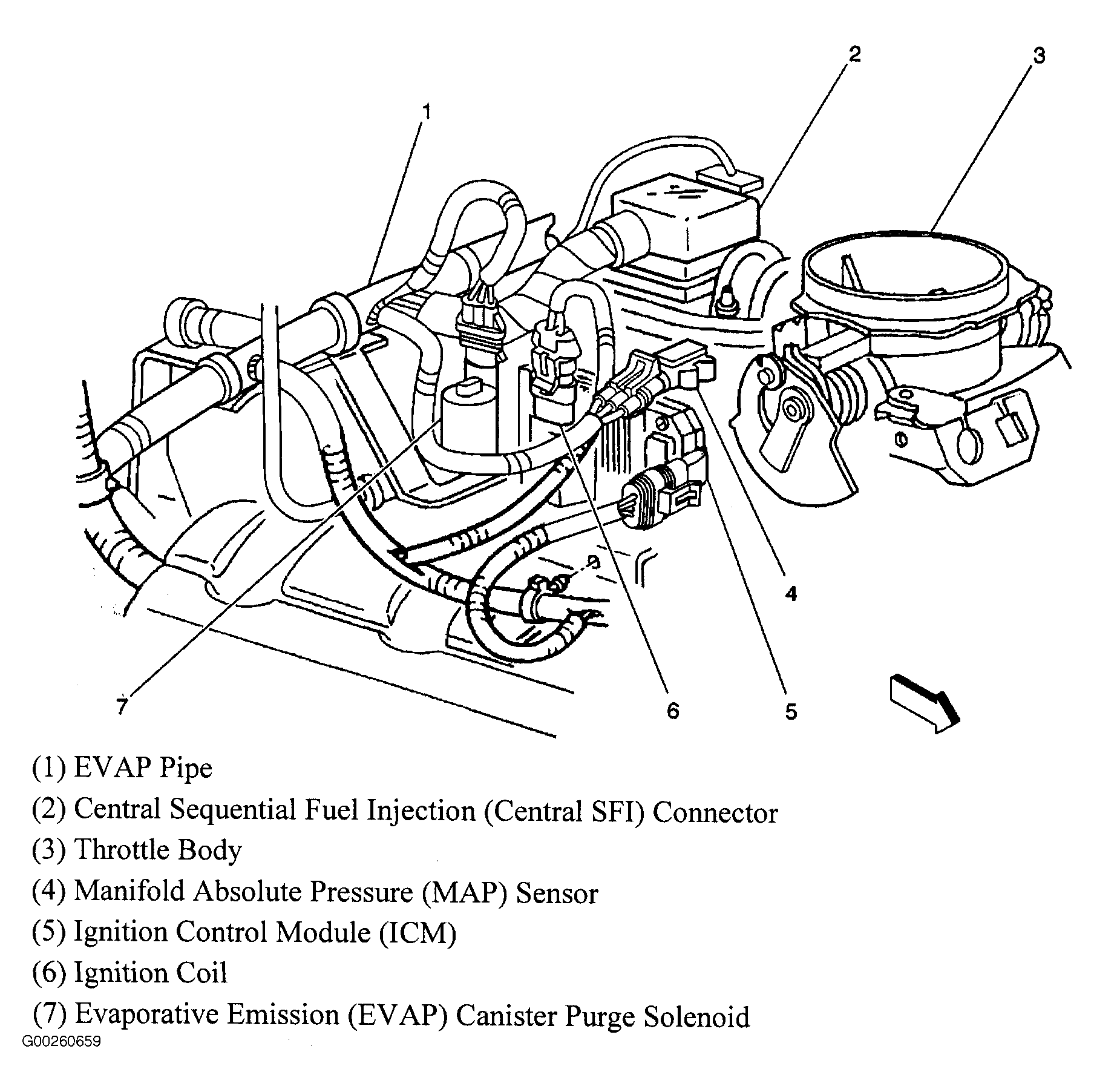

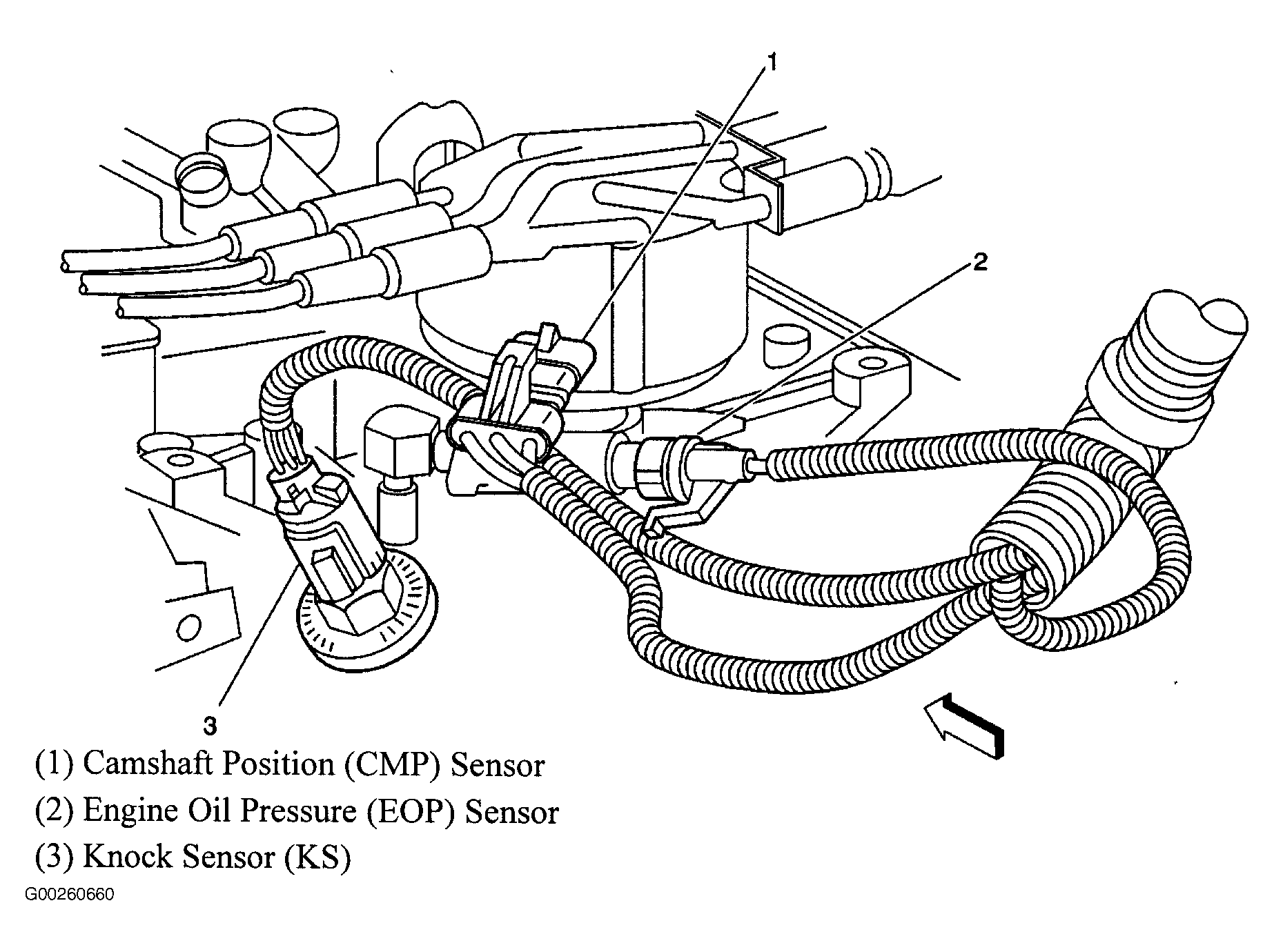

Fig 7: Top Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 8: Right Front Of Dash
Courtesy of GENERAL MOTORS CORP.

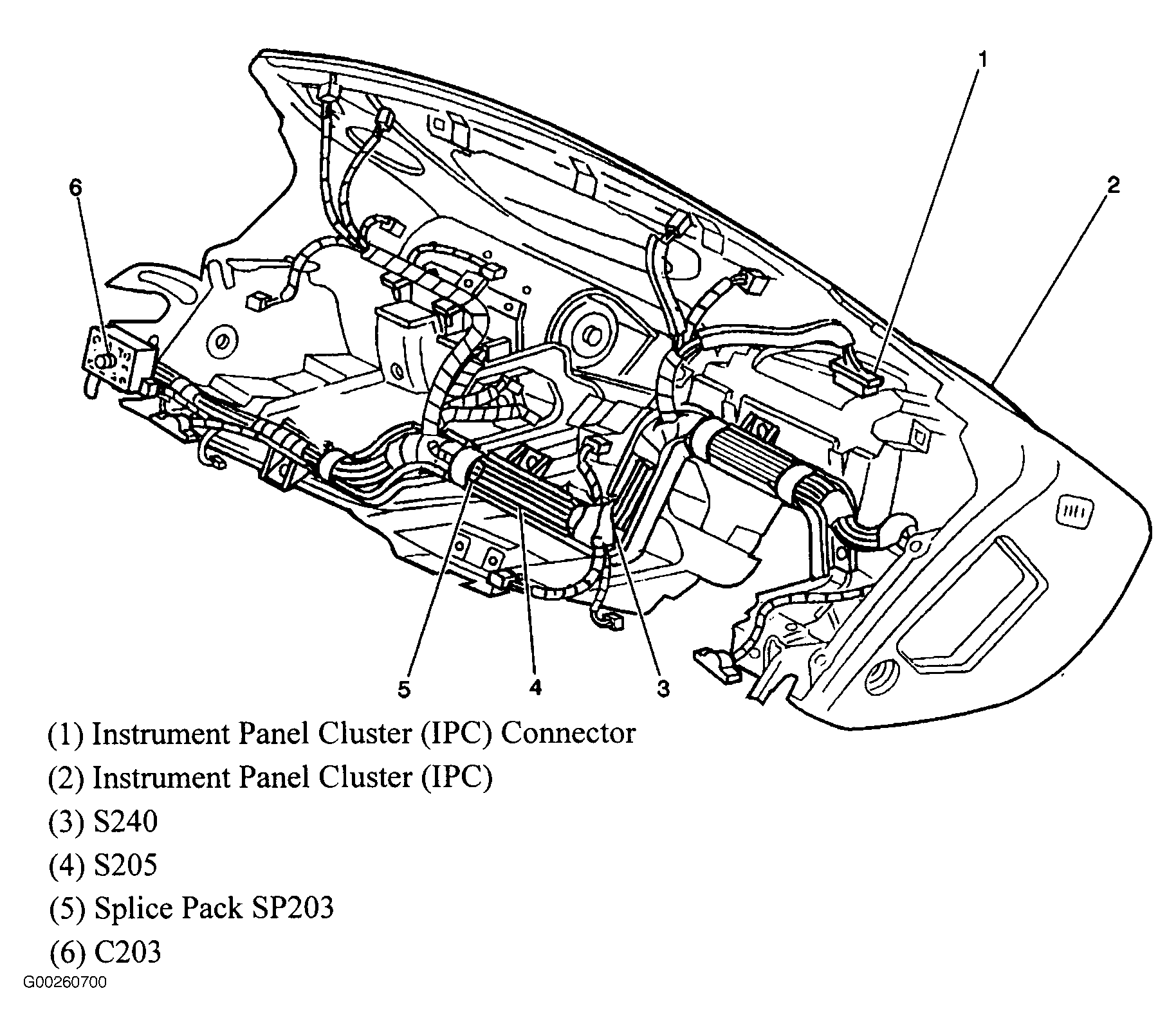

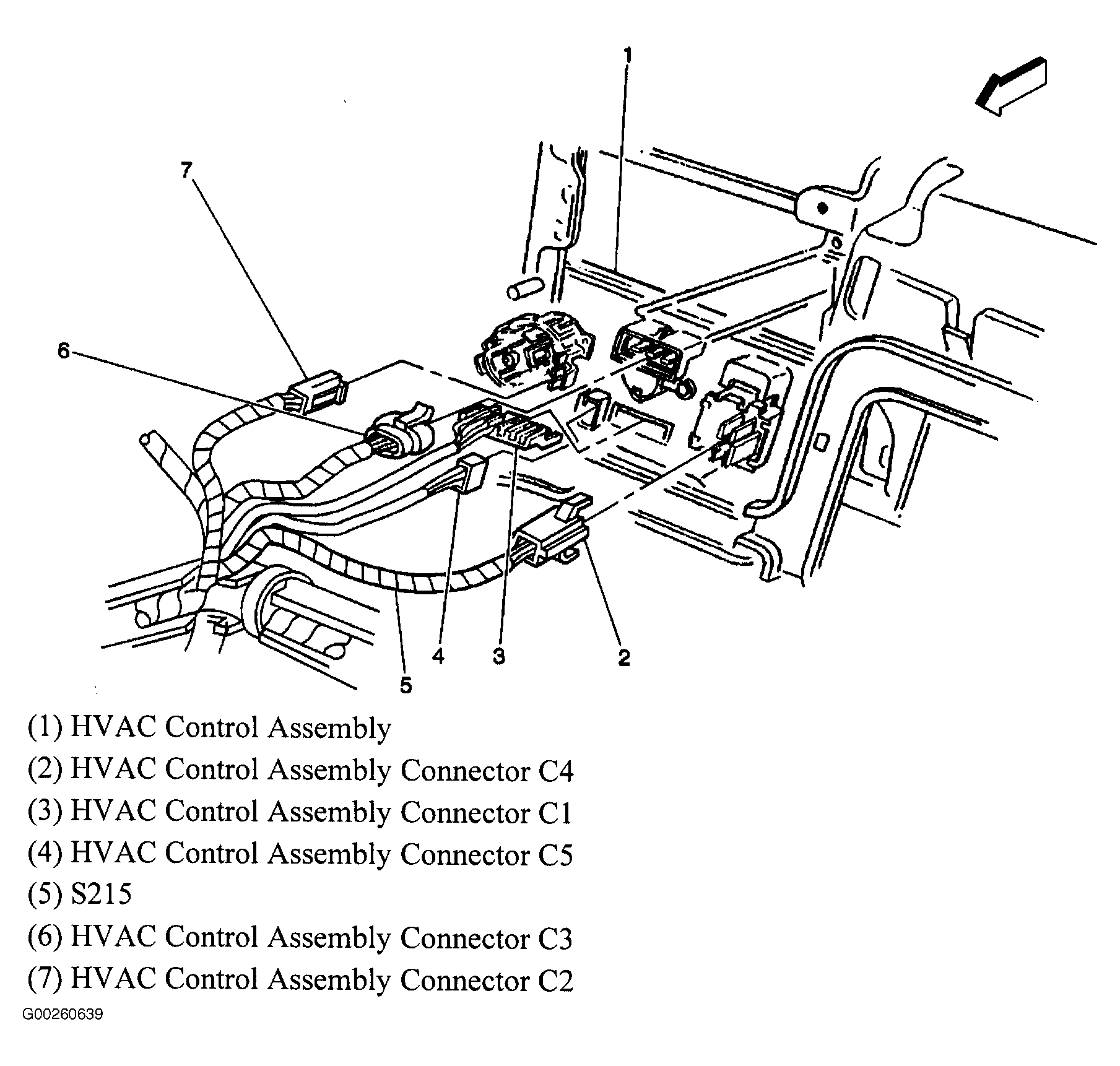

Fig 9: Center Of Dash
Courtesy of GENERAL MOTORS CORP.

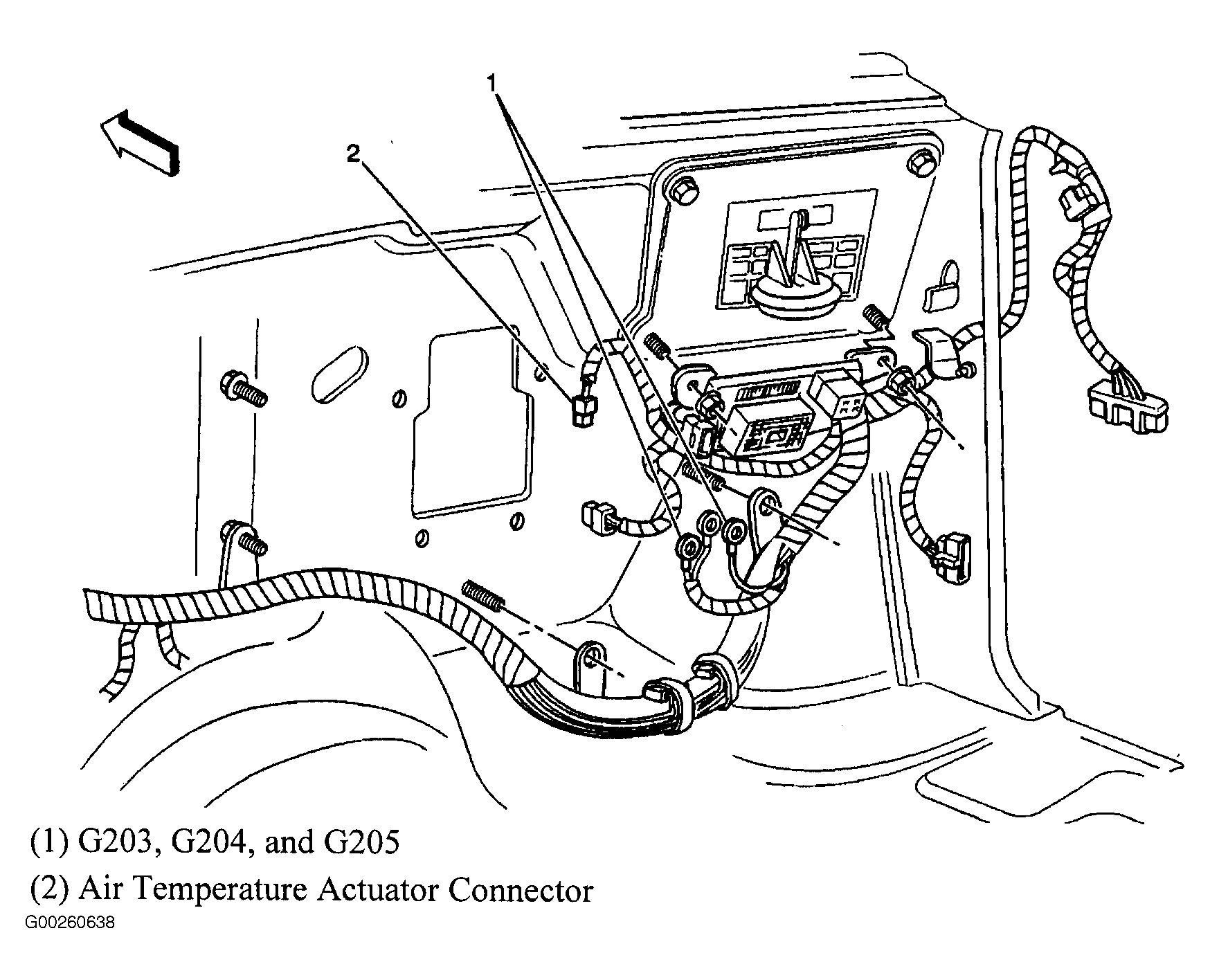

Fig 10: Right Front Kick Panel
Courtesy of GENERAL MOTORS CORP.

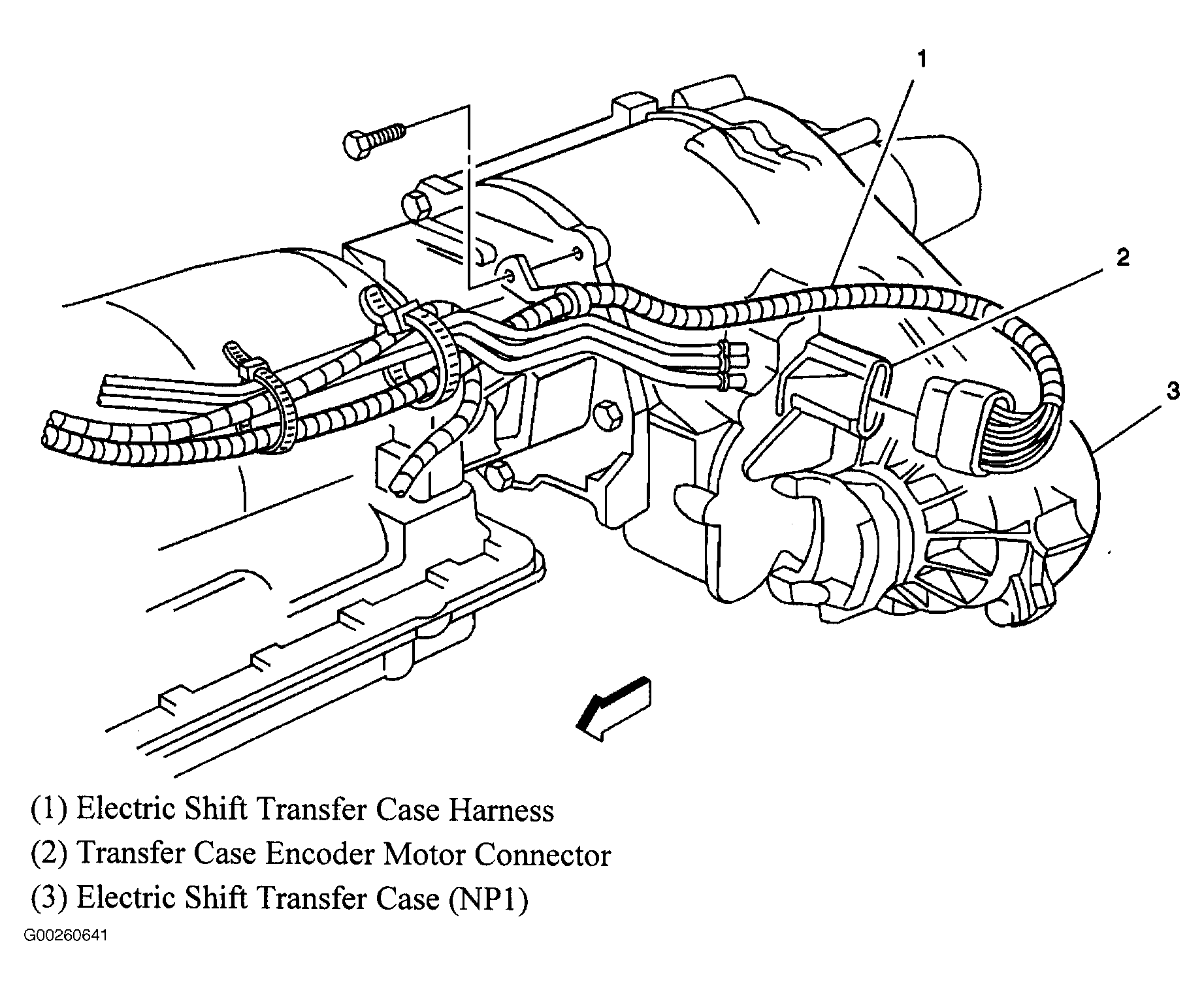

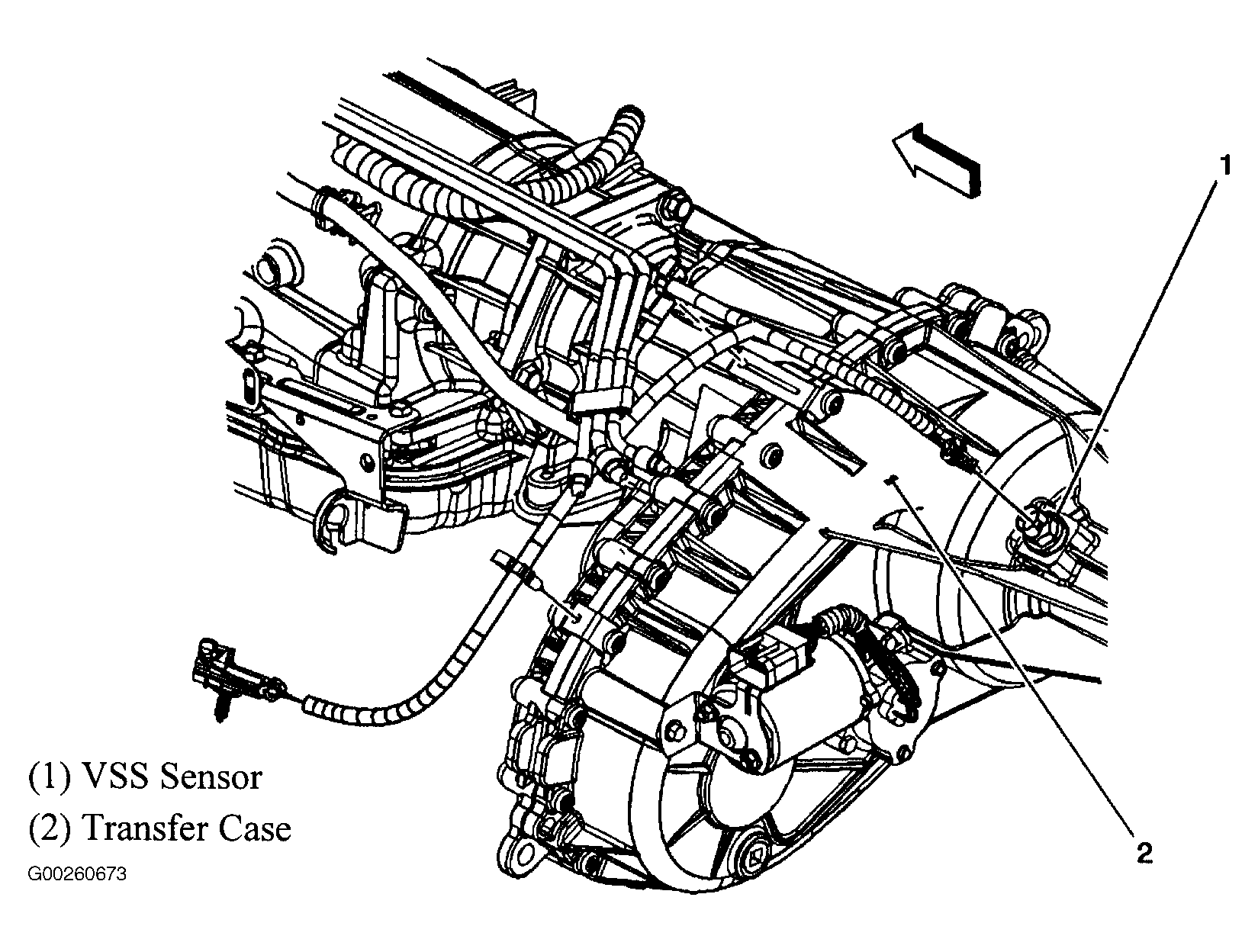

Fig 11: Transfer Case (NP1)
Courtesy of GENERAL MOTORS CORP.

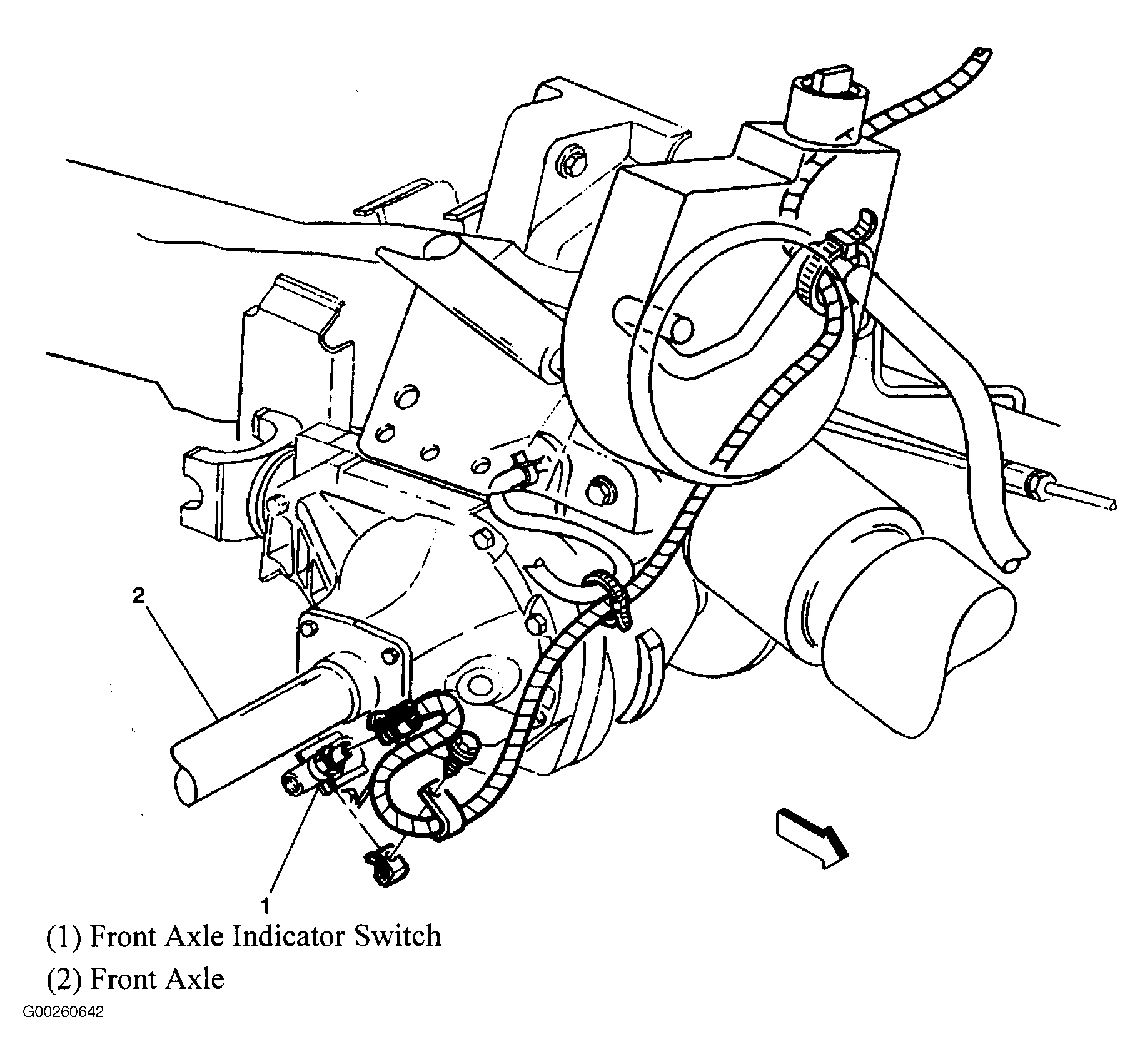

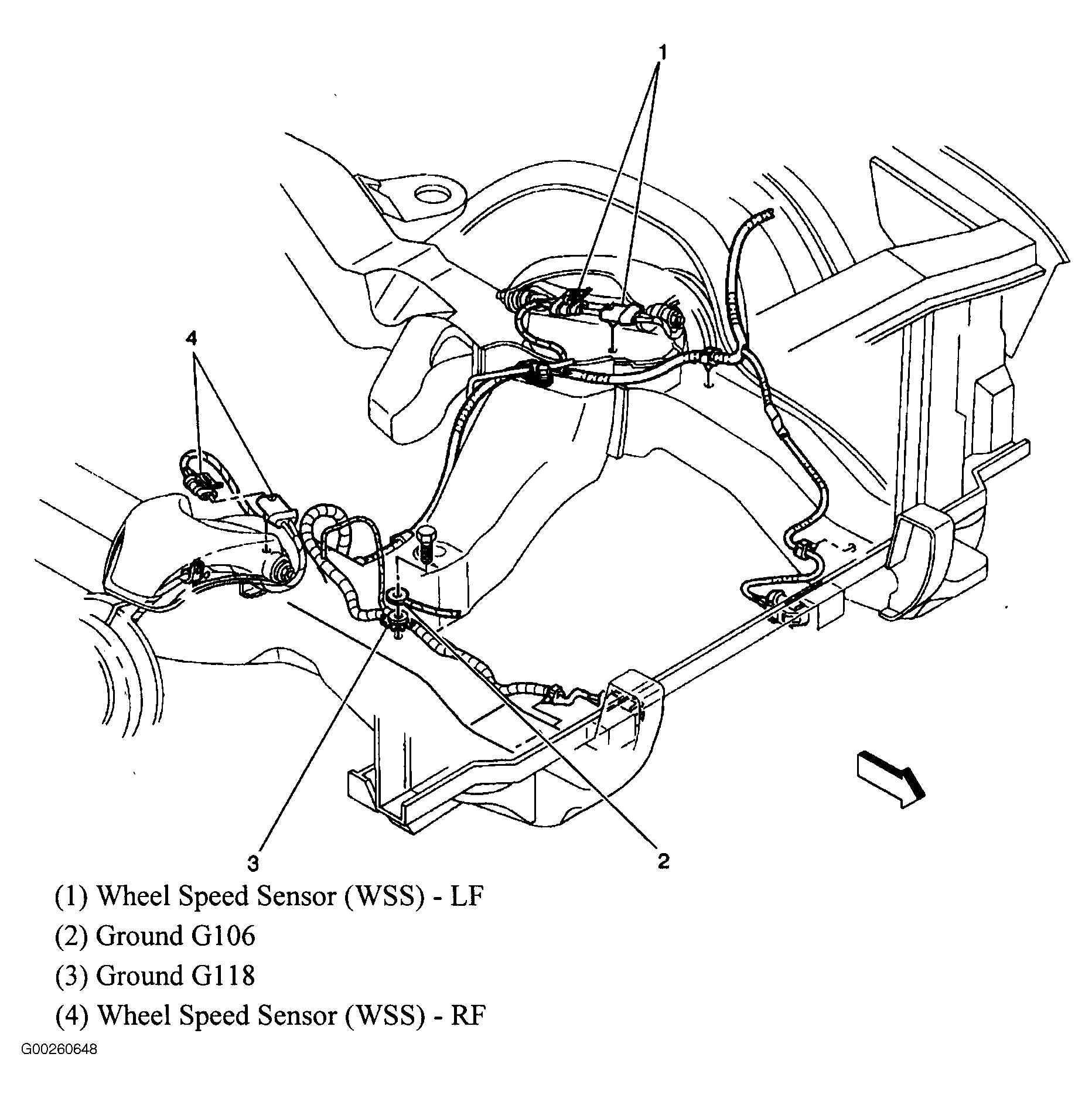

Fig 12: Front Axle
Courtesy of GENERAL MOTORS CORP.
Fig 13: Firewall (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Firewall (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

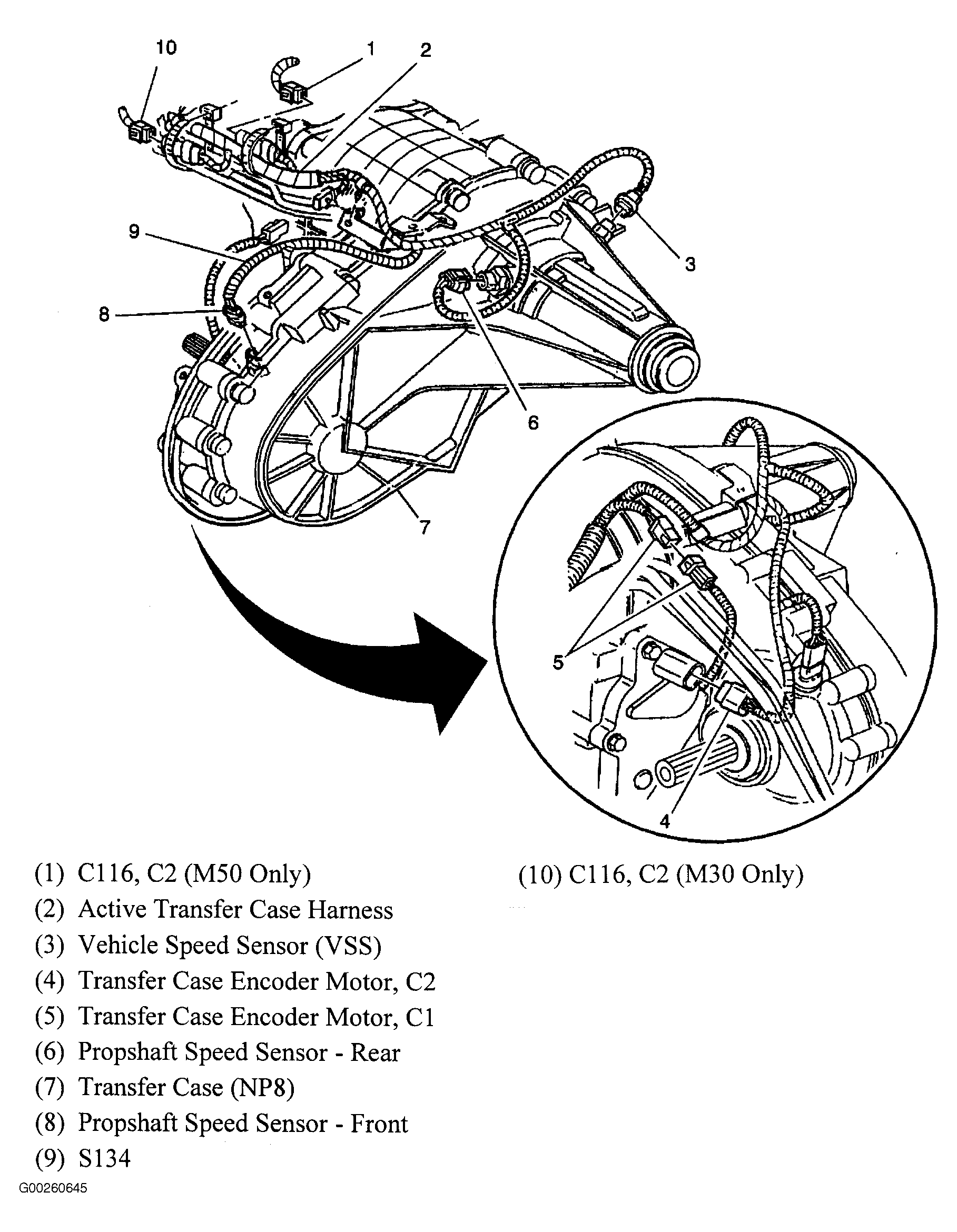

Fig 15: Transfer Case (NP8)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 17: Front Sub-Frame
Courtesy of GENERAL MOTORS CORP.
Fig 18: Front Radiator Support
Courtesy of GENERAL MOTORS CORP.
Fig 19: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

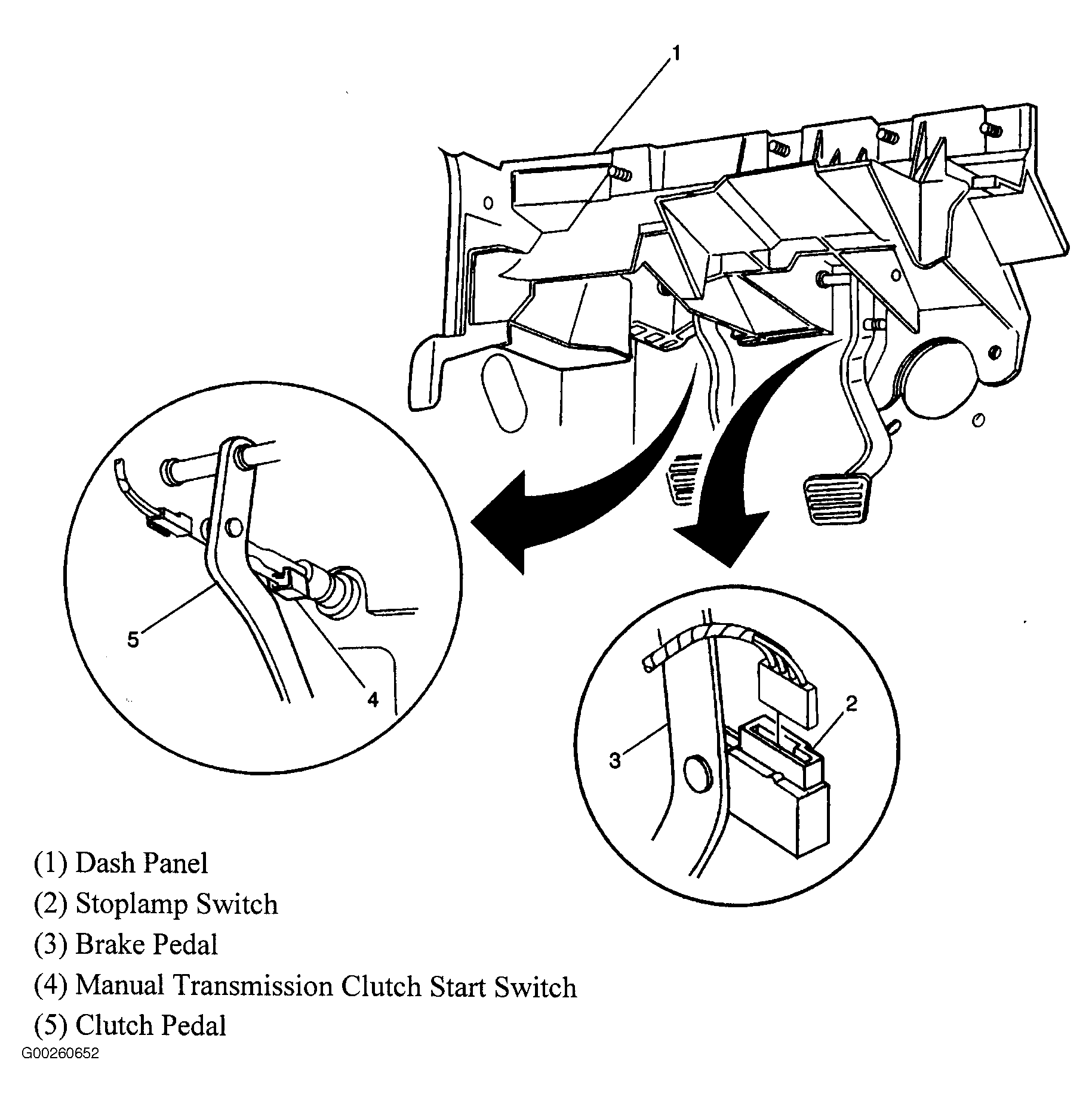

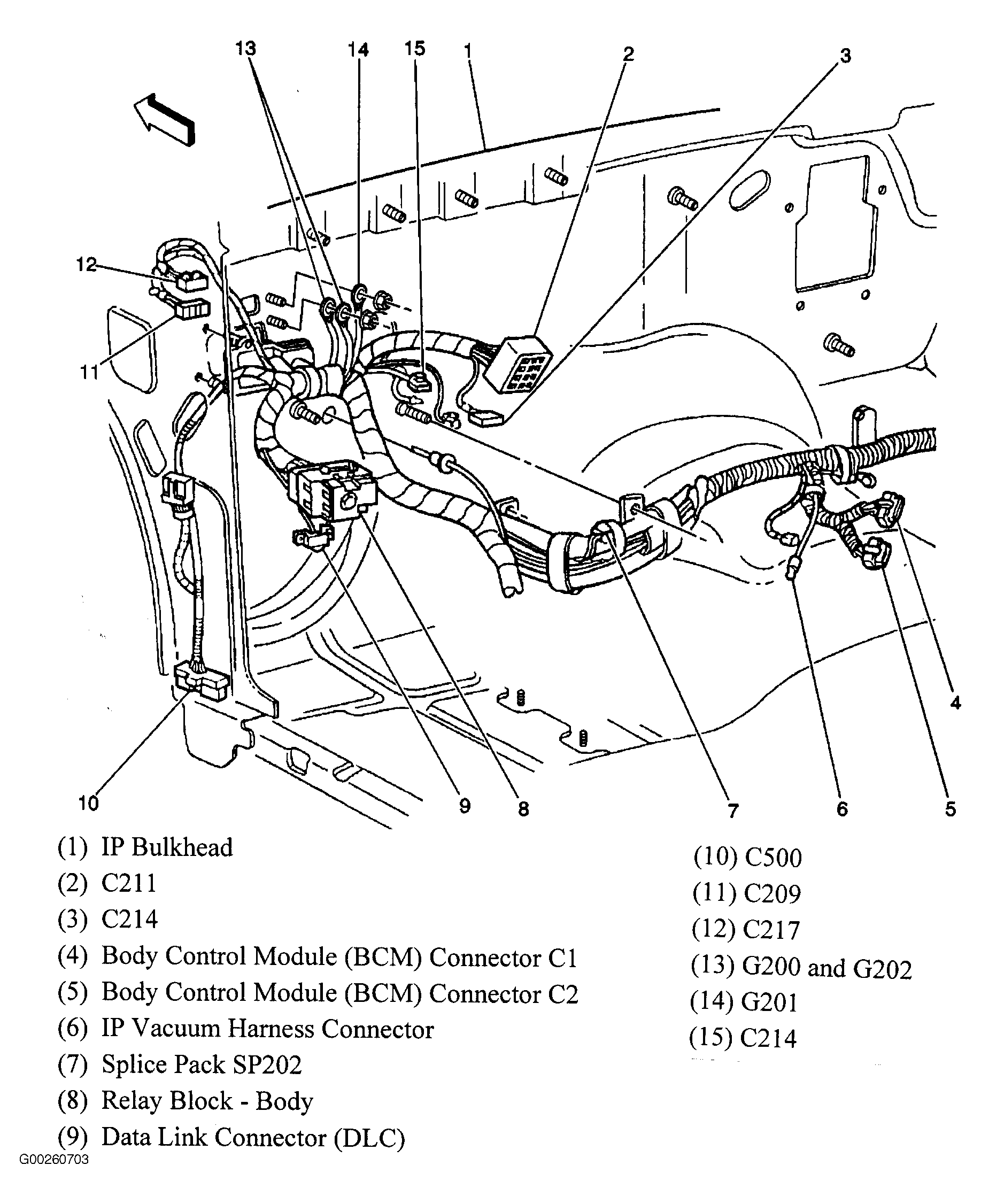

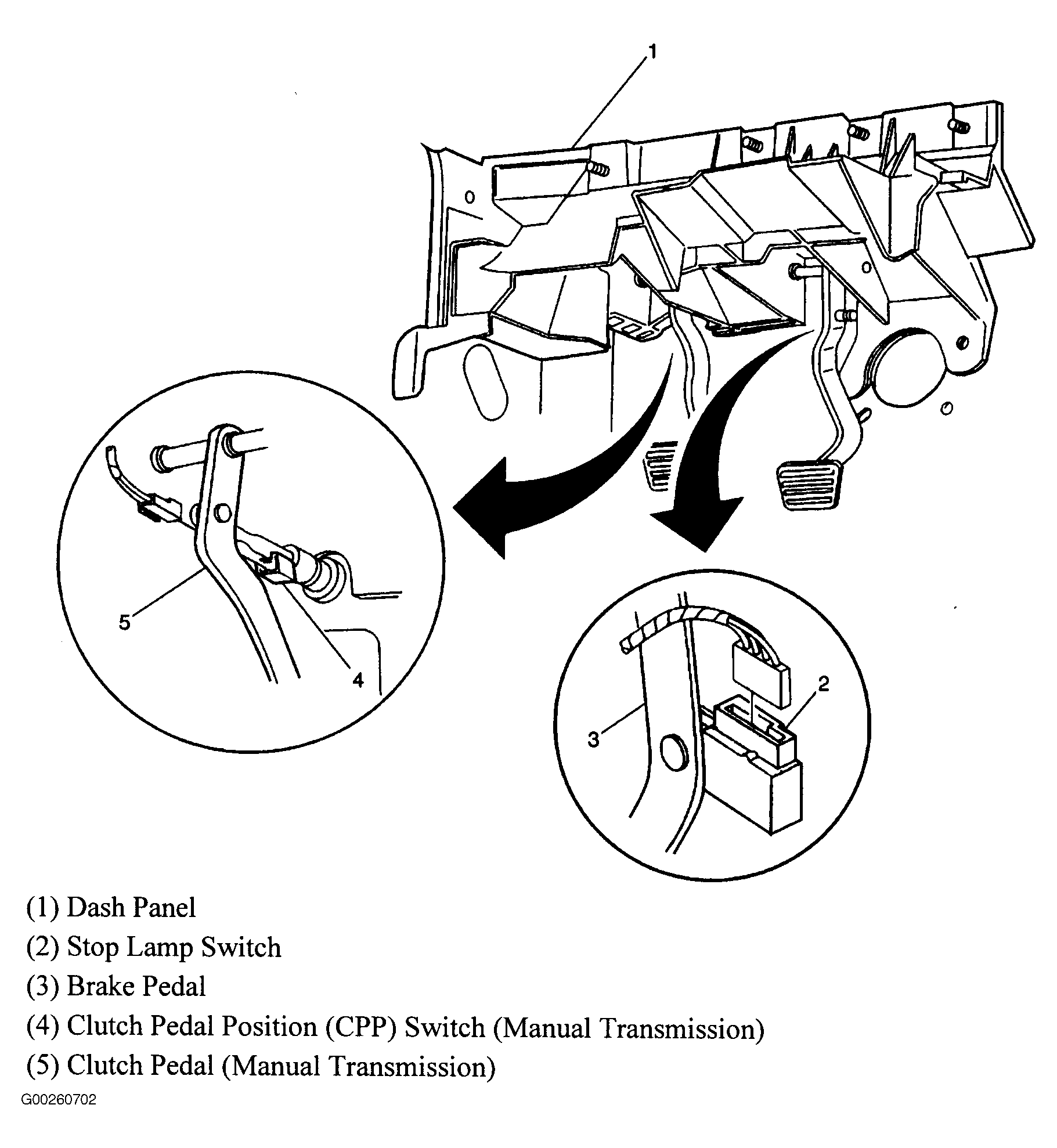

Fig 20: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 21: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 22: Top Left Of Engine
Courtesy of GENERAL MOTORS CORP.

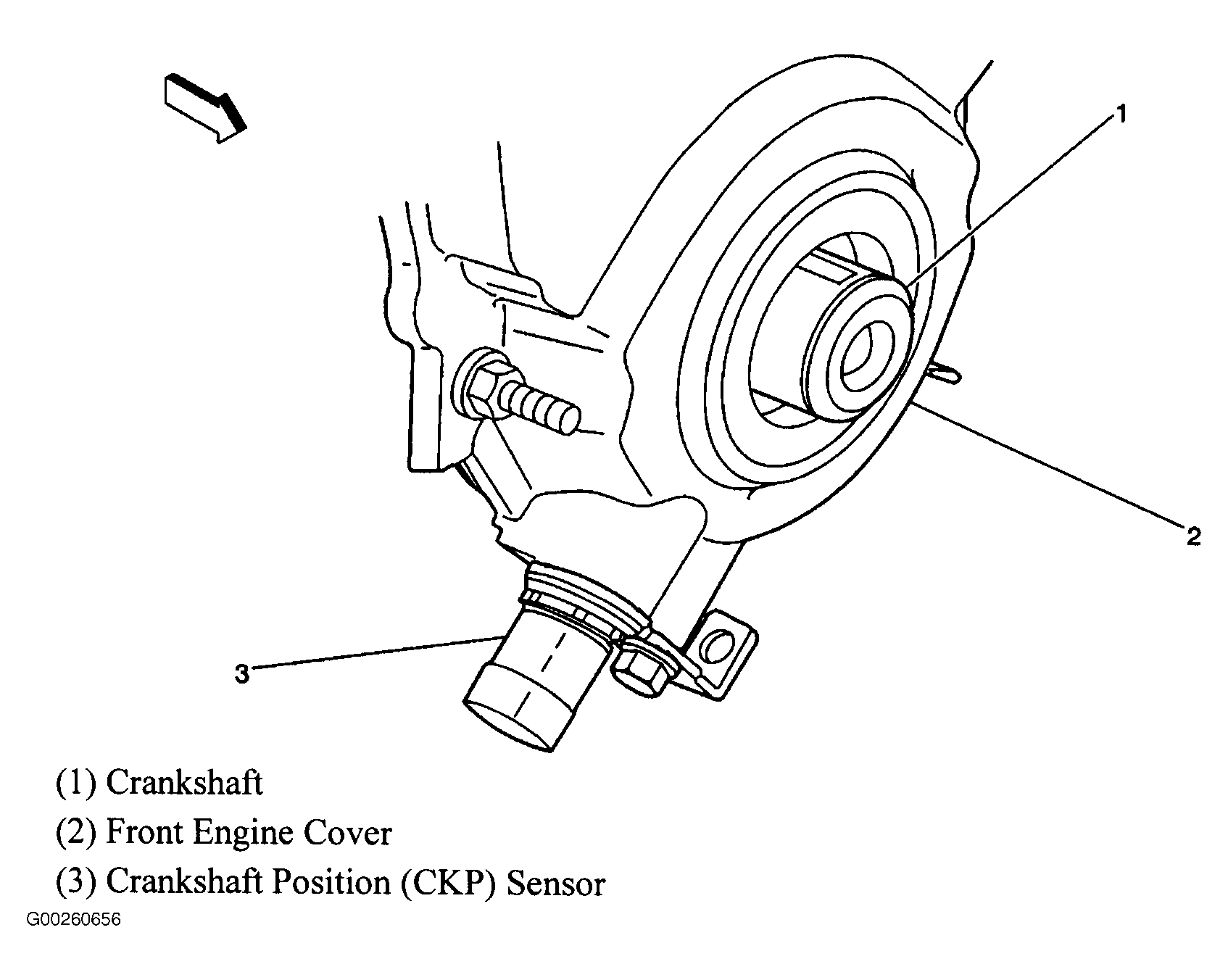

Fig 23: Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 24: Top Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

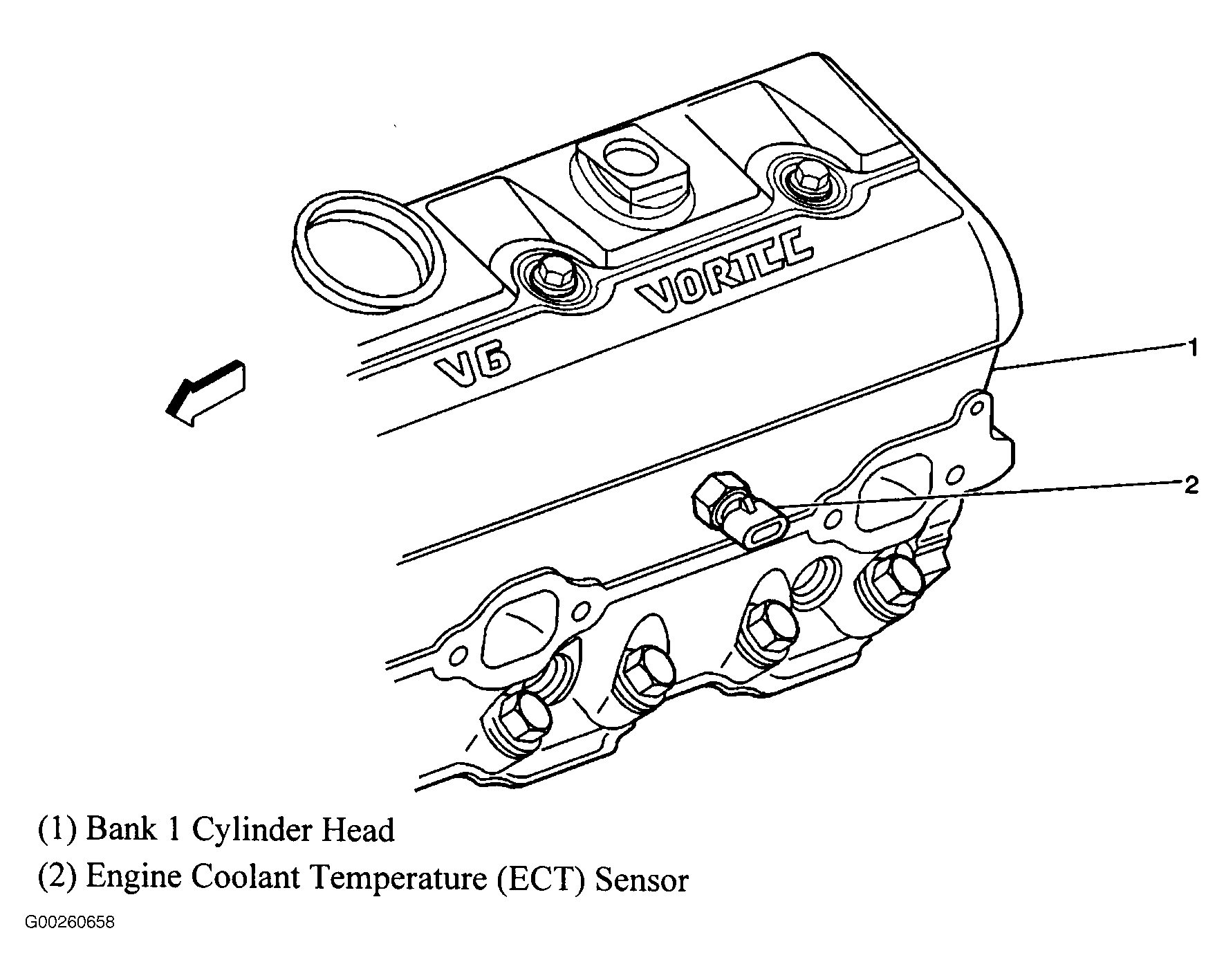

Fig 25: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

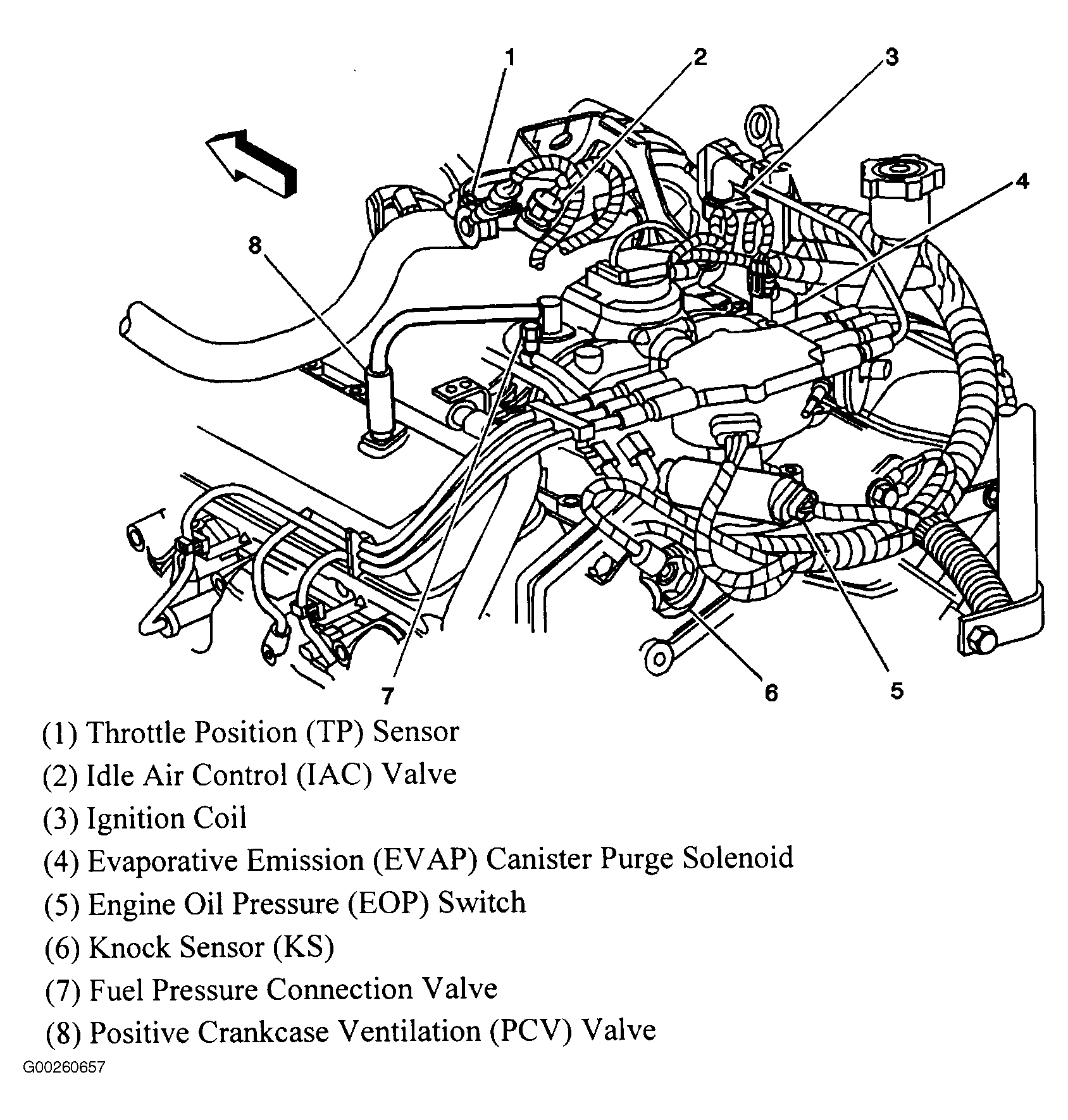

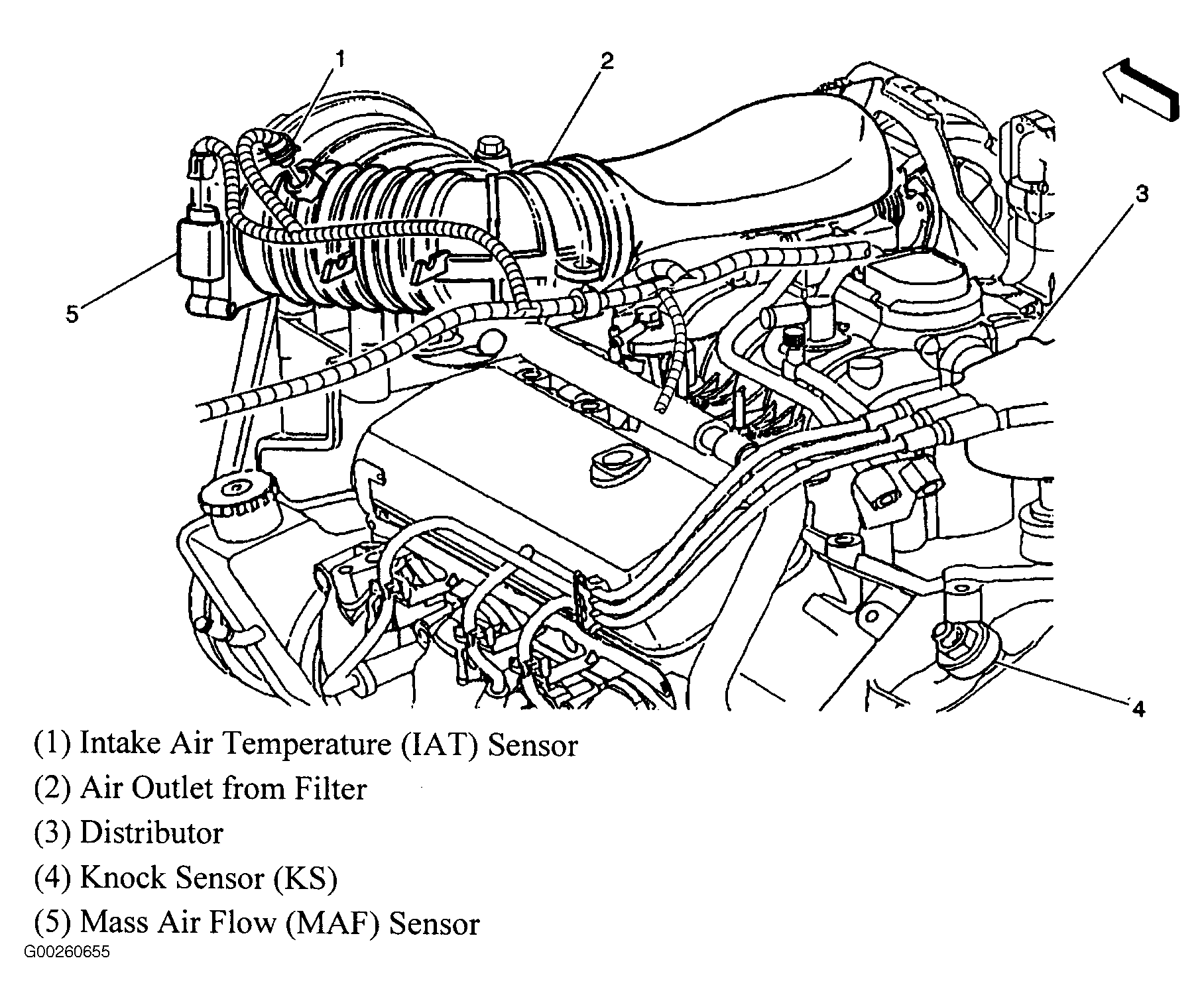

Fig 26: Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 27: Top Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

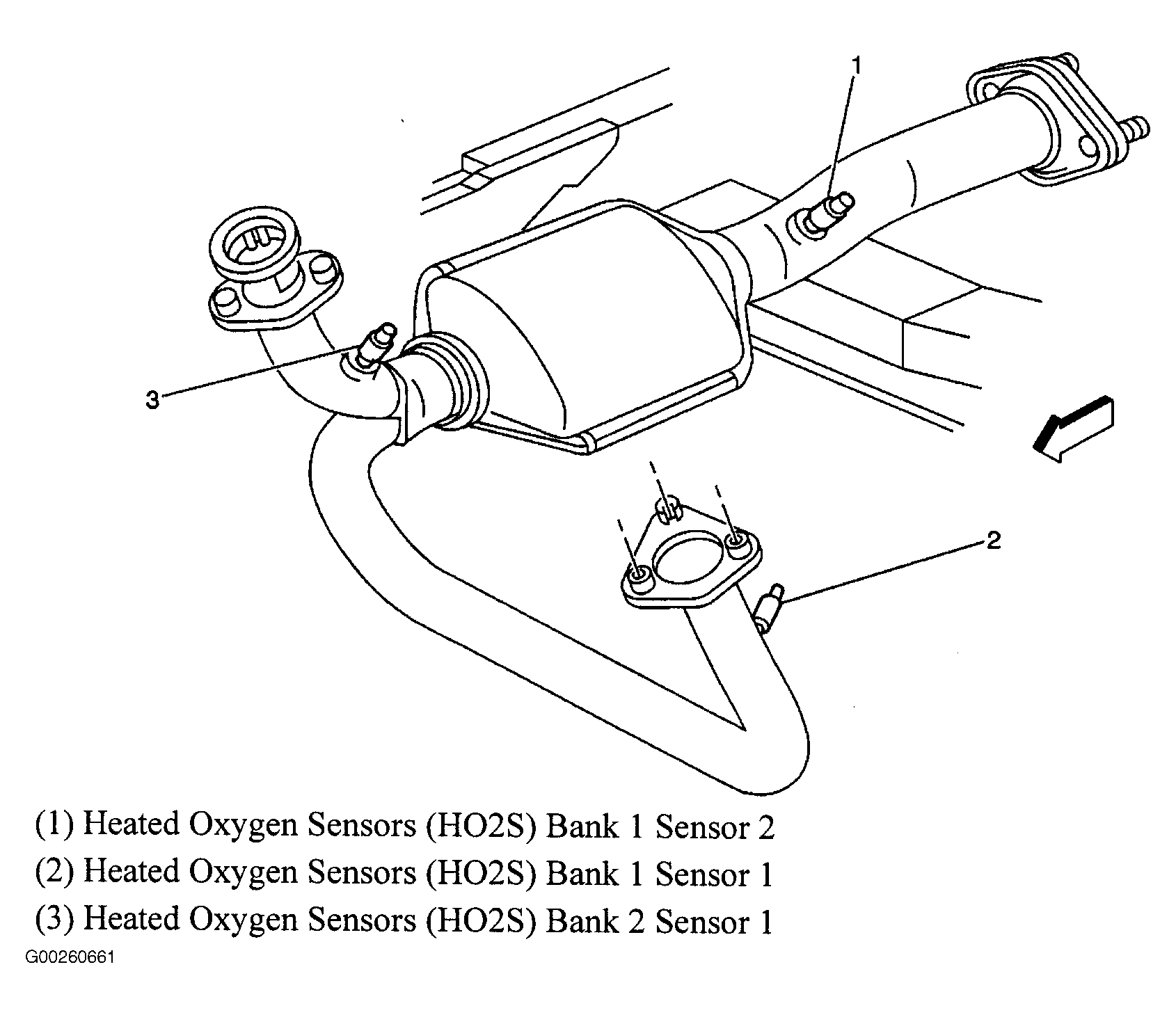

Fig 28: Exhaust
Courtesy of GENERAL MOTORS CORP.
Fig 29: Rear Crossmember
Courtesy of GENERAL MOTORS CORP.

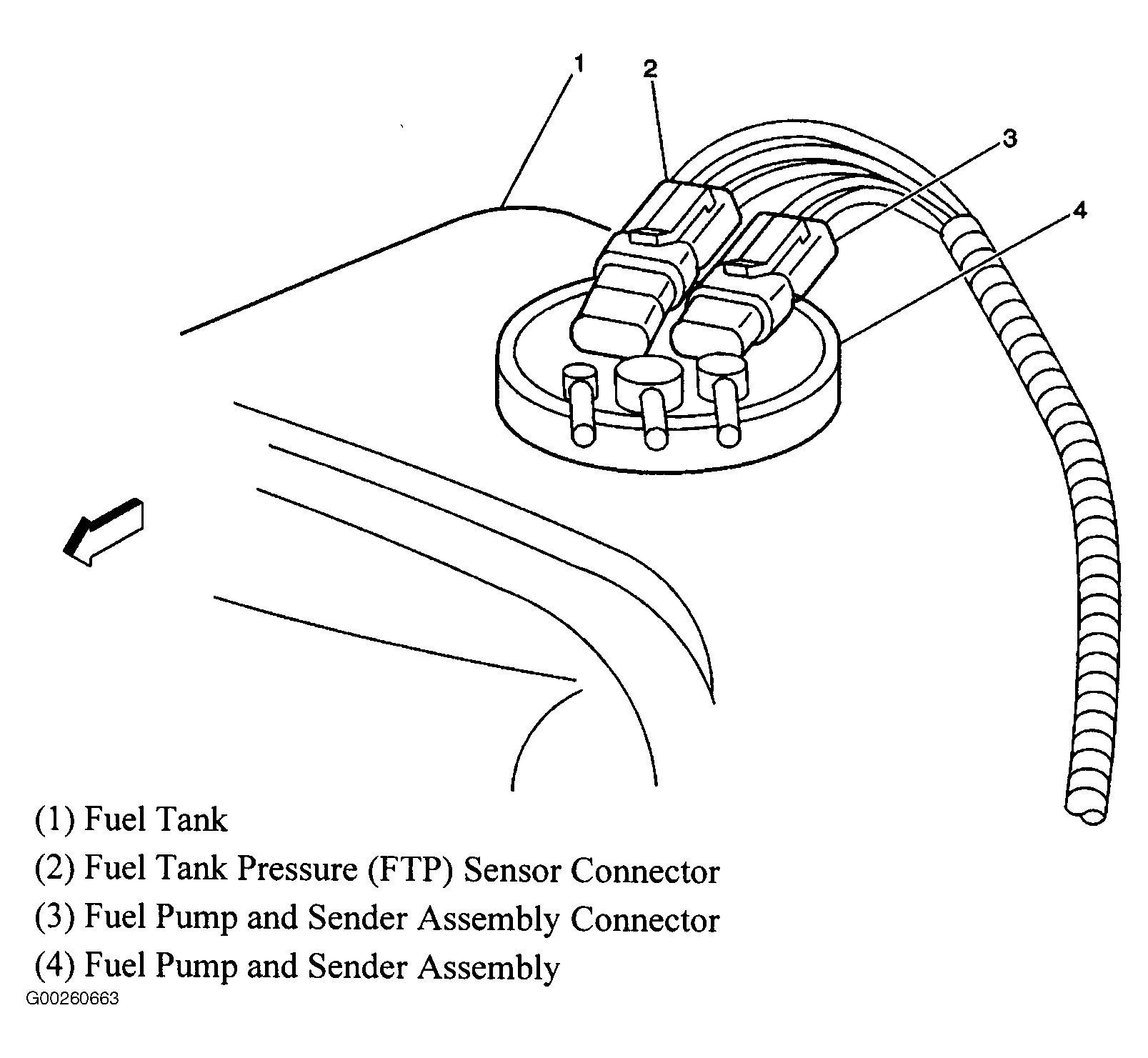

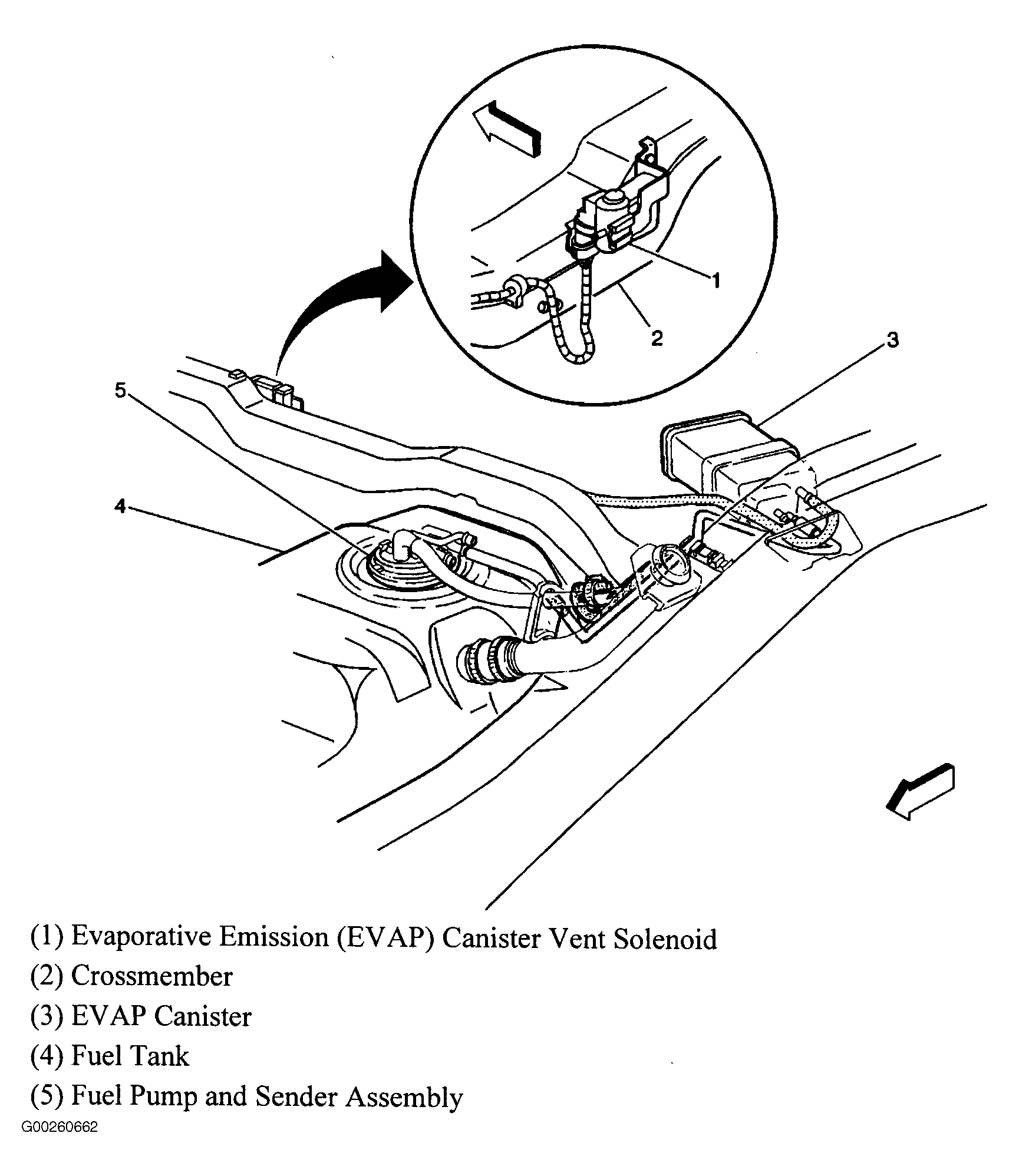

Fig 30: Fuel Tank
Courtesy of GENERAL MOTORS CORP.

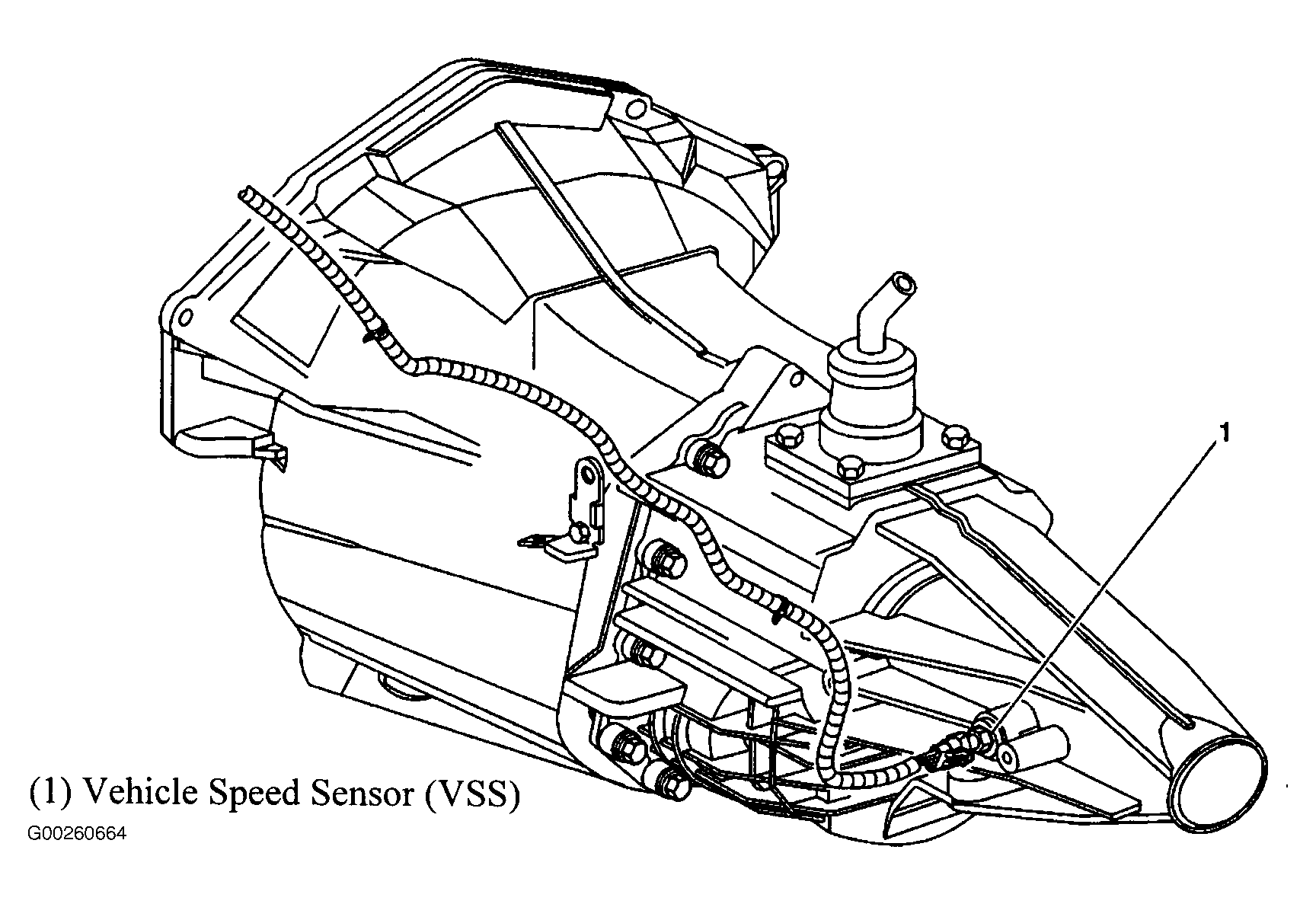

Fig 31: Manual Transmission (2WD)
Courtesy of GENERAL MOTORS CORP.

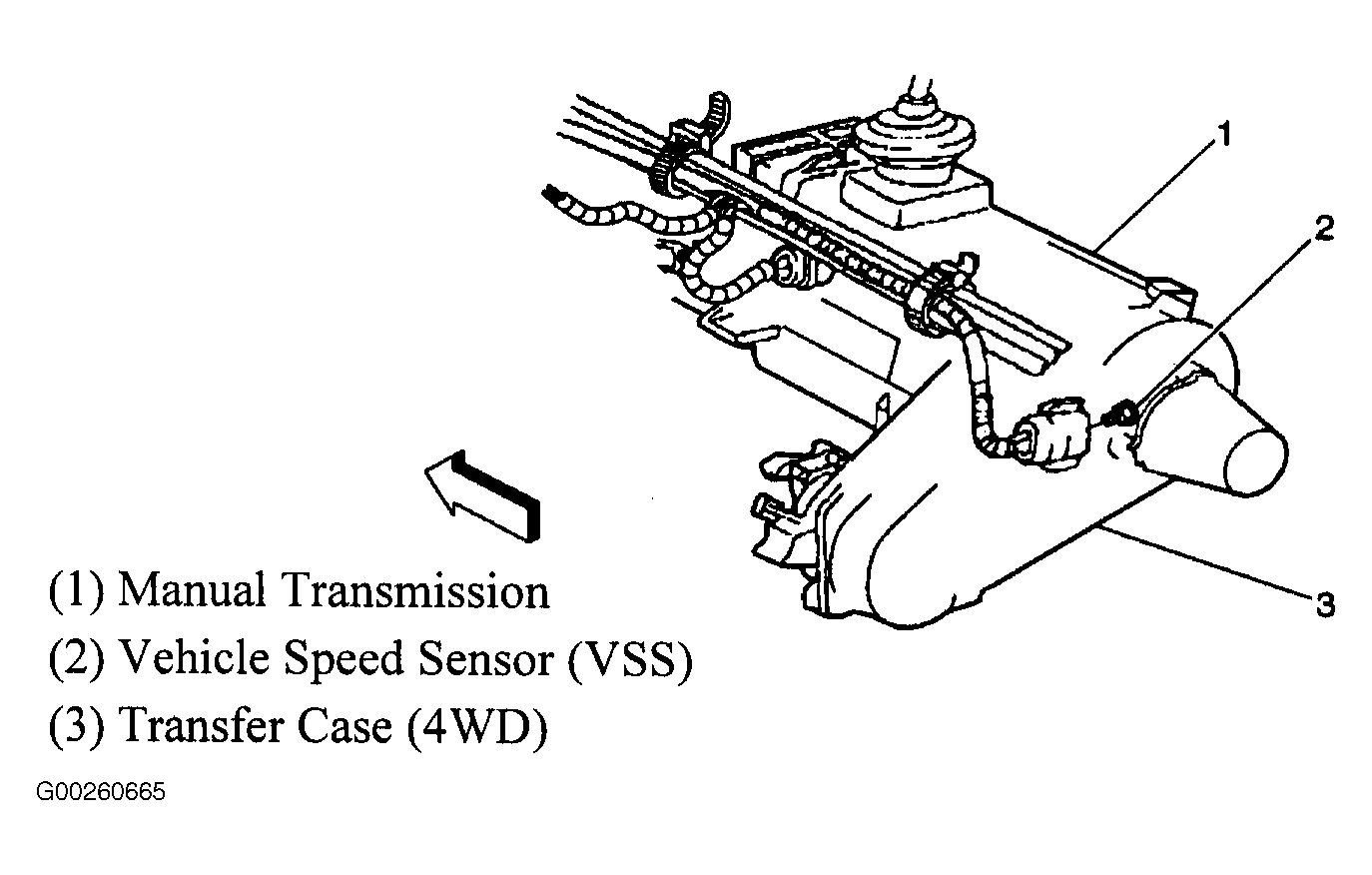

Fig 32: Transfer Case (M/T W/ 4WD)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Center Of Front Floor Pan
Courtesy of GENERAL MOTORS CORP.

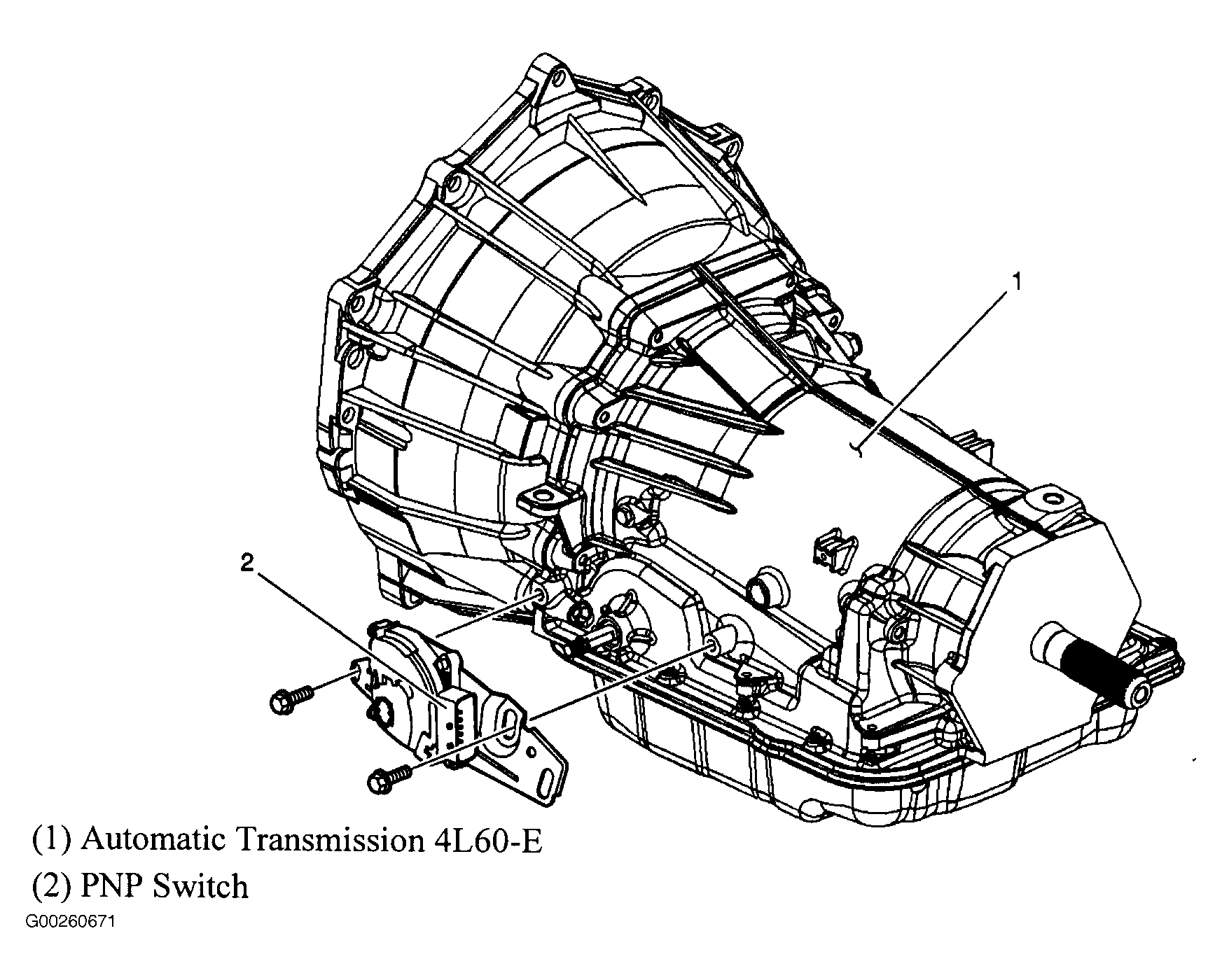

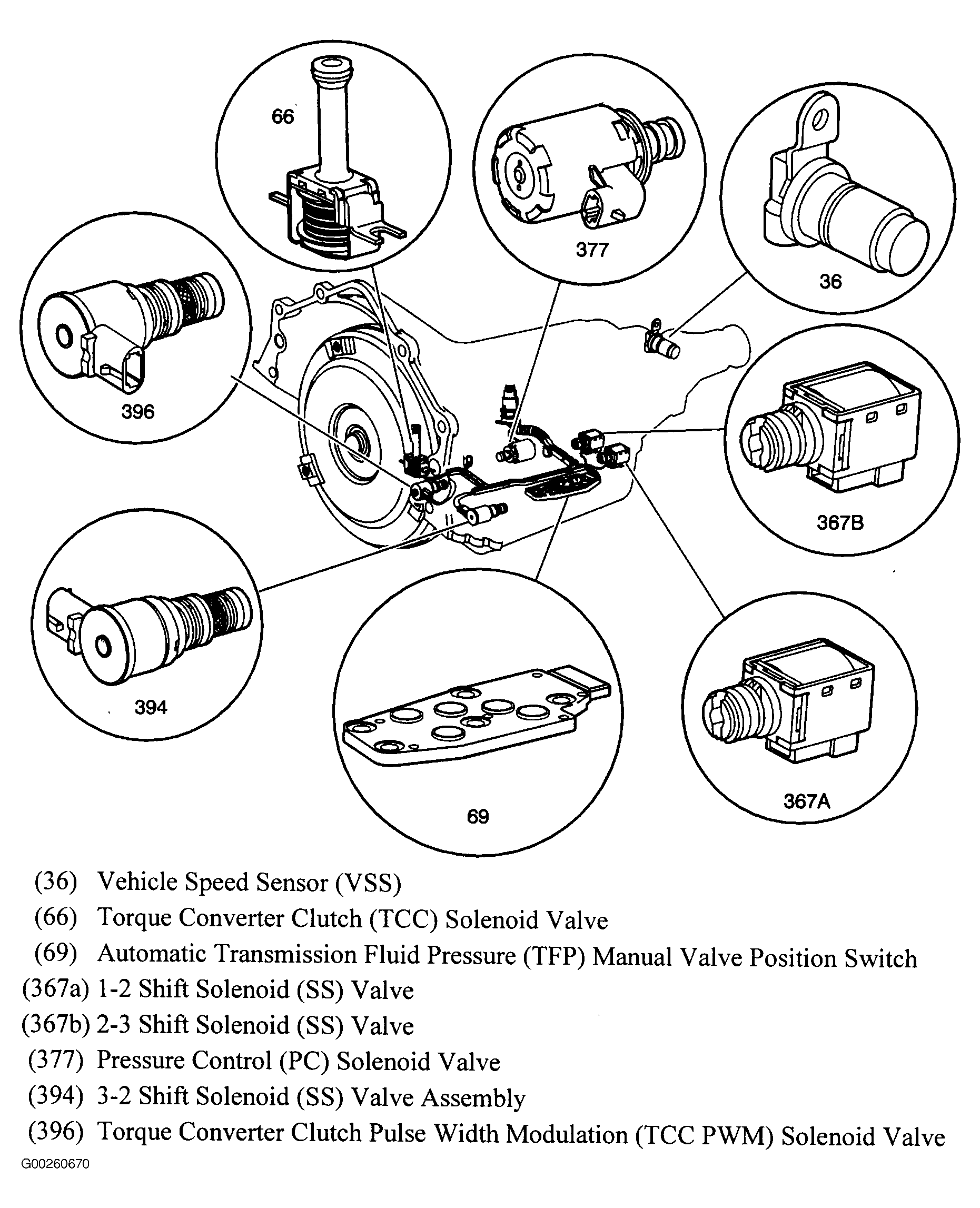

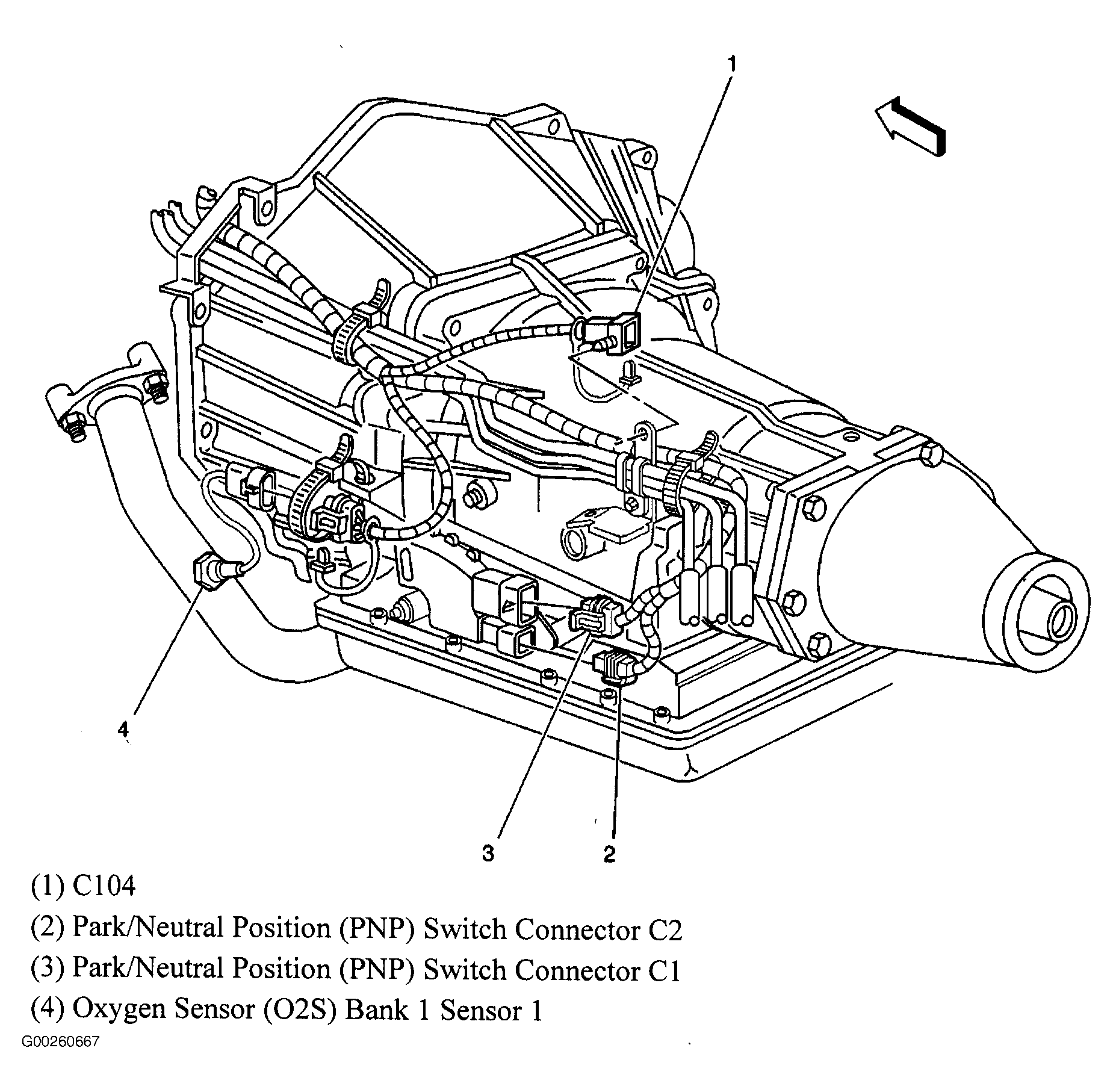

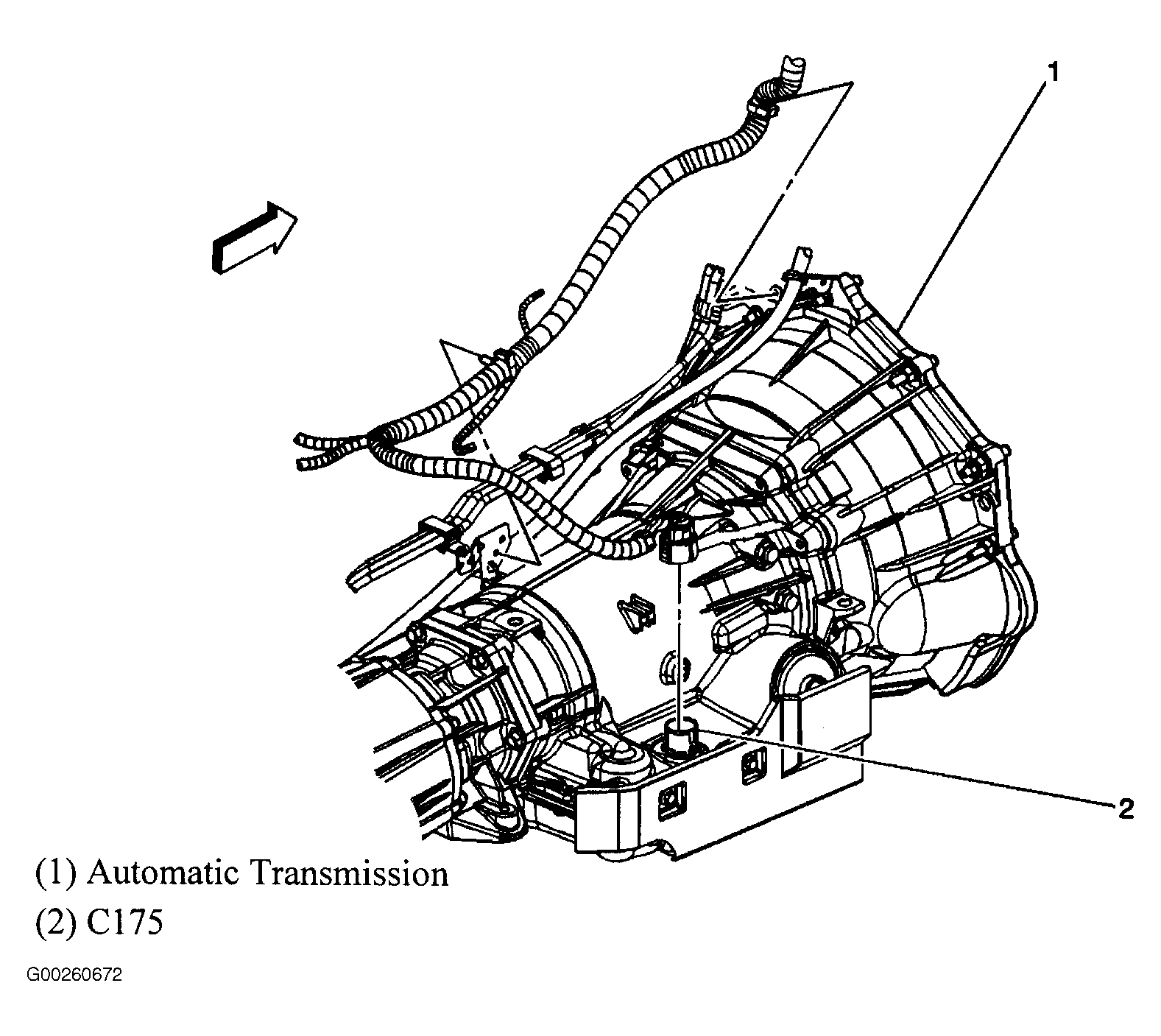

Fig 34: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.

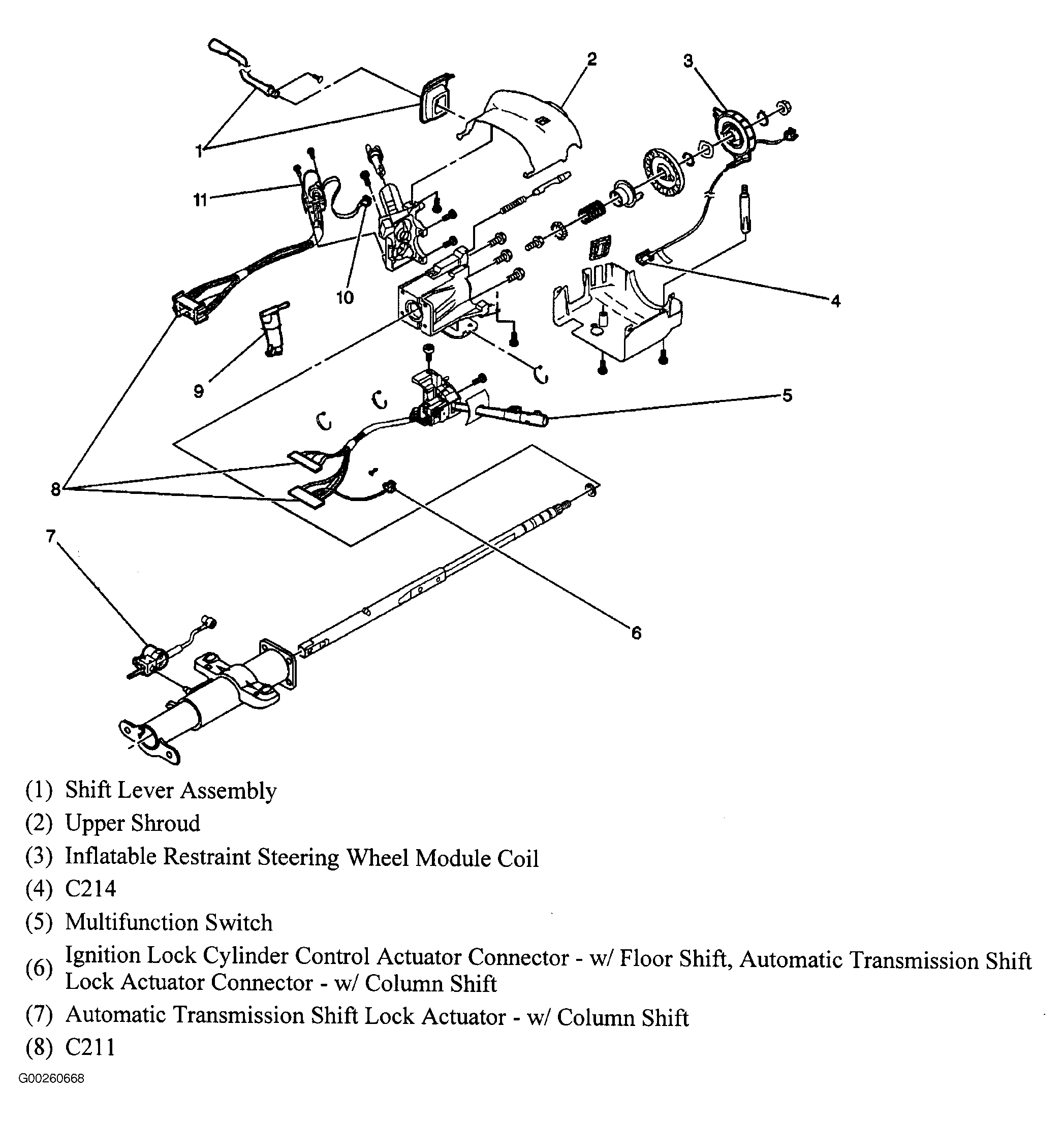

Fig 35: Steering Column (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Steering Column (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 38: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 39: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 40: Transfer Case
Courtesy of GENERAL MOTORS CORP.

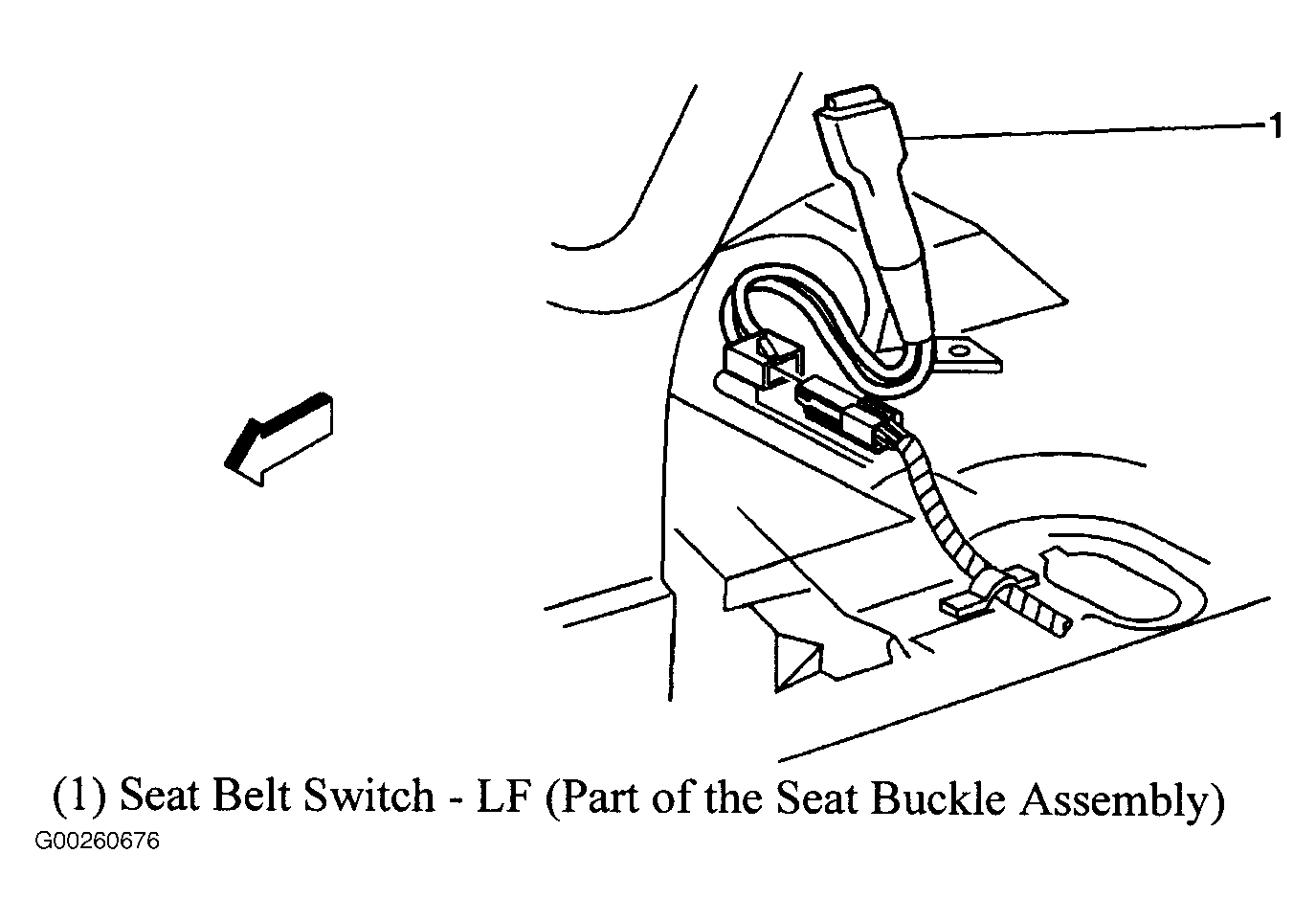

Fig 41: Seat Belt Components
Courtesy of GENERAL MOTORS CORP.
Fig 42: SIR Components (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

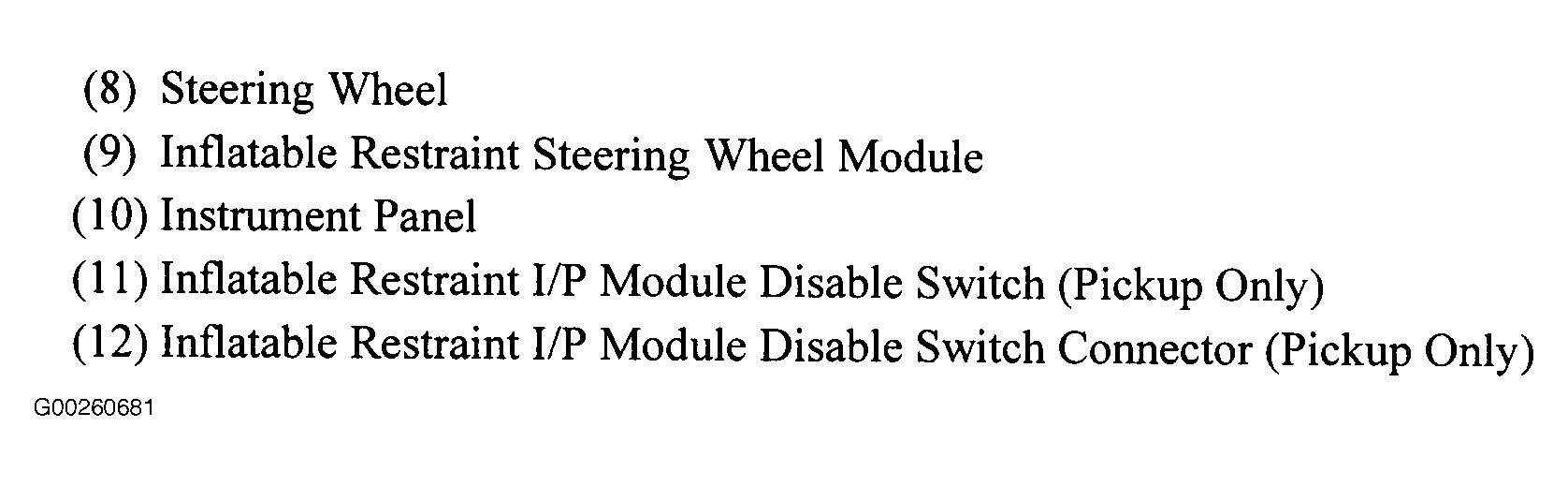

Fig 43: SIR Components (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 44: Cruise Control Components
Courtesy of GENERAL MOTORS CORP.

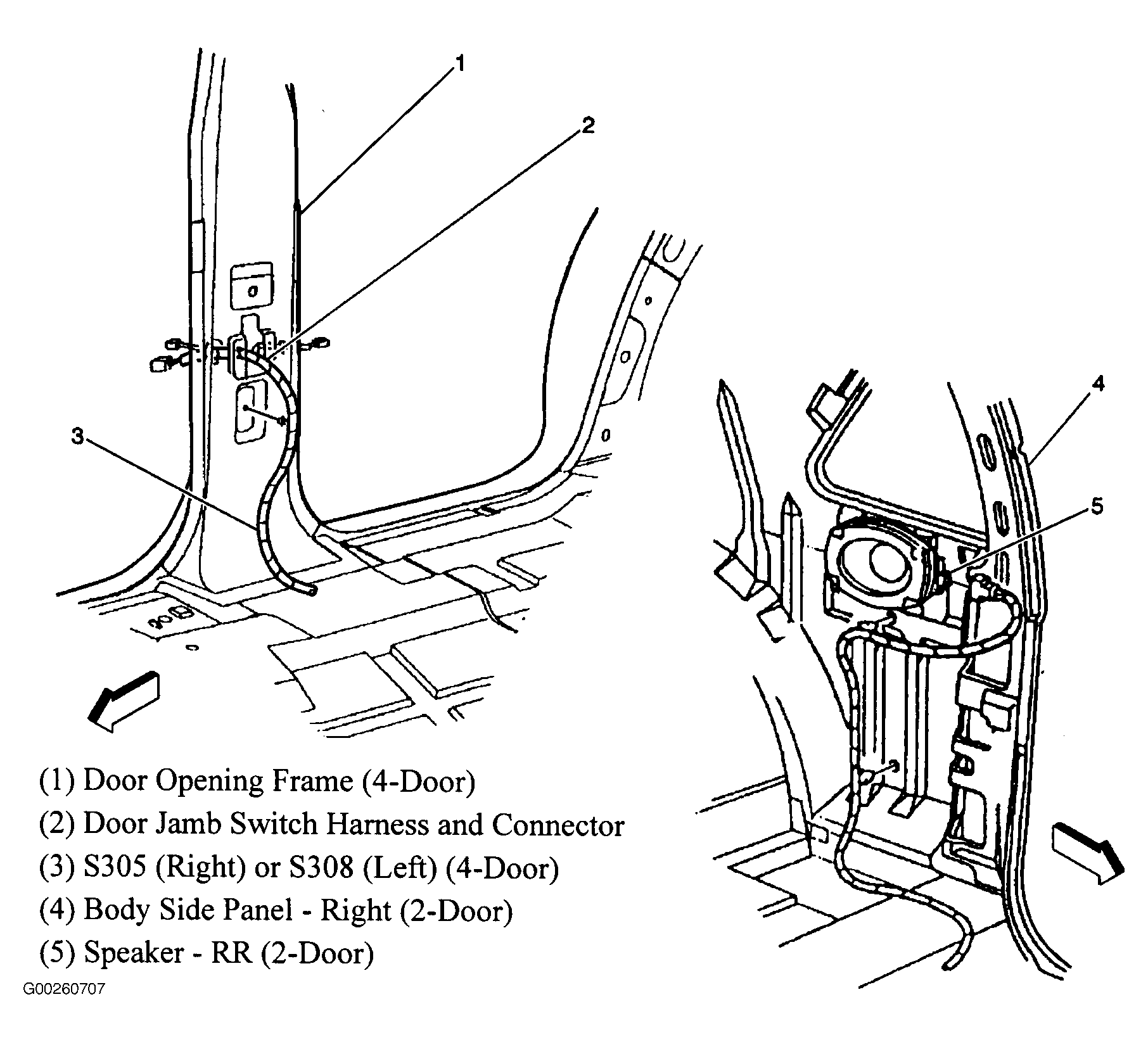

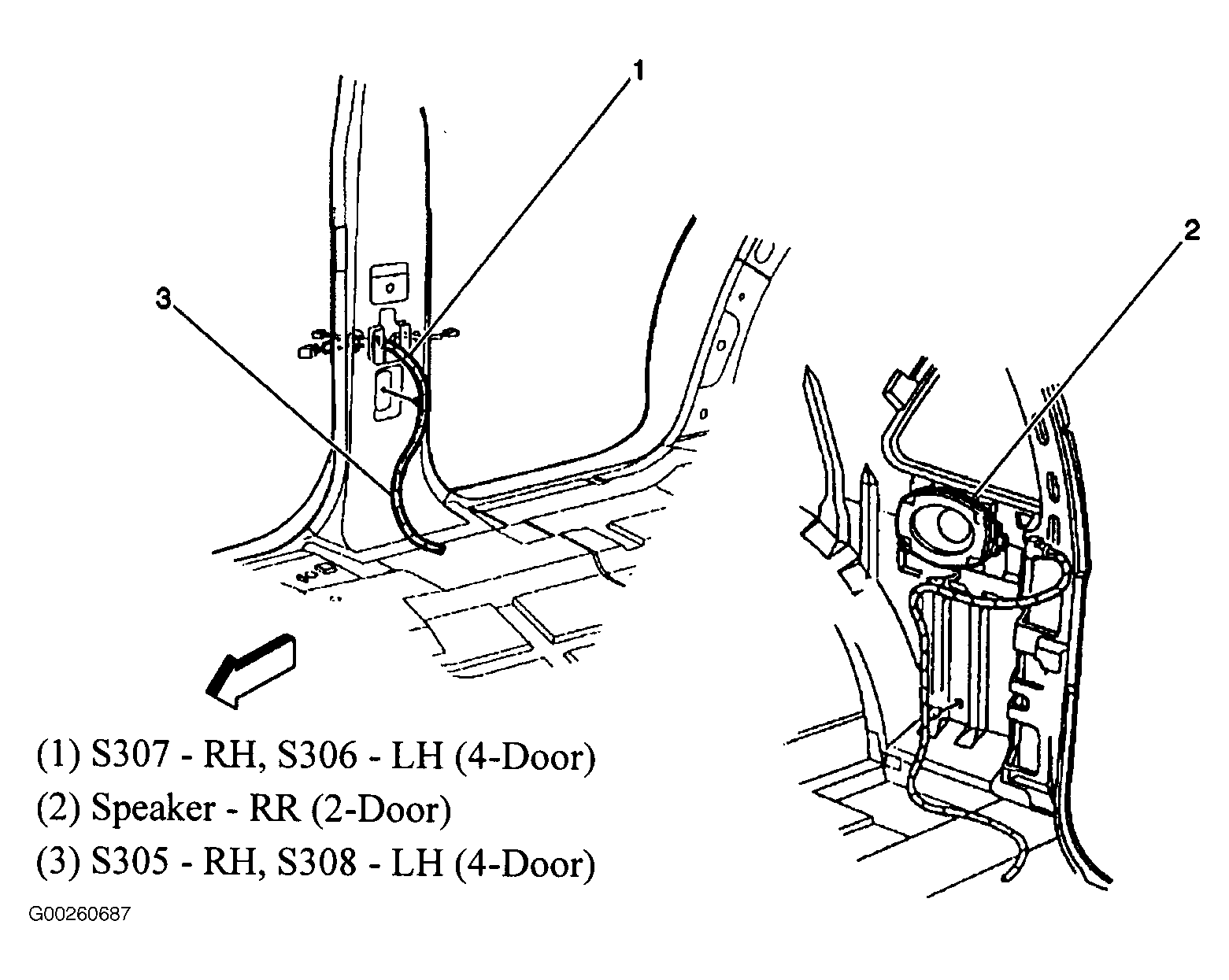

Fig 45: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 46: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

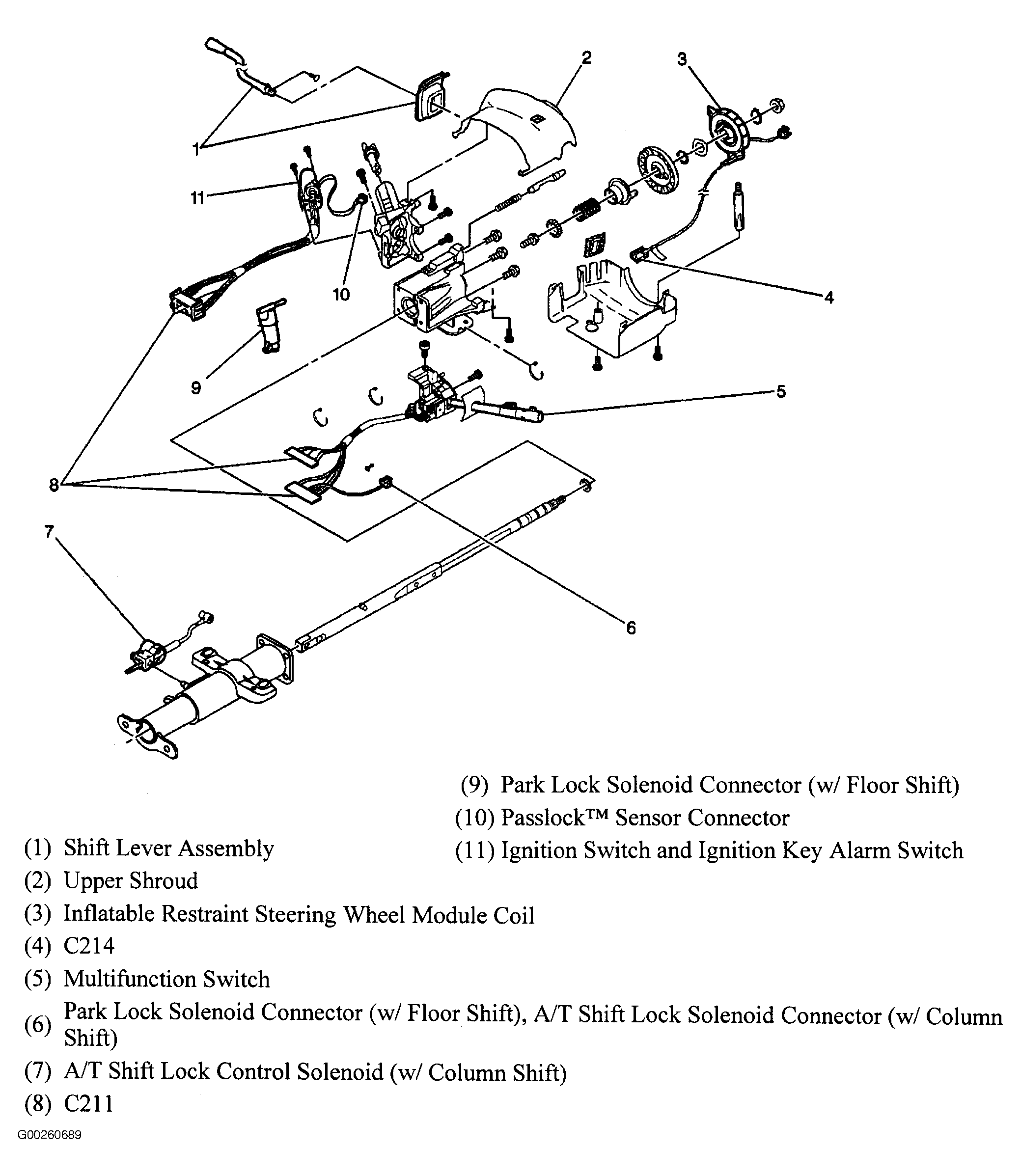

Fig 47: Steering Column Components
Courtesy of GENERAL MOTORS CORP.

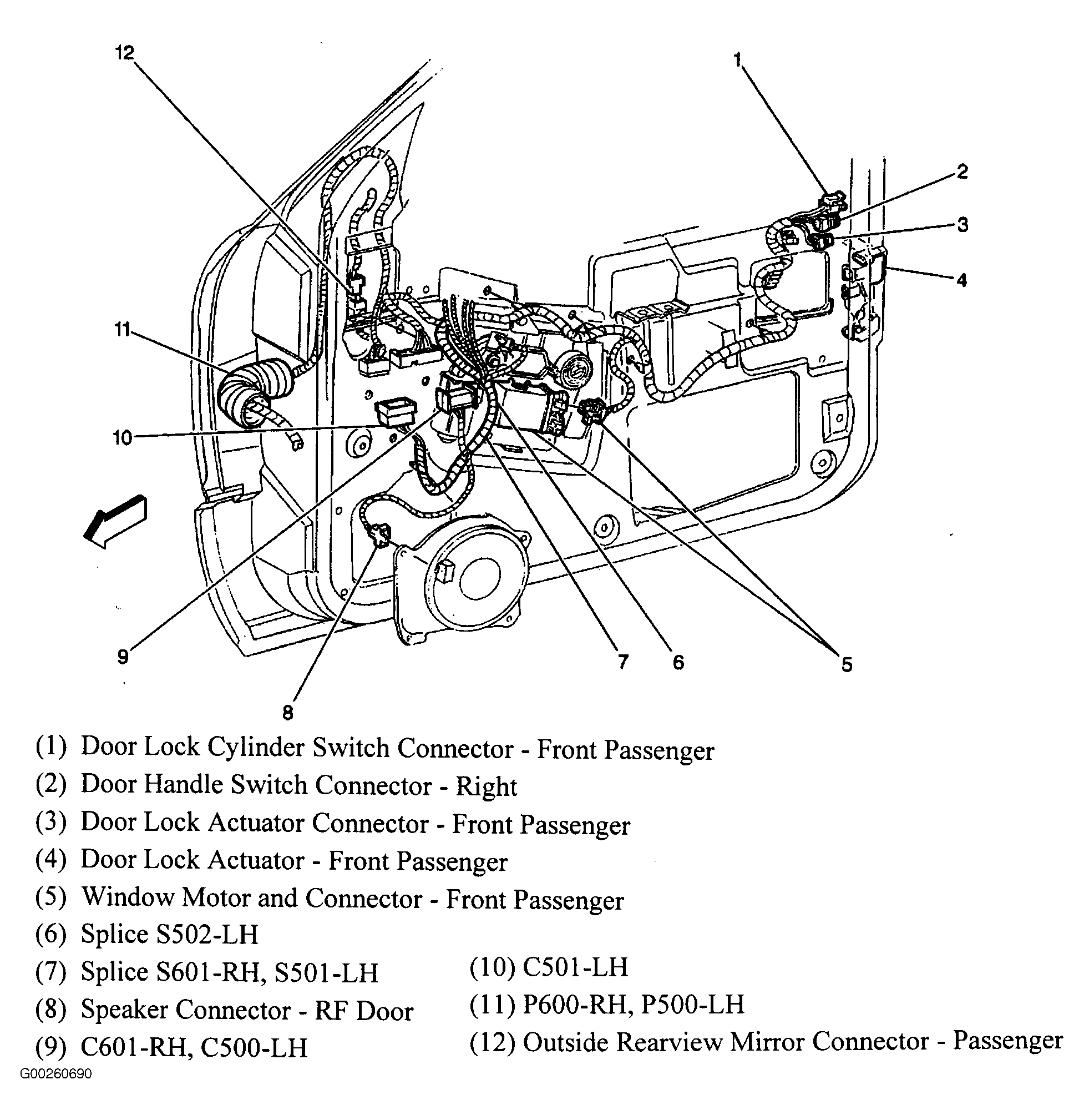

Fig 48: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.

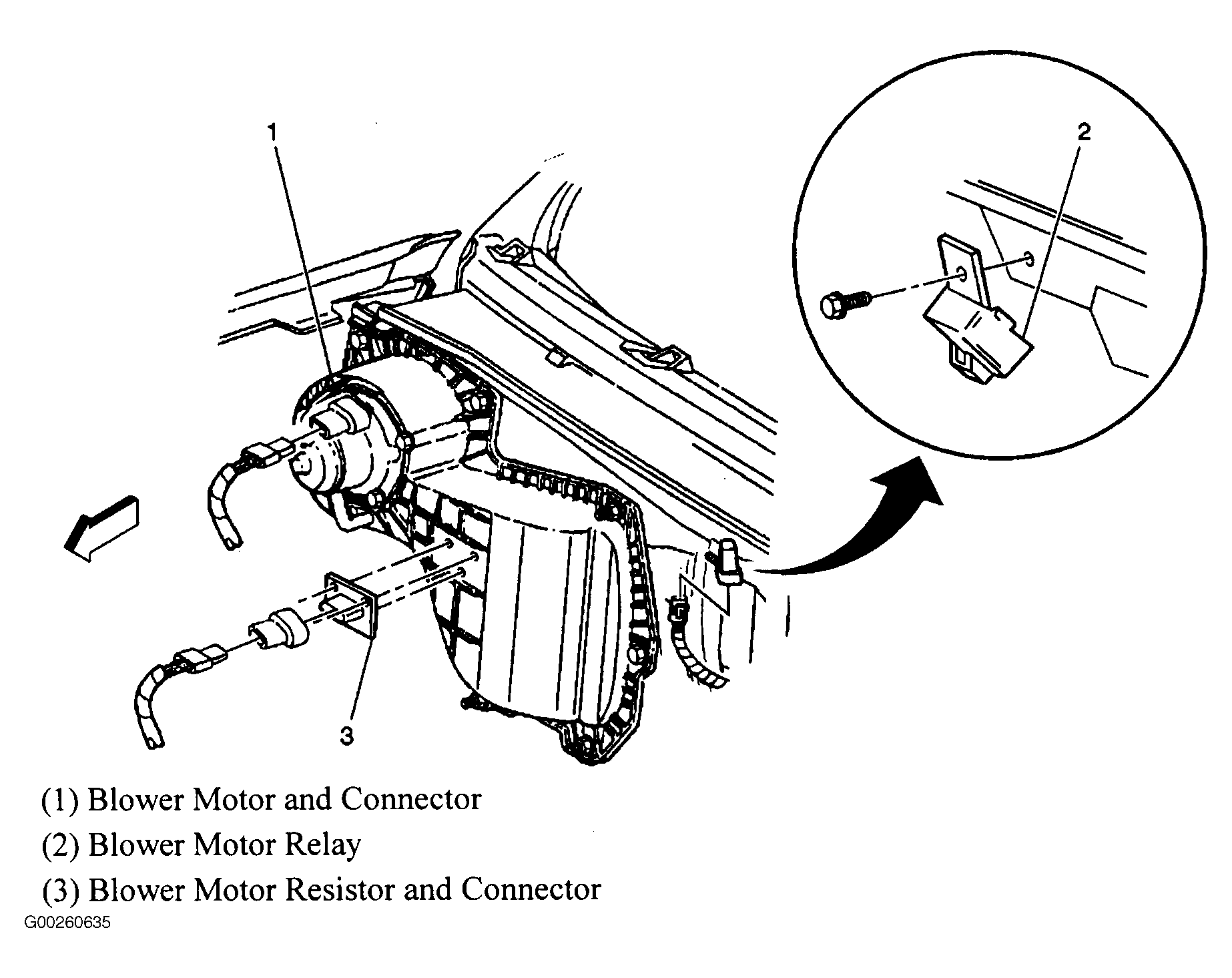

Fig 49: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

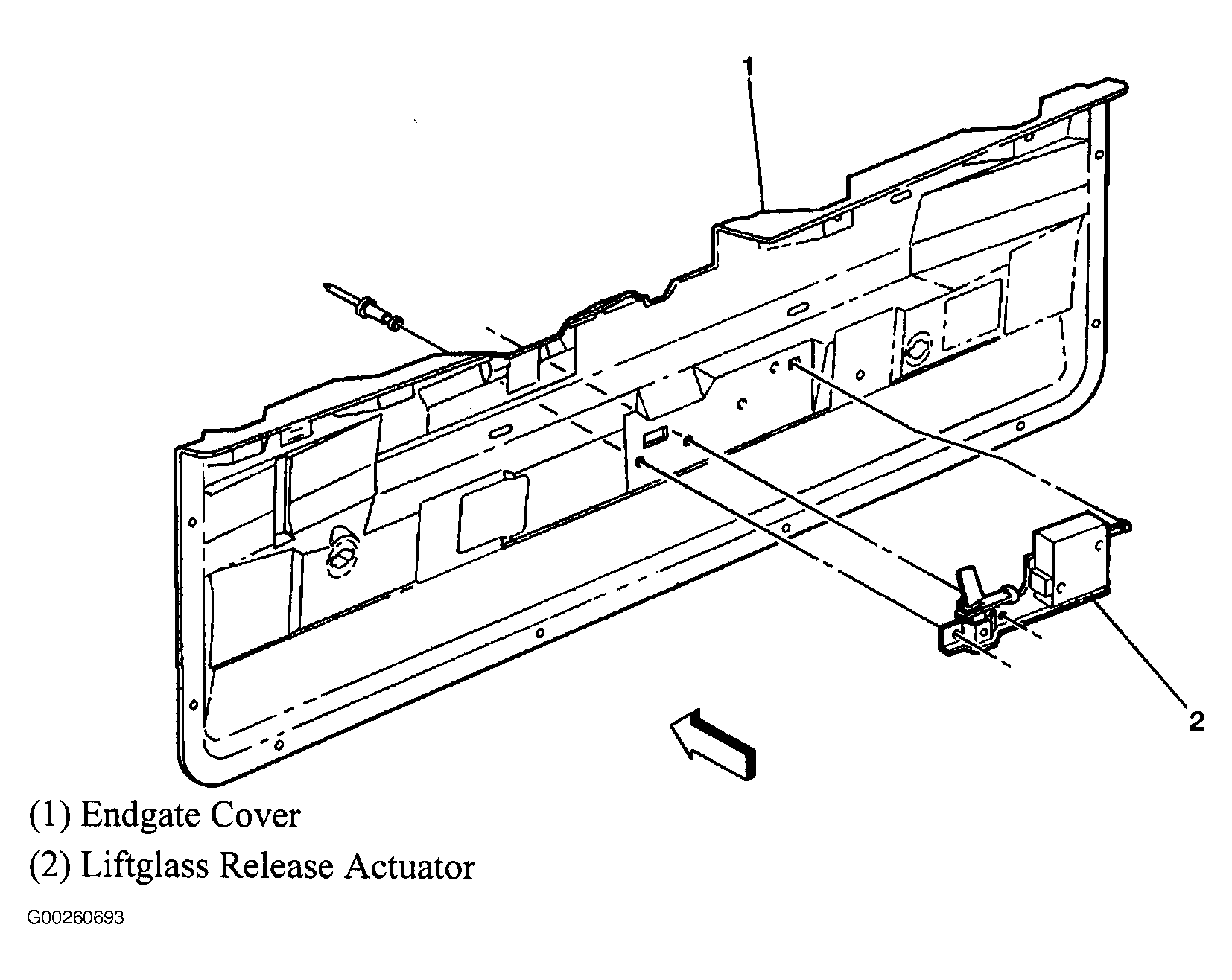

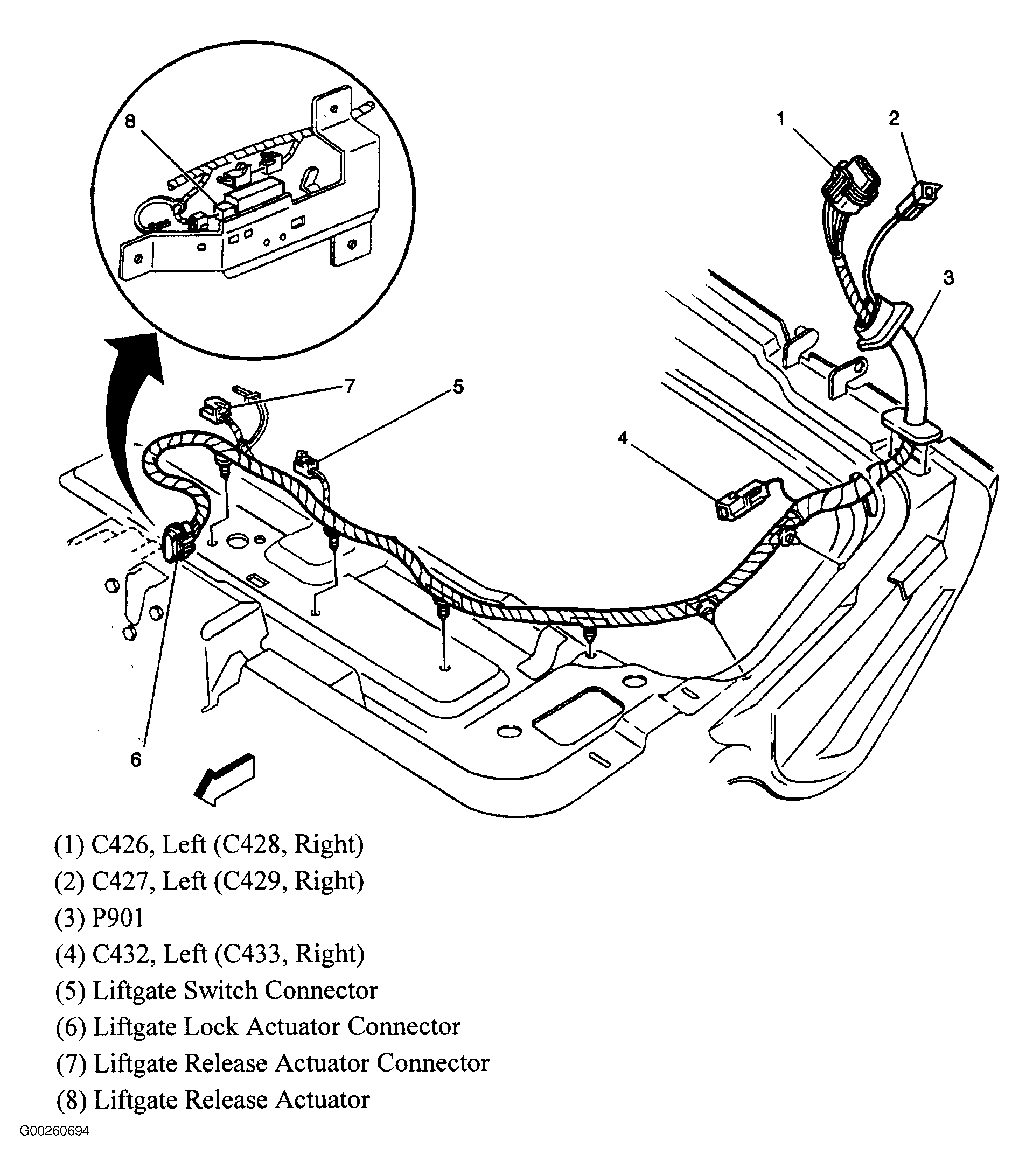

Fig 50: Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 51: Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 52: Liftgate
Courtesy of GENERAL MOTORS CORP.

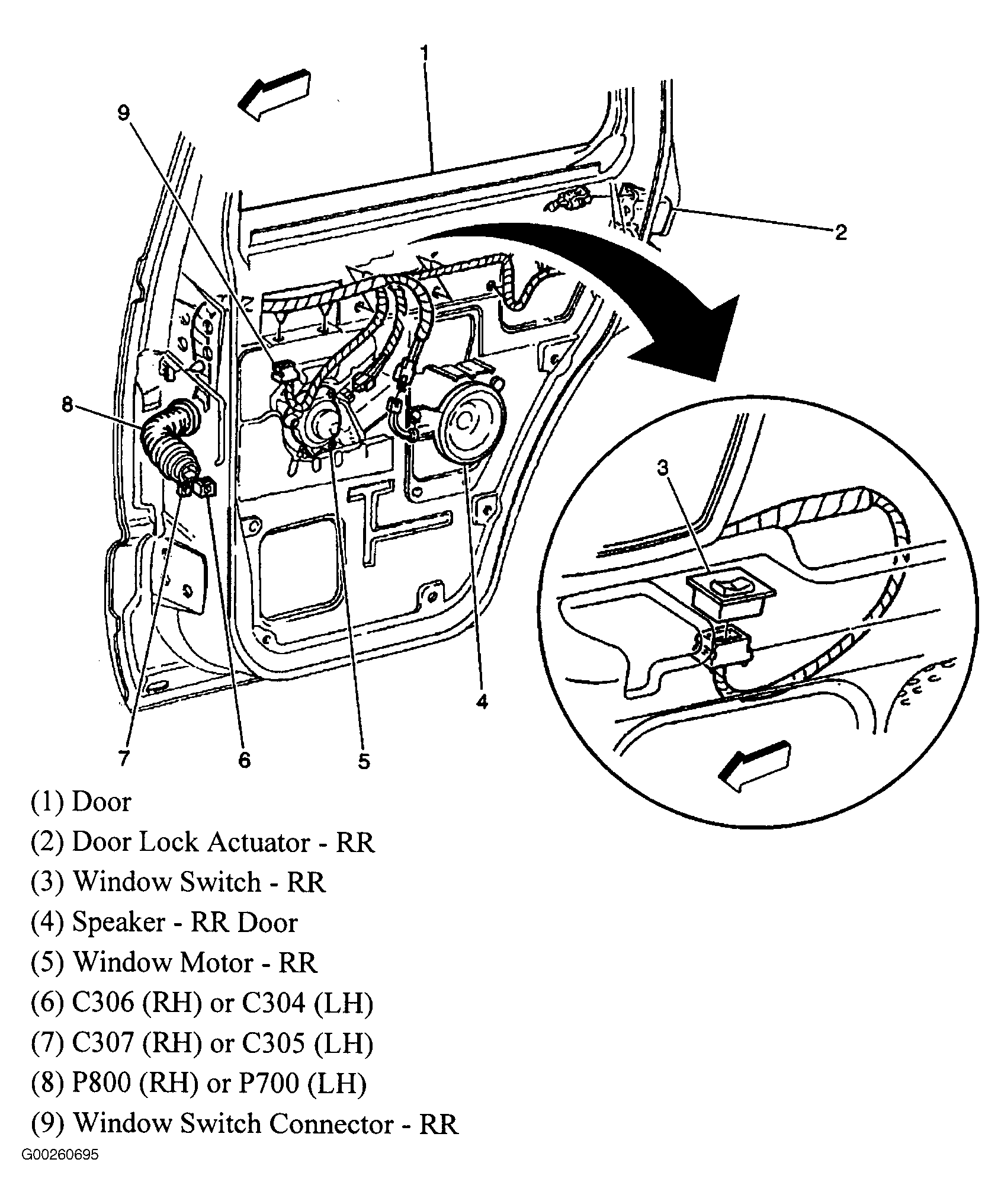

Fig 53: Right Rear Door
Courtesy of GENERAL MOTORS CORP.

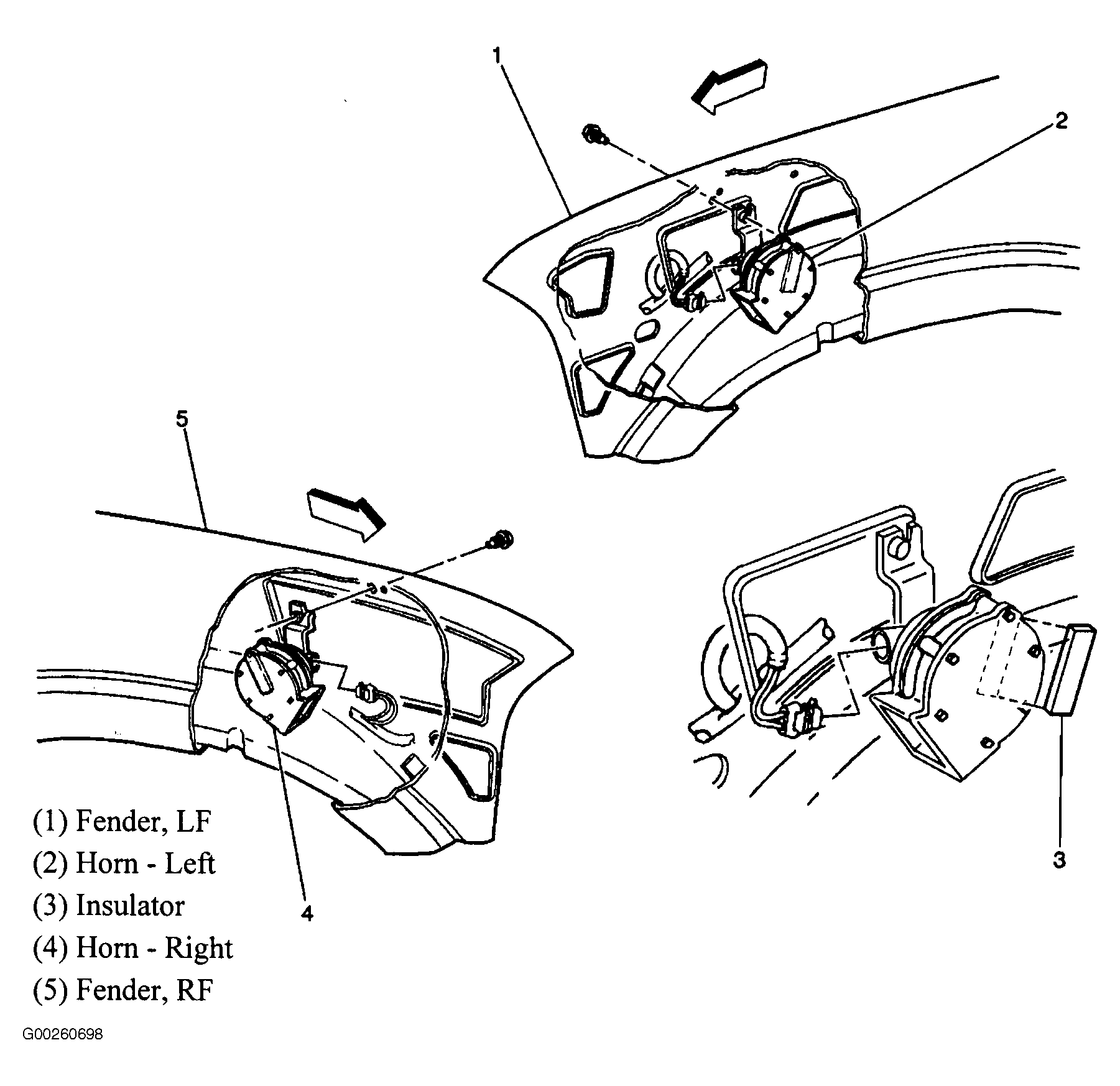

Fig 54: Left/Right Front Fenders
Courtesy of GENERAL MOTORS CORP.

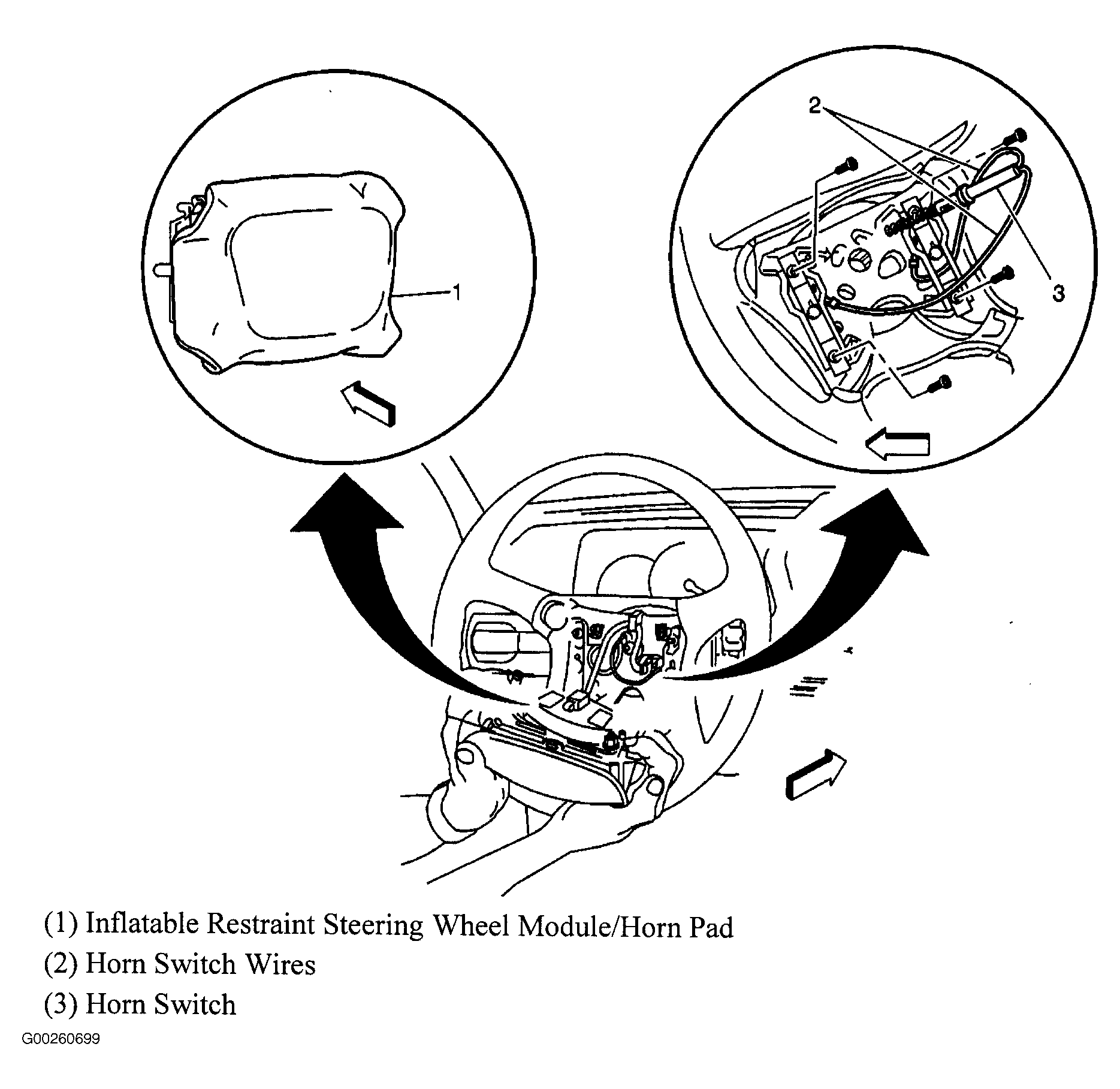

Fig 55: Steering Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 56: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 57: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 58: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 59: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 60: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

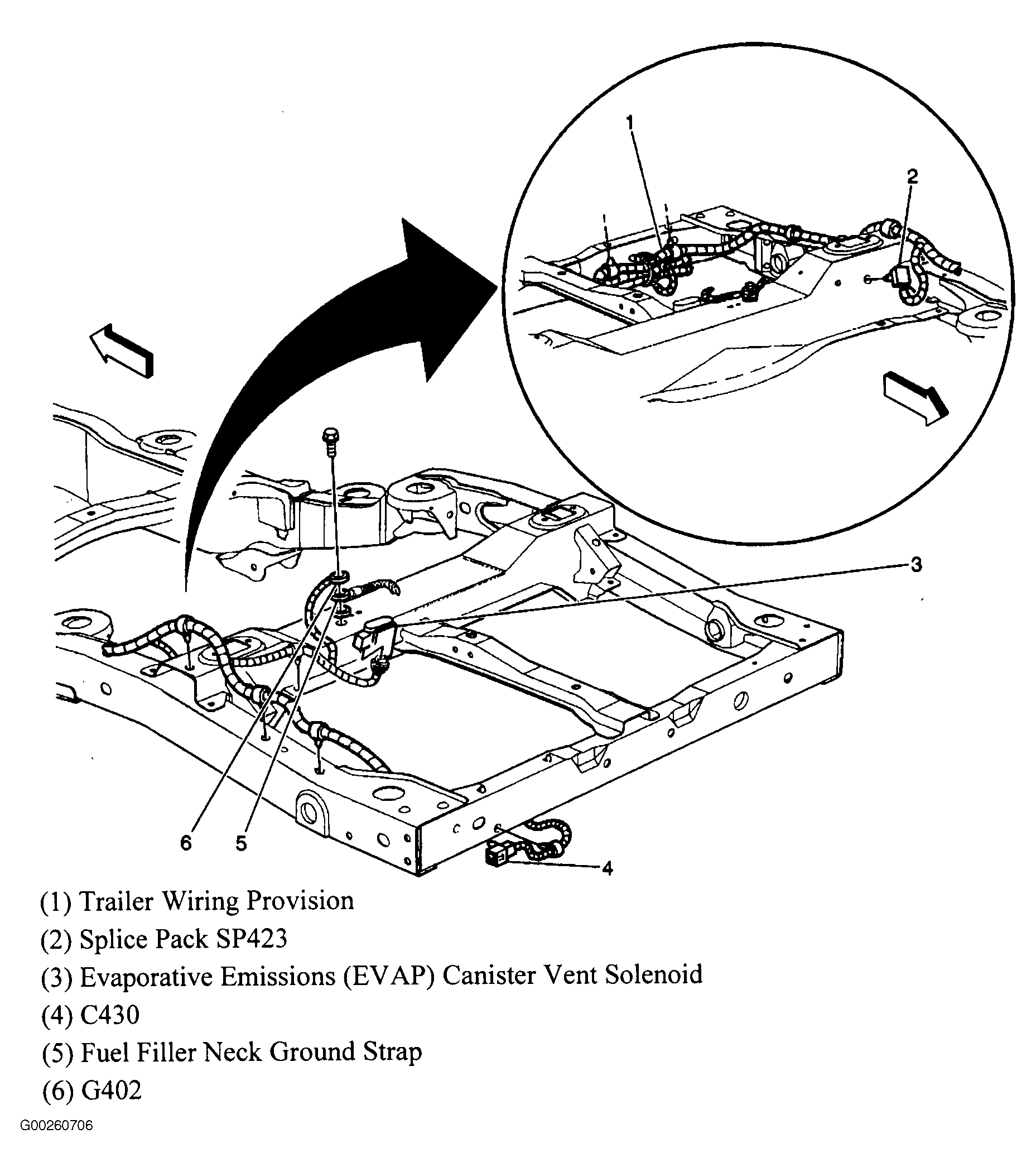

Fig 61: Rear Of Frame
Courtesy of GENERAL MOTORS CORP.
Fig 62: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.

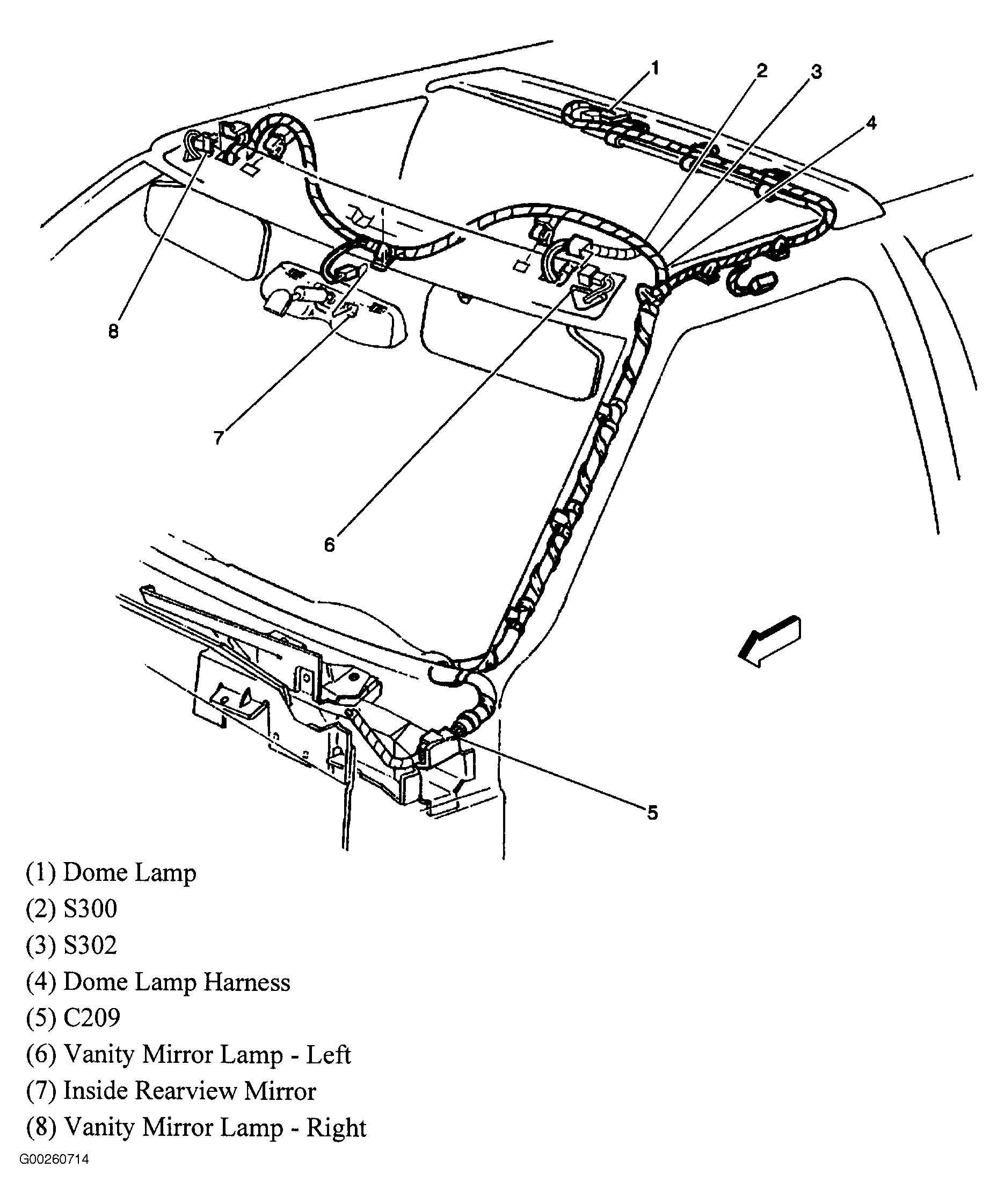

Fig 63: Front Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 64: Roof (XTREME)
Courtesy of GENERAL MOTORS CORP.

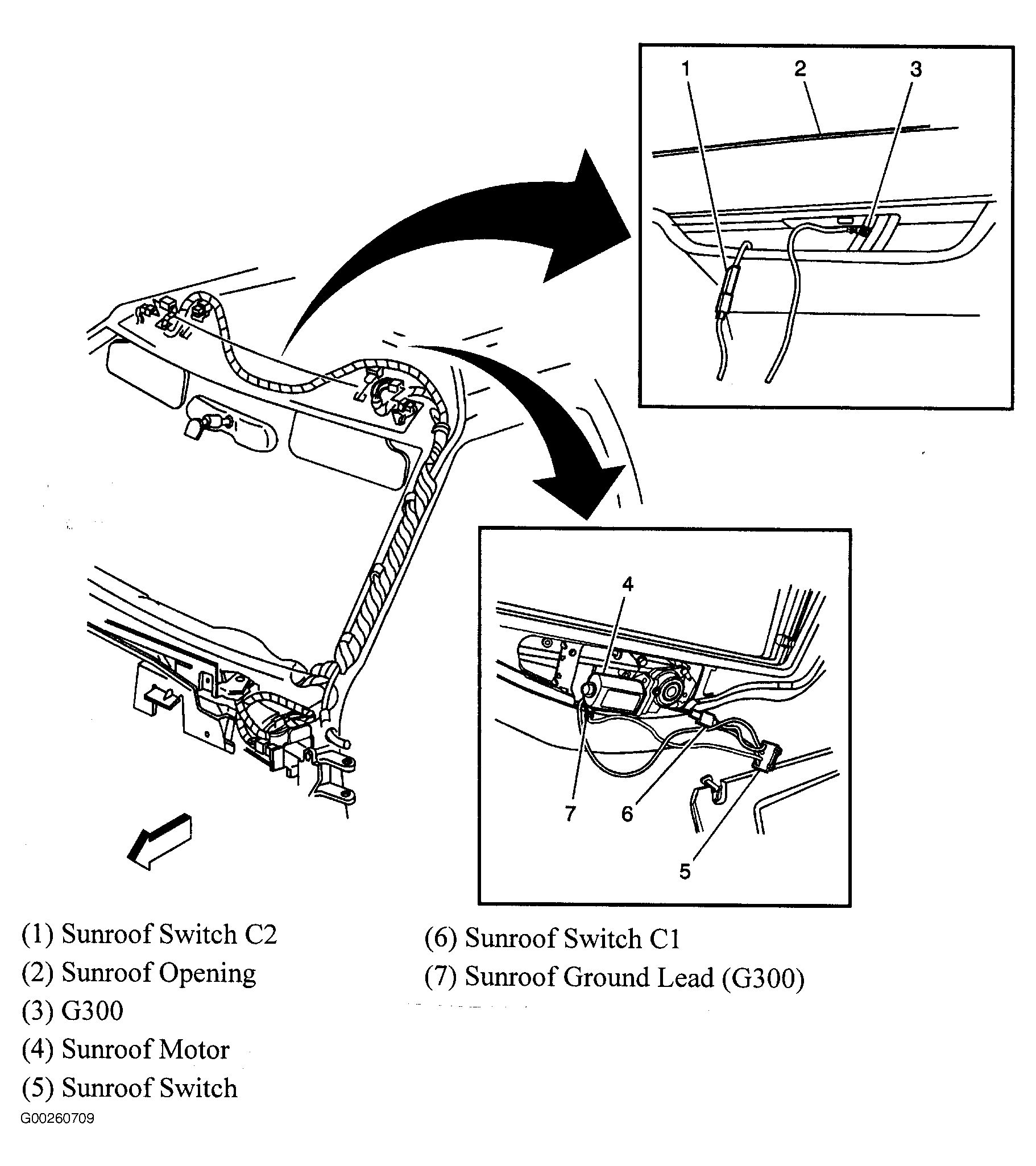

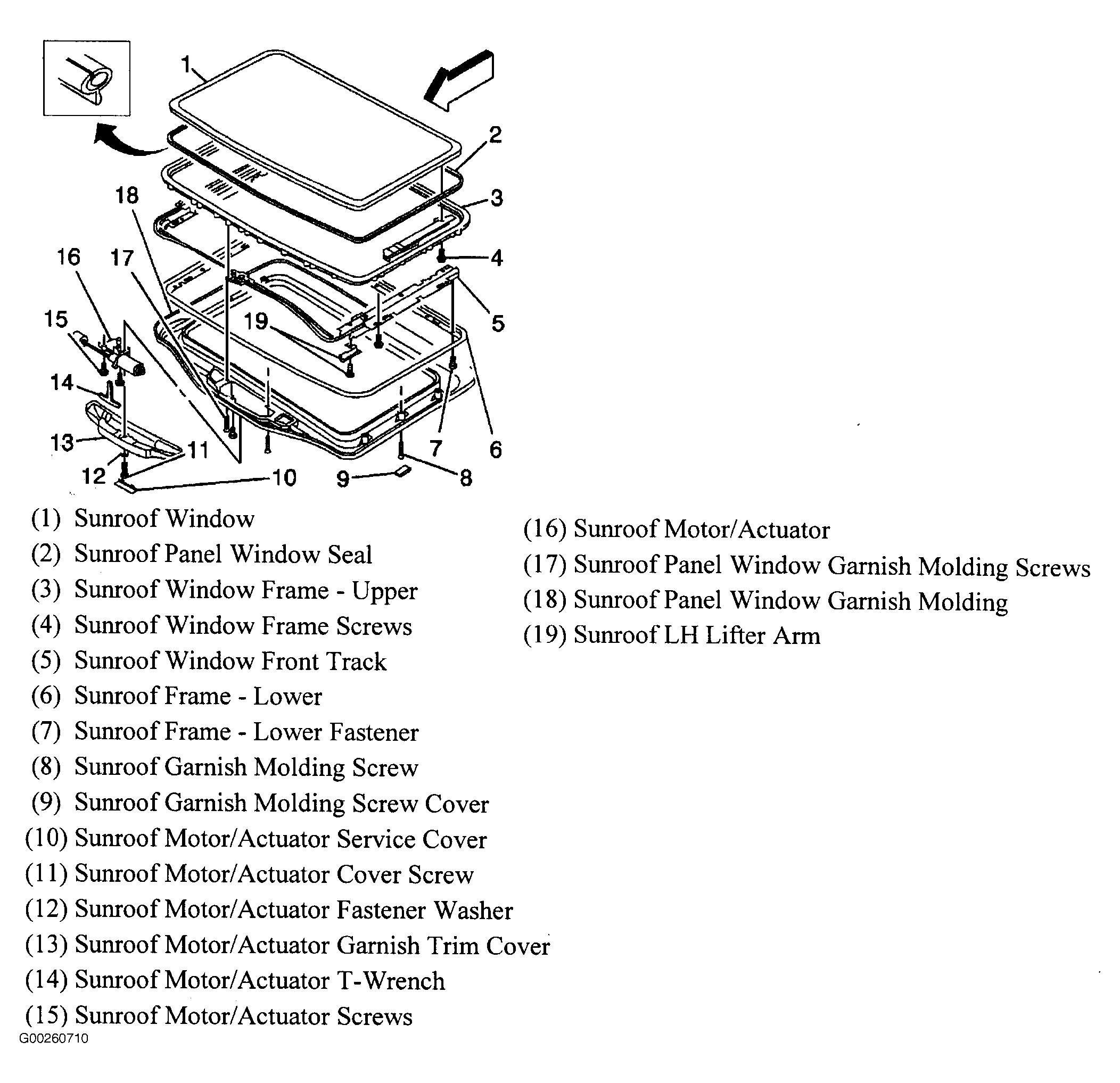

Fig 65: Power Sunroof Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 66: Seat Assembly
Courtesy of GENERAL MOTORS CORP.

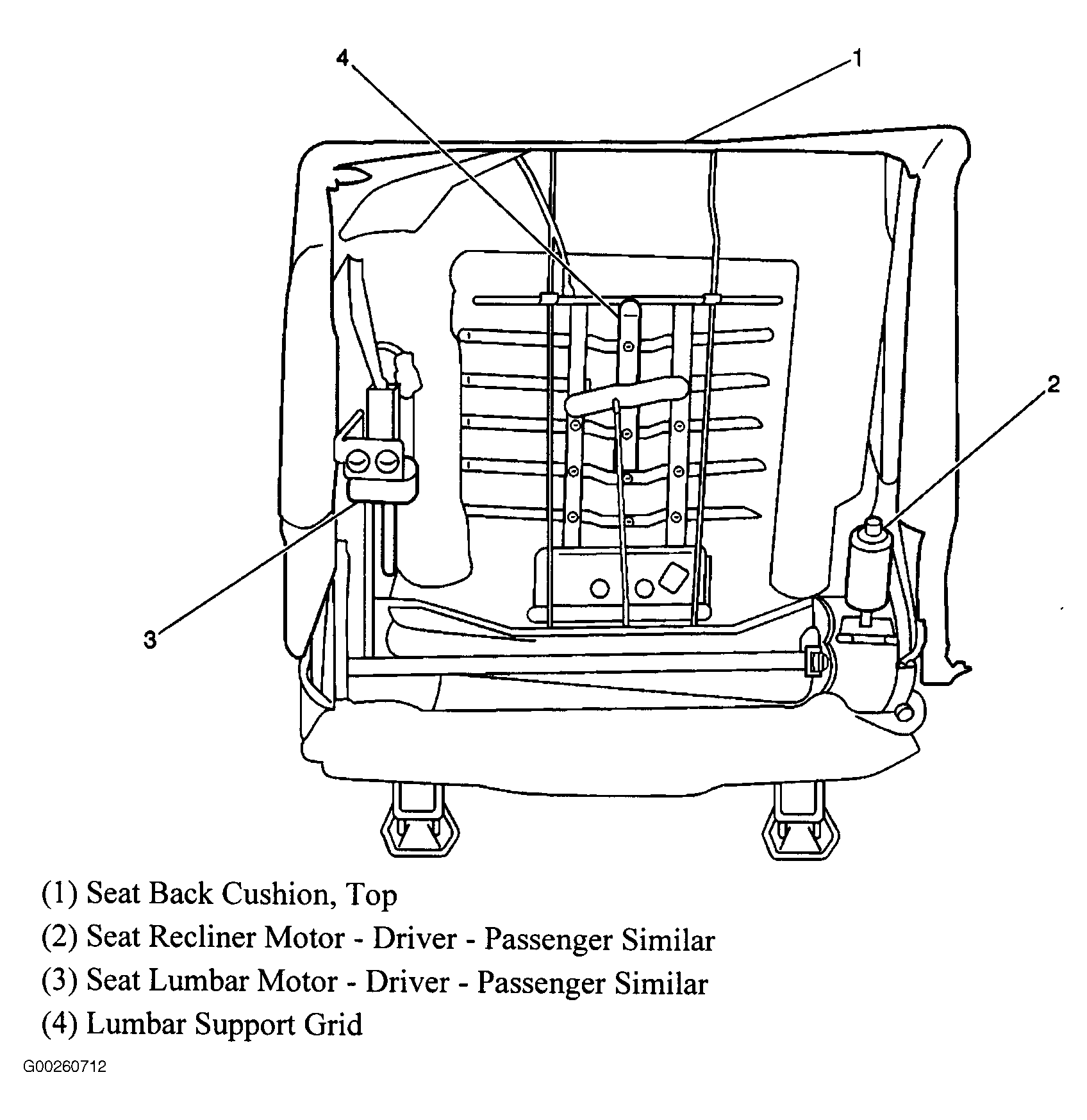

Fig 67: Seat-Top (8 Way) (W/O Memory)
Courtesy of GENERAL MOTORS CORP.

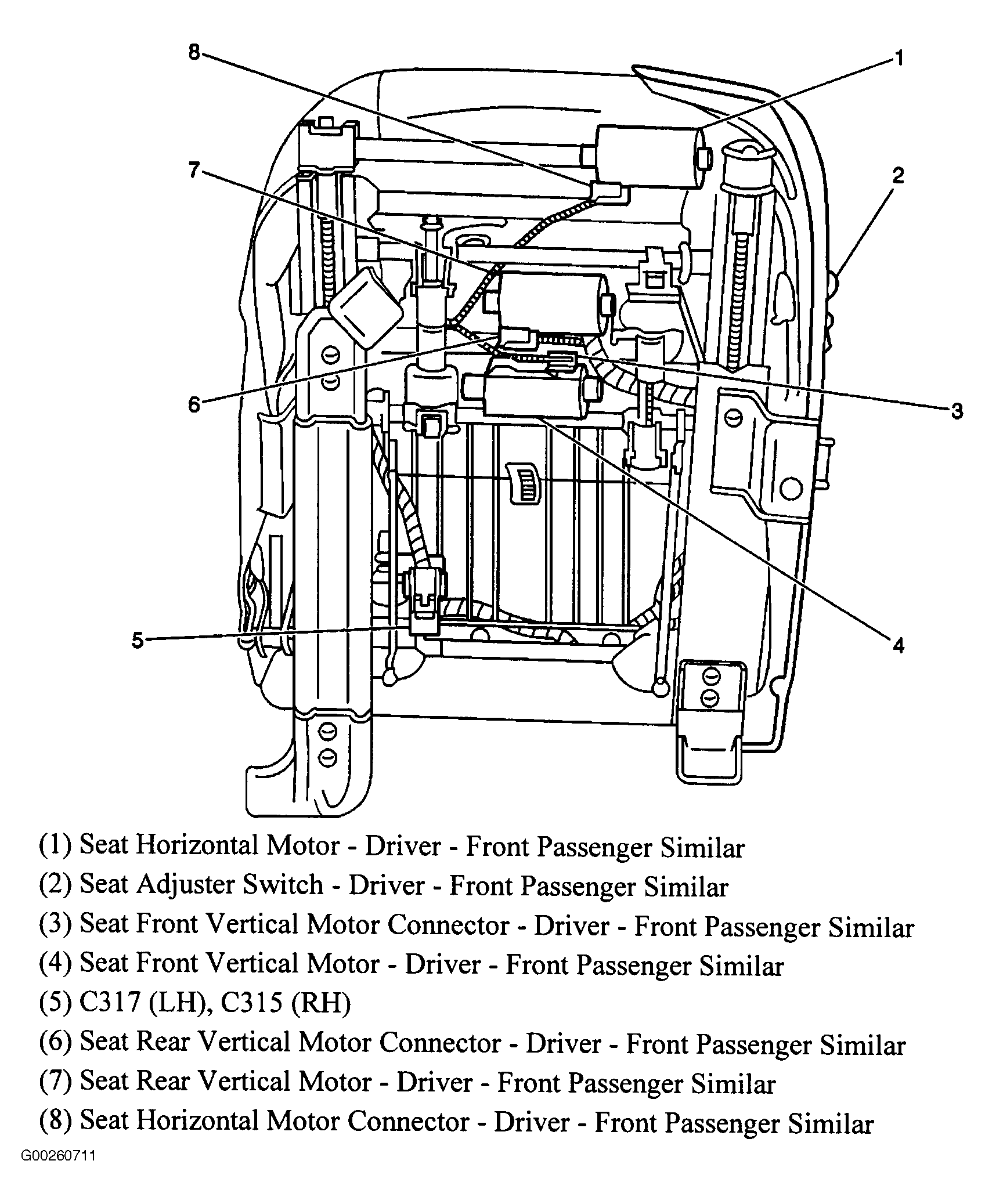

Fig 68: Seat-Bottom (8 Way) (W/O Memory)
Courtesy of GENERAL MOTORS CORP.
Fig 69: Roof (W/O Driver Information Center)
Courtesy of GENERAL MOTORS CORP.
Fig 70: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 71: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
