Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

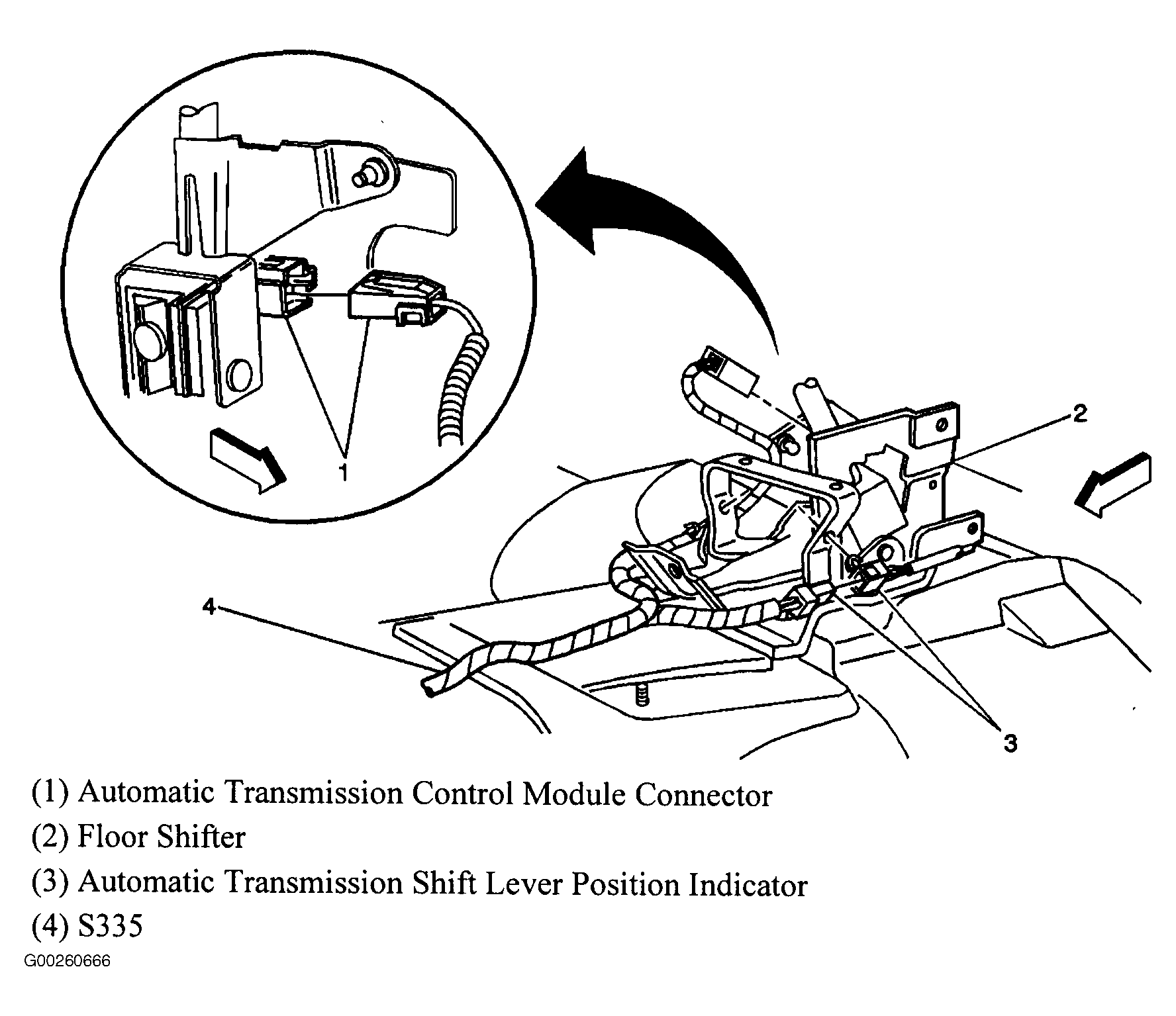

| Automatic Transmission Control Module Connector | On center of front floor pan. See Figure. |

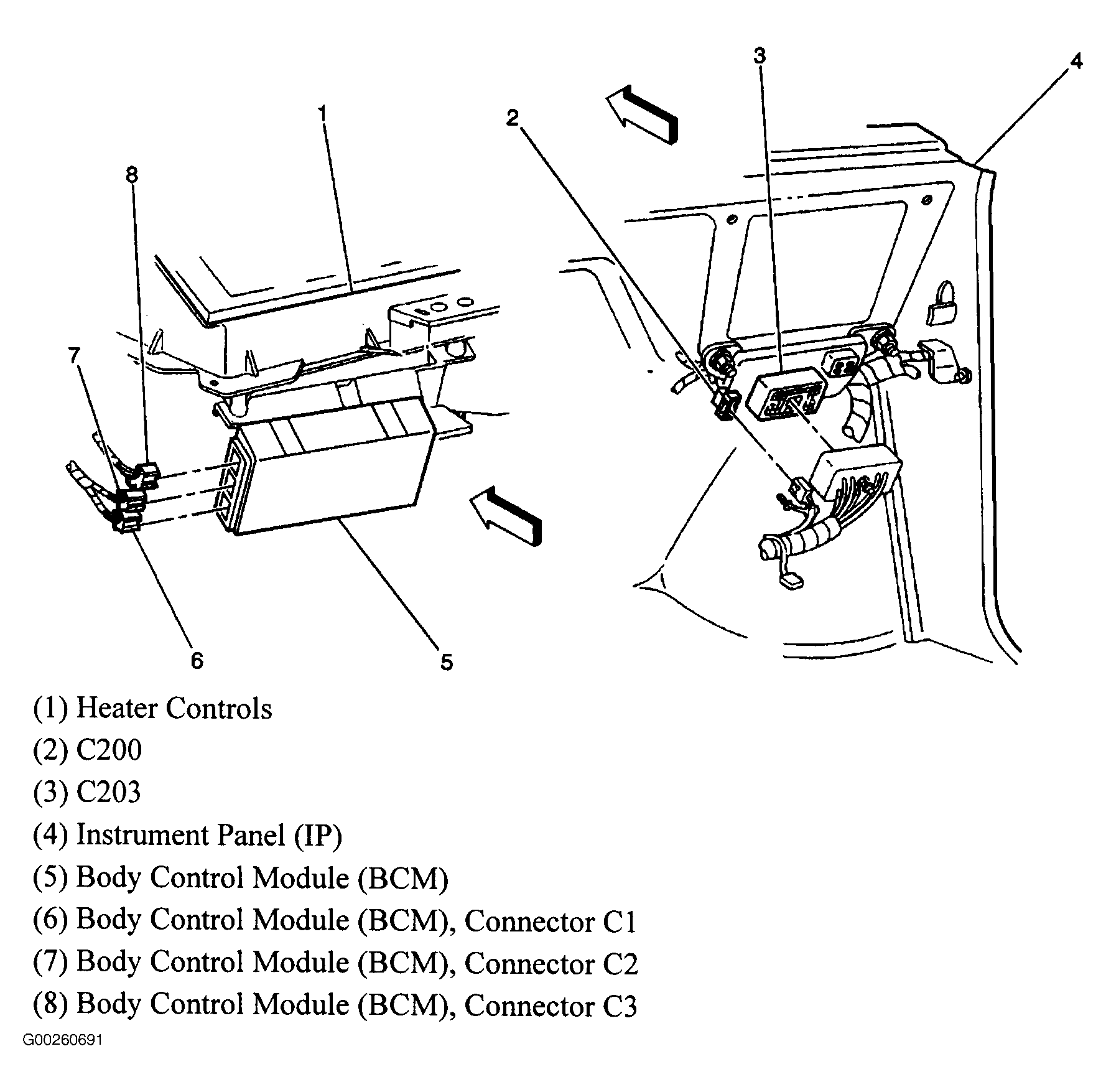

| Body Control Module | Under dash, on heater case. See Figure. |
| Body Control Module Connector | Under dash, on heater case. See Figure. |
| Central Sequential Fuel Injection | On top center of engine, forward of distributor. |

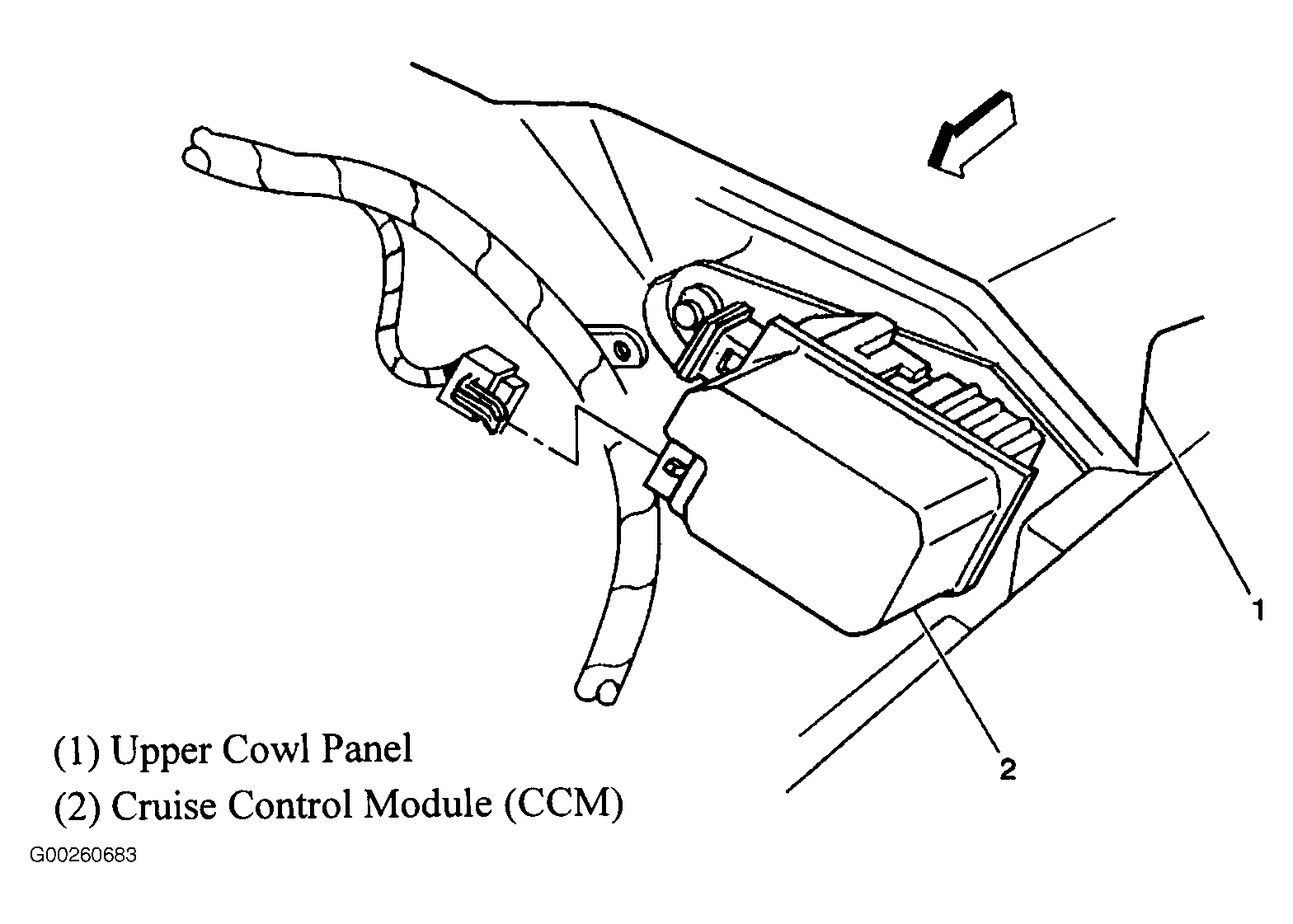

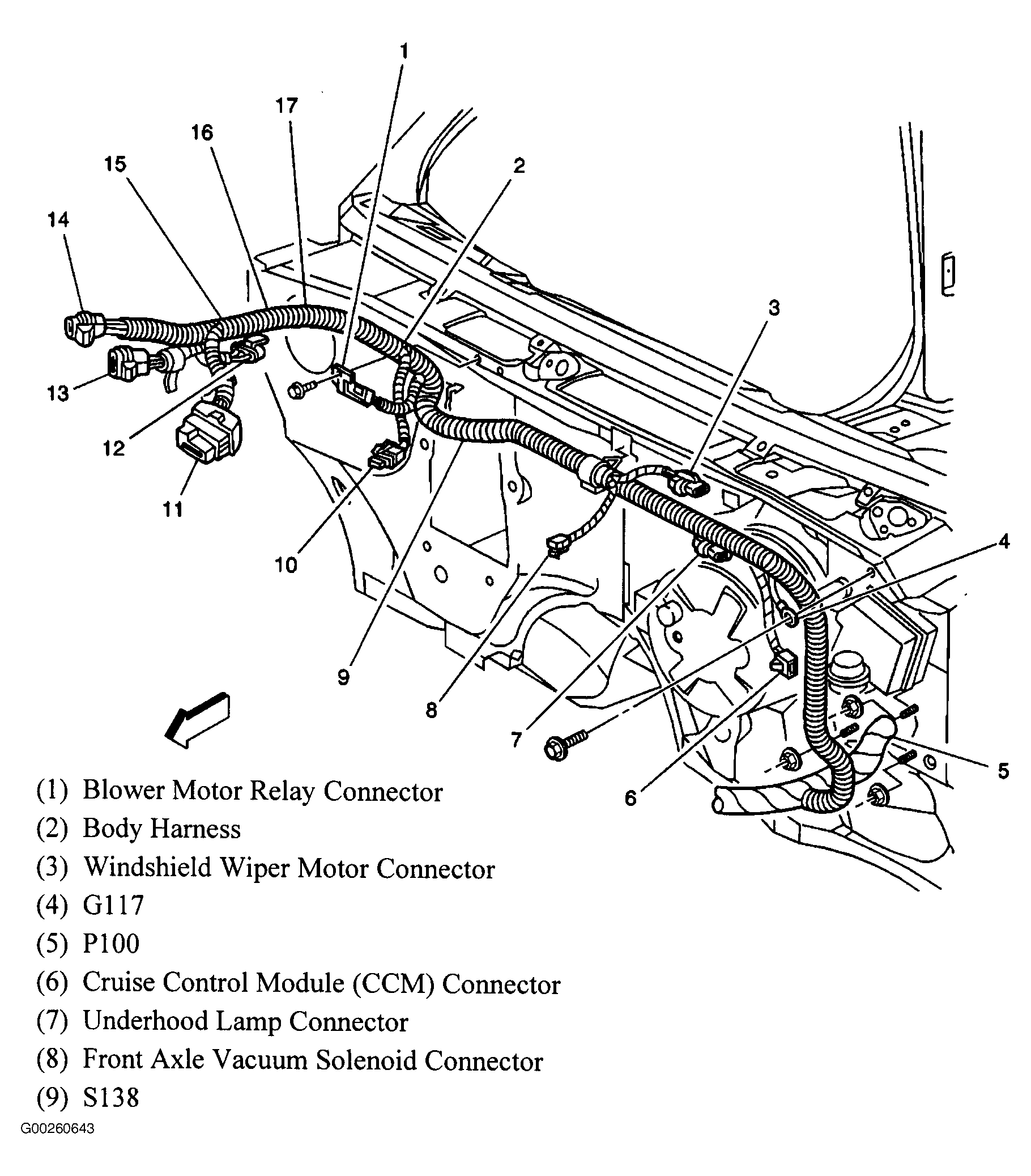

| Cruise Control Module (CCM) | On left side of firewall. See Figure. |
| Cruise Control Module Connector | Left side of firewall. See Figure. |
| Driver Information Center | In front overhead console. |

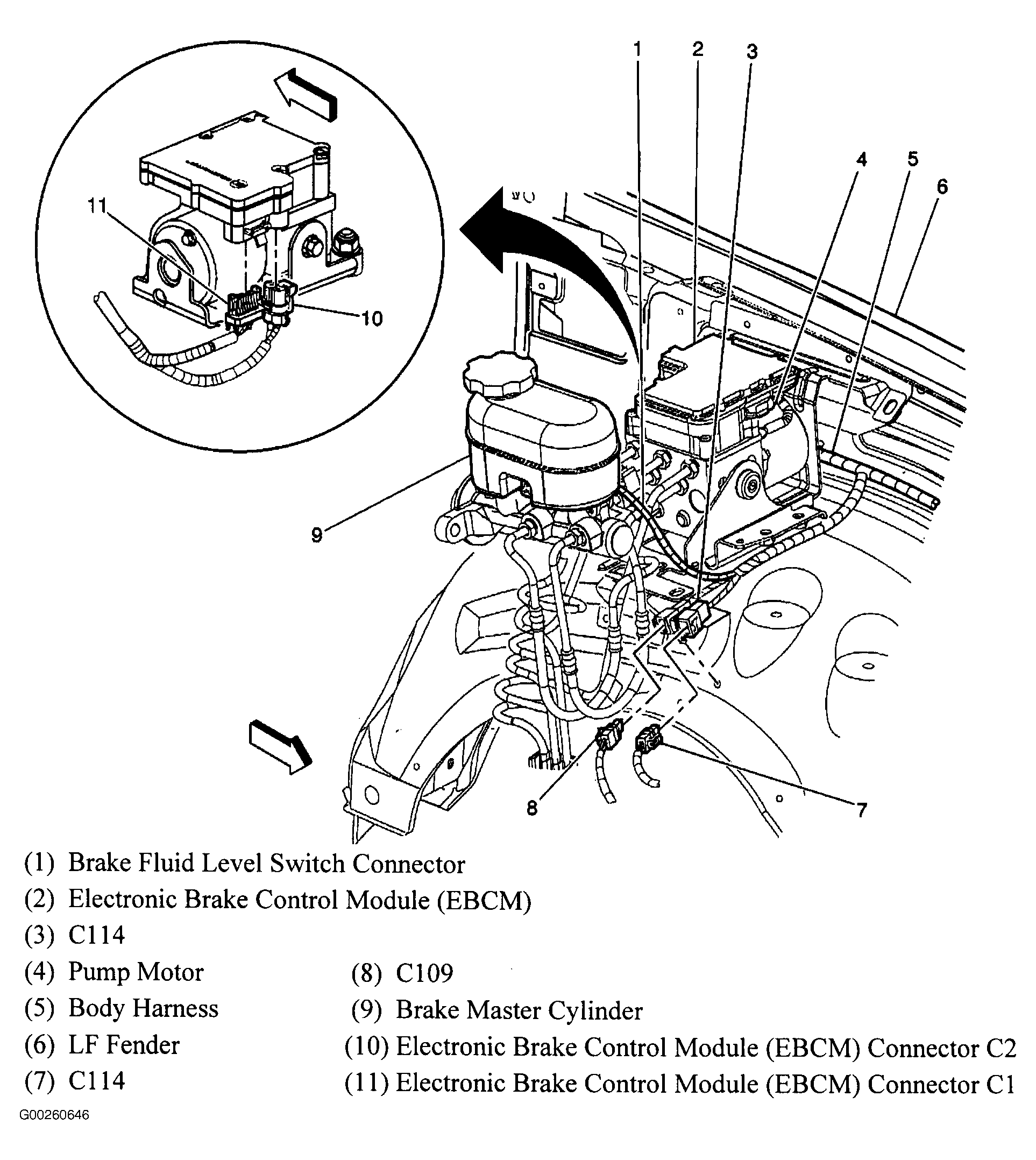

| Electronic Brake Control Module (EBCM) | Near left front inner fender, on brake pressure modulator valve. See Figure. |
| Electronic Brake Control Module (EBCM) Connector | Left rear of engine compartment. See Figure. |

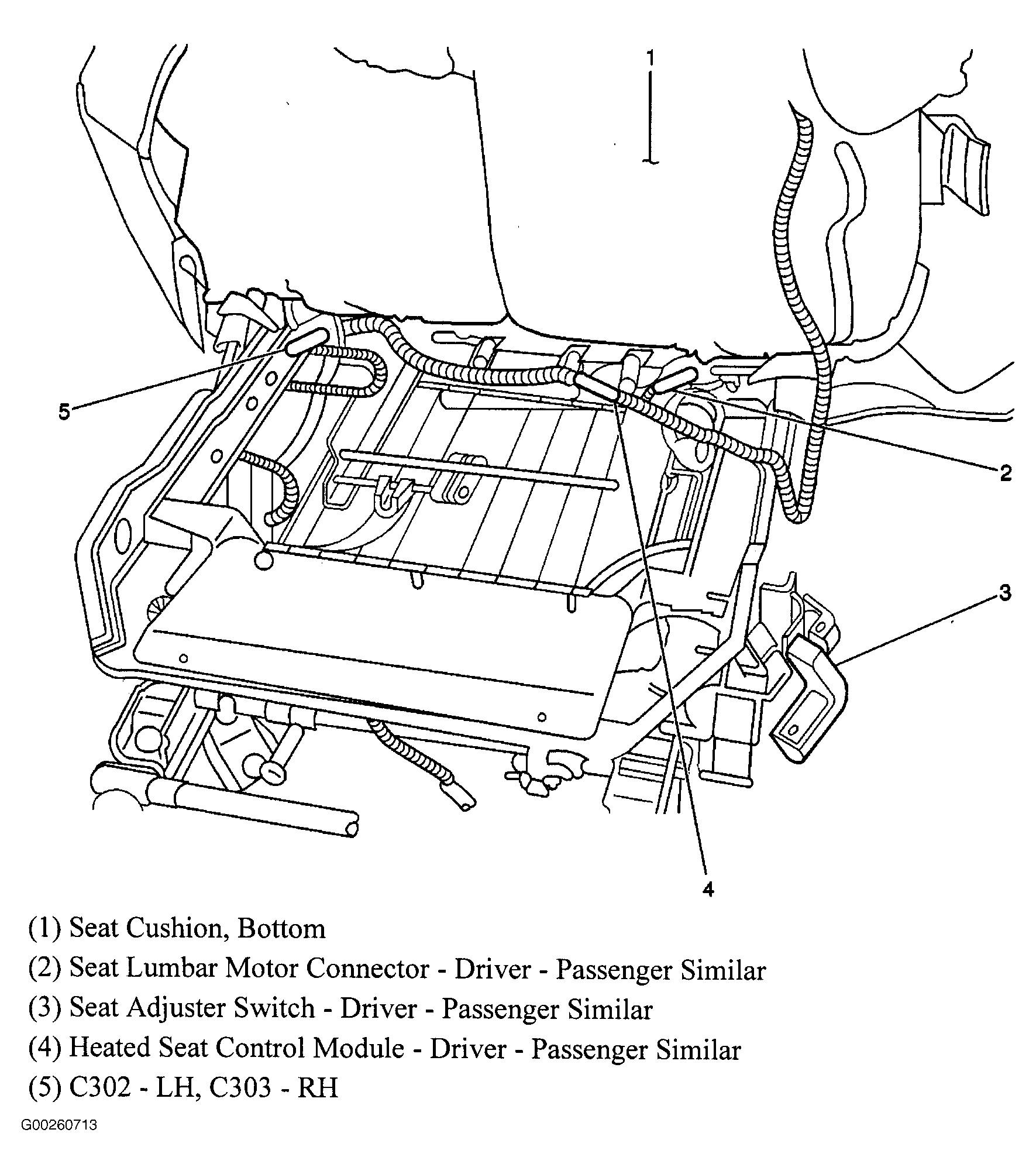

| Heated Seat Control Module (Driver/Front Passenger) | Under respective front seat. See Figure. |
| HVAC Control Assembly | In center of dash. |

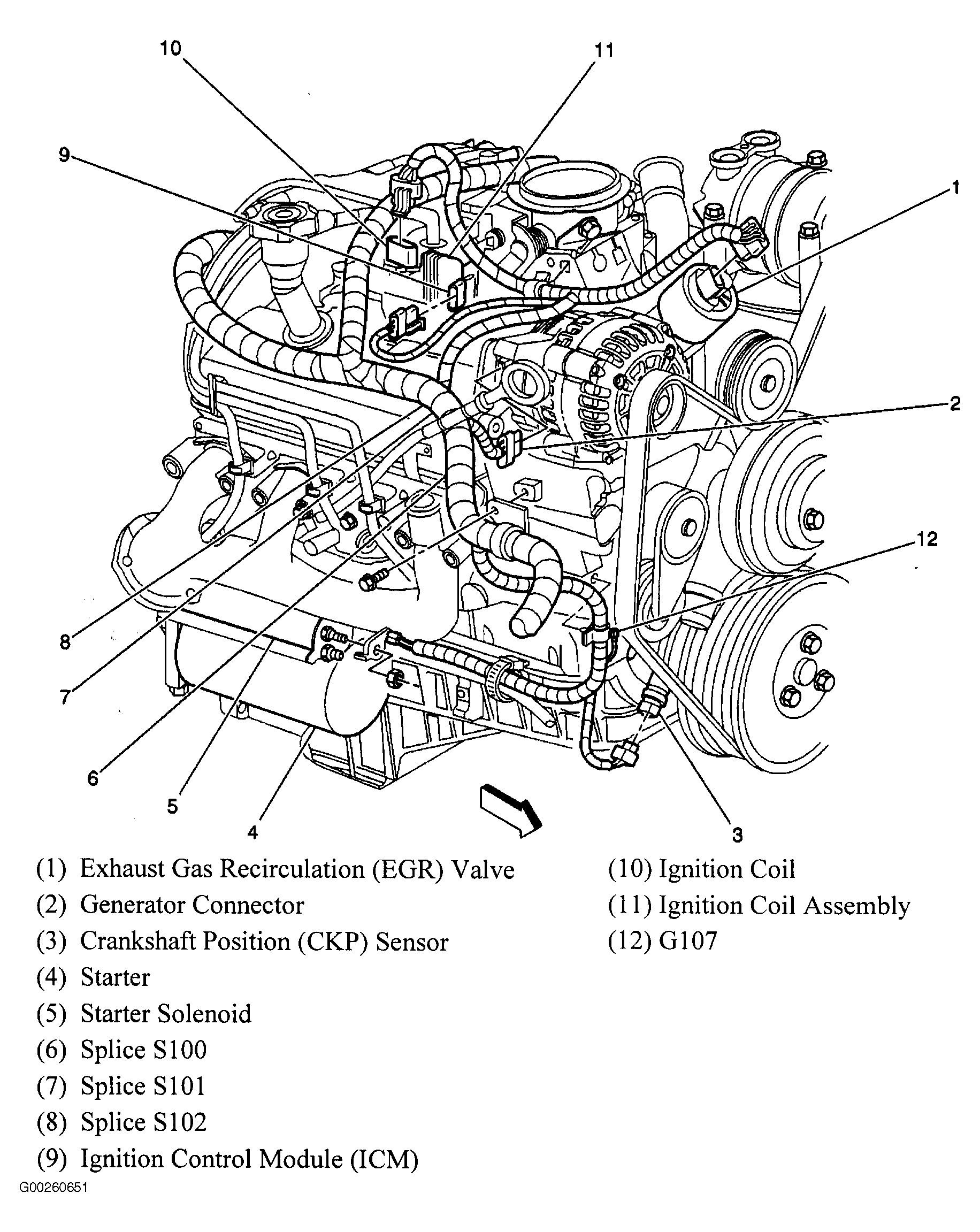

| Ignition Control Module | On top right side of engine. See Figure. |

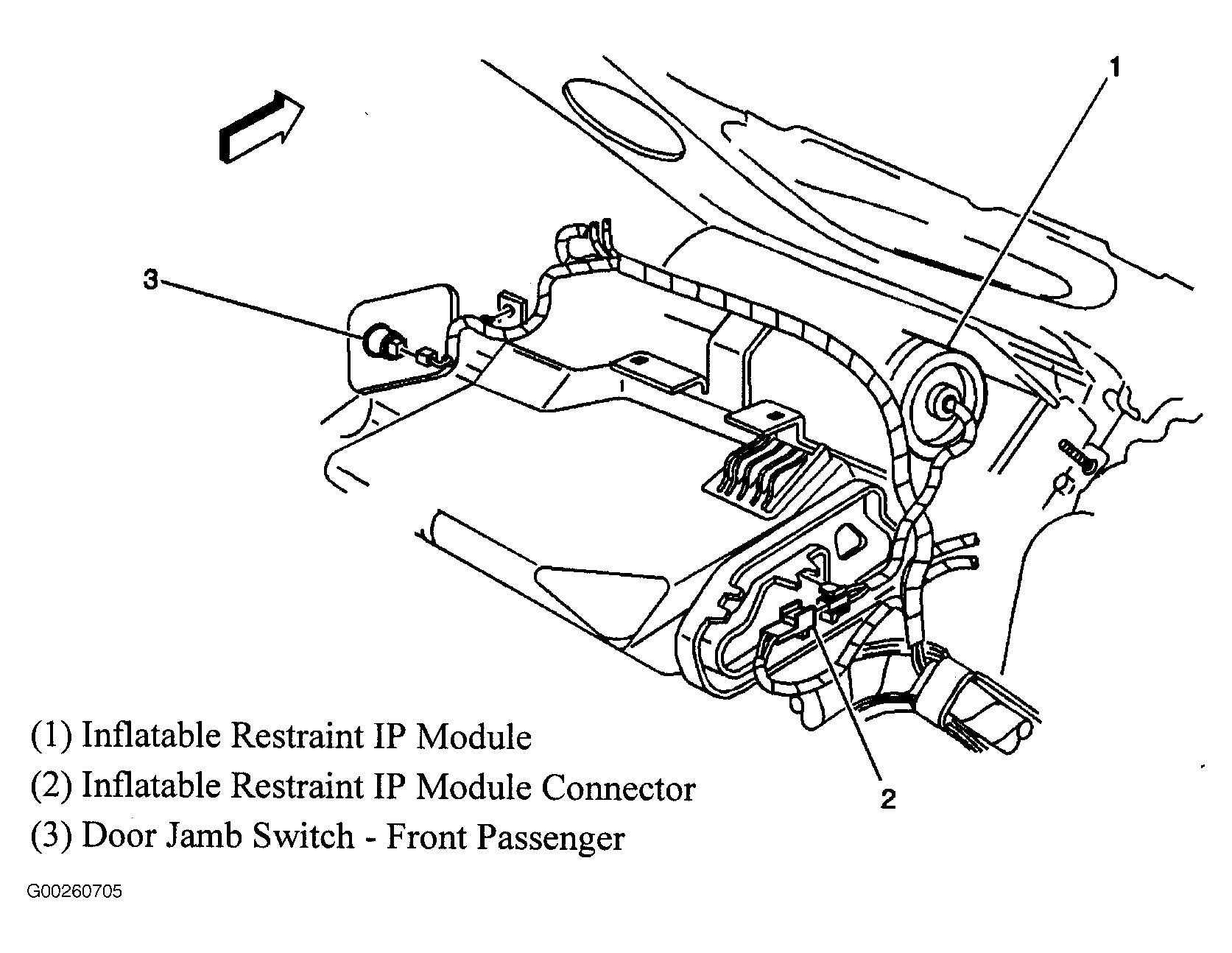

| Inflatable Restraint I/P Module | Right side of dash. See Figure. |
| Inflatable Restraint Module Connector | Right side of dash. See Figure. |

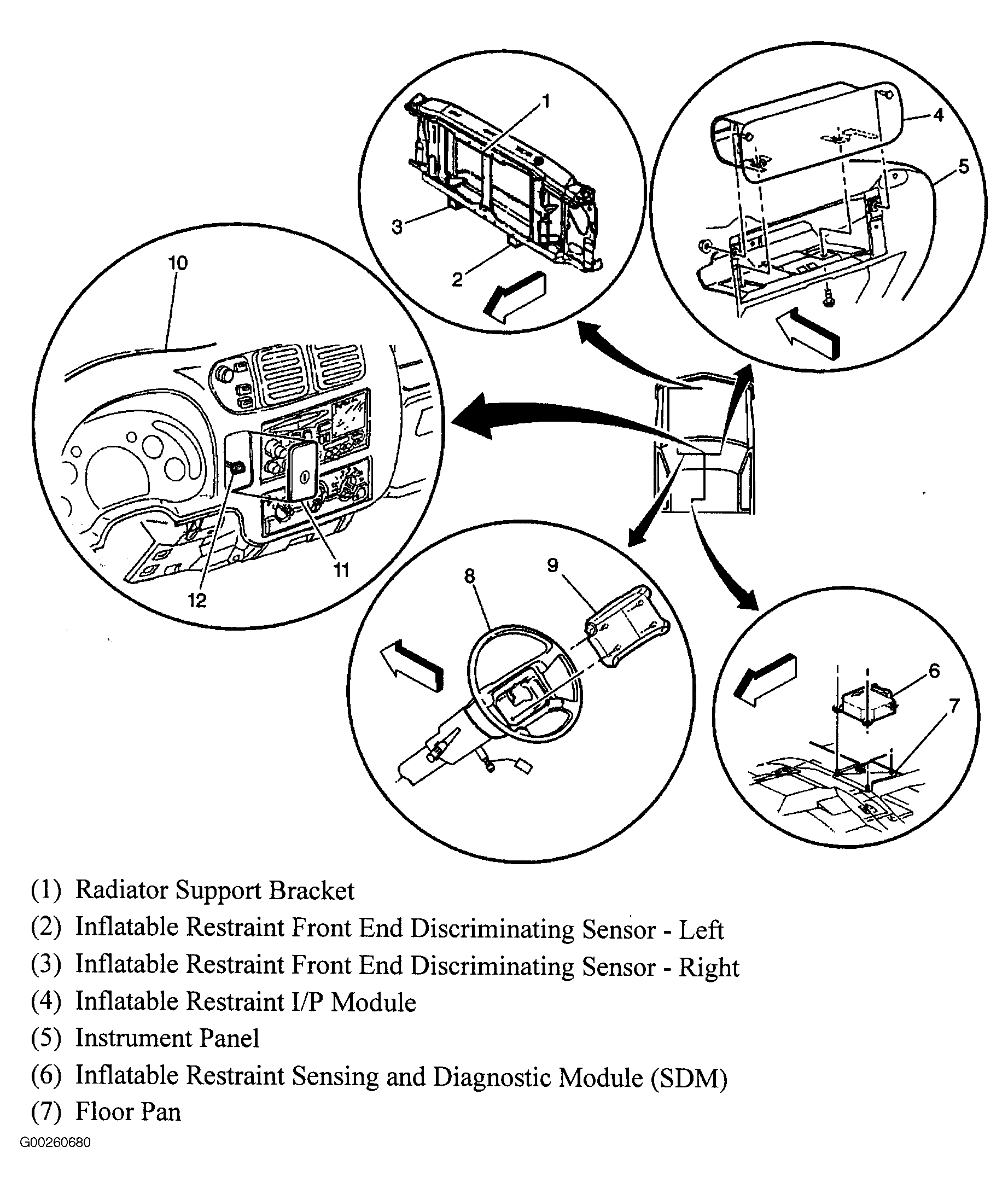

| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under console & carpet, between front seats. See Figure. |
| Inflatable Restraint Steering Wheel Module | In steering wheel. See Figure. |
| Memory Seat Module (Driver) | Under left front seat. |

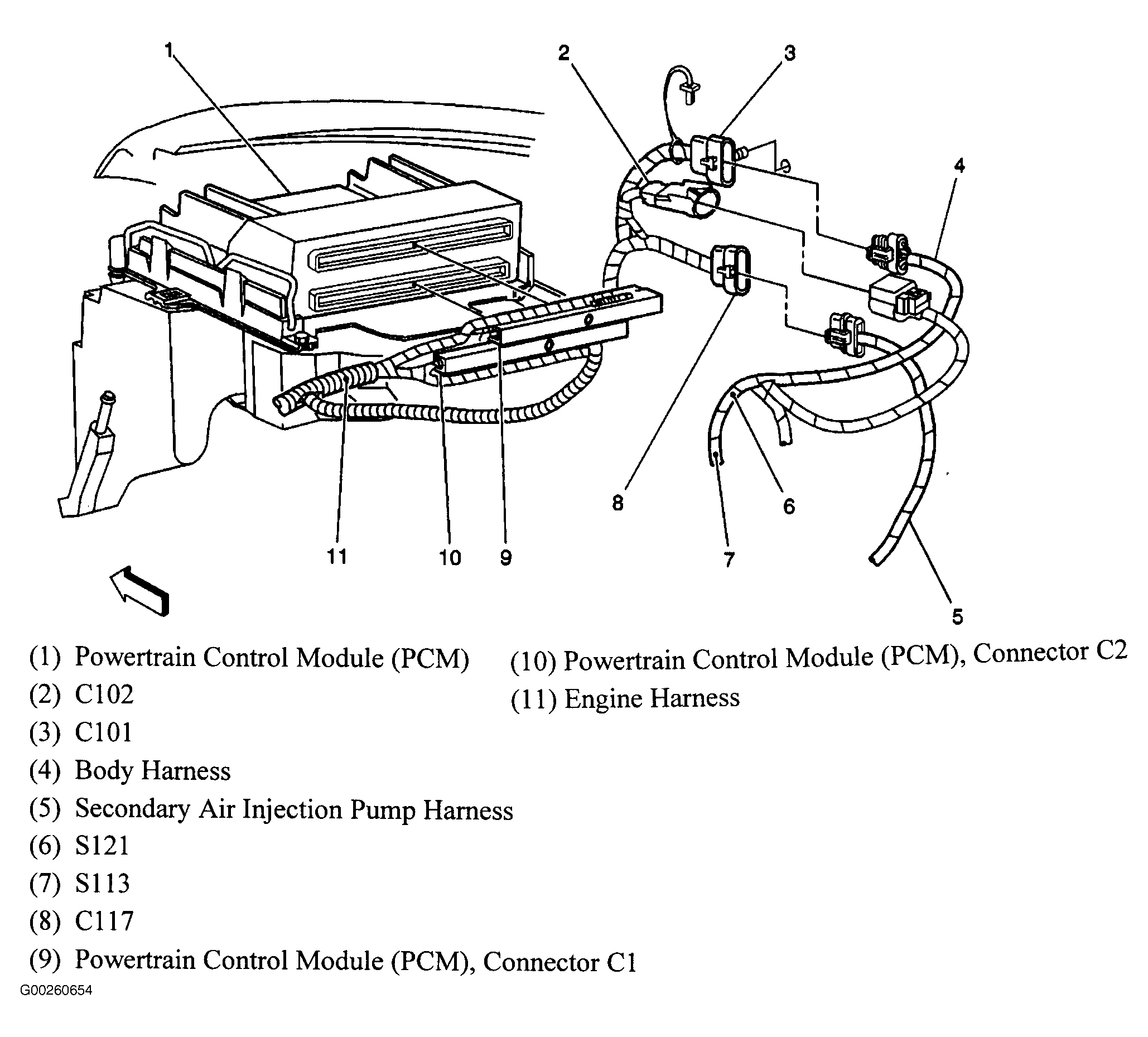

| Powertrain Control Module (PCM) | On right side of engine compartment. See Figure. |

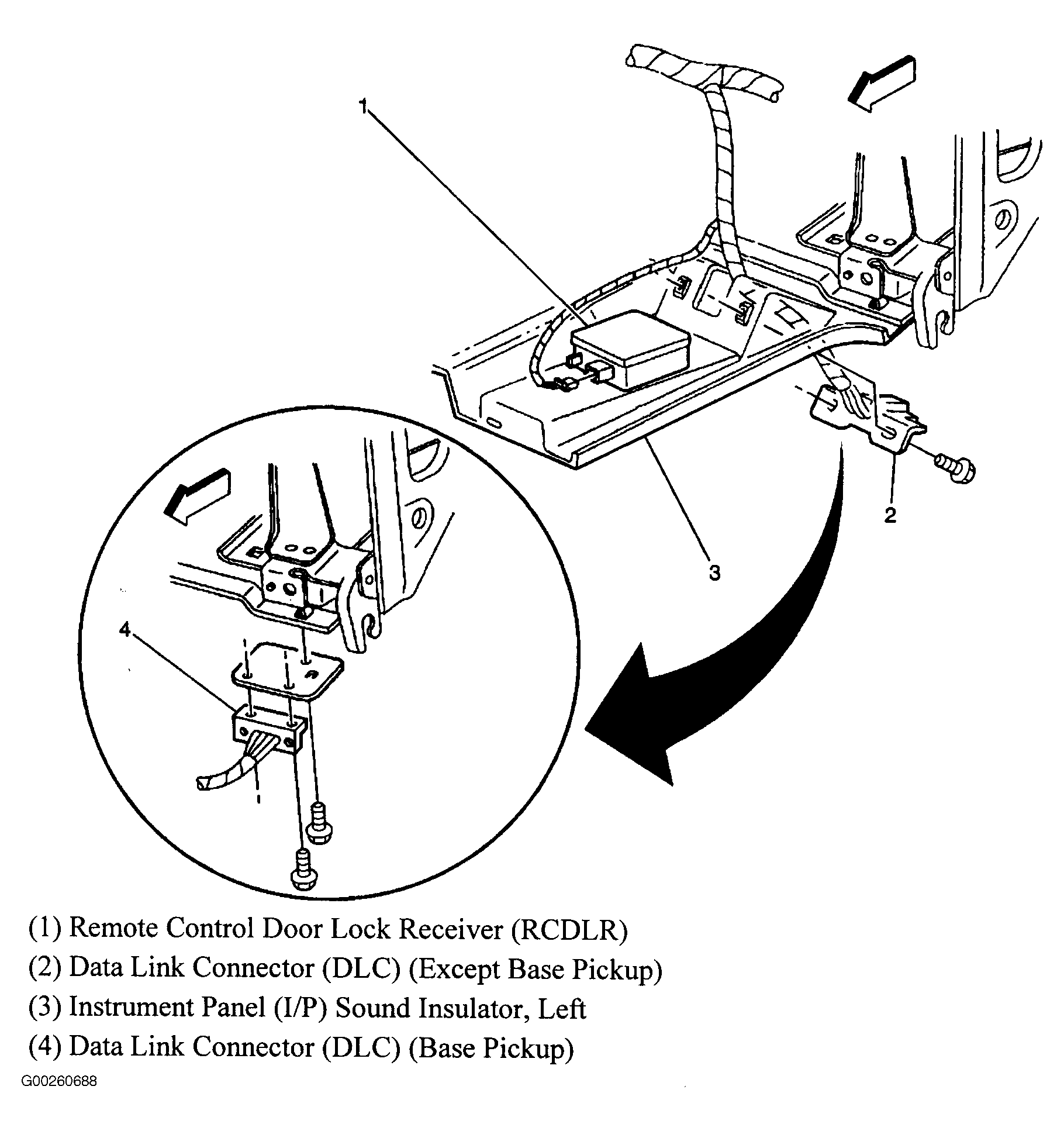

| Remote Control Door Lock Receiver (RCDLR) | Behind lower left side of dash. See Figure. |

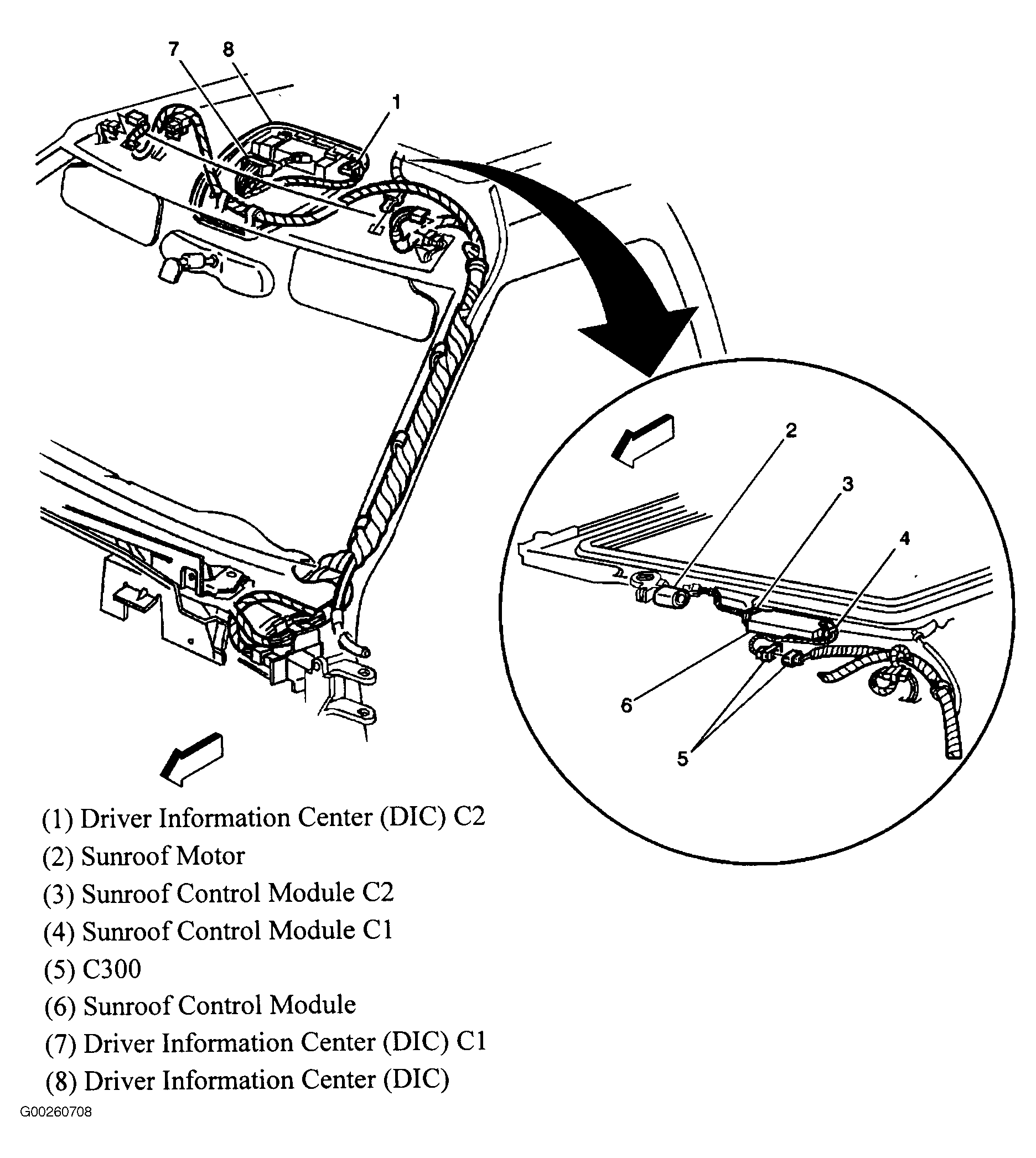

| Sunroof Control Module | At front of sun roof. See Figure. |

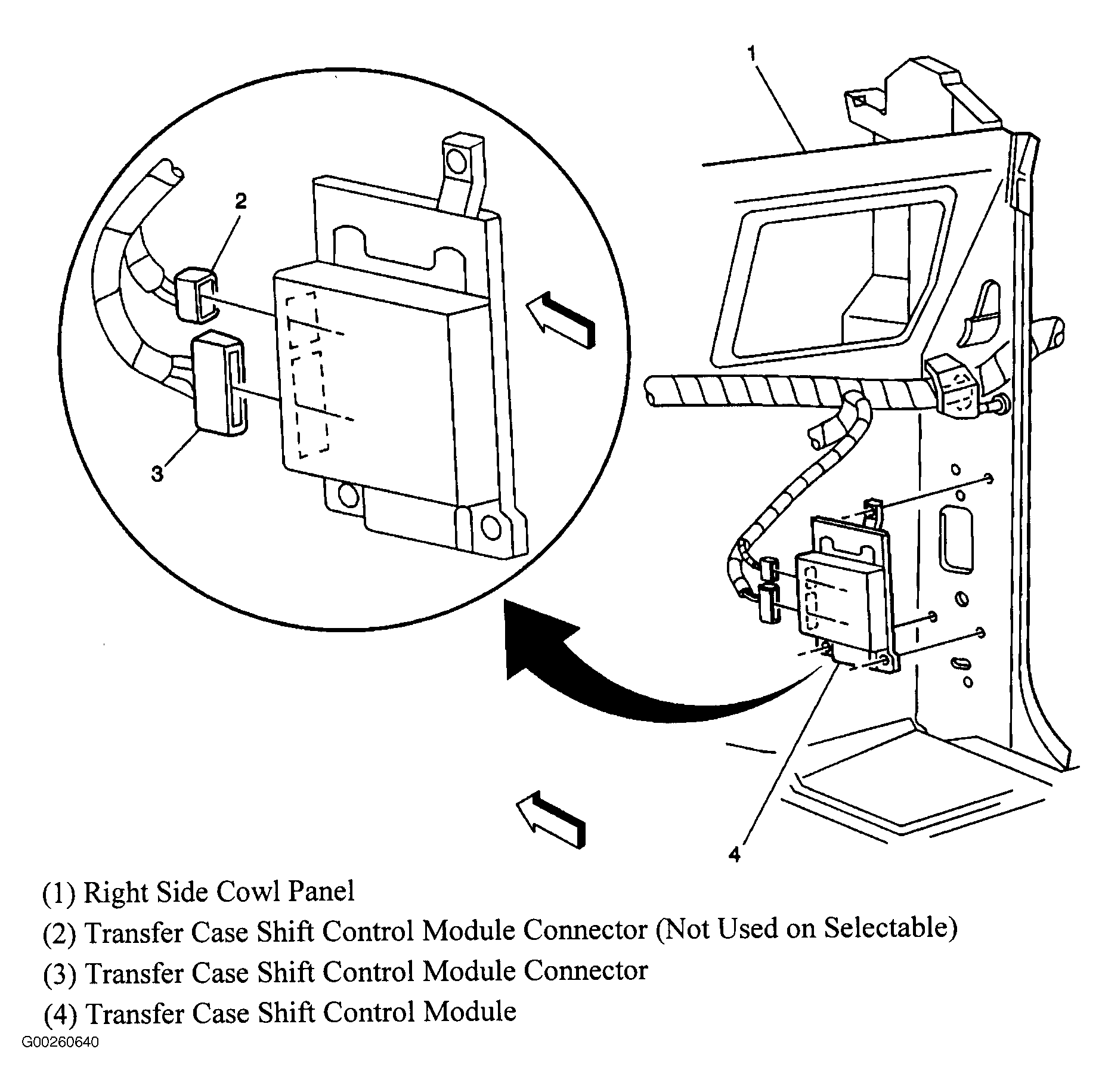

| Transfer Case Shift Control Module | Behind right kick panel. See Figure. |
| Transfer Case Shift Control Module Connector | Behind right front kick panel. See Figure. |

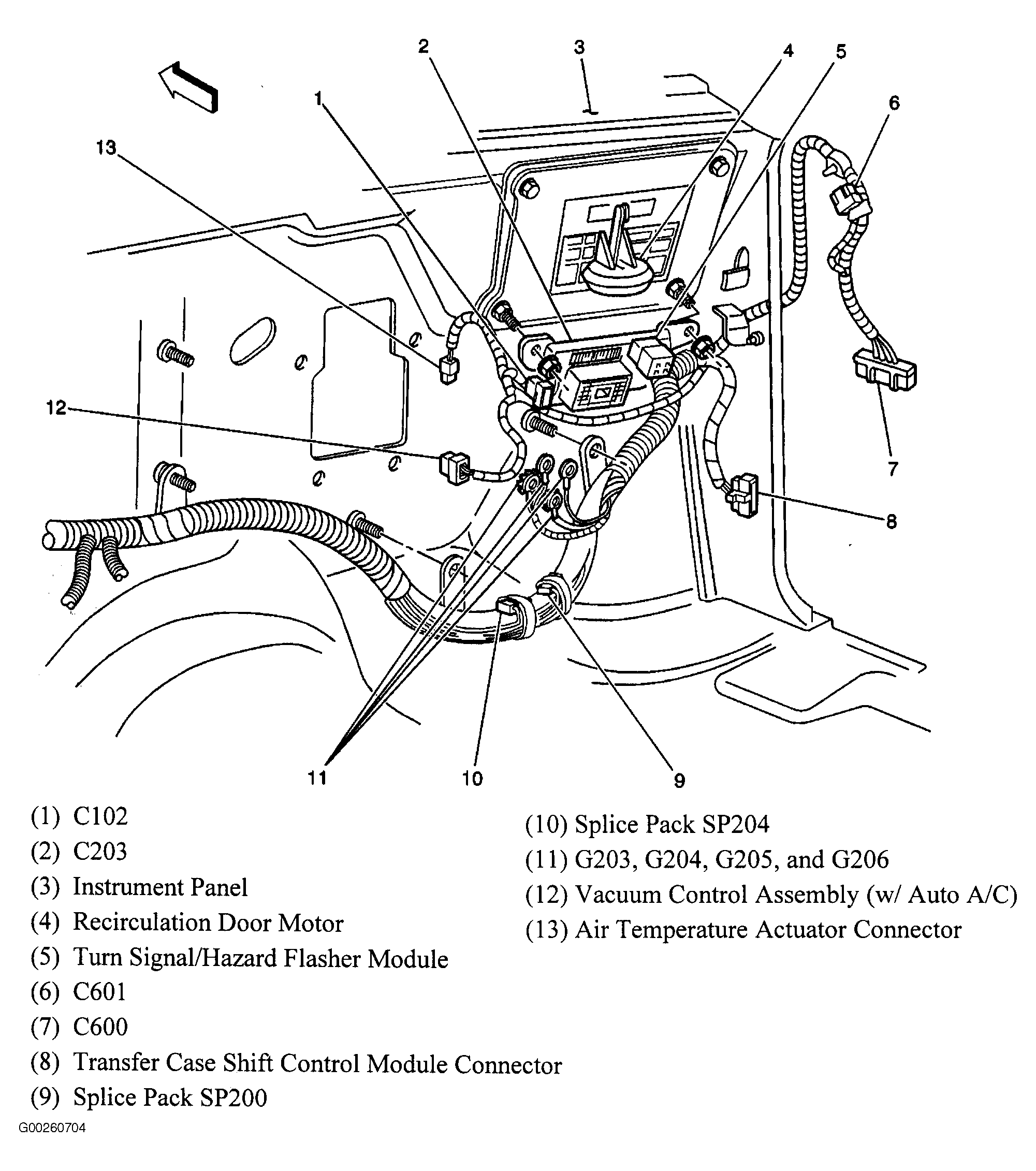

| Turn Signal Lamp/Hazard Flasher Module | Behind right side of dash. See Figure. |

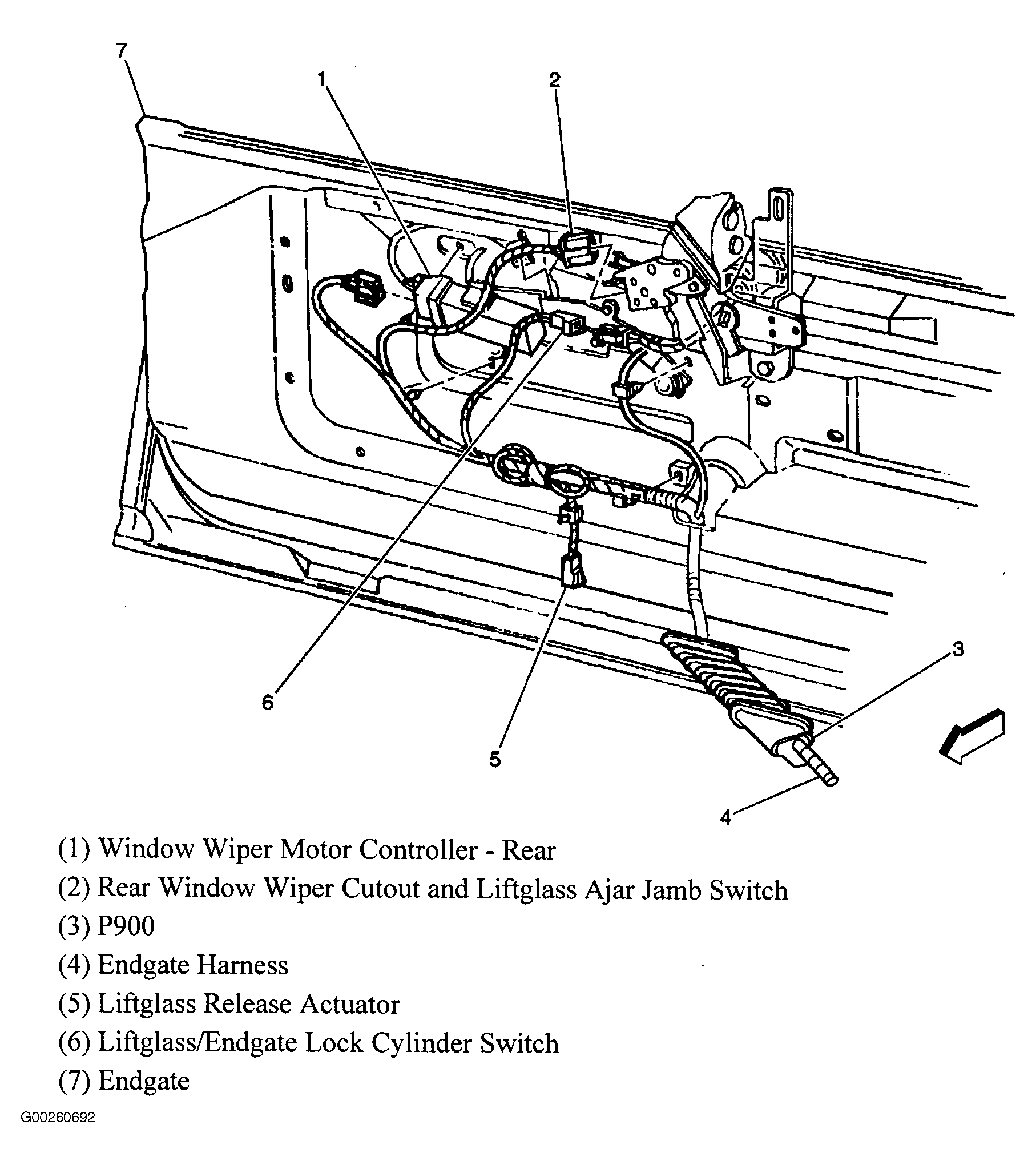

| Window Wiper Motor Controller-Rear | Part of rear window wiper motor. See Figure. |
