Fuel Sender Assembly

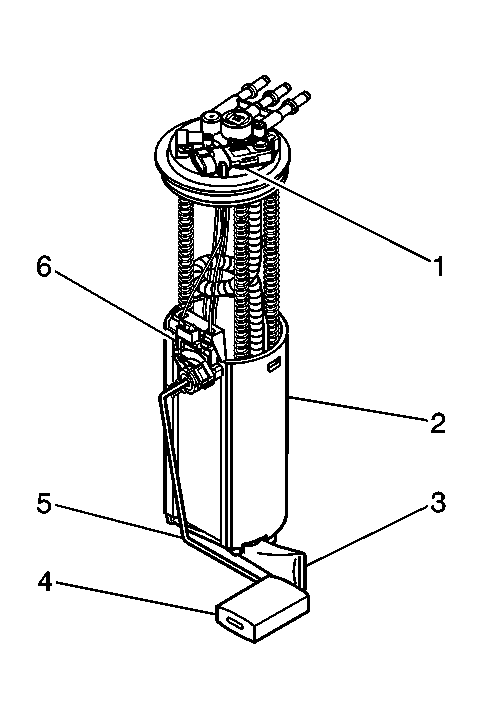

Fig 1: Fuel Sender Assembly

Courtesy of GENERAL MOTORS CORP.

The fuel sender assembly consists of the following major components:

• The fuel level sensor (6)
• The fuel tank pressure (FTP) sensor (1)
• The fuel pump module (2)
• The fuel strainer (3)
