Installation Procedure

    NOTE: Refer to Mass Air Flow (MAF) Handling Notice in Cautions and Notices.

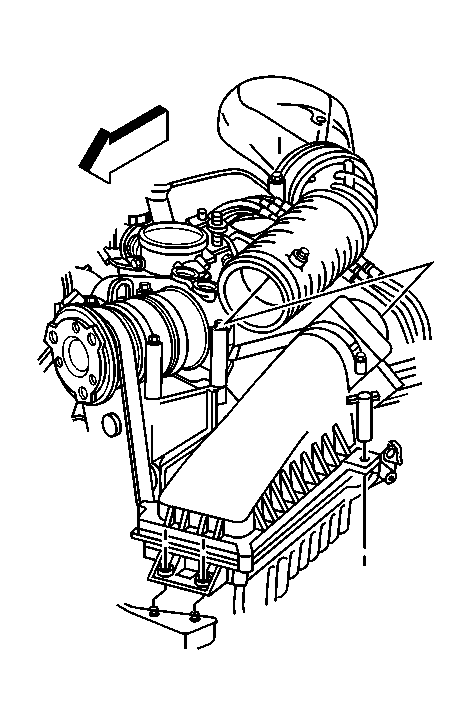

    Fig 1: Air Intake Tube Routing
    GM424556Courtesy of GENERAL MOTORS CORP.
  1. Install air cleaner outlet duct to throttle body.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install air cleaner outlet duct to MAF sensor.

    Tighten:  Tighten the hose clamp to 4 N.m (35 lb in).

    3. Fig 2: Locating IAT Sensor Harness Connector
    GM10940Courtesy of GENERAL MOTORS CORP.
  3. Connect the IAT sensor harness connector.

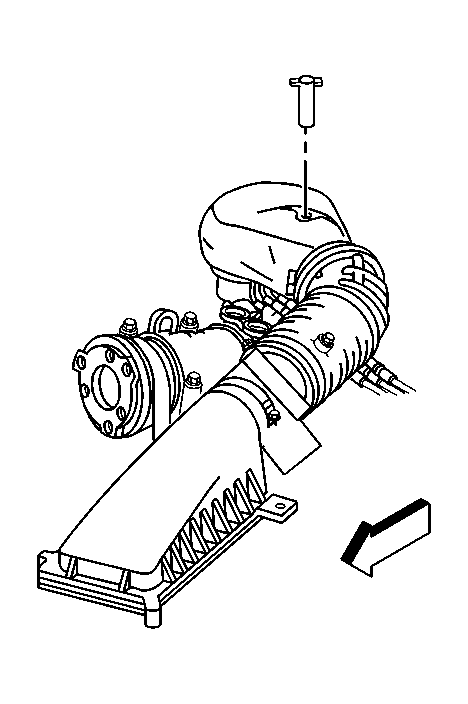

    4. Fig 3: Locating Cleaner Outlet Duct Retaining Wingnut
    GM312278Courtesy of GENERAL MOTORS CORP.
  4. Install the air cleaner outlet duct retaining wingnut.

    Tighten:  Tighten the wingnut to 2 N.m (18 lb in).

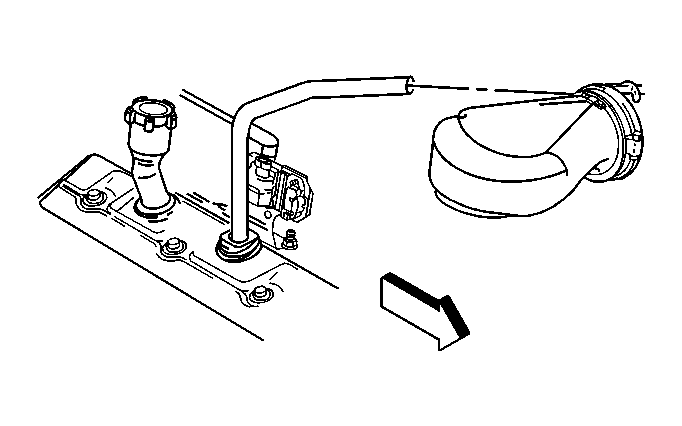

    5. Fig 4: View Of Breather Tube At Air Cleaner Outlet Duct
    GM444792Courtesy of GENERAL MOTORS CORP.
  5. Connect the breather tube to the air cleaner outlet duct.
