Installation Procedure

CAUTION: In order to reduce the risk of fire and personal injury, before connecting fuel pipe fittings, always apply a few drops of clean engine oil to the male pipe ends.
This will ensure proper reconnection and prevent a possible fuel leak.
During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated.
    Fig 1: Locating Fuel Pipes
    GM331785Courtesy of GENERAL MOTORS CORP.
  1. Install the new O-ring seals on the engine compartment fuel feed and the return pipes.
  2. Connect the chassis fuel feed and return pipes (1) to the engine compartment fuel feed and return pipes.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the fuel pipes into the retainer clip (2).
  4. Install the fuel pipe retainer clip bolt.

    Tighten:

    1. Tighten the fuel pipe fittings to 27 N.m (20 lb ft) using a back-up wrench.
    2. Tighten the fuel pipe retainer clip bolt to 30 N.m (22 lb ft).

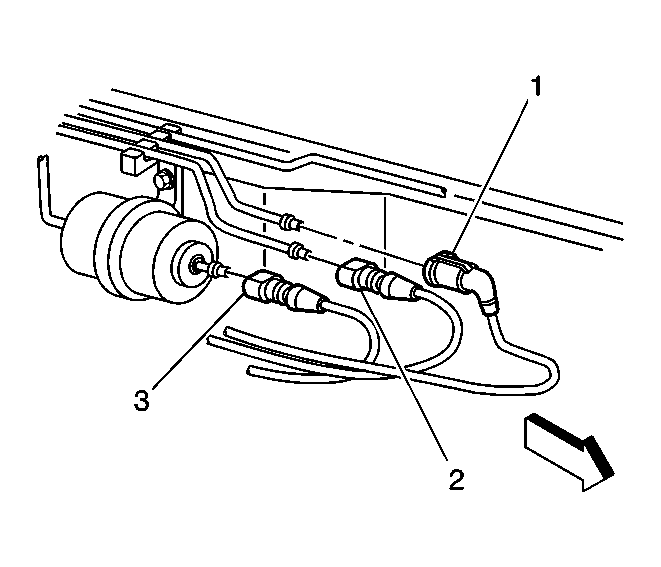

    5. Fig 2: Locating Fuel Filter & Fuel Lines
    GM255018Courtesy of GENERAL MOTORS CORP.
  5. Connect the fuel feed pipe (3) and the fuel return pipe (2). Refer to Quick Connect Fitting(s) Service (Plastic Collar) .
  6. Install the transmission. Refer to Transmission Replacement in Manual Transmission - NV 3500.
  7. Tighten the fuel filler cap.
  8. Connect the negative battery cable.
  9. Inspect for leaks.
    1. Turn ON the ignition for 2 seconds.
    2. Turn OFF the ignition for 10 seconds.
    3. Turn ON the ignition.
    4. Inspect for fuel leaks.
