Removal Procedure

  1. Drain the fuel from the tank. Refer to Fuel Tank Draining Procedure (2-Door Utility) .
    2. Fig 1: View Of Fuel Tank Shield
    GM747563Courtesy of GENERAL MOTORS CORP.
  2. If applicable remove the fuel tank shield (2).

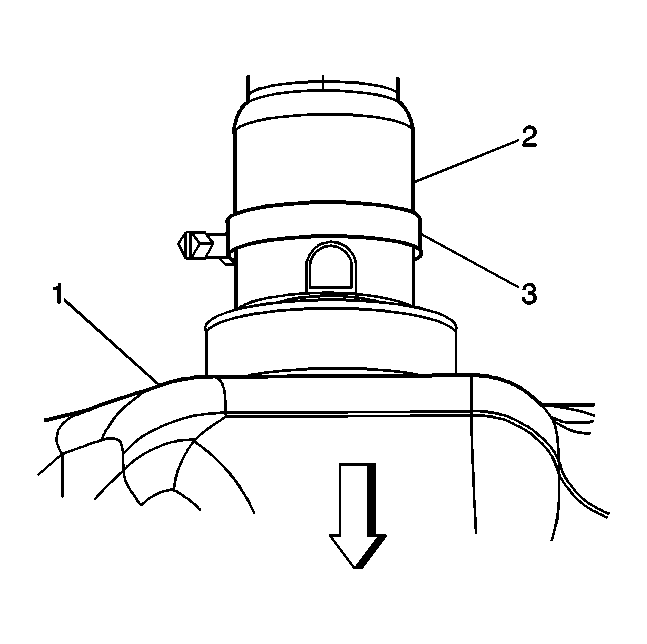

    3. Fig 2: View Of Fuel Fill Hose Clamp At Fuel Tank
    GM747554Courtesy of GENERAL MOTORS CORP.
  3. Loosen the fuel fill hose clamp (3) at the fuel tank (1).
  4. Disconnect the lower fuel fill hose (2) from the fuel tank (1).
  5. Disconnect the vent hoses from the fuel limiter vent valve.
  6. Disconnect the vent hose from the rollover valve at the front of the fuel tank.
    7. Fig 3: Locating Fuel Pressure Sensor & The Fuel Sender Harness Connectors
    GM747556Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the fuel pressure sensor and the fuel sender harness connectors (2, 3) from the fuel sender (1).
    8. Fig 4: Locating Fuel Feed, Return, & EVAP Purge Pipes At Fuel Sender
    GM747555Courtesy of GENERAL MOTORS CORP.
  8. Disconnect the fuel feed, return, and EVAP purge pipes (2, 3, 4), at the fuel sender. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .
    9. Fig 5: Locating Fuel Tank Components
    GM747558Courtesy of GENERAL MOTORS CORP.
  9. Support the fuel tank.
  10. Remove the fuel tank straps (1).
  11. Remove the fuel tank and place in a suitable work area.
  12. Remove the fuel sender from the fuel tank. Refer to Fuel Sender Assembly Replacement (Utility/Crew Cab) .
