Installation Procedure

IMPORTANT: A replacement ignition coil kit comes with 2 screws in order to attach the ignition coil to the bracket.

NOTE: Refer to Fastener Notice in Cautions and Notices.

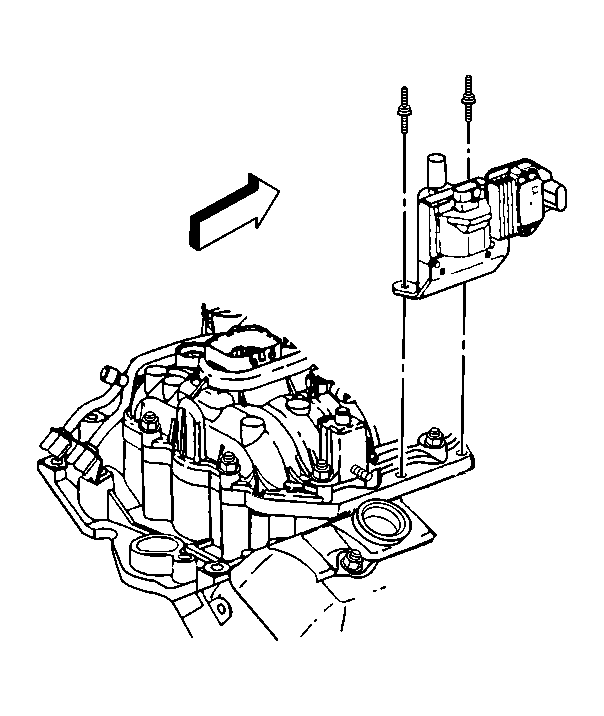

Fig 1: View Of Ignition Coil, Bracket & Studs

Courtesy of GENERAL MOTORS CORP.

Install the ignition coil and the bracket to the intake manifold with studs.
Tighten: Tighten the studs to 11 N.m (97 lb in).

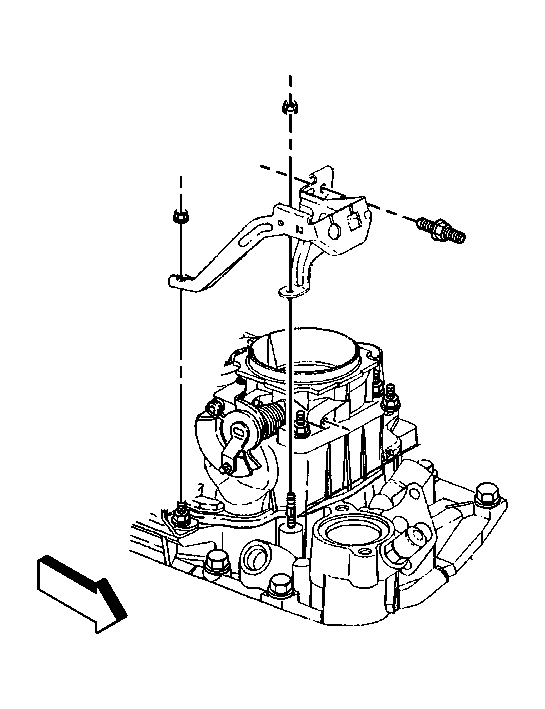

Fig 2: View Of Accelerator Cable Bracket

Courtesy of GENERAL MOTORS CORP.

Install the accelerator control bracket.
Tighten: Tighten the accelerator control cable bracket nuts and studs to 12 N.m (8.9 lb ft).

Fig 3: View Of Ignition Coil Wire Harness

Courtesy of GENERAL MOTORS CORP.

Install the ignition coil wire.
The wire must not touch anything like the dip stick. Rubbing will make a ground or short after time of use.
Install the electrical connectors.

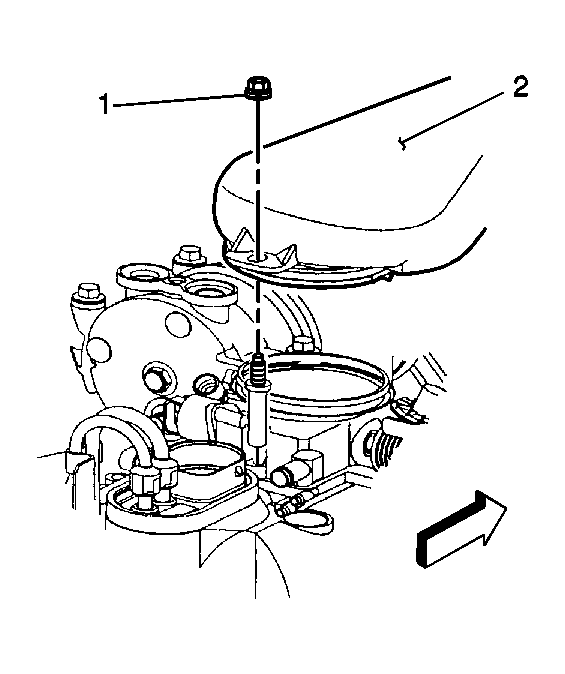

Fig 4: Locating Air Cleaner Outlet Retaining Nut

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner assembly (2) and nut (1). Refer to Air Cleaner Assembly Replacement .
