Installation Procedure

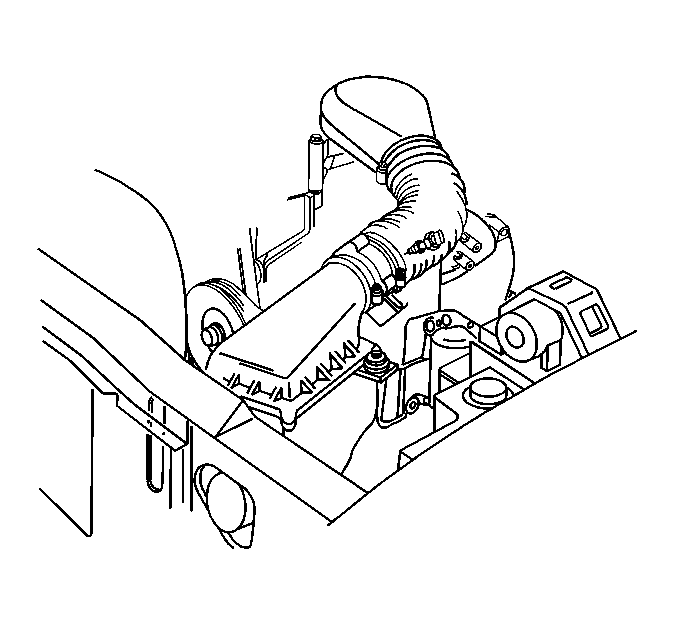

    Fig 1: Locating IAT Sensor
    GM10941Courtesy of GENERAL MOTORS CORP.
  1. Install the IAT sensor by gently pushing the sensor into the air cleaner outlet duct until seated.

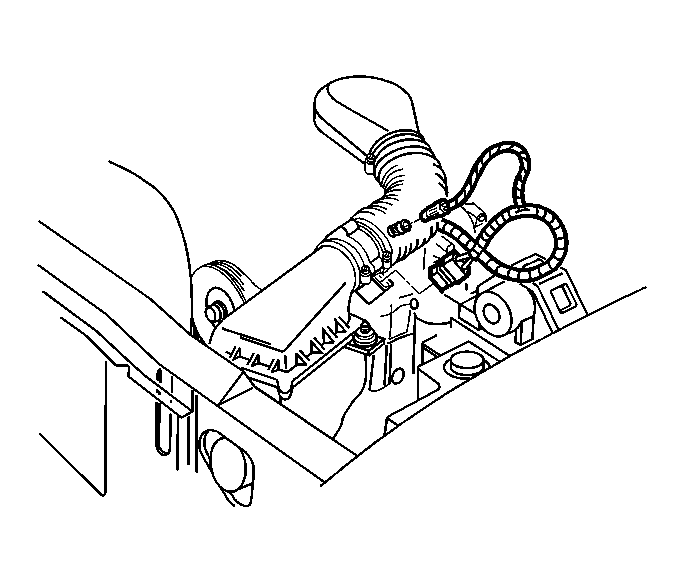

    2. Fig 2: Locating IAT Sensor Harness Connector
    GM10940Courtesy of GENERAL MOTORS CORP.
  2. Connect the IAT sensor harness connector.
  3. Connect the negative battery cable.
